GE APPLIANCES logoGE APPLIANCES GTE18MTRR Refrigerator - fig 2GTE18MTRR
GE ® ENERGY STAR ®
18.3 Cu. Ft. Top-Freezer Refrigerator

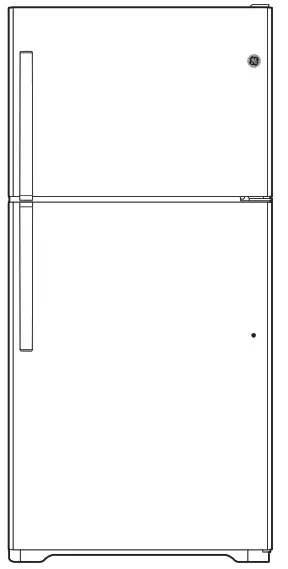

GE APPLIANCES GTE18MTRR Refrigerator

FEATURES AND BENEFITS

  1. Quality and Dependability – Among 16-22 cu. ft. refrigerators based on an independent study of property maintenance personnel.
    Source: The Stevenson Company, 2020—Market research company with over 20 years of experience in the appliance industry.
    Interior LED lighting – Find all your favorite foods under natural-looking light.
    Premium Inner Door – Enjoy greater flexibility and organizational options with modular bins right on the door.
  2. Adjustable Humidity Controlled Drawers – Adjustable humidity controls help keep food fresh.
    Upfront Temperature Control – Easy-to-access upfront temperature controls help regulate the fresh food section.
    Spillproof glass shelves – Raised edges help contain spills and make clean-up quick and easy.
    Adjustable Wire Freezer Shelf – Provides the flexibility to organize your frozen food items.
    Model GTE18MTRRWW – White
    Model GTE18MTRRBB – Black

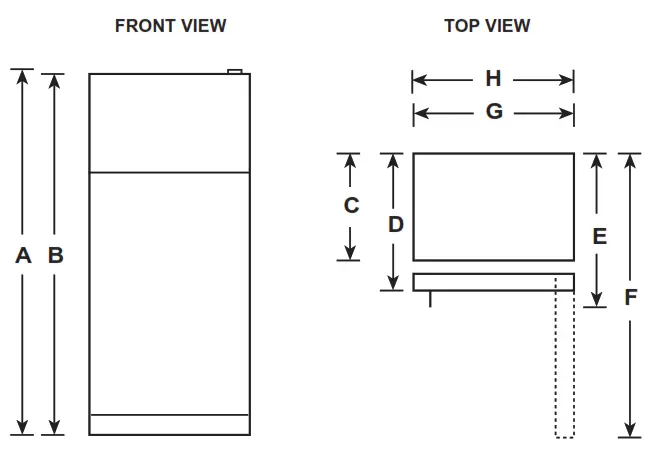

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

OVERALL DIMENSIONSHeight to top of hinge (in.) A66-3/4
Height to top of case (in.) B65
Case depth without door (in.) C27-3/4
Case depth less door handle (in.) D31-1/10
Case depth with door handle (in.) E32-3/4
Depth with fresh food door open 90° (in.) F58-7/10
Width (in.) G29-3/4
Width with door open 90° with door handle (in.) H30-1/2
AIR CLEARANCESEach side (in.)1/8
Top (in.)1
Back (in.)1

GE APPLIANCES GTE18MTRR Refrigerator - fig

For answers to your Monogram, GE Café ™ , GE Profile ™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center ® Service, 800.626.2000. GE APPLIANCES GTE18MTRR Refrigerator - fig 1GE APPLIANCES GTE18MTRR Refrigerator - fig 3

As an ENERGY STAR ® partner,
GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Specification Revised 11/21
