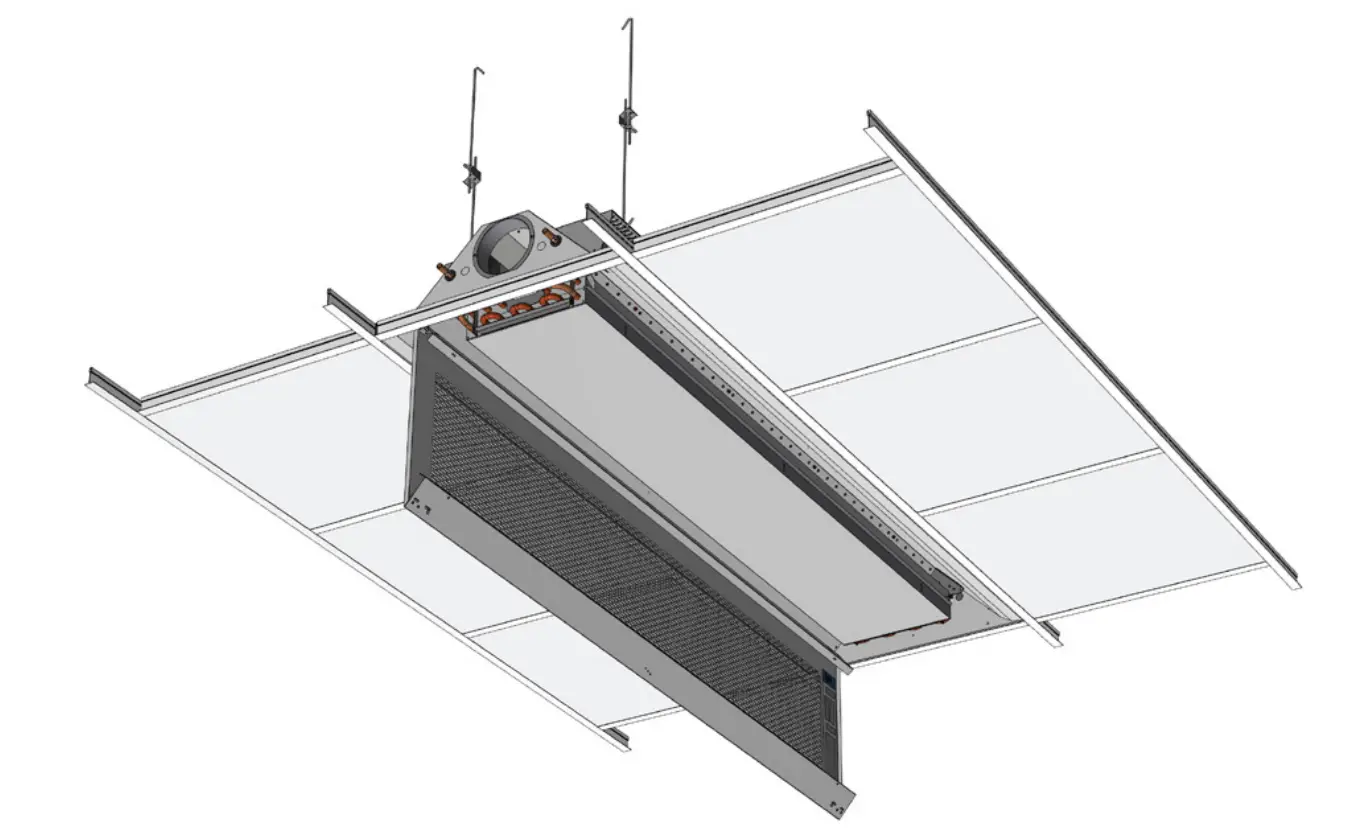

Lindab Solus Supply Air Baffle
Contents hide

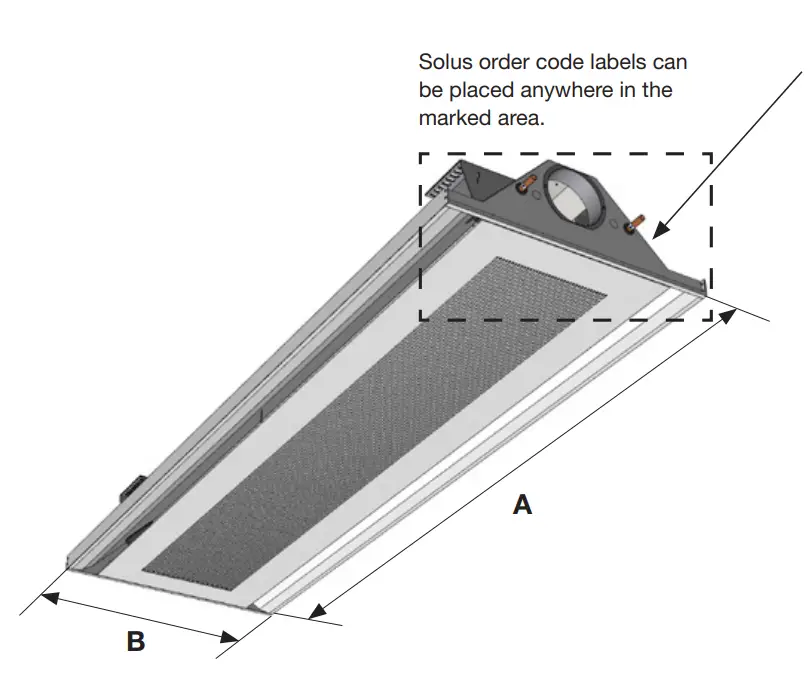

Dimensions
| Solus | L (mm) | A (mm) | B mm | kg / m |
| I-60 | 1800, 2400, 3000, 3600 | 1792, 2392, 2992, 3592 | 592 | 18 |
| I-62 | 1800, 2400, 3000, 3600 | 1867, 2492, 3117, 3742 | 617 |

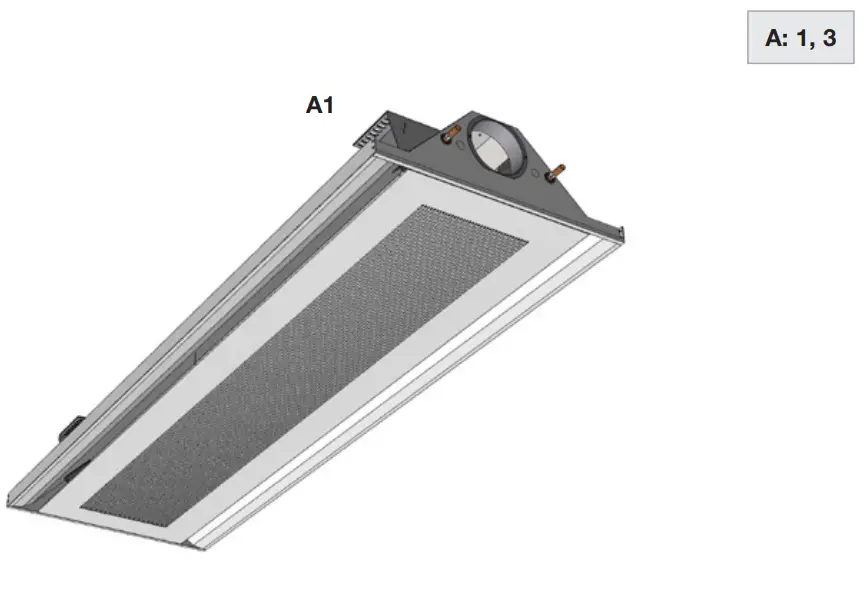

Possible combinations – Air / Water
Symbols
Heavy Load – 2 man job. It is recommended to use a “lift” for mounting

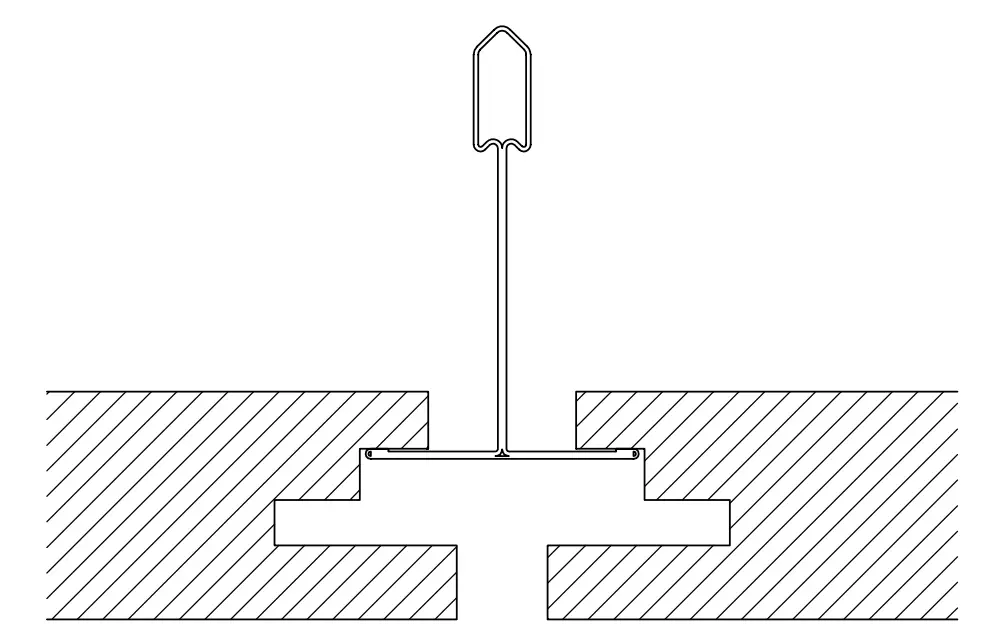

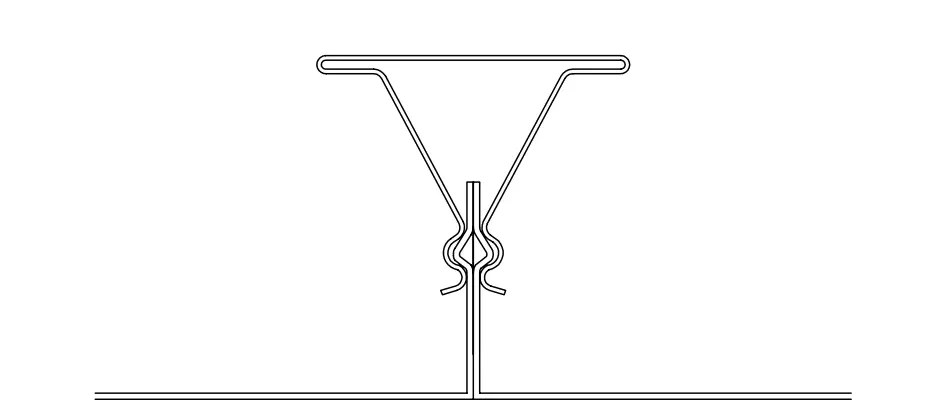

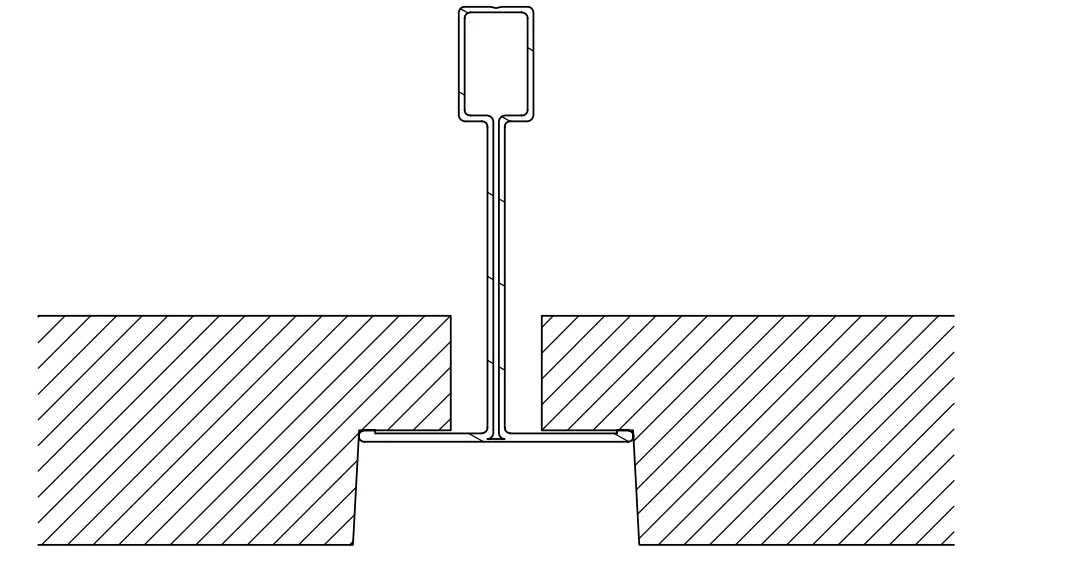

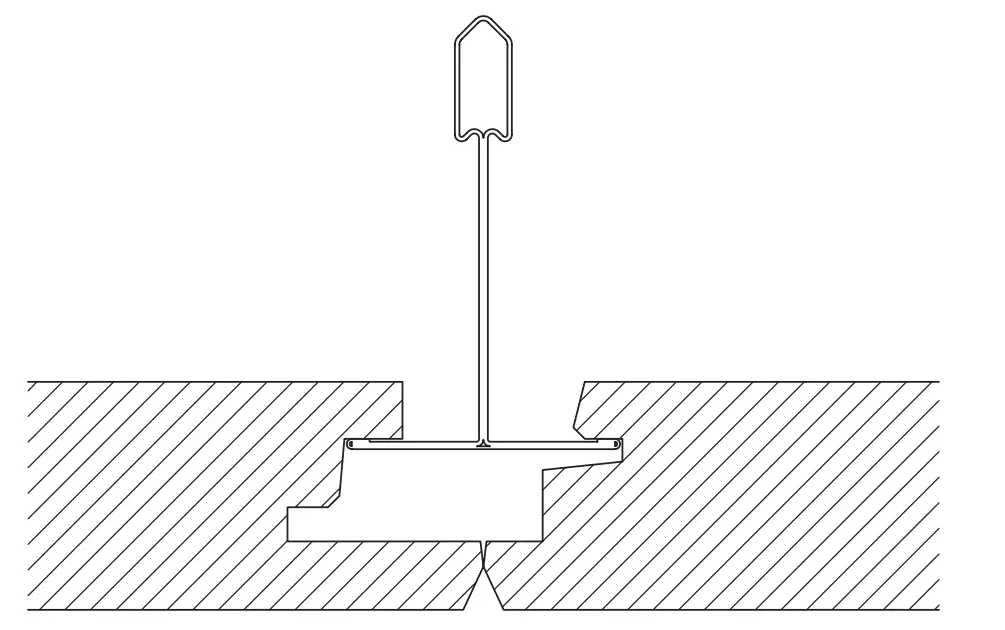

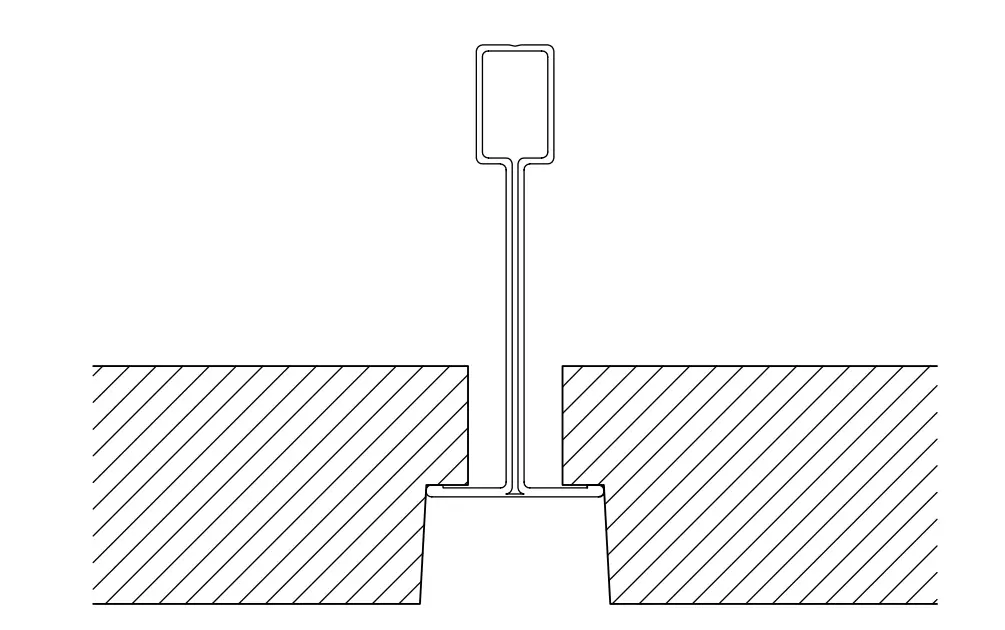

Ceiling systems

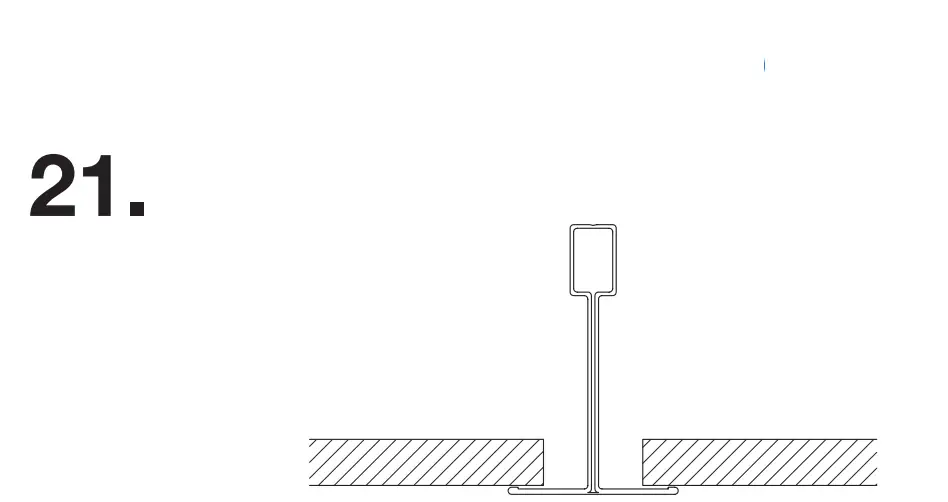

- T24/T15 = 600 x 600 21 = 625 x 625

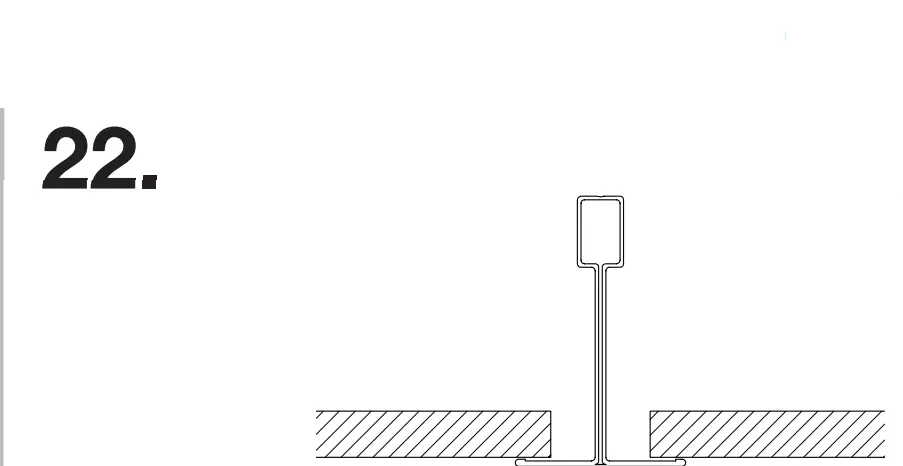

- T24/T15 = 600 x 600 22 = 625 x 625
Not
- Permanent ceiling

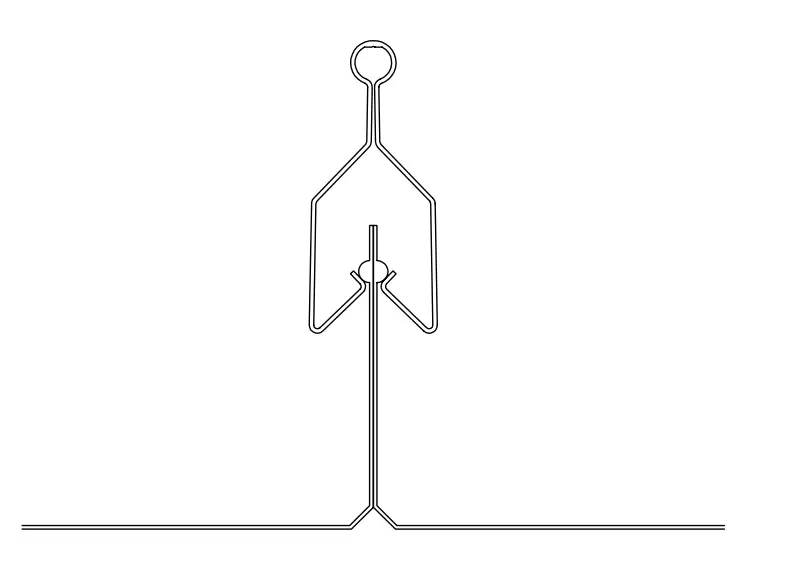

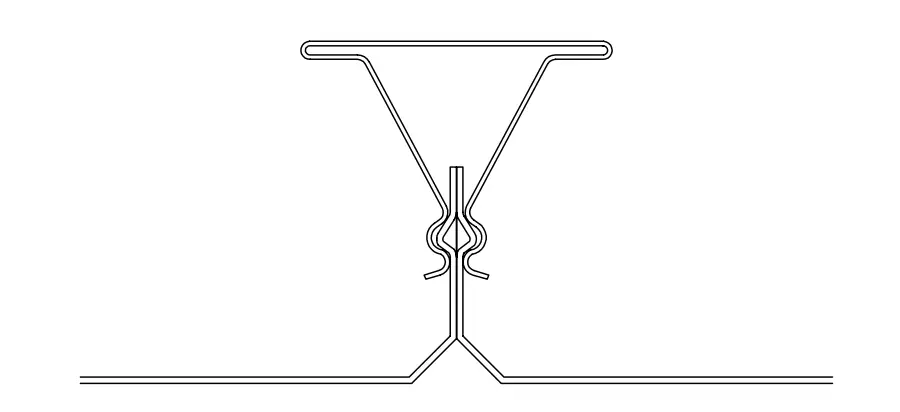

- Clip-in
- Clip-in
- Clip-in
- Ecophene D
- Focus DG

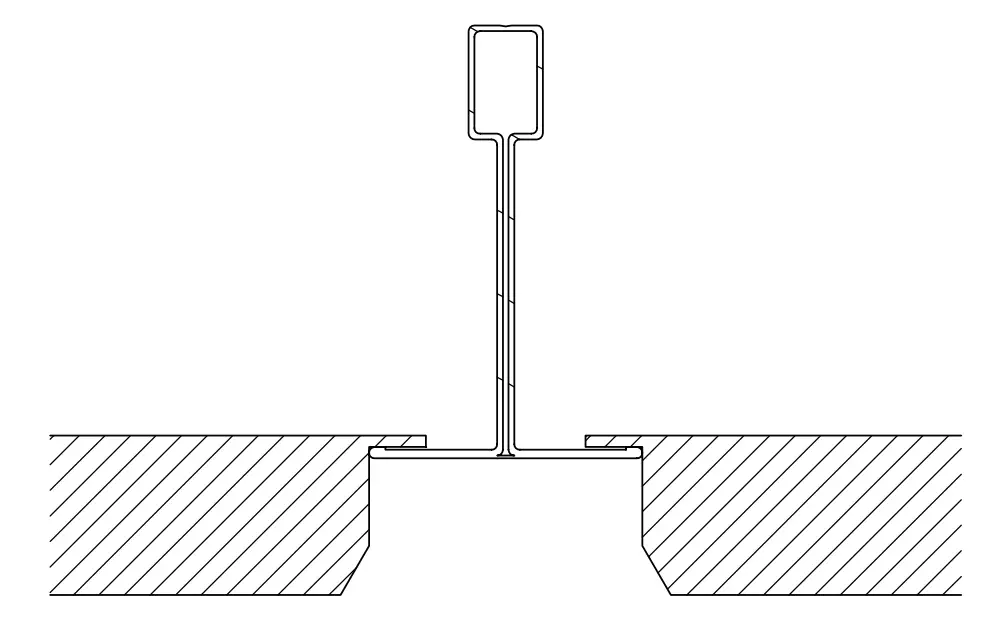

- Ecophon E / T24
- Ecophon E / T15
- Danotile Markant
- Ecophon Focus DS

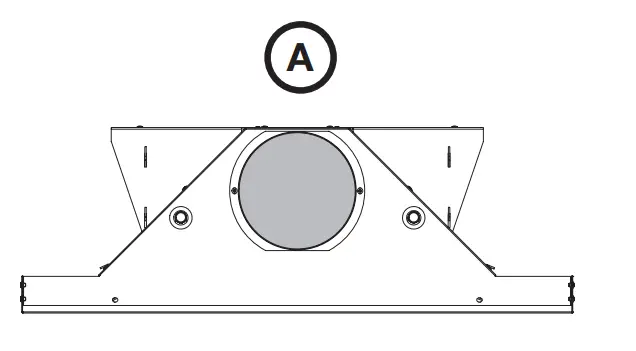

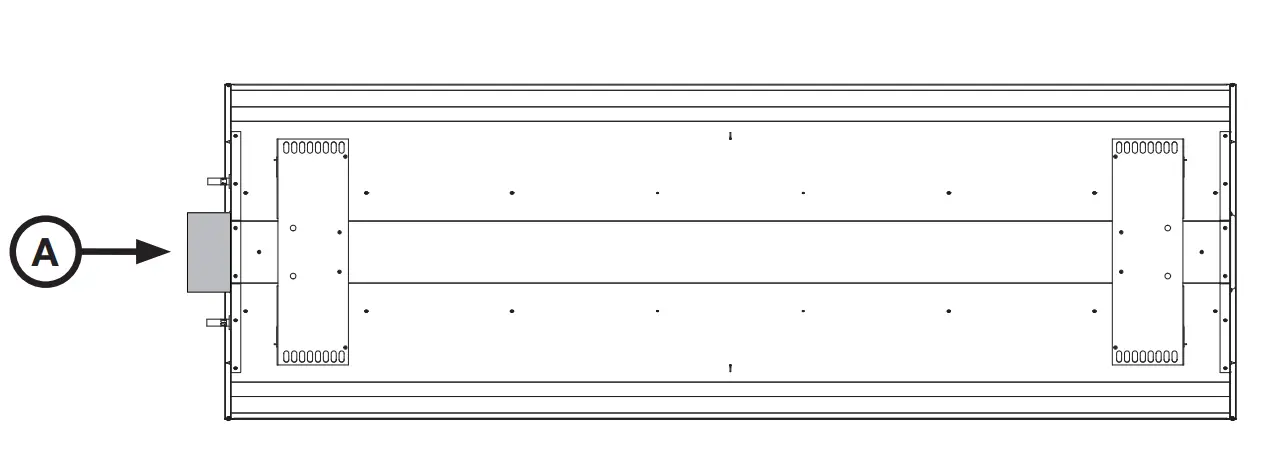

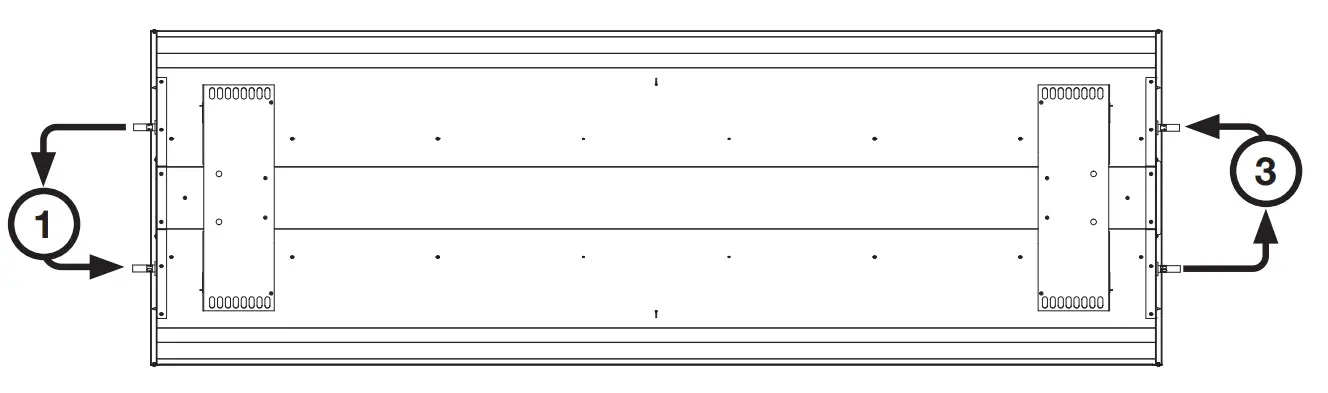

Possible connections – Supply air

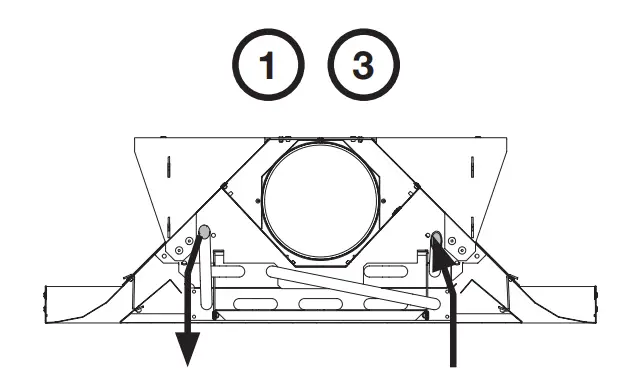

Possible connections – Water

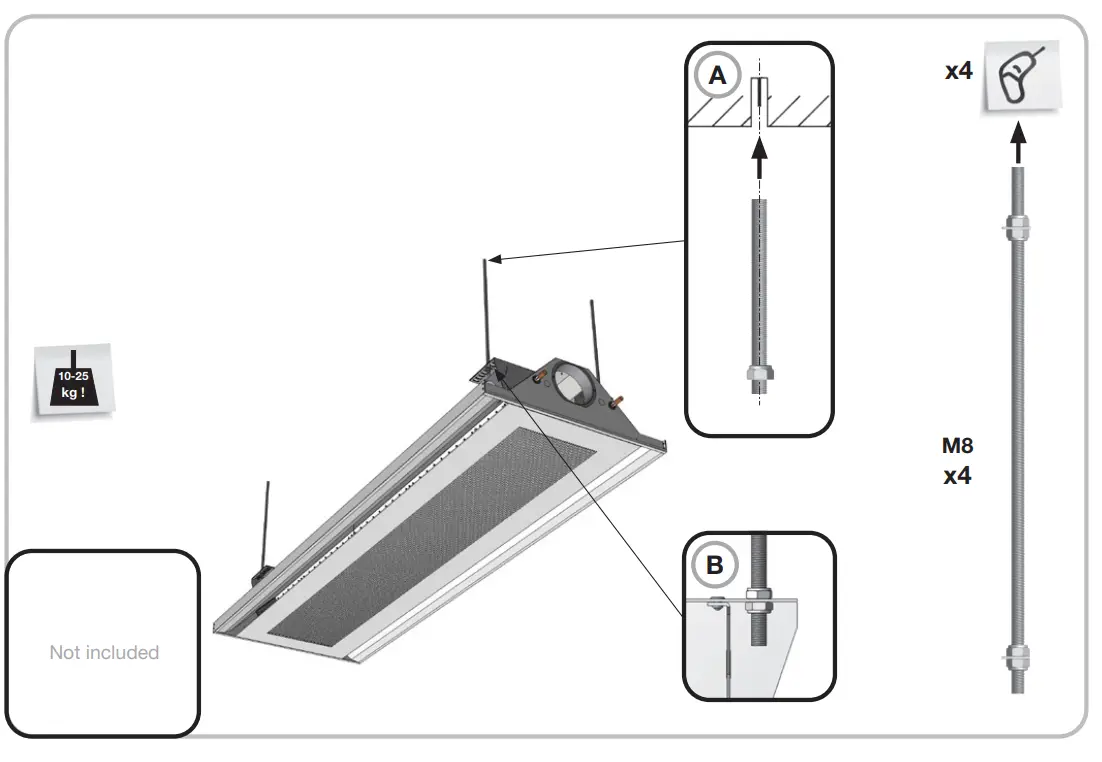

Mounting accessories -Threaded rod M8

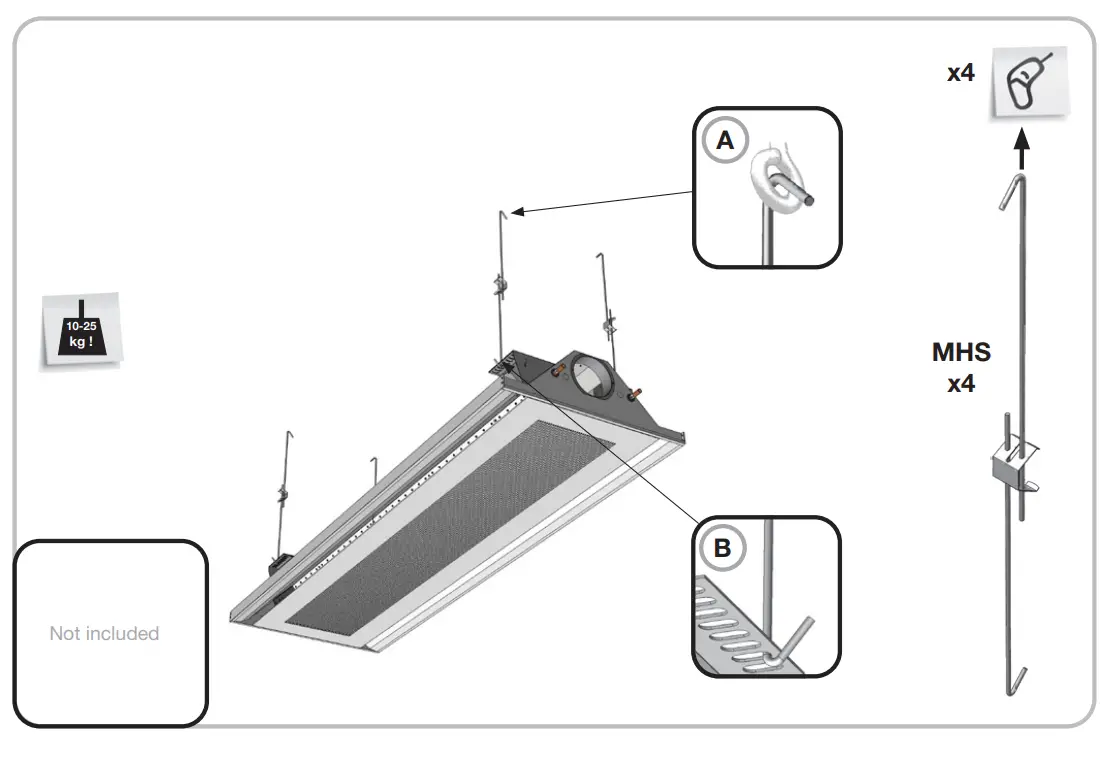

Mounting accessories – MHS
Mounting accessories – MHS

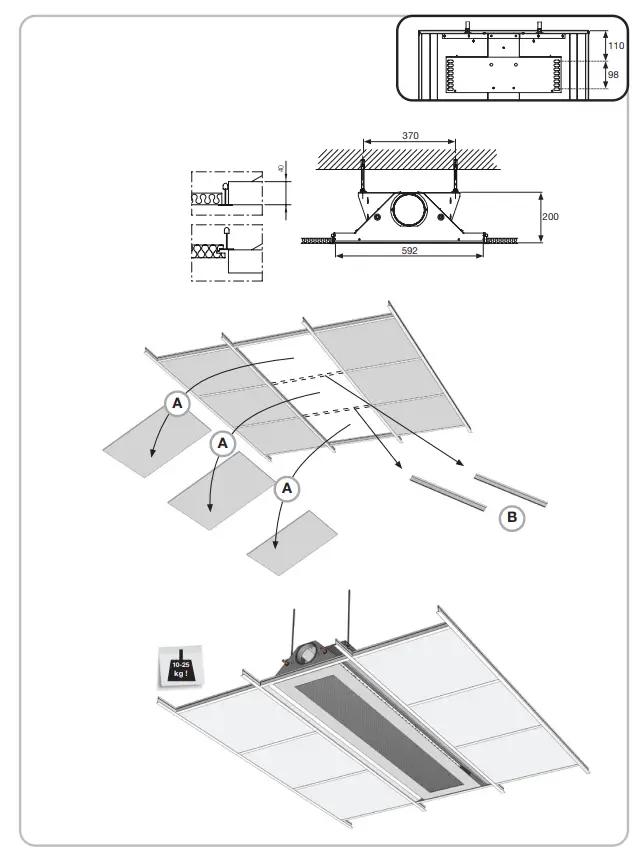

Mounting in ceiling

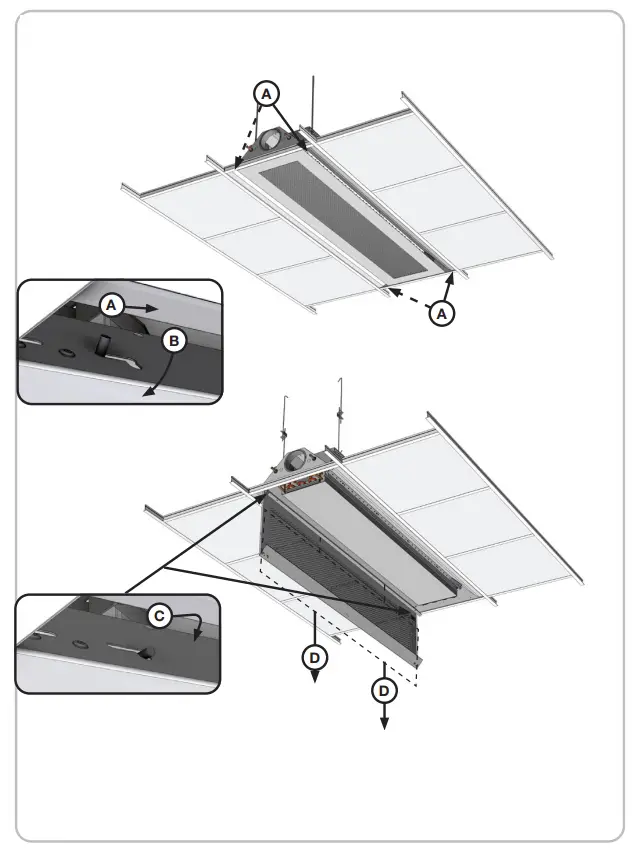

Opening face plate
The faceplate now hangs in sevice wire, it can be removed completely when demounted from service wire
Support
Here you can find product updates/mounting instructions and support telephone number/mail. www.lindab.com
Right to alterations reserved.
©2018.01 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB.
Lindab’s products, systems, product and product group designations are protected by intellectual property rights (IPR).
