Xinpuguang Rigid Series Solar Plant Kit System For Balcony 480w 4pc
Xinpuguang@ Rigid Series – Monocrystalline Modules

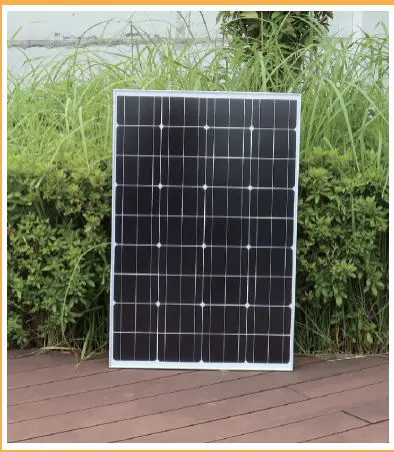

The Xinpuguang@ Rigid Series – Monocrystalline Modules are high-efficiency solar panels made of high-quality tempered glass and monocrystalline cells. These solar panels are designed to withstand harsh weather conditions, including high winds (2400Pa),hail, and snow load (5400Pa), making them ideal for off-grid applications in various settings.
Features
- Weather-proof – rugged design to withstand high winds (2400Pa),hail, and snow load (5400Pa).
- Heavy-duty anodized frame provides strong protection for the panel structure.

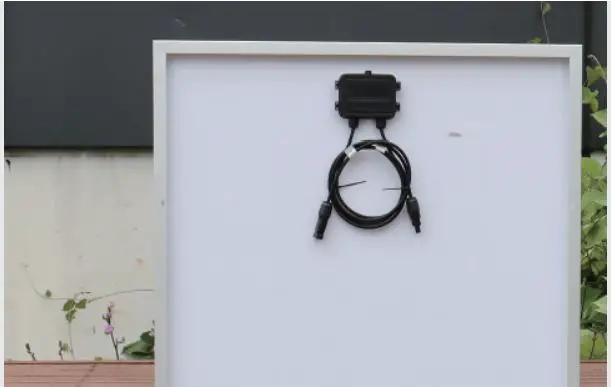

- Junction box with IP65 waterproof rating to resist long-term erosion in harsh rainy and humid weather.
- High efficiency – cell conversion rate as high as 23% with bypass diodes to reduce power drop caused by shadows and ensure excellent performance in low-light environments.

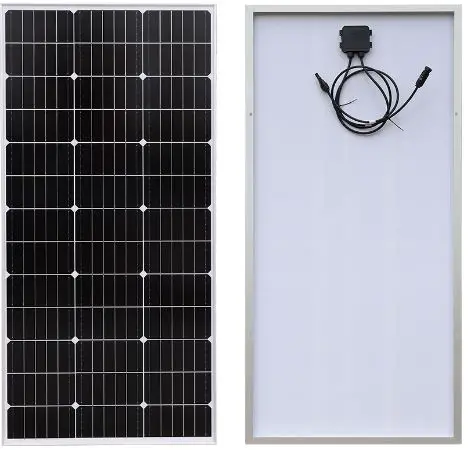

- Easy installation – pre-drilled holes on the back of the panel for fast mounting and securing, compatible with various solar panel brackets.
Electrical Parameters
The Xinpuguang@ Rigid Series – Monocrystalline Modules have different rated power and electrical parameters depending on the model number. Please refer to the table below for electrical parameters of different models:
| Rated Power (W) | Model No. | Cell Type | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Boundary Dimension (mm) |
|---|---|---|---|---|---|---|---|
| 5 | PG-GSP5W | 156 Mono | 18 | 0.28 | 21.6 | / | 240*175*18 |
| 10 | PG-GSP10W | 156 Mono | 18 | 0.56 | 21.6 | / | 325*240*18 |
| 20 | PG-GSP20W | 156 Mono | 18 | 1.11 | 21.6 | / | 505*295*18 |
| 25 | PG-GSP25W | 156 Mono | 12 | 2.08 | 14.4 | / | 425*340*18 |
| 30 | PG-GSP30W | 156 Mono | 18 | 1.67 | 21.6 | / | 630*345*18 |
| 35 | PG-GSP35W | 156 Mono | 15 | 2.33 | 18 | / | 440*500*18 |
| 40 | PG-GSP40W | 156 Mono | 17.4 | 2.3 | 20.88 | / | 665*520*25 |
| 50 | PG-GSP50W-1, PG-GSP50W-2 | 125 Mono, 166 Mono | 18, 18 | 5.56, 3.13 | 21.6, 19.2 | / | 545*535*25, 1160*530*25 |
| 80 | PG-GSP80W | 161 Mono | 16.5 | 4.85 | 19.8 | / | 950*530*25 |
| 90 | PG-GSP90W | 156 Mono | 18 | 5.00 | 21.6 | / | 1480*345*30 |
| 100 | PG-GSP100W-1, PG-GSP100W-2 | 166 Mono, 156 Mono | 18, 18 | 5.56, / | 21.6, 21.5 | / | 1160*530*25, 970*670*30 |
| 115 | PG-GSP115W | 156 Mono | 36 | 3.13 | 41.4 | / | 1480*670*30 |
| 120 | PG-GSP120W | 166 Mono | 21.5 | 2.78 | 25.8 | / | 970*670*30 |
Product Usage Instructions
The Xinpuguang@ Rigid Series – Monocrystalline Modules are ideal for various off-grid applications, including large photovoltaic power plants, industrial and commercial power plants, small off-grid photovoltaic systems, RVs, campers, SUVs, maritime, residential rooftops, remote farms, disaster relief, and traffic signs. For installation, the panels come with pre-drilled holes on the back for easy mounting and securing. They can also be matched with various solar panel brackets for flexible installation options.
Why Choose Xinpuguang@_Rigid Series-Monocrystalline modules?
Our solar panels are certified by FCC, RoHS, CE, ISO, IEC. Advanced security, qualified quality, environmental protection, and energy-saving. Xinpuguang@_Rigid Series-Monocrystalline module is constructed with high-performance monocrystalline solar cells, which have a conversion efficien-cy of more than 21% under sunny weather conditions. It provides a long service life and is virtually maintenance-free. Using tempered glass, EVA film with excellent weather resistance and TPT backplane, and a high-quality aluminum frame. Outdoor service life is guaranteed, up to more than 25 years.
Product Features
Weather-proof
Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa).Heavy-duty anodized frame that provides strong protection for the panel structure.The junc-tion box with IP65 waterproof rating can effectively resist the long-term erosion in harsh rainy and humid weather.
High efficiency
Made of high-efficiency monocrystalline cells, the cell conversion rate is as high as 23%. High quality tempered glass.Bypass diodes reduce power drop caused by shadows and ensure excellent perfor-mance in low-light environments.
Easy Installation
Easy to install with pre-drilled holes on the back of panel for fast mounting and secur-ing. Can be matched with various solar panel brackets.

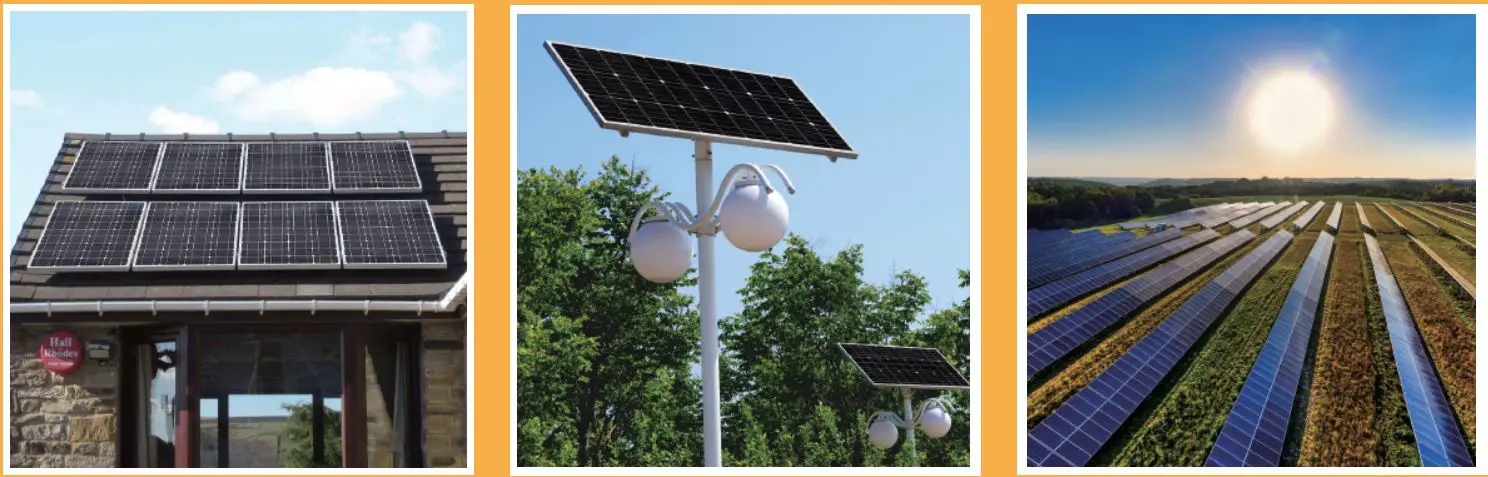

Application
High in power and durable, Xinpuguang@ Rigid Series – Monocrystalline modules are the perfect addition to any off-grid application. Supported by a wide range of mounting options including flat surface, pole, and wall installation. Common applications include large photovoltaic power plants, industrial and commercial power plants, small off-grid photovoltaic systems, RVs, campers, SUVs, maritime, residential rooftops, remote farms, disaster relief, traffic signs, etc.
Monocrystalline Glass solar panel
Electrical parameter丨STC (5w~25w)
| Rated Power | Pmax(W) | 5 | 10 | 20 | 25 |
| Model No. | / | PG-GSP5W | PG-GSP10W | PG-GSP20W | PG-GSP25W |
| Cell type | / | 156 Mono | 156 Mono | 156 Mono | 156 Mono |
| Operating Voltage
| Vmp(V) | 18 | 18 | 18 | 12 |
| Operating Current
| Imp(A) | 0.28 | 0.56 | 1.11 | 2.08 |
| Open Circuit Voltage | Voc(V) | 21.6 | 21.6 | 21.6 | 14.4 |
| Short Circuit Current | Isc(A) | 0.31 | 0.61 | 1.22 | 2.29 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 240*175*18 | 325*240*18 | 505*295*18 | 425*340*18 |
Electrical parameter丨STC (30w~50w)
| Rated Power | Pmax(W) | 30 | 35 | 40 | 50 |
| Model No. | / | PG-GSP30W | PG-GSP35W | PG-GSP40W | PG-GSP50W-1 |
| Cell type | / | 156 Mono | 156 Mono | 156 Mono | 156 Mono |
| Operating Voltage
| Vmp(V) | 18 | 15 | 17.4 | 18 |
| Operating Current
| Imp(A) | 1.67 | 2.33 | 2.30 | 2.78 |
| Open Circuit Voltage | Voc(V) | 21.6 | 18 | 20.88 | 21.6 |
| Short Circuit Current | Isc(A) | 1.83 | 2.57 | 2.53 | 3.06 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 630*345*18 | 440*500*18 | 665*520*25 | 680*510*25 |
Electrical parameter丨STC (50w~100w)
| Rated Power | Pmax(W) | 50 | 80 | 90 | 100 |
| Model No. | / | PG-GSP50W-2 | PG-GSP80W | PG-GSP90W | PG-GSP100W |
| Cell type | / | 125Mono | 161 Mono | 156 Mono | 125 Mono |
| Operating Voltage
| Vmp(V) | 16 | 16.5 | 18 | 18 |
| Operating Current
| Imp(A) | 3.13 | 4.85 | 5.00 | 5.56 |
| Open Circuit Voltage | Voc(V) | 19.2 | 19.8 | 21.6 | 21.6 |
| Short Circuit Current | Isc(A) | 3.44 | 5.33 | 5.5 | 6.11 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 545*535*25 | 950*530*25 | 1480*345*30 | 1160*530*25 |
Electrical parameter丨STC (100w~120w)
| Rated Power | Pmax(W) | 100 | 100 | 115 | 120 |
| Model No. | / | PG-GSP100W-1 | PG-GSP100W-2 | PG-GSP115W | PG-GSP120W |
| Cell type | / | 161 Mono | 166 Mono | 156 Mono | 166 Mono |
| Operating Voltage
| Vmp(V) | 18 | 18 | 36 | 21.5 |
| Operating Current
| Imp(A) | 5.56 | 5.56 | 3.19 | 5.58 |
| Open Circuit Voltage | Voc(V) | 21.6 | 21.6 | 43.2 | 25.8 |
| Short Circuit Current | Isc(A) | 6.11 | 6.11 | 3.51 | 6.10 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 1020*515*20 | 955*530*25 | 1000*670*30 | 1130*530*25 |
Electrical parameter丨STC (135w~190w)
| Rated Power | Pmax(W) | 135 | 150 | 180 | 190 |
| Model No. | / | PG-GSP135W | PG-GSP150W | PG-GSP180W | PG-GSP190W |
| Cell type | / | 156 Mono | 166 Mono | 166 Mono | 125Mono |
| Operating Voltage
| Vmp(V) | 18 | 30 | 17.6 | 36 |
| Operating Current
| Imp(A) | 7.5 | 5.00 | 10.3 | 5.28 |
| Open Circuit Voltage | Voc(V) | 21.6 | 36 | 21.1 | 43.2 |
| Short Circuit Current | Isc(A) | 8.25 | 5.50 | 11.20 | 5.81 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 1450*670*35 | 1040*795*30 | 1370*700*30 | 1580*808*35 |
Electrical parameter丨STC (200W)
| Rated Power | Pmax(W) | 200 | 200 | 200 | 200 |
| Model No. | / | PG-GSP200W-1 | PG-GSP200W-2 | PG-GSP200W-3 | PG-GSP200W-4 |
| Cell type | / | 125Mono | 161Mono | 156 Mono | 166Mono |
| Operating Voltage
| Vmp(V) | 36 | 20 | 18 | 19.8 |
| Operating Current
| Imp(A) | 5.56 | 10 | 11.11 | 10.10 |
| Open Circuit Voltage | Voc(V) | 43.2 | 24 | 21.6 | 23.7 |
| Short Circuit Current | Isc(A) | 6.11 | 11 | 12.22 | 10.80 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 1580*808*35 | 1670*690*35 | 1460*670*35 | 1545*700*35 |
Electrical parameter丨STC (250W~330W)
| Rated Power | Pmax(W) | 250 | 270 | 300 | 330 |
| Model No. | / | PG-GSP250W | PG-GSP270W | PG-GSP300W | PG-GSP330W |
| Cell type | / | 156Mono | 156Mono | 166 Mono | 166Mono |
| Operating Voltage
| Vmp(V) | 30 | 30 | 29.7 | 33 |
| Operating Current
| Imp(A) | 8.34 | 9.0 | 10 | 10 |
| Open Circuit Voltage | Voc(V) | 36 | 36 | 35.64 | 39.6 |
| Short Circuit Current | Isc(A) | 9.18 | 9.9 | 11 | 11 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 1520*990*35 | 1620*990*35 | 1550*1045*35 | 1720*1045*35 |
Electrical parameter丨STC (400W~500W)
| Rated Power | Pmax(W) | 400 | 430 | 450 | 500 |
| Model No. | / | PG-GSP400W | PG-GSP430W | PG-GSP450W | PG-GSP500W |
| Cell type | / | 166Mono | 166Mono | 156 Mono | 166Mono |
| Operating Voltage
| Vmp(V) | 39.6 | 20 | 41.25 | 42.8 |
| Operating Current
| Imp(A) | 10 | 10 | 10.84 | 11.69 |
| Open Circuit Voltage | Voc(V) | 47.52 | 24 | 49.7 | 51.7 |
| Short Circuit Current | Isc(A) | 11 | 11 | 11.36 | 12.28 |
| Performance Tolerance | (%) | ±5% | ±5% | ±5% | ±5% |
| Boundary dimension | mm | 2055*1045*35 | 2055*1045*35 | 2120*1052*40 | 2185x1098x40 |
Structural performance
| Solar cell | 125 /156 /161 /166 Mono |
| Surface | tempered glass |
| EVA(EVA) | Through the Rhine test |
| Junction Box | MC4Junction Box / Voltage regulator box |
| Output Interface | USB /DC/MC4 |
Temperature characteristics
| Standard Test Conditions（NOTC） | 45±2℃ |
| Short Circuit Current Temp (Sic) | +0.050%/°C |
| Open Circuit Voltage Temp (Vic) | -0.30%/°C |
| Max. Power Temp (Plax) | -0.39%/°C |
Limit parameter
| Operating Temperature | -40~+85°C |
| Max.System Voltage | 1000V DC |
* Standard test conditions measured values (irradiance 1000 W/m2, cell temperature 25 °C, atmospheric mass AM1.5).
