Yamato Battleship

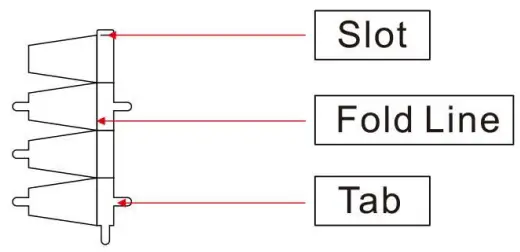

TO CREATE THE BEST CONNECTIONS

Legends:

• Engraved side
• Non-engraved side
• Painted side
• Attention point
•  Insert tab and bend 90 degrees
• Insert tab and twist 90 degrees

Assembly tip:
If needed, slightly twist tabs to hold parts together then untwist and bend them down for a nice finish

Recommended tools:

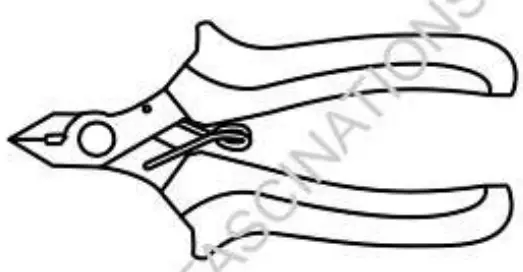

• Wire cutters: helpful for taking parts from the metal sheets.

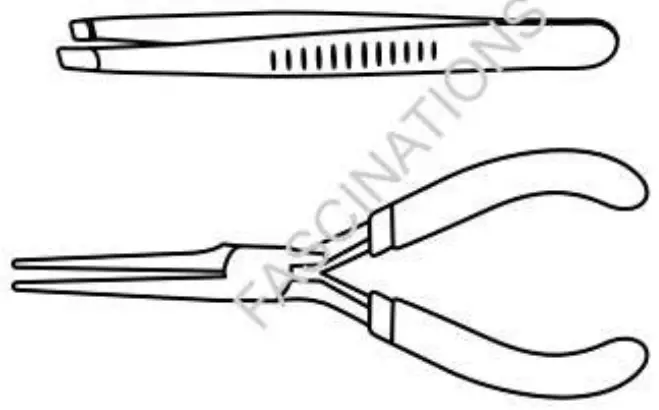

• Tweezers or needle nose pliers: helpful for folding parts. bending and twisting tabs.

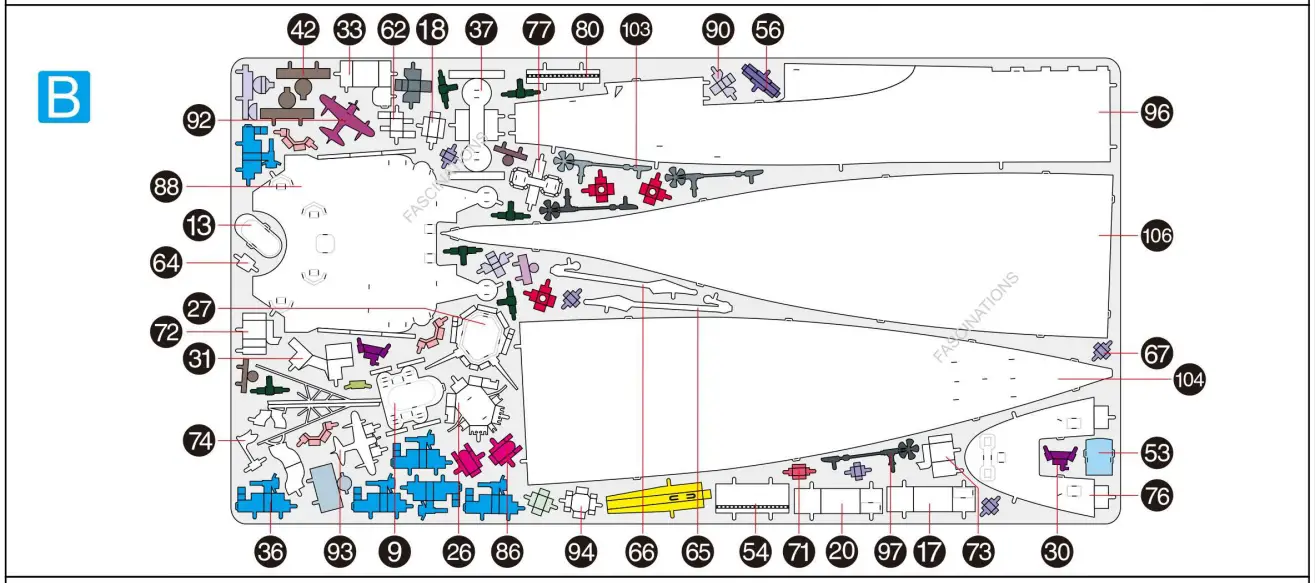

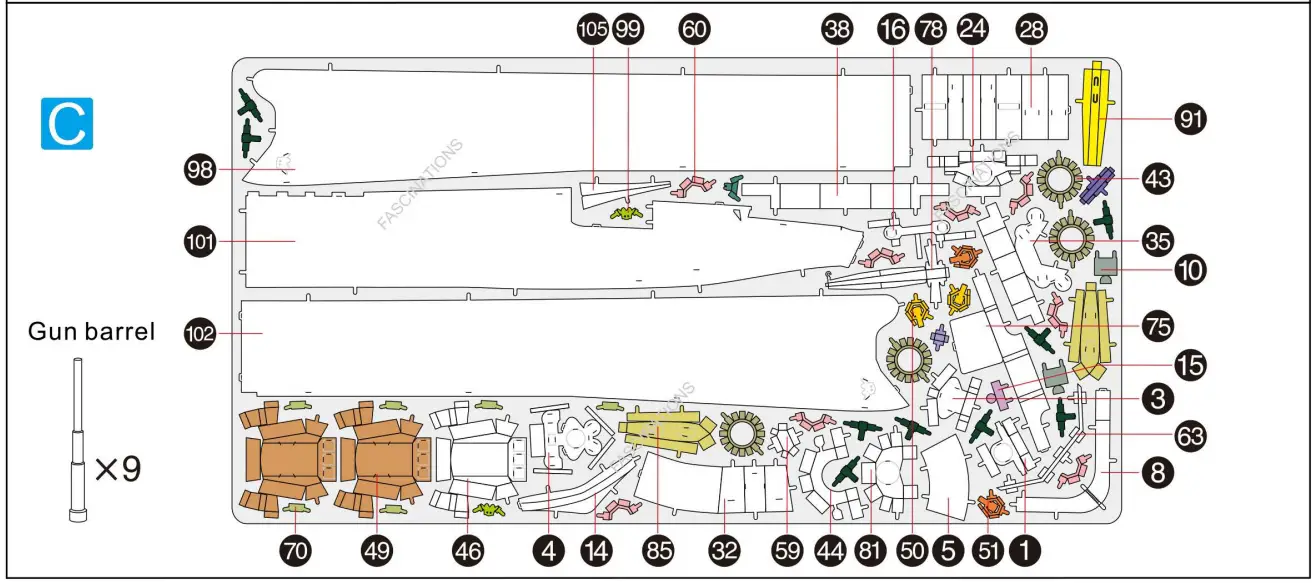

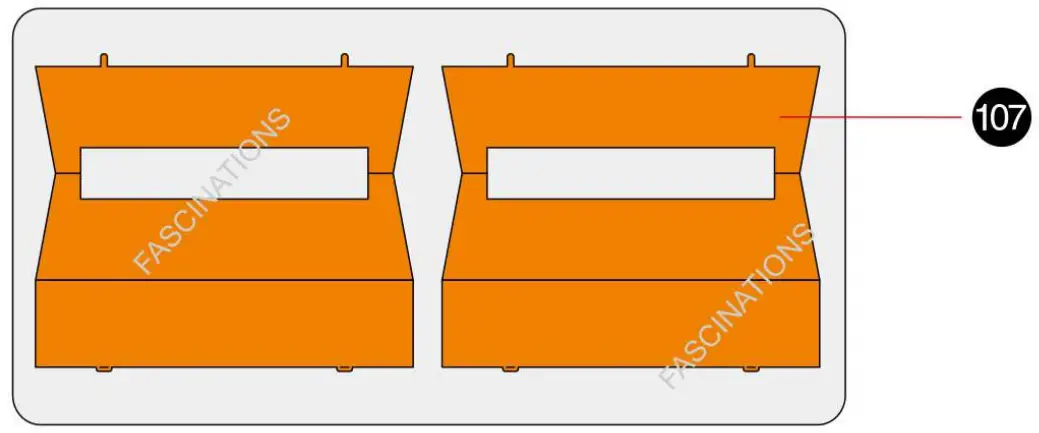

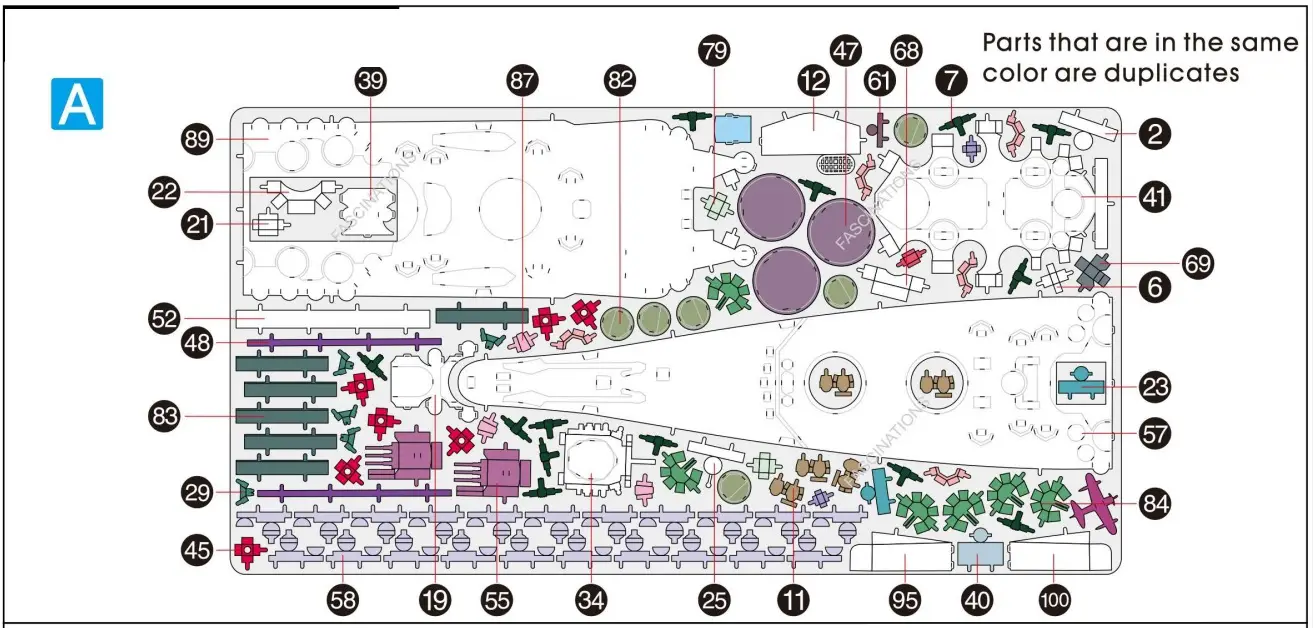

Metal Sheets

Go to www.metalearth.com/360/icx117 to see the zoomable PDF version of this instruction sheet.

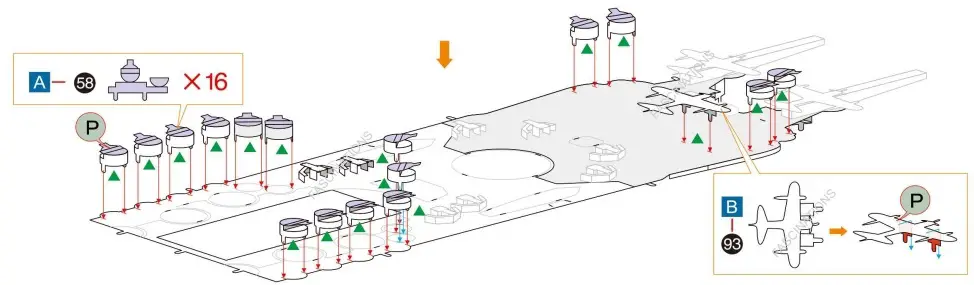

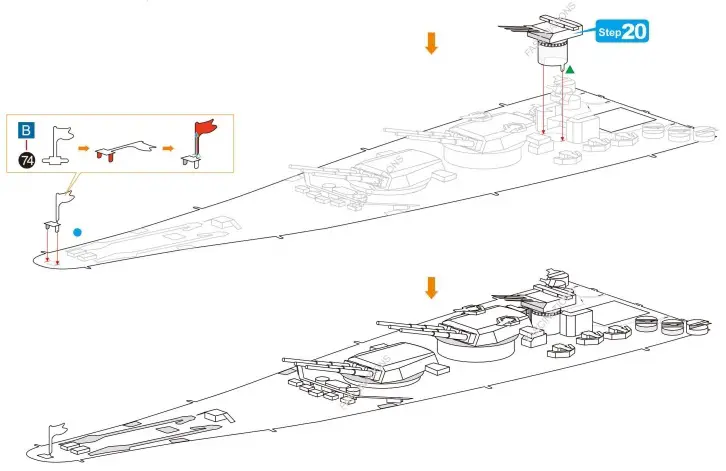

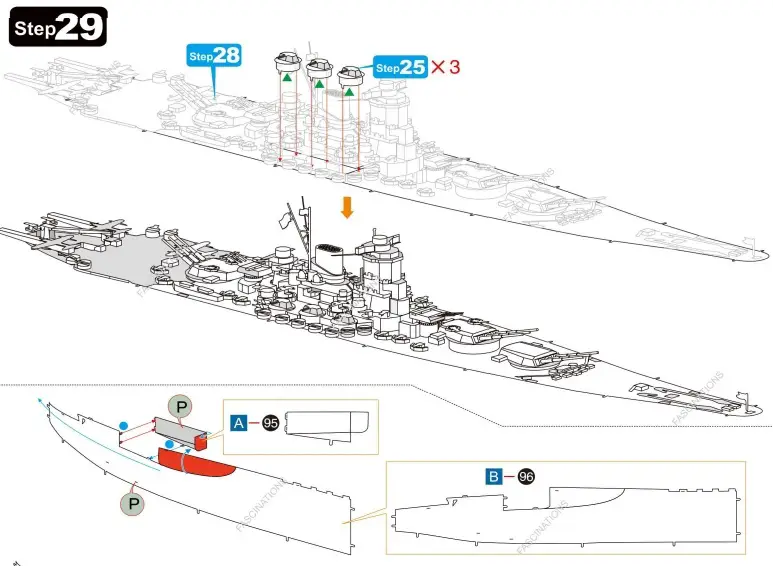

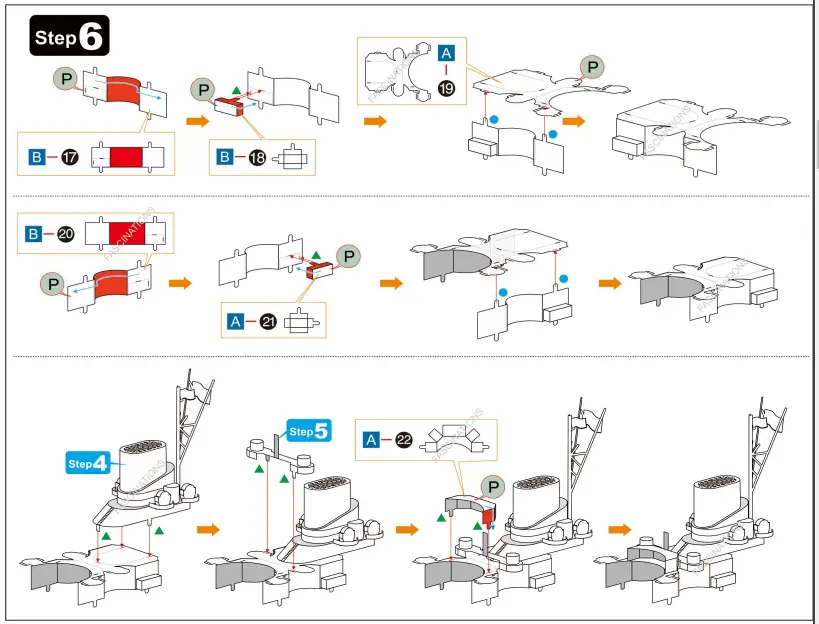

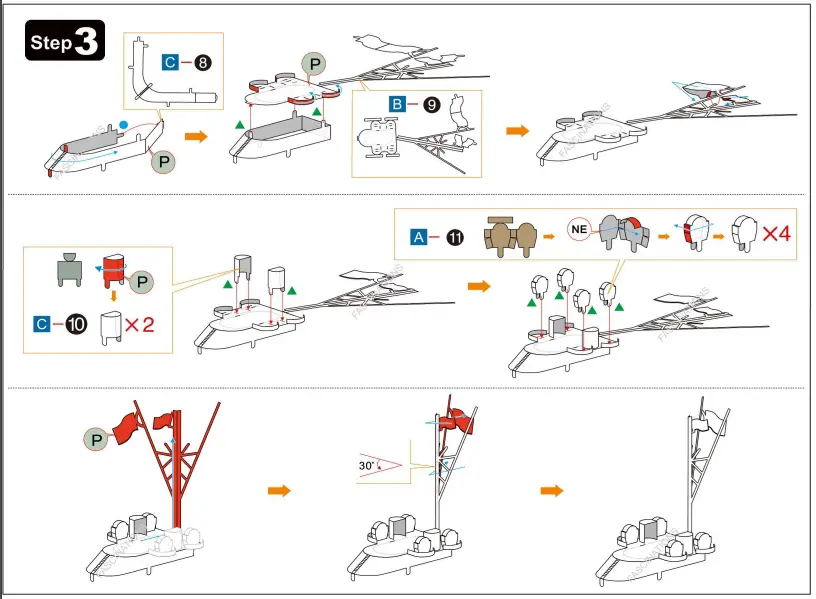

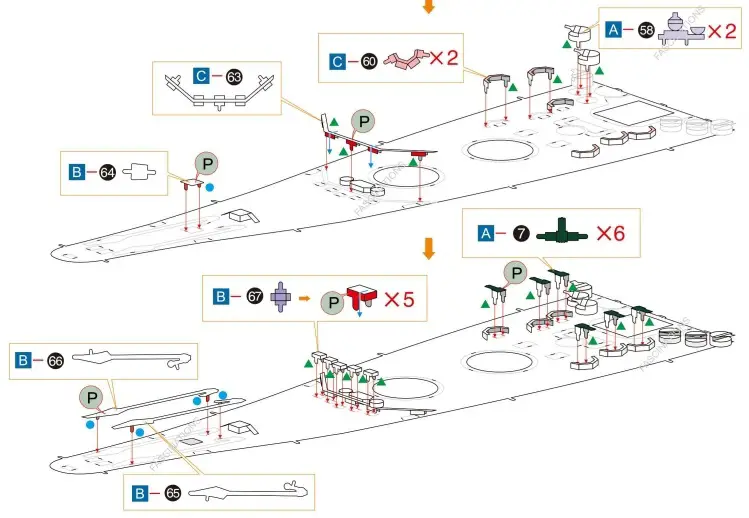

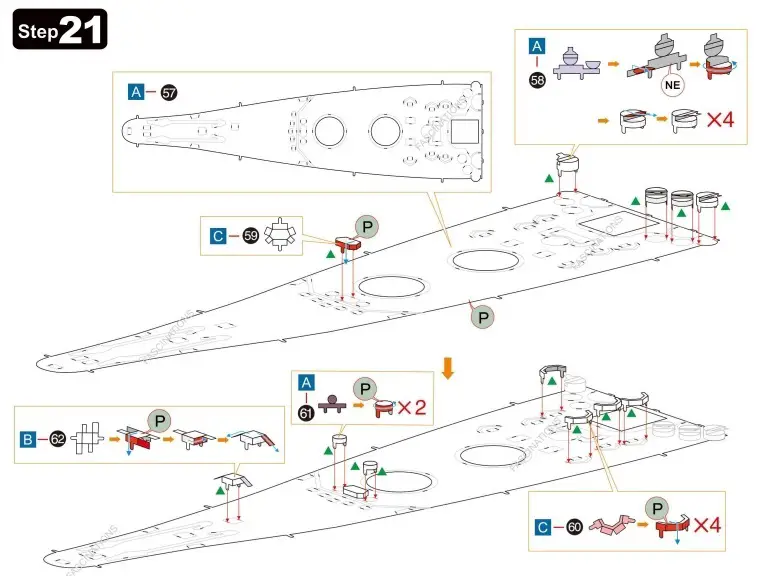

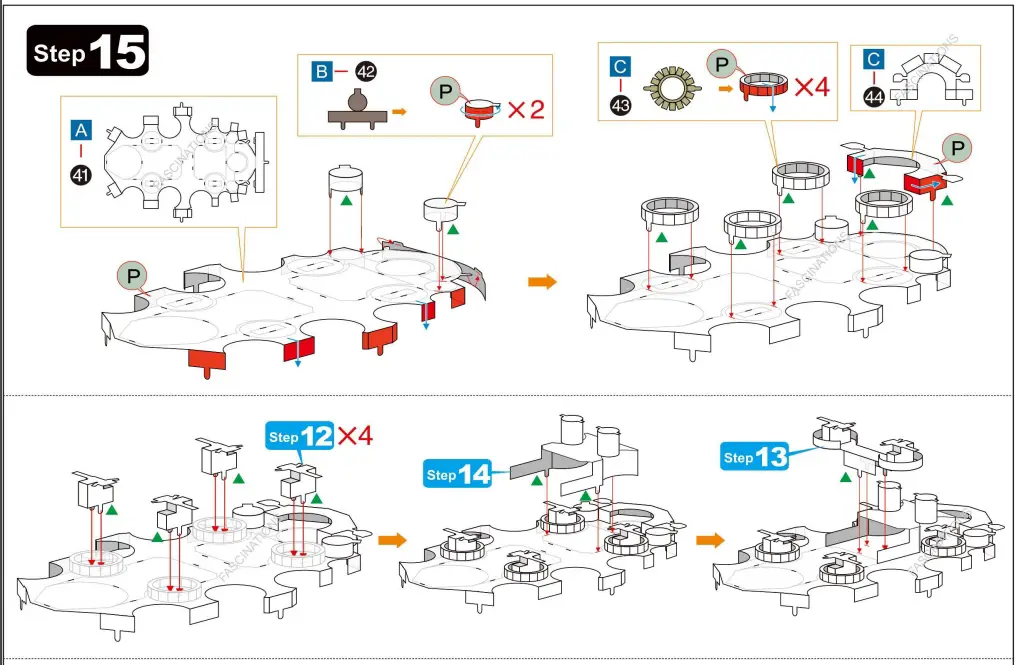

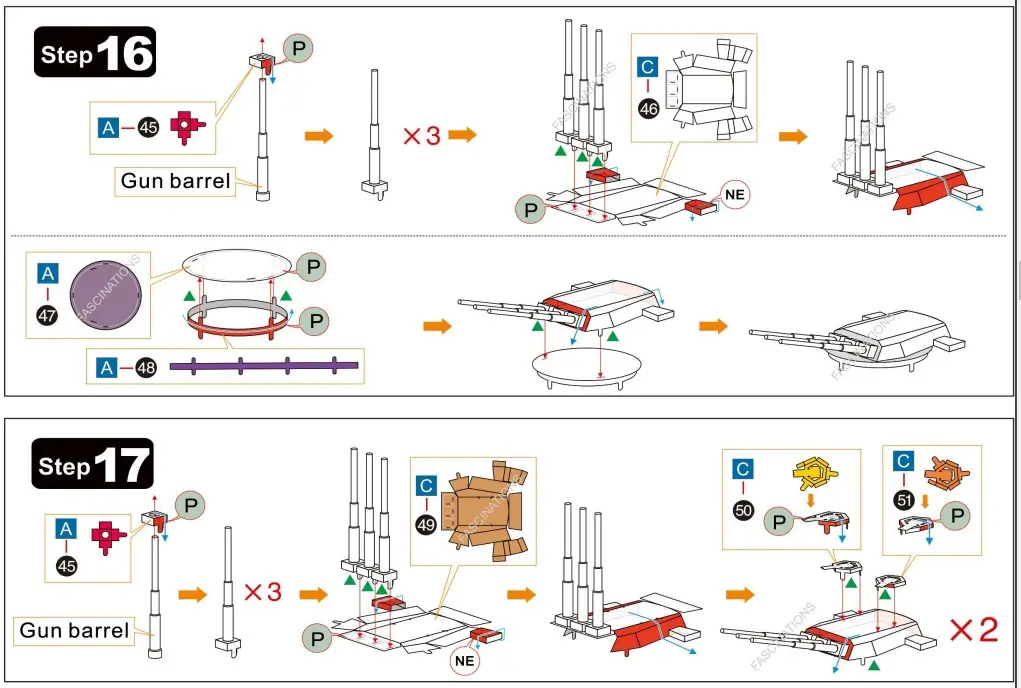

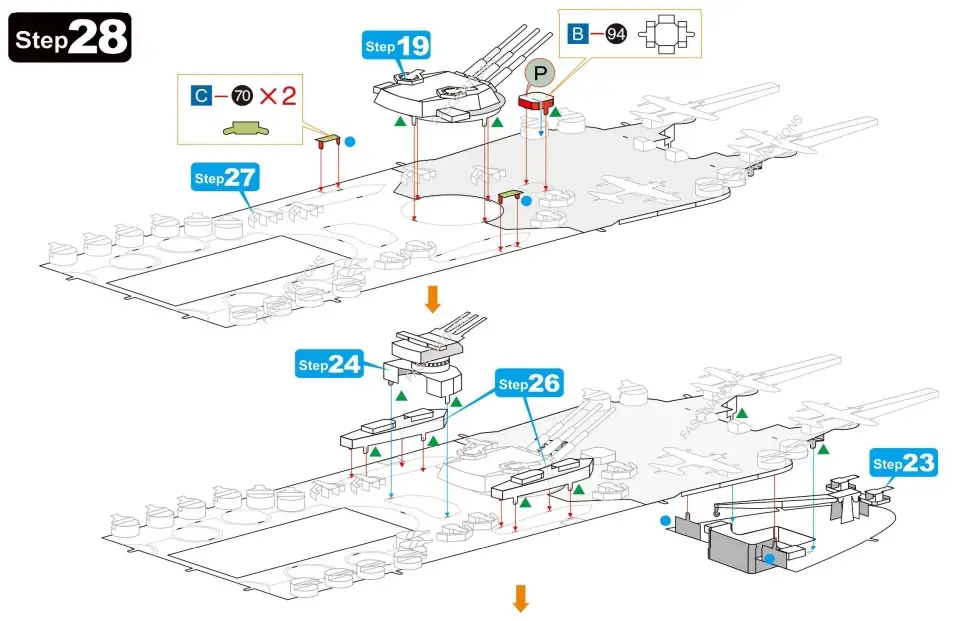

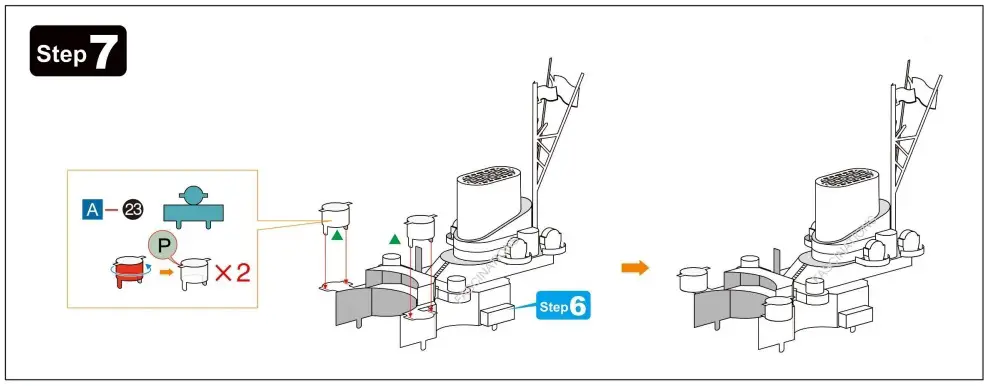

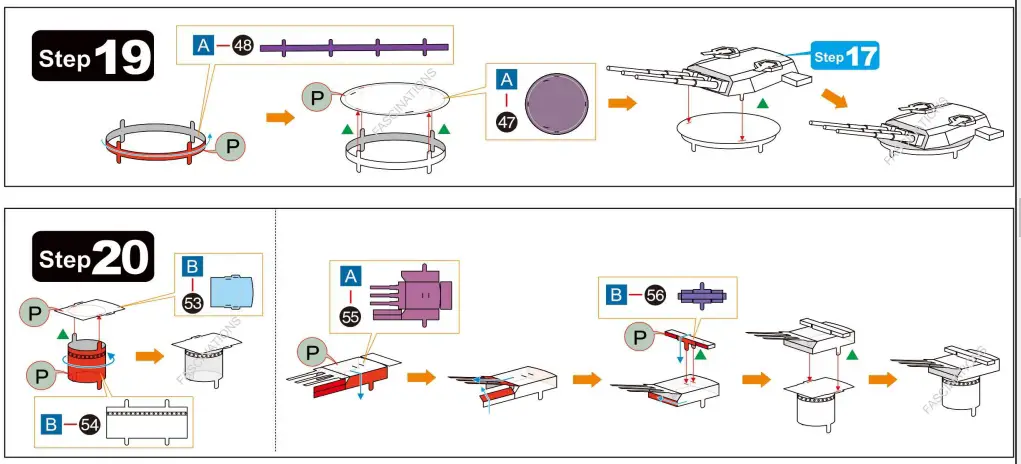

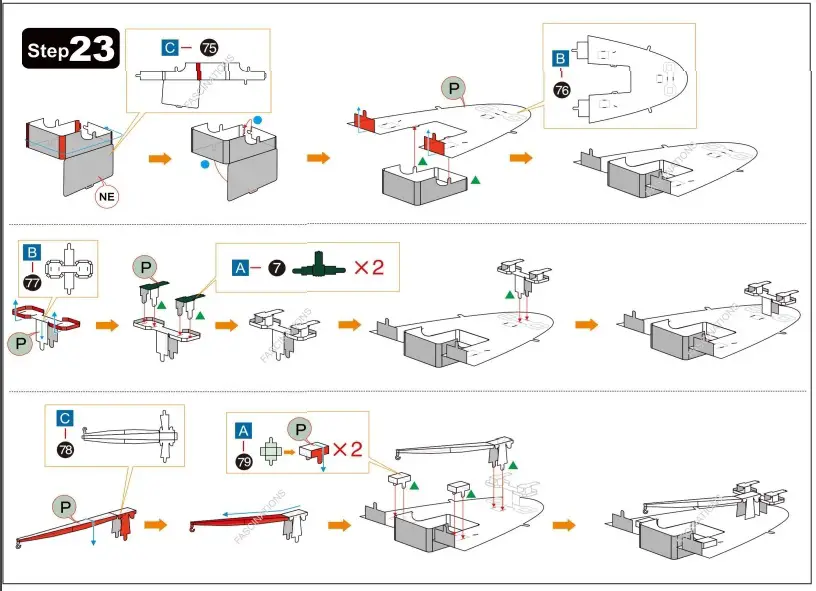

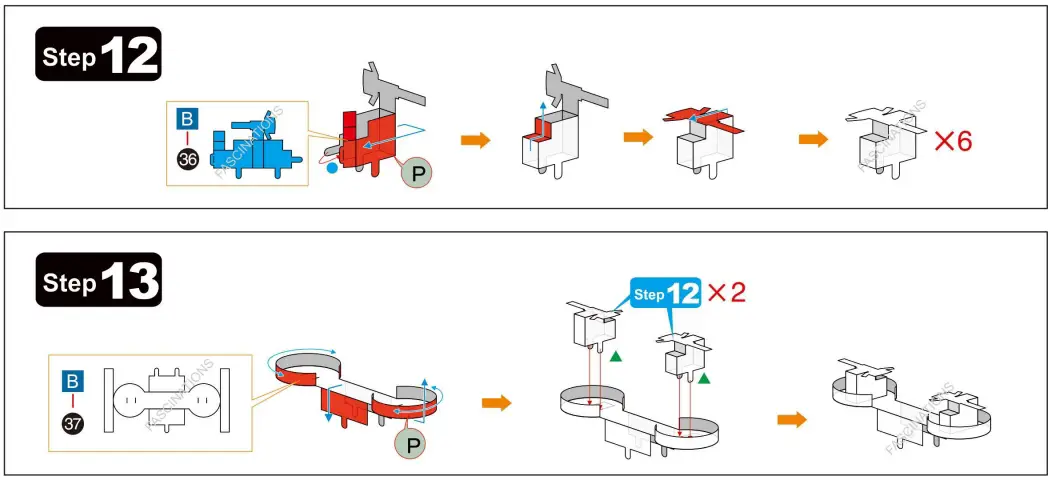

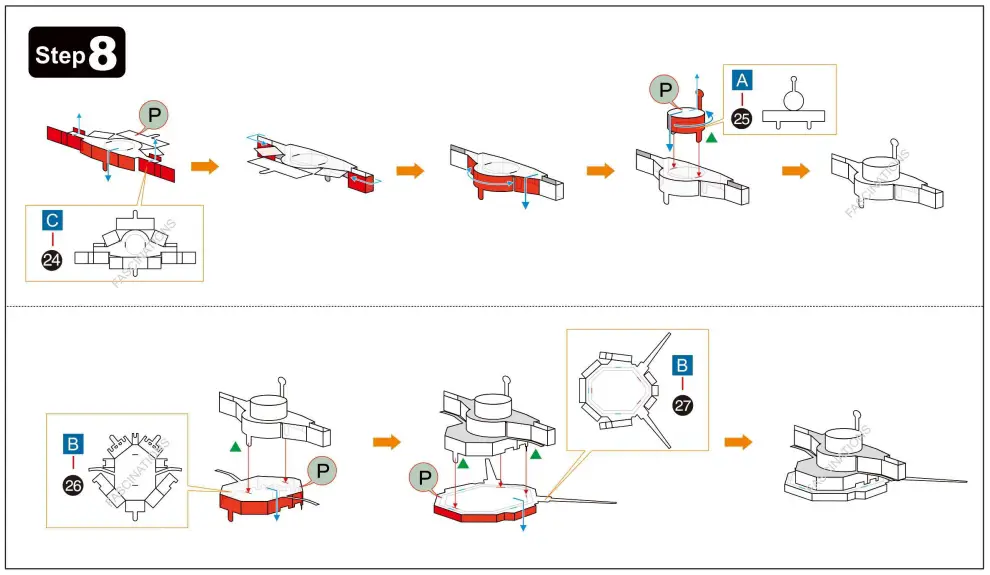

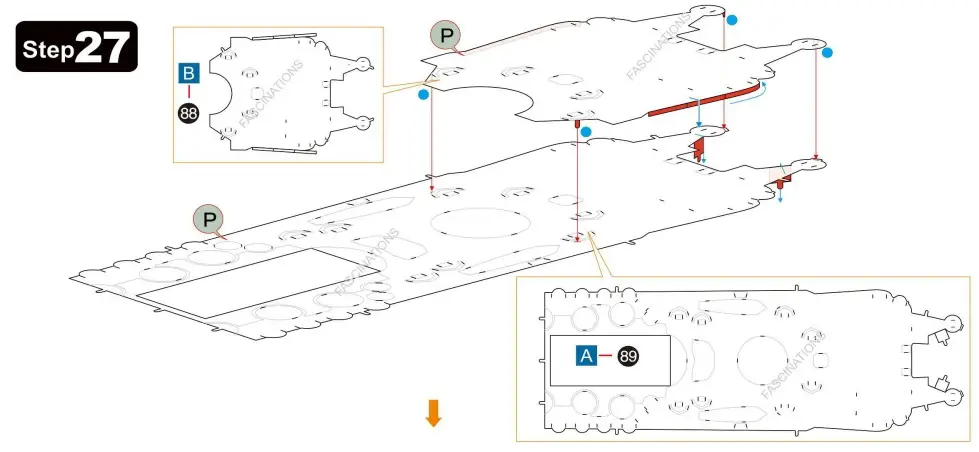

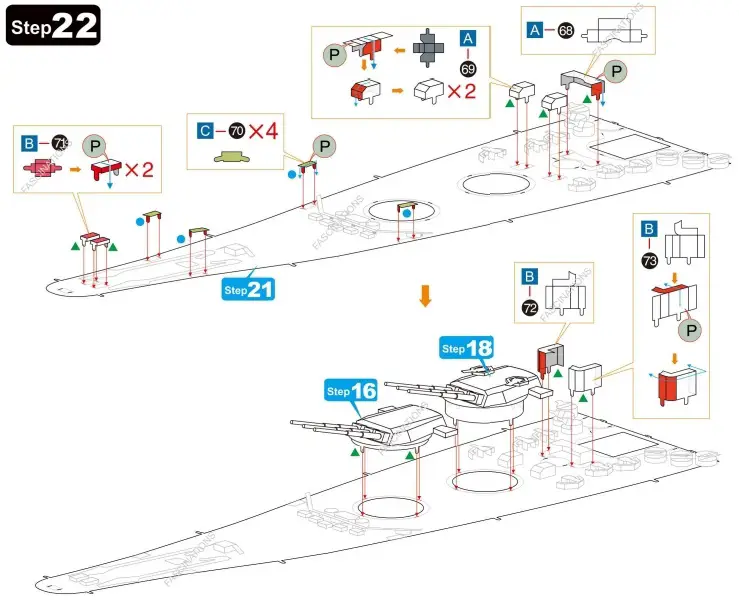

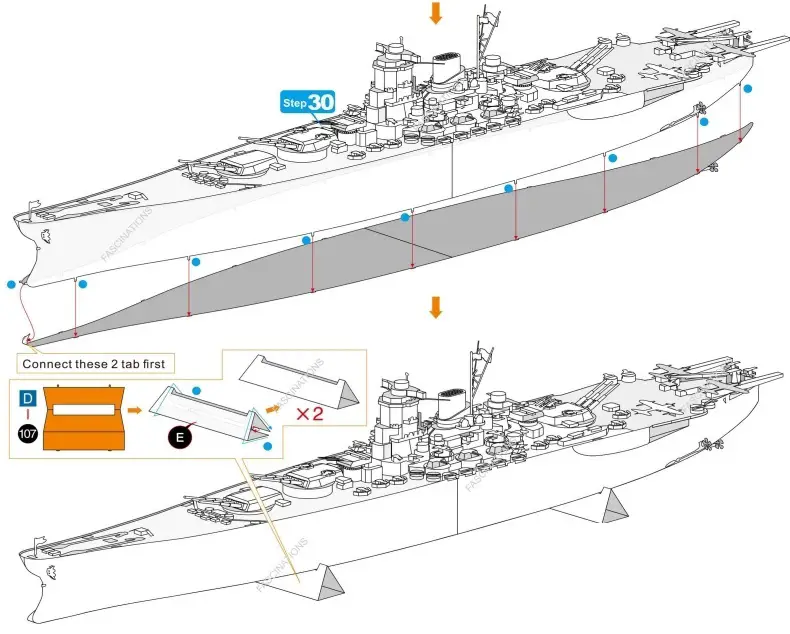

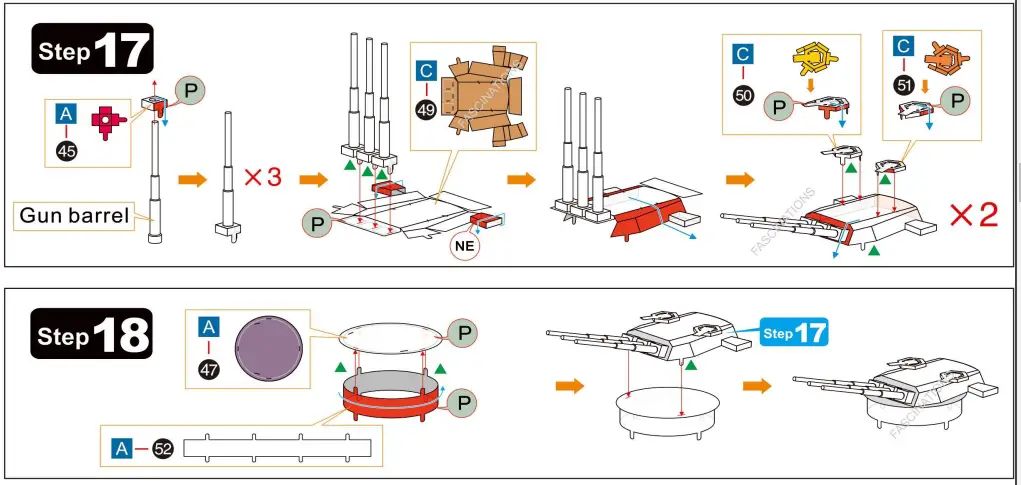

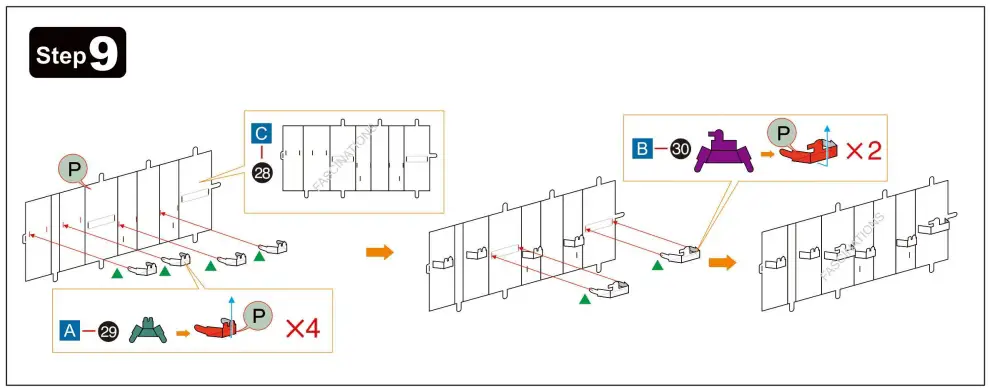

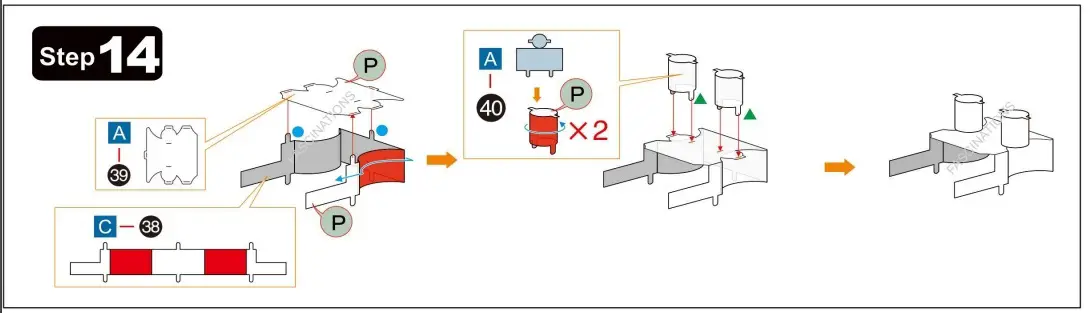

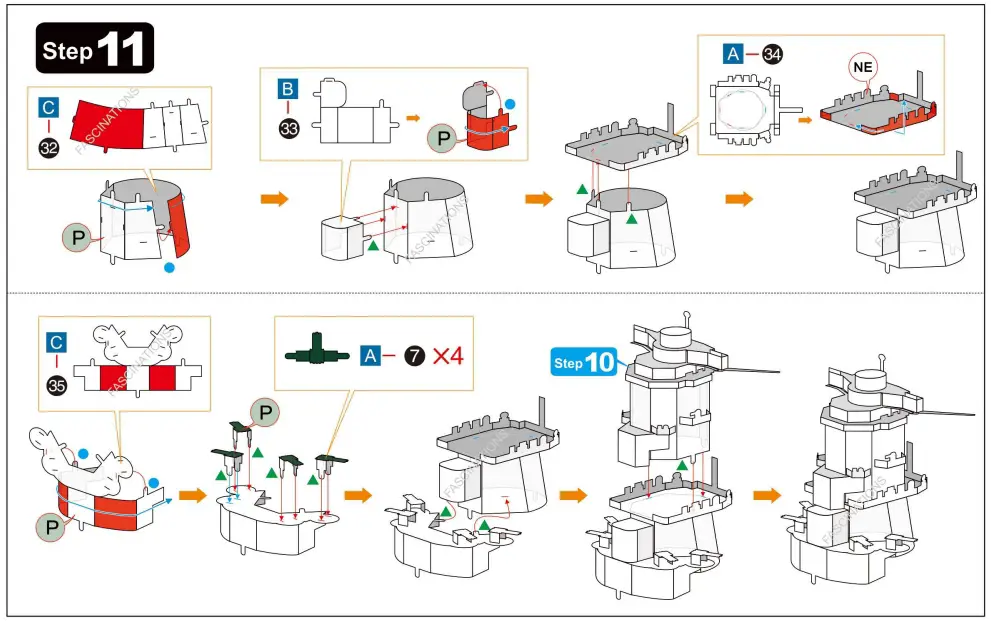

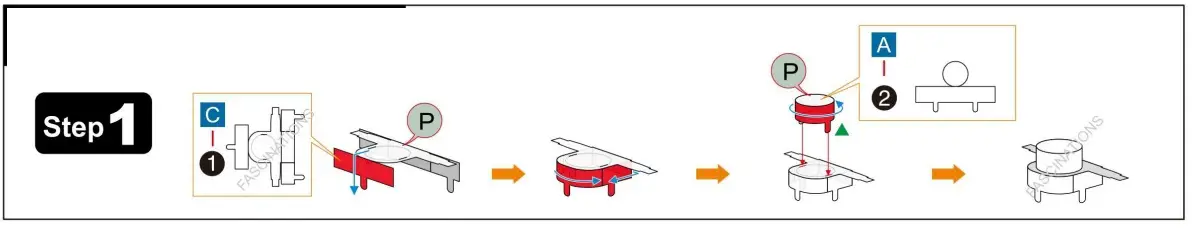

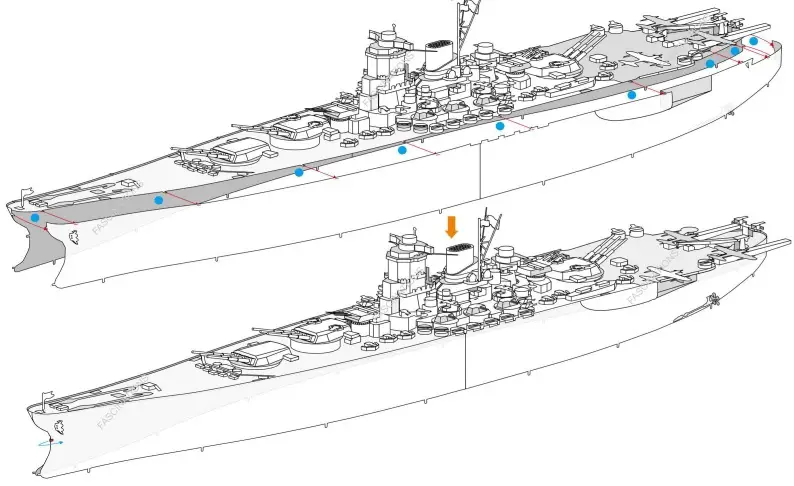

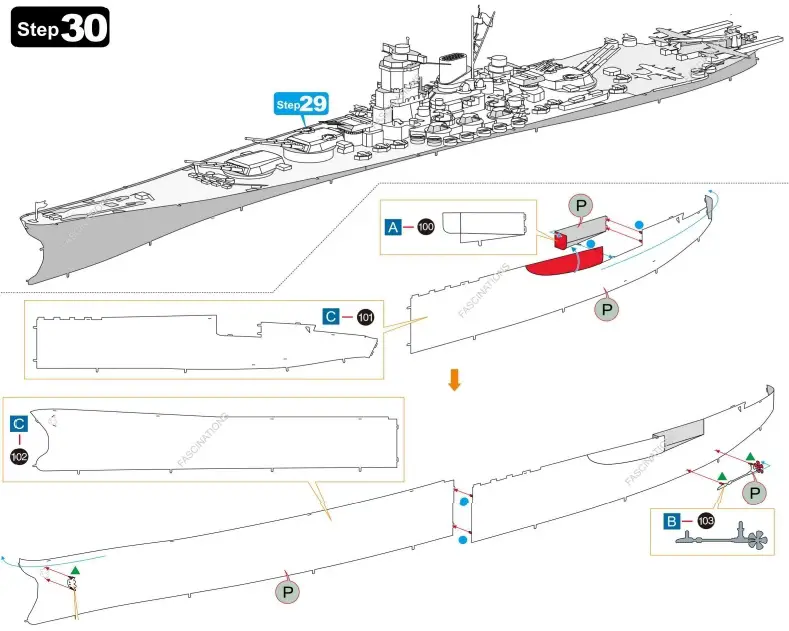

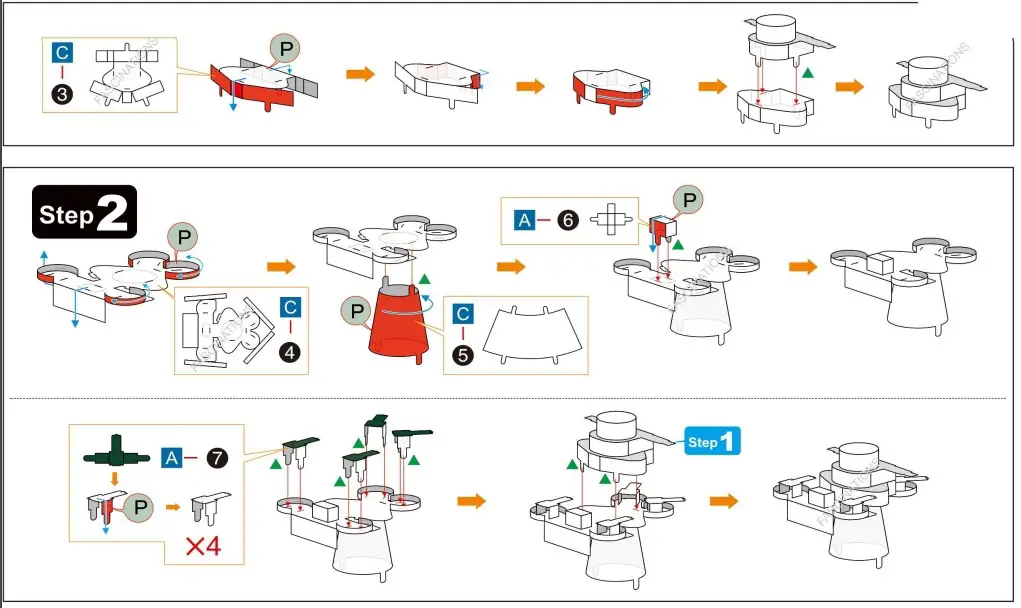

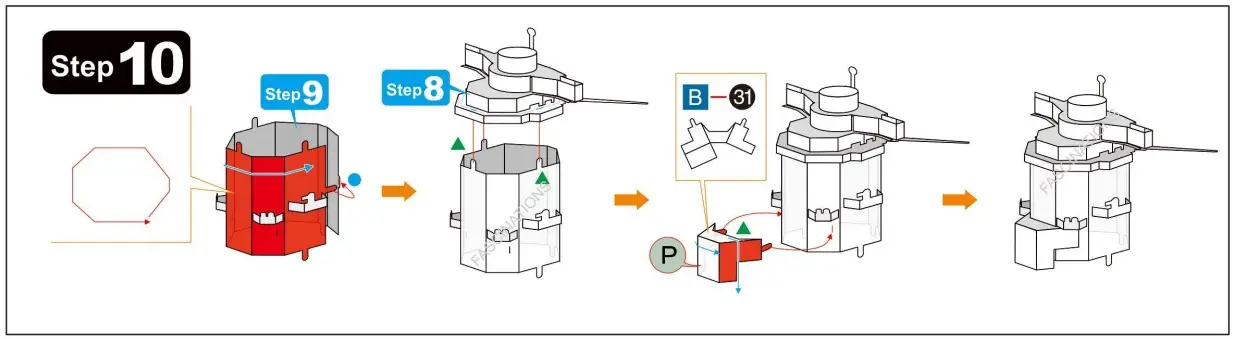

Assembly Steps

It is highly recommended that you visit www.metalearth.com/360/icx117 to see the completed model before assembling your own
