Fundot F8 Electric Scooter User Guide

F8 Electric Scooter
User Guide

Thank you for your purchase of the F8 Electric Scooter!
To ensure your safety and the safety of others, please read and follow the guidelines in this user manual carefully and thoroughly before and during riding. We will update the product in the future according to customers’ feedback. The product you received may have a small difference from the picture.

GENERAL INFORMATION

Before operating this vehicle, please read all instructions. This manual will guide you through the functions, usage, and proper care of your F8. Before contacting customer service, please have your purchase information ready as this may be needed during the call. This information may be recorded below.
Date of Purchase———-
Place of Purchase———–
 It is important that you follow all safety warnings that appear throughout this manual and exercise good judgment when using your F8 scooter. Consult this manual before attempting to ride.
Important Information
Within this manual, “the F8”, “your F8”, “your scooter” and “the scooter” refer to the F8 Electric Scooter. The F8 is a personal scooter that uses electrical power. By riding the F8 scooter, the user acknowledges and accepts responsibility for all risks associated with the use of the scooter which may include, but are not limited to, muscle injuries, broken bones, lacerations, serious injury, and possible death, which may be sustained while using the F8. To better ensure your safety, ALWAYS USE APPROPRIATE PROTECTIVE GEAR, and read and follow all instructions and warnings in the User Manual.
Appropriate protective gear should include helmets and other gear including knee and elbow.
Use the F8 at your own risk.
Safety Warnings
When reading this manual, note these icons:
Notes with this icon MUST be read, understood, and obeyed to prevent injury or damage, etc.
Notes with this icon include relevant information.
Properly dispose of all packaging material. Some items may be packed in plastic bags or material and may cause suffocation or injury to pets or children.
Verify that all parts of the product are accounted for. If any part is missing, call customer service.
If any parts or cables or surrounding parts are damaged, do not use the product.
Never insert objects into the product other than the cables etc. as described in this manual.
If the product is to be used by children, the caregiver should explain the contents of the user manual to the children. The caregiver should provide adequate supervision to ensure that the device is being used as explained in the user manual.
Use only the parts included in the original packaging or received from the manufacturer.
Risk of shock. Do not allow water and/or liquids to come in contact with any pad of the product.
Use a dry, non-abrasive cloth to remove debris or dust. Do not spray liquids onto the product.
Never submerge the product or any of the product’s components and/or accessories into water.
Do not ride stairs.
Do not allow more than one person on the scooter at a time.
The product shall only be used as described in this manual.
Cover the product to protect it from dust. Do not store in a dusty environment as, with all electronic devices, this may cause damage over time.
WARNING- RISK OF FIRE – No user-serviceable parts.
Disposal at End-of-Life
This product must not be disposed of by incineration, landfilling, or mixing with household trash. Improper disposal of the battery contained within this product may result in the battery heating up, rupturing, or igniting which may cause serious injury. The substances contained inside the battery present chemical risks to the environment. F8 Electric Scooter at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of lithium-ion batteries and/or products containing them will vary according to country, state, and local governments. You must check laws and regulations corresponding to where you live in order to dispose of the battery and/or unit properly. It is the user’s responsibility to dispose of their waste equipment properly in accordance with local regulations and laws.
For additional information about where you should drop off your batteries and electrical or electronic waste, please contact your local or regional waste management office, your household waste disposal service, or your point-of-sale.
Main Specifications

PARTS & FEATURES

What’s in the Box?
■1 x F8 Scooter
■2x Handle Bar
■1 x Charger
■1 x

 User Manual

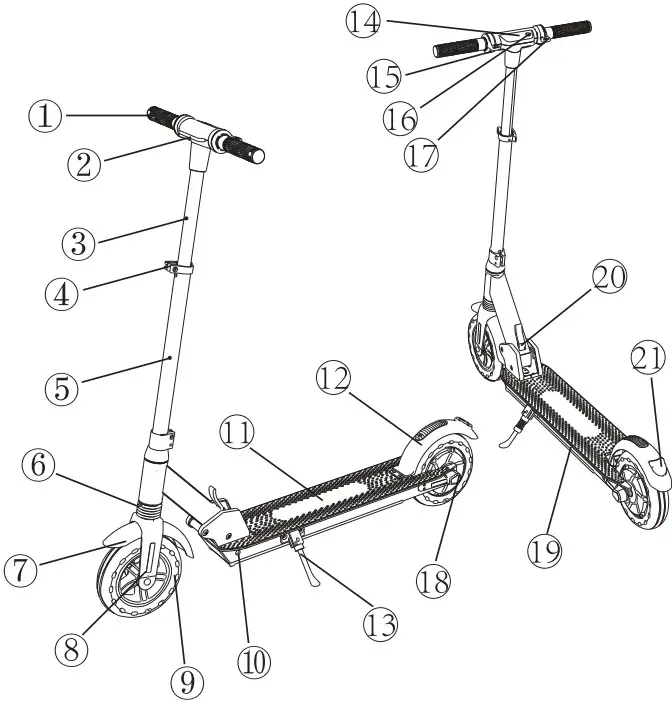

F8 Diagram

1. Handlebar
2. Headlight
3. Adjustable pipe
4. Quick release
5. Stem pipe
6. Suspension
7. Front fender
8. Front fork
9. Front-wheel
10. Charging port
11. Rubber cover
12. Rear fender
13. Kickstand
14. Display
15. Brake
16. Function button
17. Accelerator
18. Motor
19. Battery cover
20. Folding part
21. Rear light

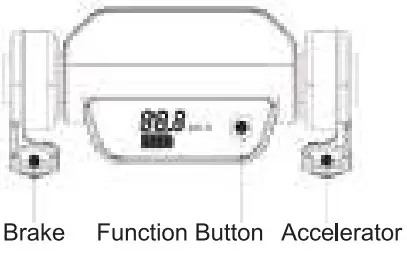

Buttons Information
The F8’s display features several different elements. Be sure you understand these before attempting to ride.
Power: Press and hold approx. 3-5 seconds to turn the scooter on/ off.
Cruise Control: Maintain the same speed for at least 6 sec to use this feature. Cancel it by pressing the brake or accelerator.
MODE: Press once quickly to switch between speed modes 1, 2, and 3.
Headlight: Press twice quickly to turn the headlight on/off.
Speed units: Press third times quickly to switch km/h or mp/h.
Display Information
This icon indicates how much battery life you have left. km/h – These numbers indicate the current speed.
When the battery level is low, stop riding, turn off the scooter, and fully recharge it.

FOLDING & ASSEMBLY

Make sure the F8 is turned off before working with any of its parts. The scooter comes mostly assembled within the package.
Some minor assembly is required before riding. All parts and tools are included.
Assembling the Handlebars
Before installing the handlebars, use these 4 M5 screws to tighten the handlebar part. Make sure the 4 screws are securely tightened.

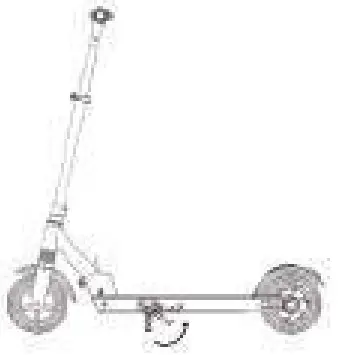

Standing the Scooter

1. Locate the kickstand on the side of the scooter’s deck.
2. Push the kickstand down and away from the scooter then carefully lean the weight of the scooter onto the kickstand.

Folding & Unfolding the Scooter

1. Firstly, kick the stand. Pull the folding latch down. Next, pull the stem down towards the deck.
2. When folding and unfolding, please make sure it is folded and pulled to unfolded status after you can hear a small sound.
3. To unfold the scooter, pull up the stem away from the deck. When the stem is fully unfolded, you can hear a small sound to make sure it is securely unfolded.

 Before moving, lifting, or otherwise transporting the scooter, ensure it is turned off.

CHARGING

Charge the scooter before using it.
How to Charge
Step 1. Ensure the scooter is turned off before charging and remains off while charging.

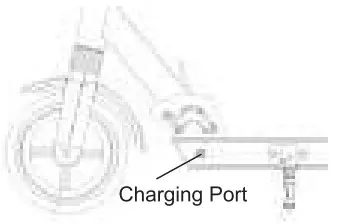

Step 2. Locate the charging port near the kickstand under the deck and remove the cap if needed.
Step 3. Use the charger and the charging port to connect the scooter to an outlet.
Step 4. While the scooter is charging, the adapter’s indicator light will turn red.
If charging for the first time, charge the scooter for at least 4 hours before using it.
Step 5. When the scooter is fully recharged, the adapter’s indicator light will turn green. You may then disconnect the scooter from the charger.
DO NOT, under any circumstances, use the scooter while it is connected to the charger.
Do not charge longer than necessary. Standard charging time is approx. 4.5hours (6ah battery). Charging longer than this may affect battery life and/or performance.
To maximize the battery life, charge it once every other month or every couple of days after riding.
Battery Specification

USAGE

Read the following information before attempting to ride your F8.
A helmet as well as other protective gear must be worn at all times.
The F8 supports up to 100 kg. Do not carry passengers.
Only operate the F8 where permitted. Local laws may restrict where you may ride.
The F8 contains a motor and may be classified as a motor vehicle under local laws in your area. It is your responsibility to abide by any local laws restricting how or where you may ride.
How to Ride
Assuming you have equipped suitable protective gear and that the F8 has been placed on a level surface, is charged, and does not have any issues, follow the steps below. For your safety, please read this entire section before attempting to ride.
For your safety, please carefully read this entire section before attempting to ride.
Step 1. Carefully step on with one foot and stand upright but relaxed. Grab both handles.
Step 2. Keep one foot on the ground and kick-off to begin accelerating manually. Use the handles to steer.
Step 3. Start your riding by pressing the power button, and riding forward by pushing the throttle.
Step 4. To stop, release the throttle and use the handbrake, footbrake, or both to gradually coast to a stop then step off the scooter one foot at a time. Be extra cautious when dismounting for the first time.
Step 5. To turn the scooter off, remain at a complete stop for a few seconds and press and hold the power button for 3-5 seconds.
The display shows how much charge is left in the battery. Make sure the battery is at full power before heading out on a long-distance ride.
Practicing Guidelines
Practice until you are comfortable with using all of the scooter’s functions. See the following tips below.
■ Avoid wearing anything that can drape over or get caught into/under the wheels. Wear closed-toe, flat shoes to maintain flexibility and stability.
■ Practice until you can easily get on, move forward, turn, stop, and dismount with ease.
■ The scooter is designed to handle inclines up to 15°. Riding over inclines is not recommended.
■ The F8 is designed for relatively smooth, flat terrain.
■ Until you are comfortable using the scooter, avoid operating in places with slopes, pedestrians, or obstacles.
The F8 weighs approximately 12.5 kg. If you are unsure of your ability to lift it with one hand, please lift it with both hands or have a second person help. Remember to fold the scooter before picking it up.

MAINTENANCE

Do not perform any maintenance when the power is on, or the battery is charging. After each ride, especially if you have traveled a long distance, inspect your scooter.
■Inspect the brakes to make sure that is working properly.
■Make sure all screws and bolts are taut and properly fastened to prevent injury and unnecessary wear and tear.
Tire wear and tear is normal. The rate at which the tires deteriorate depends on riding style i.e. casual riding may yield minimal wear while performance and/or heavy drifting may yield excessive wear. To purchase tire replacements and/or for questions about your scooter’s parts, please visit our website.
Cleaning
The F8 may need cleaning after riding for extended periods of time.
Completely power off the scooter before cleaning.
Use a dry, non-abrasive cloth to gently remove debris or dust.
The F8 may not come in contact with it in any kind of liquid.
Never use alcohol or ammonia-based cleaning solutions.
Never spray liquid directly onto any part of the scooter.
Storage
To store the F8, see the following information below.
Before storing, fully charge the F8 to prevent battery over-discharge due to non-use.
If storing for more than one month, discharge and recharge the battery every three months.
Cover the F8 to protect it from dust. Do not store in a dusty environment as, with all electronic devices, this may cause damage over time.
Do not store in an unheated garage, shed, or other location with extreme temperature fluctuations.
Transportation
Before moving, lifting, or otherwise transporting the scooter, turn it off. Fold the scooter (see Section 3.3 for instructions) and pull the scooter along as you move, if needed.
When lifting the entire scooter, please note that the F8 weighs approximately 12.35 kg. If you are unsure of your ability to lift this weight, please use both hands or have a second person help.

WARRANTY

Your F8 Electric Scooter (Product”) includes a One Year Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is available only to original purchasers. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.
This Warranty starts on the date of your purchase and lasts for one year (the “Warranty Period”). The Warranty Period is not extended If the Product is repaired or replaced. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive.
When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes our property. This warranty only covers technical hardware defectiveness during the warranty period and under normal use conditions. We do not warrant the uninterrupted or error-free operation of this Product.
This Warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper use; (d) failure to follow the product instructions or to perform any preventive maintenance; (e) modifications; (f) unauthorized repair; (g) normal wear and tear; or (h) external causes such as accidents, abuse, or other actions or events beyond our reasonable control.
Disclaimer of warranty: our liability shall under no circumstances exceed the actual amount paid by you for the defective product, nor shall we Under any circumstances be liable for any consequential, incidental, special or punitive damages or losses, whether direct or indirect. Some states do not allow the exclusion or limitation of incidental or consequential damage, so the above limitation or exclusion may not apply to you. The duration and remedies of all implied warranties, including without limitation the warranties of merchantability and fitness for a particular purpose are limited to the duration of this express limited warranty.
