Beautural 724na-0001 1800-watt Steam Iron Instructions Manual

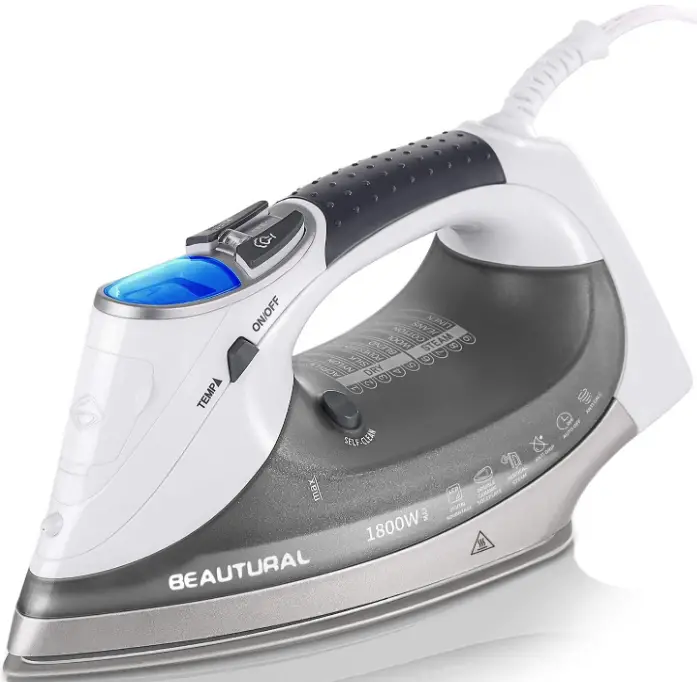

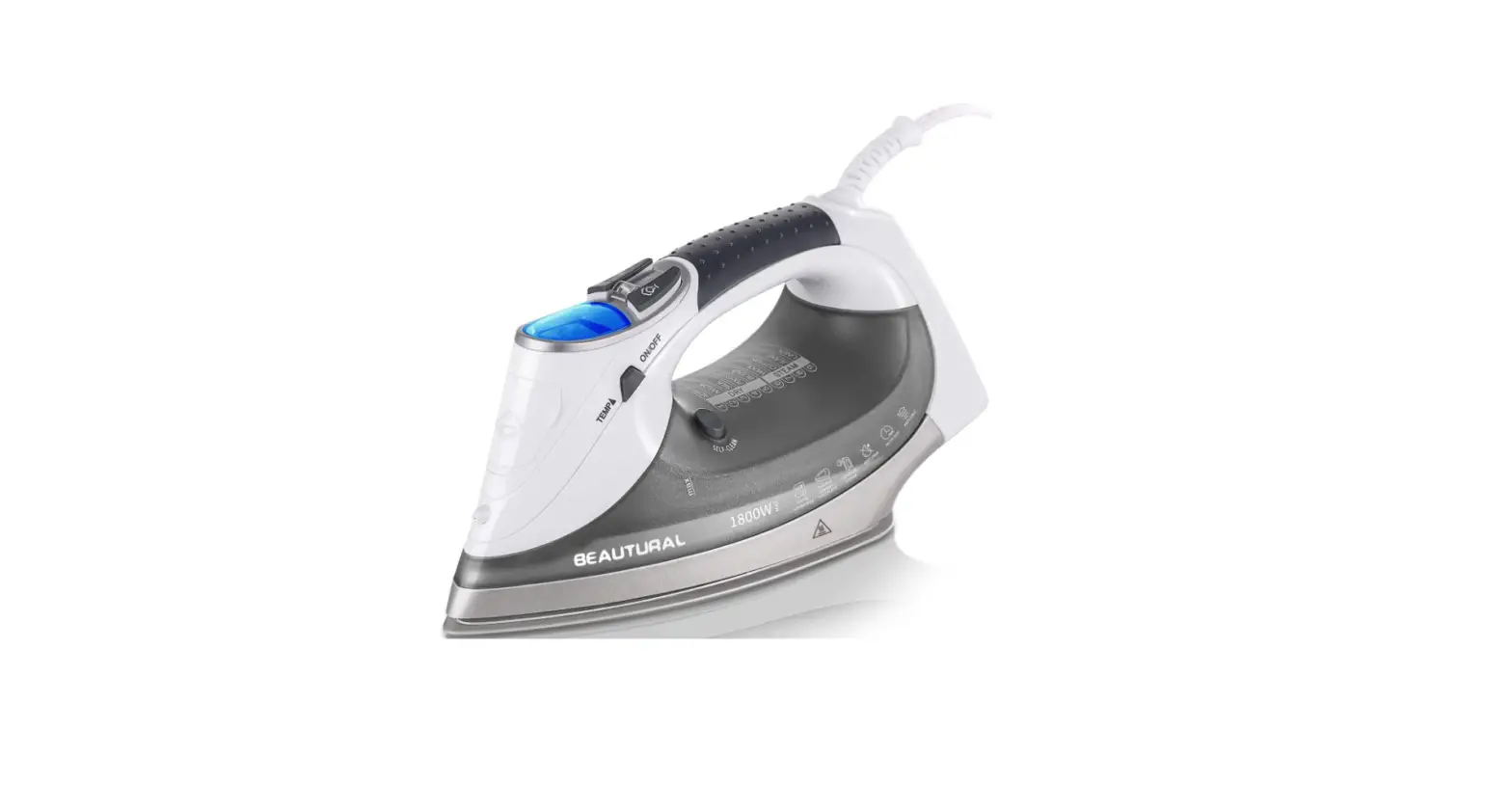

BEAUTURAL 724NA-0001 1800-Watt Steam Iron

IMPORTANT SAFETY INSTRUCTIONS

When using this iron, basic safety precautions should always be followed. These include:

• READ ALL INSTRUCTIONS BEFORE USE.
• Use the iron only for its intended purpose.
• To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
• The iron should always be turned to the minimum setting before plugging or unplugging from the outlet. Never yank the cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Do not allow the cord to touch hot surfaces. Let the iron cool completely before putting away. Loop the cord loosely around the iron when storing.
• Always disconnect the iron from the electrical outlet when filling with water or emptying, and also when not in use.
• Do not operate the iron if the power cord is damaged or if the iron has been dropped or damaged. To avoid a risk of electric shock, do not disassemble the iron. Take it to a qualified service person for examination and repair, or contact our customer service. Incorrect reassembly can cause a risk of electric shock when the iron is used.
• Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended while connected to power or on an ironing board.
• Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use a burst of steam as there may be hot water in the reservoir.
• Avoid rapid movement of iron to minimize hot water spillage.
• The iron must not be left unattended while it is connected to power.
• The plug must be removed from the power outlet before the water tank is filled with water.
• The iron must be used and rested on a stable surface.
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if leakage.

SPECIAL INSTRUCTIONS

• To avoid circuit overload, do not operate another high-wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a cord with an ampere rating equal to or greater than the maximum rating of the iron shall be used. Cords rated for less amperage may overheat. Care should be taken to arrange the extension cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

This product is for household use only.

SAFETY FEATURES

POLARIZED PLUG (FOR US ONLY)
This appliance has a polarized plug (one pin is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet in only one orientation. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

WARNING: This appliance is equipped with a tamper-resistant screw to prevent the removal of the outer cover. To reduce the risk of fire or electrical shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repairs should be done only by authorized service personnel.
Note: If the power cord is damaged, it should be replaced by qualified personnel.

GETTING TO KNOW YOUR STEAM IRON

1. Soleplate
2. Spray Nozzle
3. Water Tank Opening
4. Power/Temperature Setting Button
5. Digital Display
6. Steam Burst Button
7. Variable Steam Knob
8. Spray Mist Button
9. Handle
10. Self Clean Button
11. Water Tank
12. Cord Sleeve
13. Heel Rest

The product may vary slightly from what is illustrated.

Getting Started How to Use

This product is intended for household use only.

IMPORTANT
This product was thoroughly tested by our factory’s QA team prior to shipping. Some residual water from the testing might remain in the unit or the water tank. This is normal and we guarantee this is a brand-new product.

• Remove all labels, stickers, and tags attached to the body and soleplate of the iron.
• Use ordinary tap water for ironing.
• For optimum performance, turn the iron on and let it stand for 90 seconds before beginning to iron.
• Always stand the iron on its heel rest when powered on but not in use.

Filling with Water

Tilt the iron and using a clean filling cup, pour water into the water tank opening until the water reaches the MAX level as indicated on the water tank. Refill as needed.
Note: If you need to add water while ironing, unplug the iron from the power and follow the above steps.

Setting the Temperature

1. Plug in the iron. The power indicator light will turn red and beep. The iron will be in Standby mode and “OFF” will appear on the LCD display.
2. To select a temperature setting, press the Temperature Setting “UP/DOWN” button until you reach your desired setting from 1 to 9.
   Note: See the fabric guide on the LCD display and read the garment’s label to help you determine which temperature setting to use.
   Tip: If unsure of a garment’s fiber, test a small area (on an inside seam or hem) before ironing.
3. The digital display will show the setting number and fabric type. The fabric type will flash on the display when heating.
4. When your set temperature is reached, the iron will beep once and the fabric type will stop flashing.
5. To change temperature settings while ironing, just press the Temperature Setting button. When a lower setting is selected, the fabric type will flash until the iron temperature has lowered to the correct level for that setting.

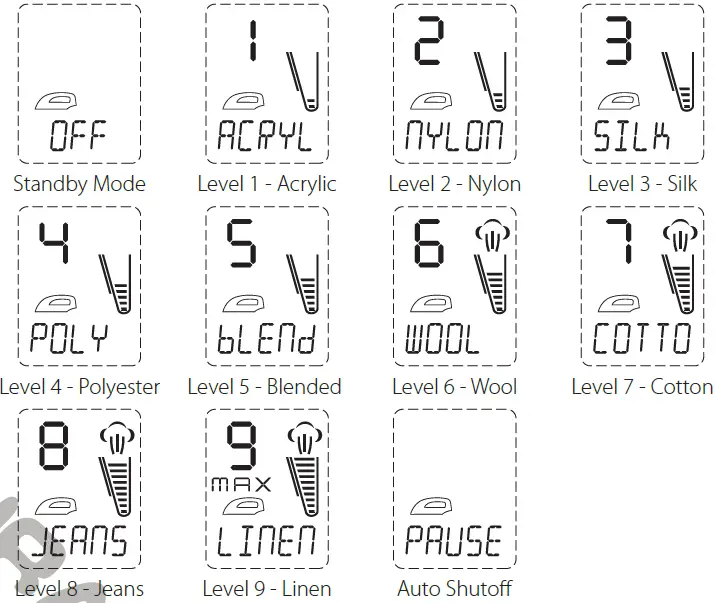

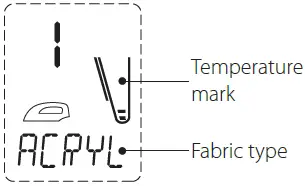

LCD Display

Normal Status

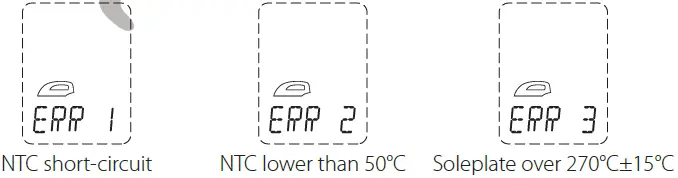

Error Status

• Unplug the iron from the power when the LCD panel shows an error status. Plug the iron in again once the soleplate has cooled.
• If the LCD panel still shows an error status, contact qualified technicians to check and repair the iron or contact our customer service.

Note: NTC stands for Negative Temperature Coefficient.

Ironing with Steam

1. For steam ironing, make sure the water tank is filled to Max.
2. Make sure the Variable Steam Knob is slid to position, and press the Temperature Setting button to the appropriate steam setting for your fabric.
   Note: See the fabric guide on the LCD display and read the garment’s label to help you determine which steam setting to use.
3. Once the selected temperature setting is reached, toggle the Variable Steam Knob to the desired position and start ironing.
4. When finished ironing, toggle the Variable Steam knob off.
   Note: Ironing with steam is only possible when the temperature setting is between level 6 to level 9. Levels 1 to level 5 are for dry ironing only.

Steam Burst

Horizontal

Tip: Use to remove stubborn creases.

1. With the water tank filled to the Max level and make sure the Variable Steam knob is slid to position, press the Temperature Setting button to the appropriate steam setting for your fabric.
   Note: See the fabric guide on the LCD display and read the garment’s label to help you determine which steam setting to use.
2. Once the selected temperature setting is reached, press to Steam Burst button to start ironing with steam burst.
3. For best performance, press the Steam Burst button at 5-second intervals.
4. When finished ironing, stand the iron on its heel and unplug the iron.

Note: Ironing with steam is only possible when the temperature setting is between level 6 to level 9. Levels 1 to level 5 are for dry ironing only

Vertical

Tip: Use for removing wrinkles from hanging clothes and drapes.

1. With the water tank filled to the Max level and make sure the Variable Steam knob is slid to position, press the Temperature Setting button to the appropriate steam setting for your fabric.
   Note: See the fabric guide on the LCD display and read the garment’s label to help you determine which steam setting to use.
2. Hang the garment to be steamed on a clothes hanger. Curtains or drapes can be steamed once they are hung.
3. Hold the iron close to, but not touching, the fabric. It is suggested to hold the iron vertically between 15 to 30mm (0.59 to 1.18in) away from the hanging fabric.
4. Pull the fabric tight in your free hand and press the Steam Burst button as you move the iron over the fabric.
5. When finished ironing, stand the iron on its heel and unplug the iron.

Dry Ironing

To iron without steam, set the Variable Steam knob off.

Using Spray Mist

Tip: For fabrics other than silk, use it to dampen tough wrinkles in any setting.

1. Be sure the iron is filled with water.
2. On first use, press the Spray button several times.

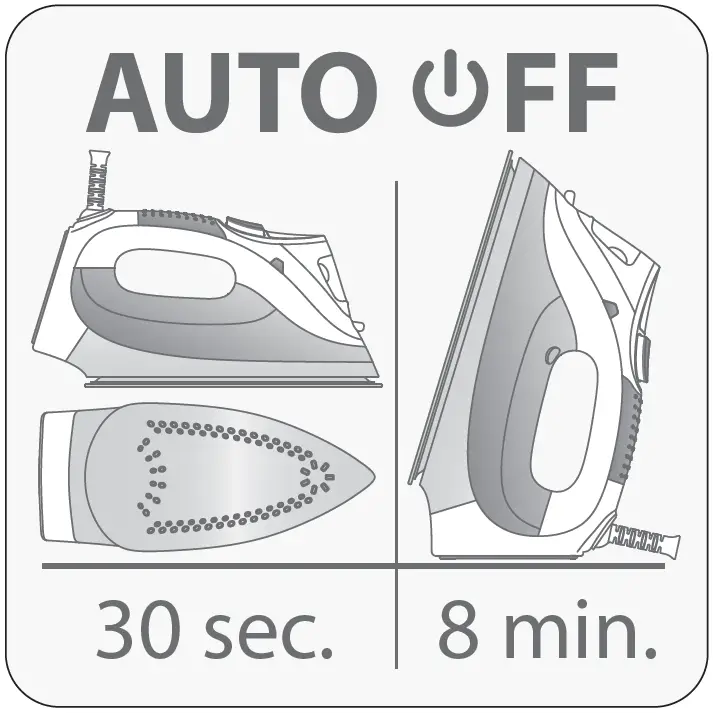

3-Way Auto Shutoff

The automatic shutoff feature works as follows:

1. Once the iron reaches the appropriate temperature, it will:
   • switch off after 8 minutes of inactivity when the iron is placed in a vertical position.
   • switch off after 30 seconds of inactivity when the iron is placed in a horizontal position.
   • switch off after 30 seconds of inactivity when the iron is tipped over on its side.
2. Once shut off, the iron will beep 6 times and the color of the digital display will turn from blue to red and the screen will flash “PAUSE”.
3. As soon as you pick up the iron, it will start heating again to the set temperature setting. Wait for the iron to reheat completely before resuming operation.

Manual Shutoff

When the iron is in normal working status, you can shut off the iron manually as follows:

1. Press and hold the Temperature Setting button Up for 3 seconds.
2. Press the Temperature Setting Down button from high to low until it shuts off.

Emptying the Water Tank

Note: It is recommended to empty the water tank after each use. This will prolong the iron’s lifespan.

1. Unplug the iron and let it cool.
2. To empty the water, hold the iron over a sink with the tip pointing down. Water will empty out of the water tank opening.

Care and Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel.

Cleaning

1. Make sure the iron is unplugged and has cooled down completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water and mild household detergent. Never use abrasive, heavy-duty cleansers, vinegar, or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

Auto-Cleaning System
To keep the steam vents free of any buildup, it is recommended to use the self-clean function once every two weeks by doing the following:

1. Fill the water tank well below the Max level and toggle the Variable Steam knob to the off position.
2. Plug in the iron.
3. Press the Temperature Setting “Up” button to level 9 and stand the iron on its heel rest. Allow it to heat for about 3 minutes.
4. Unplug the iron and hold over a sink with the soleplate facing down.
5. Press and hold the Self Clean button. Be careful, as hot water and steam will come out from the steam vents.
6. Continue to press the Self Clean button until all water has emptied. If necessary, rock the iron side-to-side and front-to-back.
7. When finished, release the Self Clean button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

Storing

1. Unplug the iron and let it cool completely.
2. Check that the Variable Steam knob is toggled to the off position.
3. Store the iron on its heel rest. Storing the iron on its soleplate can cause leaks or damage.

Specifications

1. Model: 724NA-0001, YPZ-801

For the US

• Rated Voltage: AC 120V~60Hz
• Rated Power: 1800W

For UK/EU

• Rated Voltage: AC 220-240V~ 50/60Hz
• Rated Power: 2020-2400W
• Dimensions: 28.7×12.4×14.6cm (11.3×4.8×5.7in)
• Weight: 1.25kg (2.75lbs)
• Temperature Range: 60~220ºC (140~428ºF)
• Water Tank Capacity: 340ml (11.4oz)
