QUICK REFERENCE GUIDE > DW24UNT2X2
Built-in Dishwasher, Tall,
Sanitize
Series 7
Contemporary
Stainless Steel
DW24UNT2X2 Built-In Dishwasher Tall Sanitize
Designed to fit flush under your benchtop for a seamless look, this dishwasher delivers extra wash options and Auto Door Open Dry.
- Designed to be built under your benchtop, fitting flush with cabinetry for a seamless look
- Seven wash programs from Heavy to Light, including Auto and 60min
- Dry+, Sanitize and Half Load modifiers provide extra wash options
- Wi-Fi enabled and works with the Samarths™ app for remote control and notifications

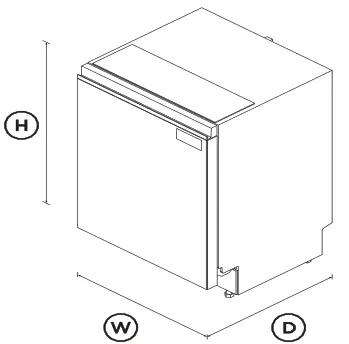

DIMENSIONS
| Height | 33 3/4 – 36 1/8″ |
| Width | 23 1/2″ |
| Depth | 22 5/8″ |
FEATURES & BENEFITS
SEAMLESS DESIGN
Install this dishwasher flush under your benchtop with minimal gaps. Designed to match our Contemporary family of appliances with a recessed handle for a seamless finish in your kitchen.
EFFORTLESS DRYING
For beautifully dry dishes, this dishwasher features automatic door opening at the end of the cycle to release excess steam. Making unloading more convenient, the Auto Door Open Dry feature helps to ensure dishes come out dry and ready to use or
store.
A RELIABLE CLEAN
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
CUSTOMIZE YOUR WASH
The Half Load modifier is perfect for washing a partial load, for faster turnaround of dishes. Sanitize provides extra protection, killing 99.9% of bacteria* in the final rinse, while the Dry+ modifier is great for plastic dishes. *Certified to NSF/ANSI Standard 184
EFFICIENT PERFORMANCE
With an Energy Star Most Efficient rating, this dishwasher is recognized as among the most energy efficient models on the market. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
FLEXIBLE LOADING
Designed to fit 15 place settings with ease, adjustable racks help you to load and care for various items – including a height adjustable upper basket, and foldable cup holders and tines.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Capacity and loading | |
| Accommodates round plates | 12 9/16″ |
| Accommodates round plates | 9 13/16″ |
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fixed height, foldable cup racks | • |
| Fold down tines | • |
| Fold down wine racks | • |
| Place settings | 15 |
| Consumption | |
| Energy rating | Energy star Most efficient |
| Water usage (per wash cycle) | 3.2 gal/cycle |
| Controls | |
| Child lock | • |
| Energy saving delay start | • |
| Intuitive capacitive touch | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Air curtain for bench | • |
| Auto Door Open Dry | • |
| Flood protection | • |
| Half load option | • |
| Internal tub material | Stainless Steel |
| Motor type | Asynchronous |
| ThermoDry system | • |
| Three-stage filtration system | • |
| Performance | |
| Noise emissions | 46dBA |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 22 5/8″ |
| Height | 33 3/4 – 36 1/8″ |
| Width | 23 1/2″ |
| Warranty | |
| Parts and labor | 2 years |
| Wash Program Modifiers | |
| Dry + | • |
| Half-load | • |
| Sanitize | • |
| Wash modifiers | 3 |
| Wash Programs | |
| 60 min | • |
| Auto | • |
| Eco | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 10 |
| Water connection | |
| Water pressure | 30kPa – 1000 kPa |
| SKU | 82442 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
