Battery Wand Battery Pack

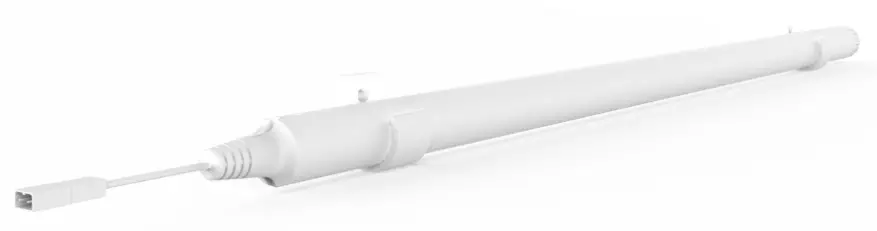

MTBWAND18-25 Battery Wand Battery Pack
This re-loadable battery tube uses eight long-lasting, readily available lithium AA batteries (not included) to power your Automate Shades and blinds. All mounting clips and hardware included.
VERSATILE MOUNTING SYSTEM
 | Mount vertically or horizontally depending on shade or system application |
 | BATTERY HEALTH Direct replacement for older model battery wands ( AA Li-ion Battery Model). |
ARC™ (Automate Radio Communication) is Rollease Acmeda’s proprietary technology utilising 433MHz radio communication with bi-directional feedback that brings Automate motorised shading systems together.
PRODUCT SPECIFICATIONS
Part #: MTBWAND18-25 AUTOMATE l BATTERY TUBE for 18/25mm DCRF (no battery) Mtrs
| Input Voltage | 5 VDC | Battery Size | 8 AA – Li-Ion Battery |
| Typical Voltage | 12V | Battery Type | Li-ion |
| Nominal Voltage | 12V | Temp Working Range | 32°F to 113°F (0°C to 45°C) |

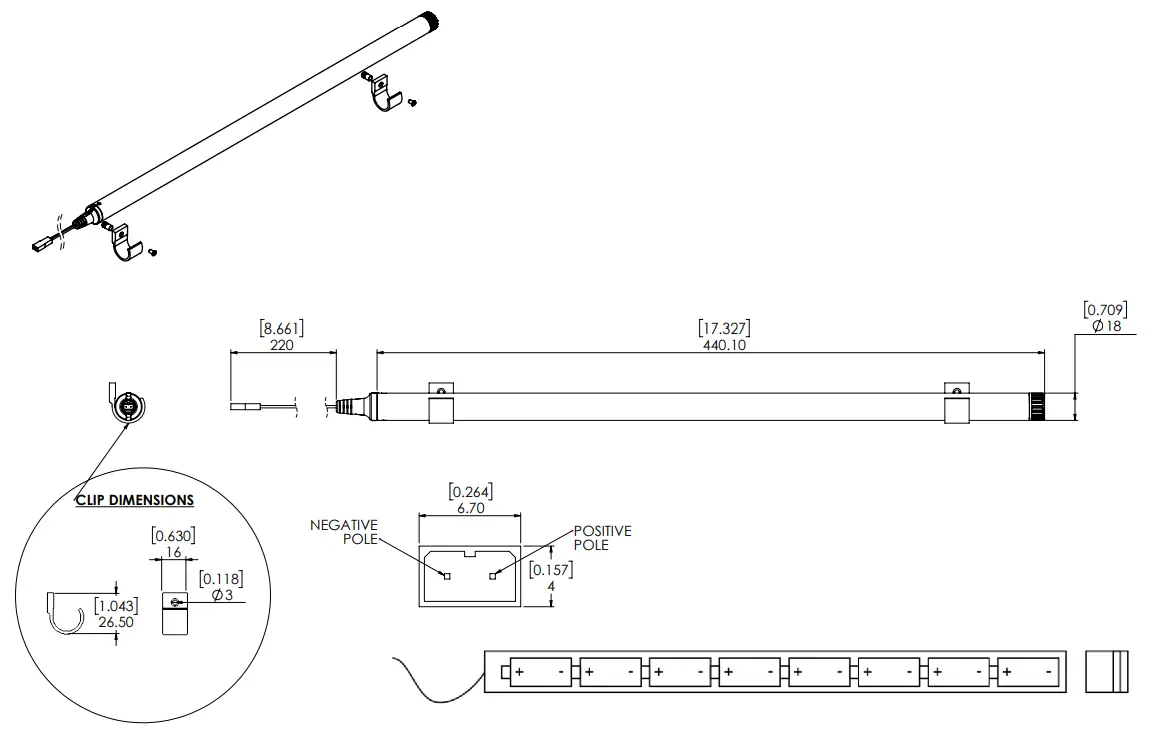

DIMENSIONS
WORKS WITH
- Cord Lift / Tilt Motors and DC 25mm motor only
ACCESSORIES (sold separately)
DC MOTOR CABLE EXT
6” (155mm) – MTDC-CBLXT6
48” (1.2m) – MTDC-CBLXT48
96” (2.4m) – MTDC-CBLXT96
ITEMS INCLUDED

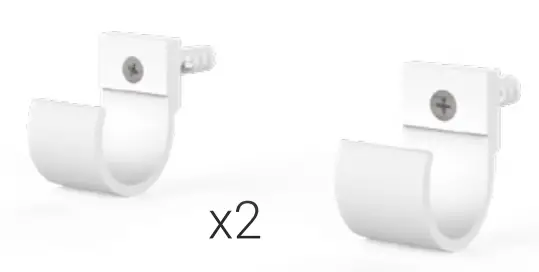

Wall Mount
© Rollease Acmeda
