Boost Pro
Electric Scooter
User Manual
Thank you for choosing trek.
Boost Pro Foldable Electric Scooter with Shock Absorbers
OUR STORY
Born in 1995 in Istanbul, trek is a global technology brand offering a wide range of well-designed, quality and innovative products at affordable prices with outstanding customer service to beautify people’s lives.
trek meets with its customers in 22.000+ stores in 20+ countries. The number of trek products reached their customers worldwide exceeds 100 million.
Discover

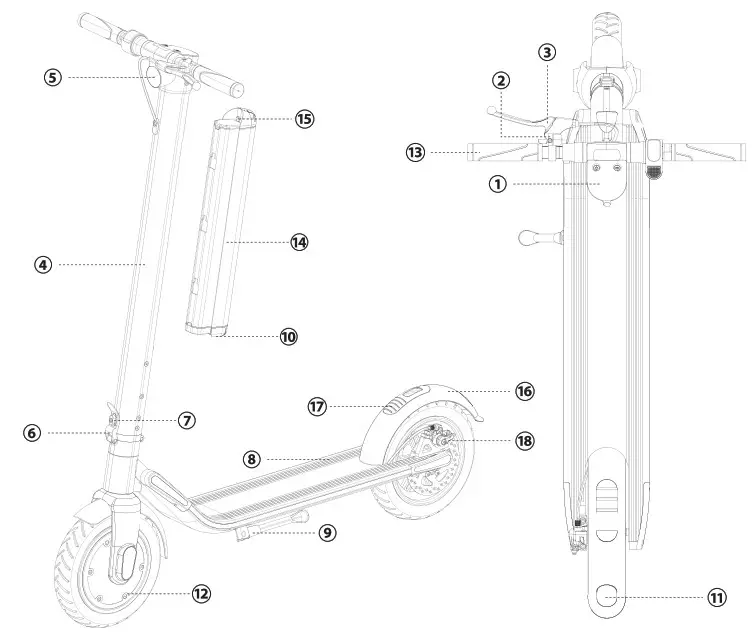

| 1. Control Panel 2. Mechanic Horn (Warning Bell) 3. Brake Lever 4. Stem 5. Headlight 6. Folding Lock 7. Safety Lock 8. Foot Pad 9. Kickstand | 10. charging Port 11. Break Light 12. Front Tire Motor 13. Handlebar 14. Battery 15. Battery Lock 16. Fender 17. Pedal Brake 18. Disc Brake |

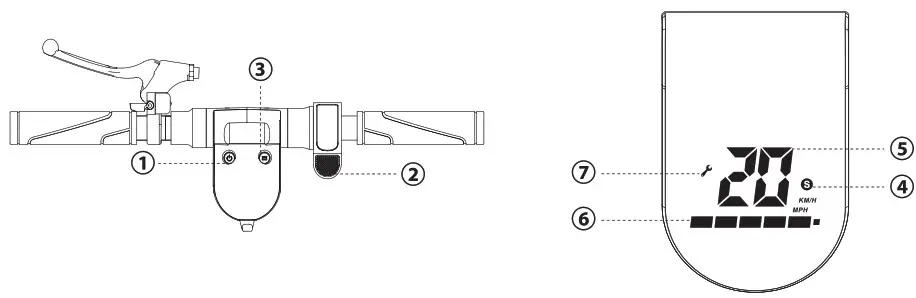

| 1. Power Button 2. Accelerator 3. Function Button 4. Speed Mode Indicator | 5. Speedometer 6. Battery Level 7. Fault Display |

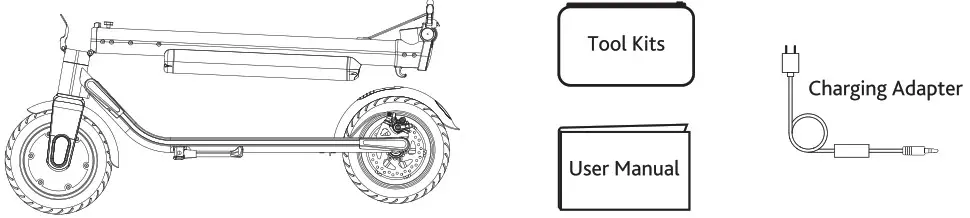

In The Box

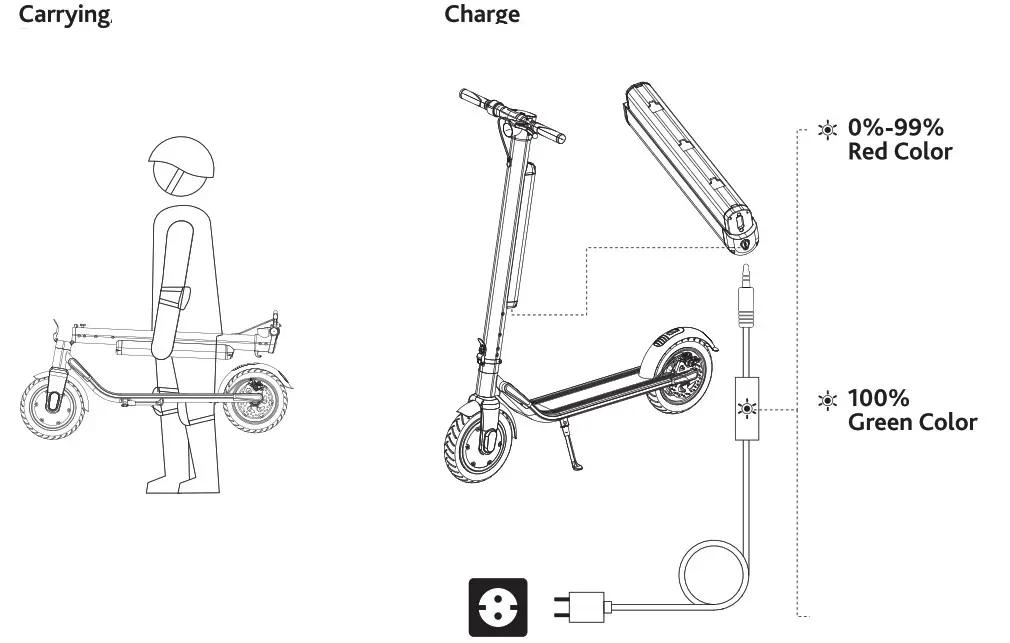

How to Use

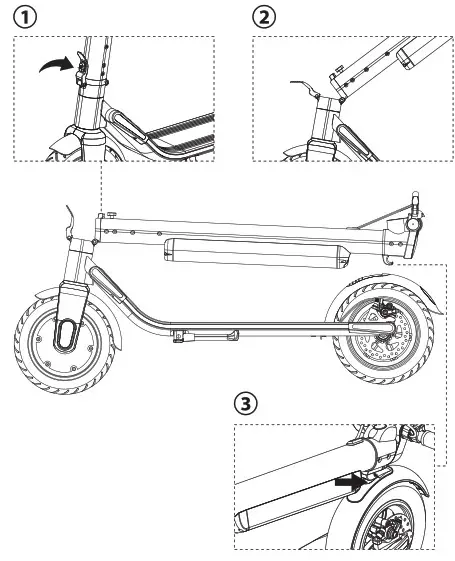

Unfolding
Folding
Setup
After unpacking, fix the kick stand and handlebar with screws to make Boost Pro ready.

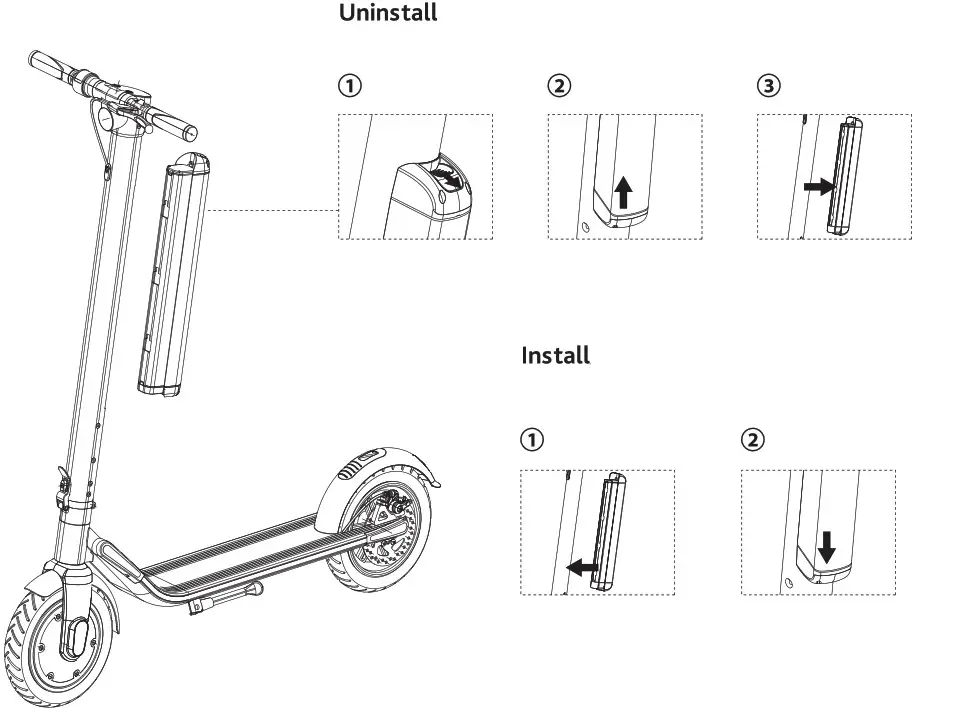

Uninstall-Install the Battery

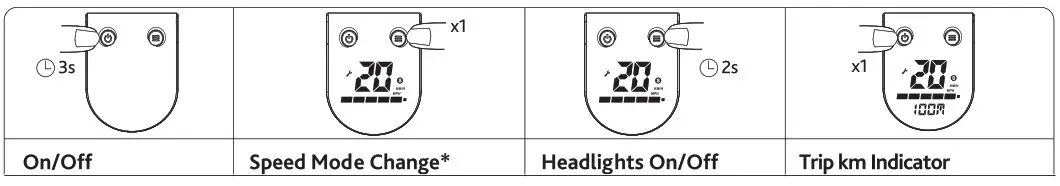

How to Ride?
Hold the brake handle to brake. Lightly step on the rear fender to assist the brakes.
Beginner Mode: Mode indicator S isn’t displayed.
Normal Mode: Mode indicator S shows white.
Sports Mode: Mode indicator S shows red. Cruise control is activated automatically when driving at the same speed for 5 seconds.
Technical Specifications
| Dimensions | Unfolded: 107*19*121 cm Folded: 107*19*45 cm | Possibility in average condition (2) (km) | 25km/s have 40km manzil |
| Weight | 14,5 kg | Maximum slope(%) | 20 |
| Max load | 100 kg | Operating temperature range(°C) | 0-35°working temperature |
| Height | 1140 cm | Temperature of storage(°C) | 0-25°storage temperature |
| Max speed(km/h) | 25km/s | Charging time(h) | 4 h |
| . | Battery | 36V/10Ah , |
ATTENTION
- Do not ride in the rain.
- Avoid dropping.
- Avoid extreme temperatures.
- Do not disassemble
- Wear a helmet, elbow pads and knee pads before riding.
- Do not carry items.
- Do not ride on one foot.
- Do not accelerate when going downhill.
- Use the headlights and horn when necessary.
- Recommended riding speed is 18 km/h.
- Boost is intended for riders older than 15 years.
- Do not drive on highways, intercity highways and sidewalks.
- Do not drive with one hand let go of the handlebar while riding.
- Do not drive by hanging or holding onto another vehicle.
- Do not ride with anyone else, including children.
- Always place the scooter on a flat and stable surface.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
