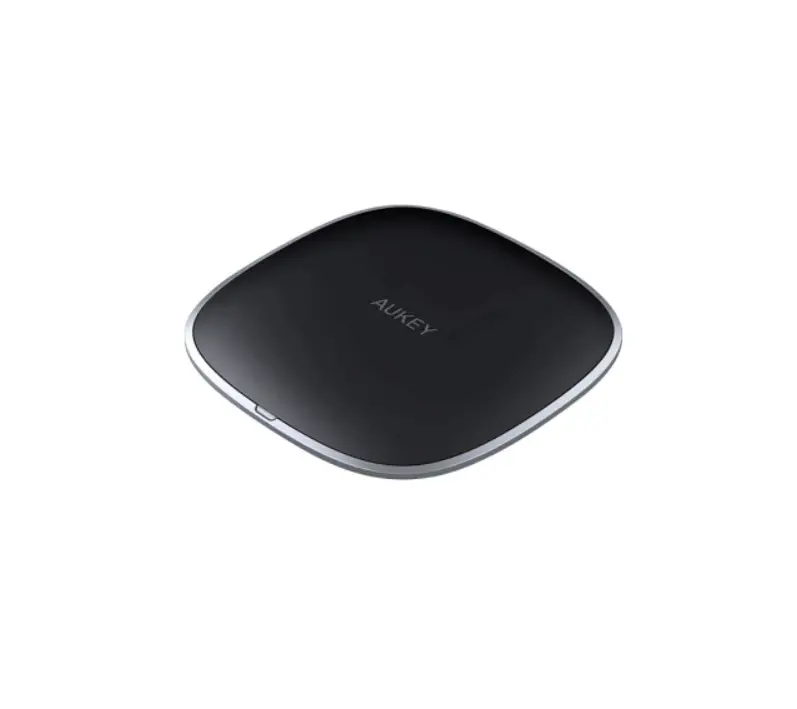

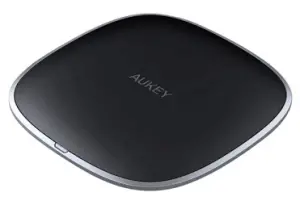

Aukey Graphite 10w Wireless Fast Charger User Manual (+ PDF)

Thank you for purchasing the AUKEY LC-Q6 Graphite 10W Wireless Fast Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Graphite 10W Wireless Fast Charger
USB-A to C Cable
User Manual
Warranty Card

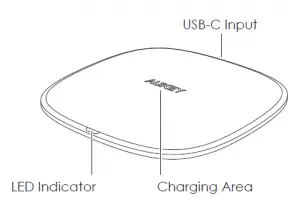

Product Diagram

Specifications

Model	LC-Q6
Technology Compatibility	Qi, Quick Charge 2.0/3.0
Input	5V 2A, 9V 1.6A
Output	5V 1A, 9V 1.2A
Maximum Power Output	10W
Cable Length	1m / 3.3’
Dimensions	87 x 87 x 12mm / 3.43” x 3.43” x 0.47”
Weight	128g / 4.52oz

Getting Started

Wireless Fast Charging

Connect the LC-Q6 to a wall outlet with a Wireless Fast Charging-compatible power adapter (a Quick Charge 2.0 or 3.0 charger can also be used)

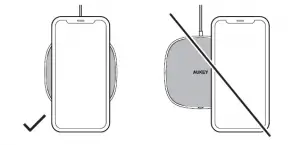

Put your Wireless Fast Charging-compatible phone on the LC-Q6. The LED indicator will turn green and your phone will Fast Charge wirelessly

Qi Wireless Charging

Connect the LC-Q6 to a wall outlet with your Qi-compatible phone’s original charger
Put your Qi-compatible phone on the wireless charger. The LED indicator will turn green and your phone will charge at standard wireless charging speed

Wireless Charging for Non-Wireless-Charging Phones

Wireless charging receiver (not included) required for non wireless- charging phones.

LED Indicator

Indicator	Status
Red	Standby
Green	Charging / Fully charged
Flashing Red	Charging error

Product Care

Keep away from liquids, extreme heat, and strong magnetic fields
A Wireless Fast Charging-compatible power adapter or Quick Charge 2.0/3.0 adapter is required for Wireless Fast Charging speeds on compatible Samsung phones or iPhones
For safe & effective charging, the LC-Q6 detects the interference of metal objects in the charging area and faults like insufficient or excessive power input. Charging will begin or resume automatically once charging conditions are correct

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [email protected]
Amazon EU orders: [email protected]
Amazon CA orders: [email protected]
Amazon JP orders: [email protected]

Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.
