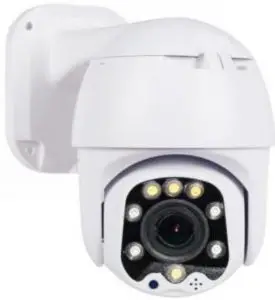

WIZARD 2MP SMART AI AUTO TRACKING SPEED DOME User Manual

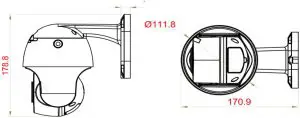

Dimension
- 2.5”, Plastic Housing, IP66
- Support 4mm;
- Support 3D humen tracking;
- SupBuilt in two way aduio function, intrusion warning prompt
- port P2P real-time message push;
- ONVIF; Compatible with HIKVISION, DAHUA, Raysharp, TVT, AEVISION NVR etc
Specifications
Camera | |
| Resolution | 2MP 1920×1080@25fps |
Sensor | Hi3516E+F37H |
| Optical Zoom | 4mm Fixed Len |
BLC | Support |
| AGC | Auto/manual |
WB | Auto/manual/indoor/outdoor |
| DNR | 2DNR,3DNR |
WDR | DWDR |
| S/N Ratio | ≥50dB |
Dome | |
| Mobile View | Android, IOS (P6SLite) |
Communications Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P |
| Compatibility | HIKVISION, DAHUA,Raysharp, AEVISION, etc |
Remote Control | Support Android / IOS Smart Phone Remote Control |
| Software Control | IE, EasyVMS, P2P (P6SLite) |
Rotation Range | Pan: 0°~350° , Tilt: 0°~93° |
| Rotation Speed | Pan: 0~35°/s , Tilt:0~25°/s |
Preset Points | 256pcs presets（dwell time 01-60s interval available） |
| A-B scan | User programmabel(scan speed 1-64 levels setting available) |
Guard Tours | 1 groups( Max.16 points, dwell time user selectable) |
| Tracking Distance | 3-15M |
Tracking Speed Range | 3-15KM/h |
| 3D Tracking Region | A single point trigger / 1-16pcs multipoint trigger |
Audio | Built-in Two way Audio in Mobile APP(P6SLite), VMS, IE.; Audio Alarm Prompt |
| Addtional Function | TF Card Slot(Max. 128G) |
Operating temperature | -40º~+60ºC |
| Operation menu | English |
Power | DC 12V 2A(Not included) |
| Consumption | ≦8W |
IR distance | Up to 35 meters |
| LEDs | 4PCS Array 42Mil IR LED+4PCS White Light LED |
