Sunday Living Kpt-1606f-no2 Space Heater For Large Room User Guide

KPT-1606F-NO2 Space Heater for Large Room
User Guide

WARNING

Thank you for purchasing your new heater.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction manual for future reference

Facebook: #SundayLiving
Message: #SundayLiving
Email: [email protected]

INTRODUCTION

Please read this guidance carefully before using your fan heater, so that you can use it correctly.
Please keep well with this guidance.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. This heater must be plugged into a 120 V, 15 amp (or more) circuit of its own. Do not plug anything else into the same circuit. If unsure if your home meets this specification, consult a certified electrician prior to use. Risk of fire, overheating, malfunction, property damage, injury, or even death may result if not adhered to!
2. Connect to a properly grounded outlet only. Do not connect the heater to extension cords, surge protectors, timers, direct breakers, or an outlet with other appliances connected to the same outlet. Risk of fire, overheating, malfunction, property damage, injury, or even death may result if not adhered to!
3. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
4. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 ft. (0.9 m) from the front of the heater and keep them away from the sides and rear of the heater.
5. Extreme caution is necessary when any heater is used by or near children, invalids, pets, or when the heater is left operating unattended.
6. Always unplug the heater when not in use.
7. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner. Contact the manufacturer for resolution options.
8. Do not use outdoors. Exposure to outdoor elements such as rain, snow, sun, wind, or extreme temperatures may cause the heater to become a safety hazard.
9. This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations, nor any locations that use GFCI outlets.
10. Never place the heater where it may fall into a bathtub or other water receptacles.
11. Do not run the cord under the carpet. Do not cover the cord with throw rugs, runners, or similar coverings. Arrange the cord away from traffic areas and where it will not be tripped over.
12. The heater must be plugged into a wall outlet that is a dedicated circuit with a minimum 10amp rating on that individual circuit.
13. To disconnect the heater, first, turn the power button to the OFF position and then remove the plug from the wall outlet.
14. Do not allow foreign objects to enter or block any ventilation or exhaust opening as this may cause electric shock, fire, or damage the heater.
15. Allow at least 3 ft. of unobstructed space to the front and rear of the heater to allow for maximum heat, air, and ventilation flow.
16. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored, nor use flammable solvents to clean the heater. Keep the heater dry at all times.
17. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
18. Do not use abrasive solvents to clean the heater as it may cause damage to the finish or casing.
19. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use it on soft surfaces, like a bed, where the opening may become blocked.
20. Always plug heaters directly into a wall outlet/receptacle. Never use an extension cord or relocatable power tap (outlet/power strip).
21. Do not unplug the heater when the unit is still ON, as the vent grill will be hot.
22. Shut off the heater and wait 10 minutes before unplugging from the wall.

SAVE THESE INSTRUCTIONS

OVERHEAT SAFETY FEATURE

This heater is equipped with an overheat safety feature. When the internal components of the heater reach a certain temperature that could cause overheating or possible fire, the heater will automatically shut off.
If the unit has been overheated, you will need to unplug the unit from the wall and replug it in to use the heater again.

WARNING: TO PREVENT ELECTRICAL SHOCK, MATCH THE WIDE BLADE OF THE PLUG TO THE WIDE SLOT OF THE RECEPTACLE AND FULLY INSERT.
WARNING: It is normal for the power cord to feel warm to the touch. However, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage.

TECHNICAL PARAMETERS

USAGE

1. Please check before you use:
   A: The heating element and electric wire cannot be broken.
   B: Please do not use the socket lower than 15A for fear of an accident.
2. Use the fan heater in a flat place to avoid being toppled.
3. Method of use ：

1.Please install the base before using it. See the following figure.

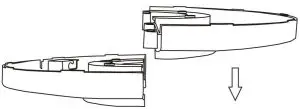

1		1、Take out the package accessories. 2、Fixed connect the base, 2 half into 1.

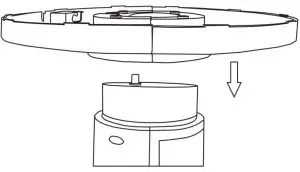

2		1、Put the bottom of the appliance up. 2 、Put the power cord through the center hole of the base and cover the base onto the appliance.

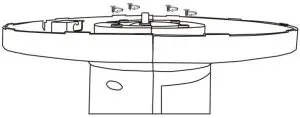

3		1、Fix the base and appliance together with 4pcs ST3 ×8 screw. 2 、After fixing the screws, clip the power cord into the card slot of the base. Note: after base installation, check whether the base is installed in place and whether the appliance shakes before use! Screws cannot be replaced arbitrarily!

2、Turn on the power switch first, “O ”= OFF， “ — ”ON ；

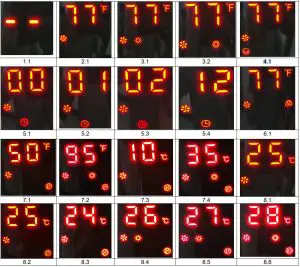

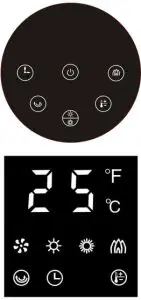

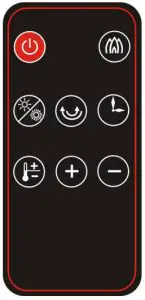

Turn on the power switch, LED display “–“, the appliance is standby; See picture 1.1 Press ” “as follows: ON (only Fan working), LED display Environment temperature(default is °F after the power cut off); of (Fan keep working for 30 seconds when shutdown the appliance(after heating): See picture 2.1 Press ” “, low heat(800W), high heat(1500W), FAN working, See picture 3.1-3.2 Press “ “, SWING ON, SWING OFF, See picture 4.1 Press “ ” to set a timer, 1h, 2h……. 12h; See picture 5.1-5.4 Press “ “, Flame ON, Flame OFF. See picture 6.1 Press to set temperature, Temperature range: 50-95°F. See picture 7.1-7.2 7.1 Press over 3s, switch to °C, Temperature range: 10-35°C, See pictures 7.3-7.4. Press over 3s again, switch to °F. When the power supply is not cut off, keep the Temperature mode the same. 7.2When using a remote control to set temperature, 7.2.1Presson remote control first, 7.2.2Then press “+” – ” to set temperature. 7.2.3The remote control can not switch the Temperature mode, only can switch on the machine. For example, the Environment temperature is 25 °C(77°F). See picture 1 8.1 The set temperature is equal to or lower than the Environment temperature, the appliance will stop heating. See picture 8.2-8.3 The set temperature is 1-2 ℃(1-4 ℉ or 5℉) higher than the Environment temperature, the appliance will low heat. See pictures 8.4-8.5 The set temperature is higher or equal to Environment temperature+3 ℃(5℉ or 6℉), the appliance will high heat. See picture 8.6 Note:℉ display will be ±1 ℉ deviation.  When the appliance is tilted or the base is off the ground, then the power is cut off automatically. The operation method of the remote control is the same Note: The indicator lights when corresponding function is working.

NOTE: Please feel free to contact Service Team for help if the
remote control is missing or damaged.
Facebook: #SundayLiving
Message: #SundayLiving
Email: [email protected]

4. If you stop using the heater, turn off all of the power switches, then put off the plug.
5. If you want to move the heater, please turn off the switches, then put off the plug.

Maintenance:

1. Please make sure the plug should be put off before cleaning the heater.
2. Strictly prohibit to use of water to wash the radiator, it can be cleaned by a piece of soft damp cloth with a little neutral detergent. Please do not use another solvent like gasoline.
3. The fan heater must be used or stored after cooled and dried completely.
4. If stop using the heater, please put off the plug from the socket, and store it in the dry place with a rust-proof polybag, original packing is favored.
