QUICK REFERENCE GUIDE > HP90ICSX3
Integrated Insert Rangehood,
90cm
Stainless Steel
User Guide

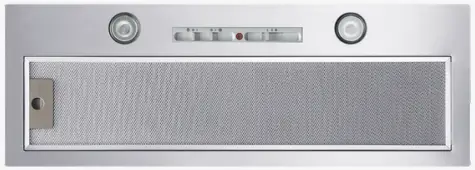

HP90ICSX3 Integrated Insert Rangehood, 90cm
This efficient, stylish rangehood is perfectly hidden away in cabinetry and easy to install.
- With three fan speeds, select the perfect extraction rate for your cooking
- Powerful maximum air movement of 740m³/hr
- Dishwasher safe filters that are easy to remove and clean
DIMENSIONS
| Height | 260 mm |
| Width | 792 mm |
| Depth | 277 mm |
SPECIFICATIONS
| Fan ratings | |
| Maximum pressured air movement | 740m³/hr |
| Installation and cleaning | |
| Dishwasher safe filters | 1 |
| Ducted | Top extraction |
| Recirculation | Optional |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 1 |
| Power requirements | |
| Supply voltage | 220 – 240VV |
| Product dimensions | |
| Depth | 277 mm |
| Height | 260 mm |
| Width | 792 mm |
| Product information | |
| Control type | Slider |
| Ventilation features | |
| Light type | LED |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 501340 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
