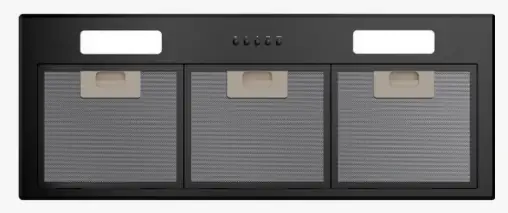

Haier Hph90ilb2 Integrated Insert Rangehood, 90cm User Guide (+ PDF)

Seamless fit
In an elegant black finish to match your kitchen aesthetic, this insert rangehood integrates seamlessly into cabinetry above your cooktop.

Effective extraction
Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.

Easy cleaning
The aluminium filters are easy to remove and dishwasher-safe, for quick and simple cleaning.

A joy to use
Thoughtful design features enhance your cooking experience, with responsive push-button controls and energy-efficient LED lighting to illuminate your cooktop.

Installed to suit
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.

SPECIFICATIONS

Accessories
Aluminium filter 793598
Recirculation carbon filter 792481

Fan ratings
Maximum pressured air movement 780m³/hr

Installation and cleaning
Dishwasher safe filters 3
Ducted Top extraction
Recirculation Optional

Performance
Extraction type Surface
Fan speeds 3
Filter type Mesh
Number of filters 3

Power requirements
Supply voltage 220 – 240V

Product dimensions
Depth 277 mm
Height 260 mm
Width 792 mm

Product information
Control type Push

Ventilation features
Light type LED

Warranty
Parts and labour 2 years

SKU 61791

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.

Other product downloads available at haier.com

User Guide
Installation Guide
