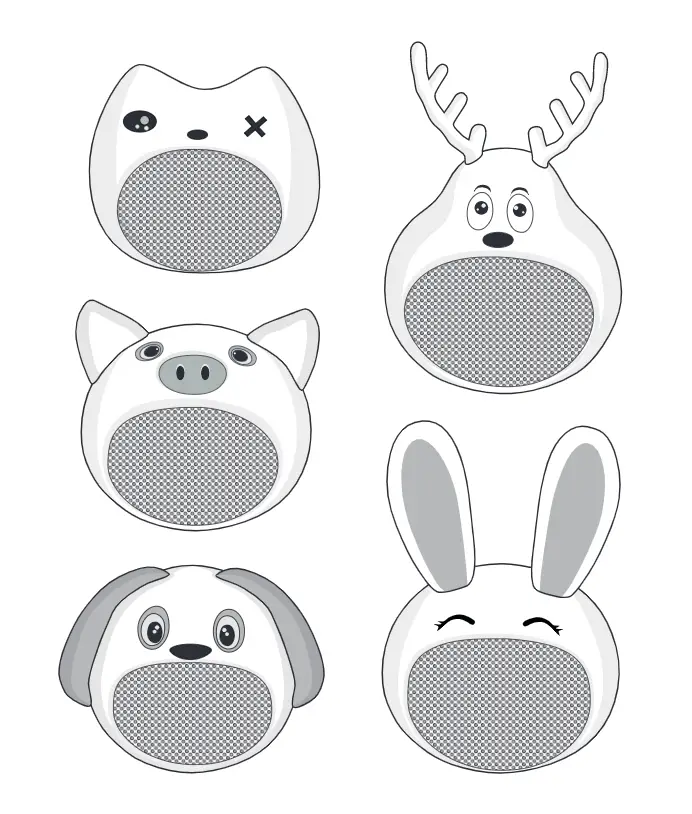

SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK Bluetooth Speaker
User Manual
Preface
Thank you for purchasing the Nedis SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK.
This document is the user manual and contains all the information for correct, efficient and safe use of the product.
This user manual is addressed to the end user. Read this information carefully before installing or using the product.
Always store this information with the product for use in the future.
Product description
Intended use
The Nedis SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK is a Bluetooth speaker that plays audio from your media device.
The product is exclusively intended for playing music from a Bluetooth device and for answering and making hands-free phone calls.
This product is not a toy, it is intended as a speaker.
The product is not intended for professional use.
Any modification of the product may have consequences for safety, warranty and proper functioning.
Specifications
Product | Bluetooth® Speaker |
Article number | SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK |
Power input | 5 VDC ; 0.5 A |
Bluetooth® version | 5.0 |
Bluetooth® frequency range | 2402 – 2480 MHz |
Bluetooth® signal range | Up to 10 m |
Frequency response | 100 Hz – 20 KHz |
Max. radio transmit power | 2 dBm |
Max. antenna gain | -0.58 dBi |
Peak power | 9 W |
Power (RMS) | 3 W |
Impedance | 4 Ω |
Sensitivity | 81 dB |
Driver size | 40 mm |
Battery type | Lithium-ion (60204) |
Charging time | Up to 1.5 hours |
Battery capacity | 400 mAh |
Play time | Up to 3 hours |
Built-in microphone | Yes |
Main parts (image A)
 |
A |
1. Power button |
2. Status indicator LED |
3. Micro USB cable |
4. Micro USB port |
Safety instructions
WARNING
- Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
- Only use the product as described in this document.
- Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
- This product can be used by children aged from 6 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
- Not to be used by very young children (0-3 years).
- Usage by children should be supervised at all times.
- Do not drop the product and avoid bumping.
- This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
- Disconnect the product from the power source and other equipment if problems occur.
- Do not expose the product to water or moisture.
- Do not use the product where splashing of water might occur e.g. bathrooms, swimming pools or close to a washbowls.
- This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
- Provide enough ventilation during charging.
- Do not expose the product to direct sunlight, naked flames or heat.
- Do not open the product.
- Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
- Listening on high volume for a long time will damage your hearing.
Safety symbols on the product
Icon | Description |
 | Electronic equipment needs to bear the CE mark in order to be marketed in the EU. CE marking shows that a product is assessed before being placed on the market and that it meets EU safety, health and environmental protection requirements. CE marking is also sometimes accepted as a means of compliance with type-approval requirements; for example, electronic components that require type-approval and also CE marking for electromagnetic compatibility (EMC) or low-voltage equipment. |
 | Indication to explain that the product needs to be collected separately when disposed. Do not throw in the trash bin. |
Installation
- Check the contents of the package
- Check that all parts are present and that no damage is visible on the parts. If parts are missing or damaged, contact the Nedis B.V. service desk via the website: www.nedis.com.
Charging the product
1. Plug the micro USB cable A3 into the micro USB port A4.
2. Plug the other end of A3 into a USB adapter.
3. The status indicator LED A2 lights up red.
- A2 turns off when the product is fully charged.
Pair with Bluetooth
1. Press and hold the power button A1 for 2 seconds to switch on the product.
2. A2 blinks and the product emits a tone to indicate pairing mode is active.
3. Enable Bluetooth on the device you want to pair the speakers with.
4. Select “SPBT4110” from the list of available Bluetooth devices on your device.
True Wireless Stereo (TWS)
TWS only works with two speakers of the same type.
1. Disable Bluetooth on the device you want to pair the speakers with.
2. Switch on both speakers.
3. Double press A1 on one of the speakers.
4. After a few seconds A2 blinks and the product emits a tone to indicate pairing mode is active.
5. A2 of the other speaker lights up.
6. Enable Bluetooth on the device you want to pair the speakers with.
7. Select “SPBT4110” from the list of available Bluetooth devices on your device.
8. Double press A1 of one of the speakers, to switch off the TWS function.
Use
Controlling the music
Press A1 to play or pause the music.
Making phone calls
To answer an incoming call, press A1.
To end a call, press A1.
Maintenance
- Clean the product regularly with a soft, clean, dry cloth. Avoid abrasives that can damage the surface.
- Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product.
- Do not clean the inside of the product.
- Do not attempt to repair the product. If the product does not operate correctly, replace it with a new product.
Warranty
Any changes and/or modifications to the product will void the warranty. We accept no liability for damage caused by improper use of the product.
Disclaimer
Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective owners and are hereby recognized as such.
Disposal
 | This symbol indicates that this product should not be thrown away with other household waste throughout the EU. To prevent possible harm to the environment or human health by uncontrolled waste disposal, you are responsible for recycling it so that it can promote the sustainable reuse of raw materials. To return your used product, you can use the regular return and collection systems or contact the store where the product was purchased. They can recycle this product for the environment. |
Declaration of Conformity
We, Nedis B.V. declare as manufacturer that the product SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.
The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:
For additional information regarding the compliance, contact the customer service:
Web: www.nedis.com
E-mail: [email protected]
Phone: +31 (0)73-5991055 (during office hours)
Nedis B.V., de Tweeling 28
5215 MC ’s-Hertogenbosch, the Netherlands
