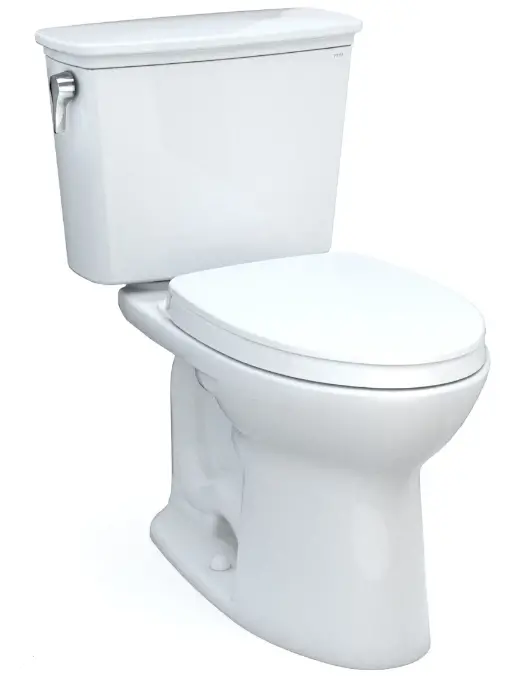

TOTO MS786124CEFG Two Piece Elongated Chair
| CST786CEFG.10 C776CEFG.10 ST786EA | MS786124CEFG.10 C776CEFGT40.10 ST786EA | MW7863046CEFG(A).10 10″ Drake® Transitional C776CEFGT40.10 ST786EA 1.28 Gpf Toilet, Elongated |
| MW7863056CEFG(A).10 | MW7863074CEFG.10 | MW7863084CEFG.10 TORNADO FLUSH®, Universal Height, |
| C776CEFGT40.10 | C776CEFGT40.10 | C776CEFGT40.10 |
| ST786EA | ST786EA |
INSTALLATION
Actual Product may vary slightly from illustration.

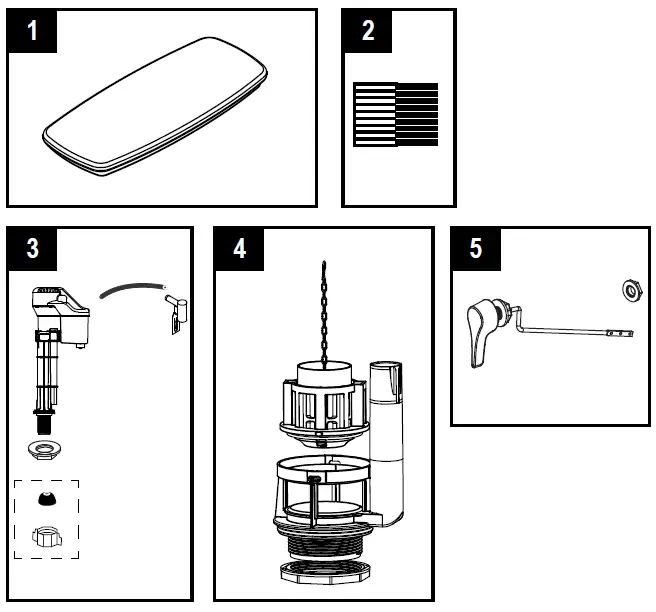

- TCU786CR#01 Tank Lid w/ Velcro Tape – Cotton
- TCU786CR#03 Tank Lid w/ Velcro Tape – Bone
- TCU786CR#11 Tank Lid w/ Velcro Tape – Colonial White
- TCU786CR#12 Tank Lid w/ Velcro Tape – Sedona Beige
- TCU786CR#51 Tank Lid w/ Velcro Tape – Ebony
- THU107 Velcro Tape
- TSU708 Fill Valve Assembly
- THU829-A Flush Valve Assembly, 1.28 GPF
- THU398#CP-A Trip Lever Handle – Chrome Plated
- THU398#PN-A Trip Lever Handle – Polished Nickel
- THU398#BN-A Trip Lever Handle – Brushed Nickel
- THU398#01-A Trip Lever Handle – Cotton

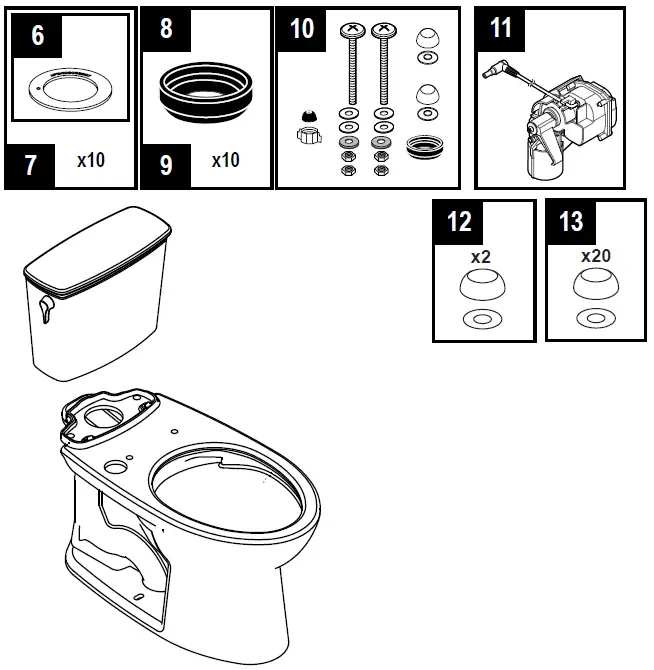

- THU407 Flush Valve Seal Gasket – 1pc
- THU370 Flush Valve Seal Gasket – 10pc
- 9BU024E Tank to Bowl Gasket – 1pc
- THU131 Tank to Bowl Gasket – 10pc
- THU828#01-A Tank to Bowl Mounting Hardware – Cotton
- THU828#03-A Tank to Bowl Mounting Hardware – Bone
- THU828#11-A Tank to Bowl Mounting Hardware – Colonial White
- THU828#12-A Tank to Bowl Mounting Hardware – Sedona Beige
- THU828#51-A Tank to Bowl Mounting Hardware – Ebony
- THU767 Autoflush Unit
- THU044S#XX Bolt Cap Set – (1 Toilet)
- THU098#XX Bolt Cap Set – (10 Toilets)
Note
#XX denotes the following color code: #01, #03, #11, #12 & #51
Product Number Explanations
Two-Piece Toilet
- (CST) Gravity Type Toilet
- (MS) Toilet & Seat Combo
- (MW) Toilet &
- WASHLET® Combo
- (SS) Seat
- (SW) WASHLET®
- (786) Model
- (C) TORNADO FLUSH®
- (E) 1.28 Gpf (G) CEFIONTECT®
Tank
- (ST) Tank
- (786) Model
- (E) 1.28 Gpf
- (A) AUTO FLUSH
Bowl
- (C) Bowl
- (776) Model
- (C) TORNADO
- FLUSH®
- (G) CEFIONTECT®
- (T40) WASHLET®+
