TBRFH7 RF Housing
User Manual
TBRFH7 RF Housing
The TBRFH7 RF housing is ideal for accommodating passive RF building blocks operating up to 6 GHz. The housings consists of a chassis carrying a female and a male BNC connector and a threaded cylinder. The housings are ideal for passive RF building blocks such as filters or attenuators. The housings come with an RF absorbing pad to suppress coupling and cavity resonance.

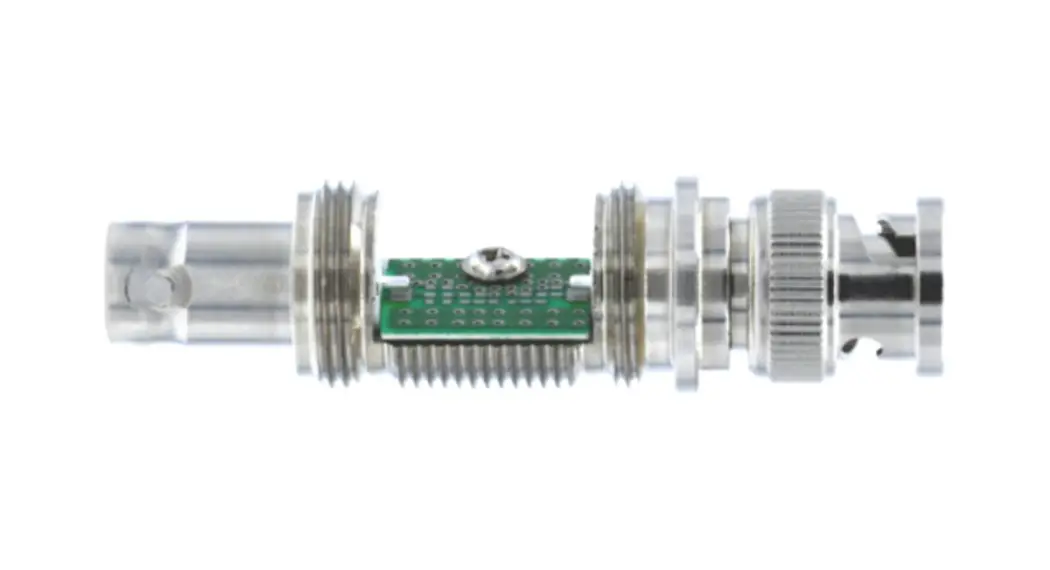

Picture 1: TBRFH7 RF housing components

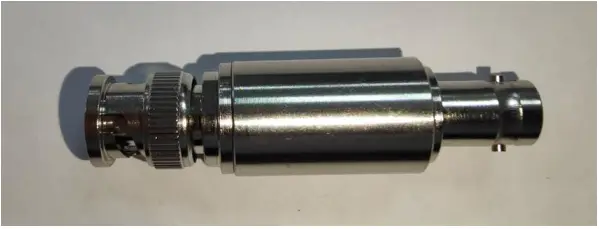

Picture 2: TBRFH7, assembled RF housing

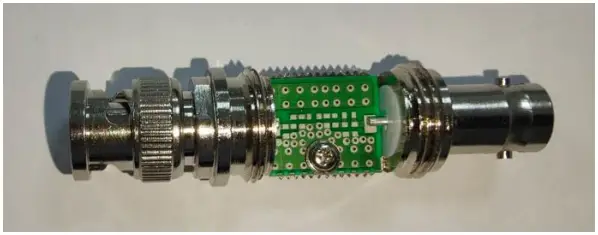

Picture 3: TBRFH7 RF housing application example – RF filter
Technical data
| Diameter: | 17 mm max. |
| Length: | 62.7 mm |
| Weight: | 60 g |
| Max. PCB dimension: | 15,5 mm x 13.6 mm, max. 1.2 mm PCB thickness |
| Housing material: | Brass, Nickel plated |
| RF connectors: | BNC-Male, BNC-Female |
| RF absorbing foam: | Carbon loaded, 1 GHz to 18 GHz, 15 mm x 12mm, 3.2 mm thickness |
Parts list
| RF chassis | 1 pc |
| Threaded cylindrical tube | 1 pc |
| RF absorber pad | 1 pc |
| Screws, M2 x 4, stainless steel | 1 pc |
Mechanical drawings

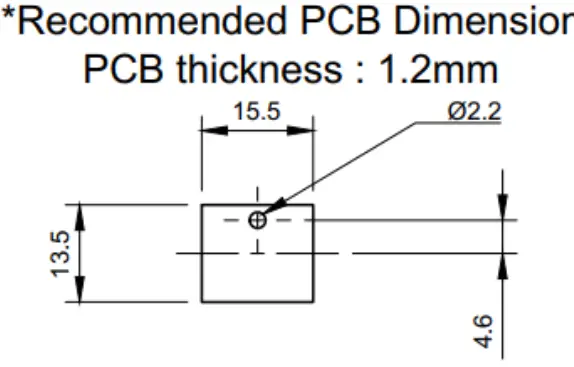

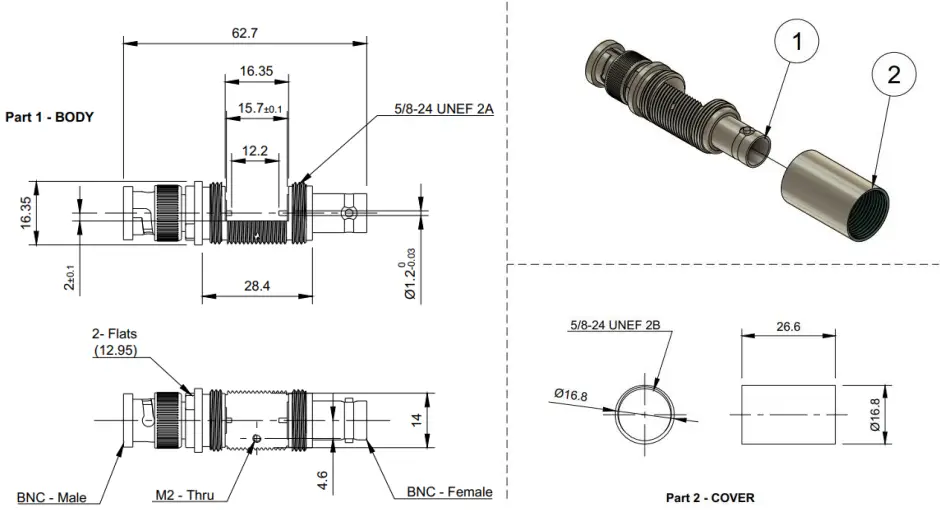

Picture 4: Housing dimensions
Ordering Information
| Part Number | Description |
| TBRFH7 | Coaxial RF housing, BNC-Male / BNC-Female |
Table 2 – Ordering Information
History
| Version | Date | Author | Changes |
| V 1.0 | 08.09.2022 | Minh Nguyen | Creation of the document |
| V 1.1 | 07.02.2023 | Minh Nguyen | Update drawing (Add Recommended PCB dimension) |
