Caffe2go 050121 Portable Coffee Maker Instruction Manual

Caffe2go 050121 Portable Coffee Maker Instruction Manual

Caffe2go 050121 Portable Coffee Maker logo

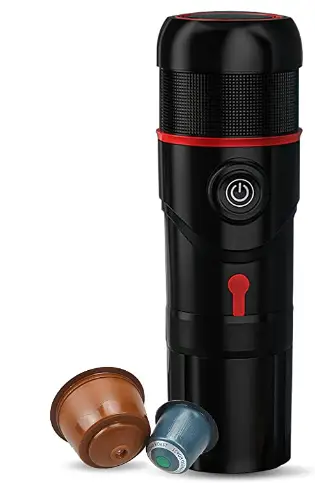

Caffe2go 050121 Portable Coffee Maker Caffe2go 050121 Portable Coffee Maker product

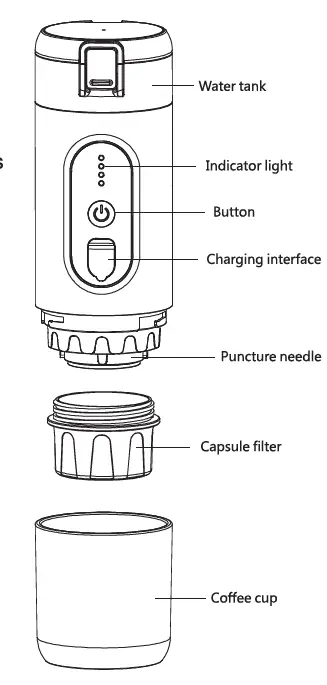

DESCRIPTIONCaffe2go 050121 Portable Coffee Maker fig 1

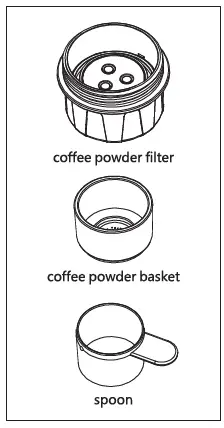

Coffee powder accessoriesCaffe2go 050121 Portable Coffee Maker fig 2

SECURITY WARNING

  • Please be careful to read the following instruction manual before use to avoid personal injury or damage of the machine.
  • This product is for personal use only. After opening the package, confirm that the product intact and whether all accessories are complete.
  • This product includes packaging bags and other tiny accessories, please keep out of reach of children.
  • Do not drink directly to avoid empyrosis..
  • Do not place the coffee maker in gas or electric burners, ovens, microwave ovens or dishwashers.
  • Please do not add any other liquid, such as milk, except water. Added water in a cup. Please don’t exceed the maximum tick mark.
  • Please clean the machine after every use. The main body of the machine is not recommended to be washed directly.
  • Do not use non-company recommended accessories. Maybe cause damage.
  • Please do not continue using, if the coffee machine has broken down.

COFFEE MACHINE BUTTON OPERATION INSTRUCTIiONS

  • Power display mode: press the button once in 1 second and the indicator will be off after 3 seconds.
  • Heating mode: press the button twice within 1 second to start heating. Shut off automatically after extraction.
  • Direct extraction mode: pour hot water into the water tank, and press the button longer than 2 seconds to start extraction.

PRODUCT PARAMETERS

Voltage

12V, 10A

Power

38W

Battery capacity

2500mAhx3

Pump pressure

18Bar

CapsuleNespresso Capsule

(standard size)

coffee ground capacity8g
Tank Capacity

60ml (max)

Net Weight780g
size<1> 72x220mmApplicationCoffee capsule/ coffee powder

INSTRUCTION

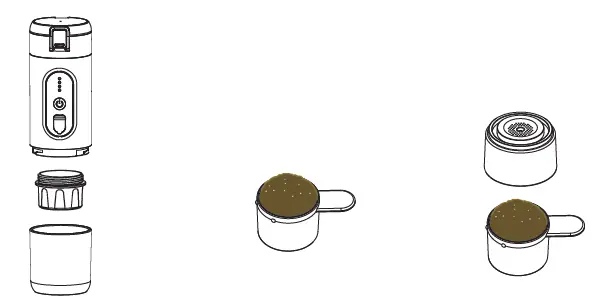

Powder extractionCaffe2go 050121 Portable Coffee Maker fig 3

  1. Open the cup and powder filter
  2. fill up the spoon with ground coffee

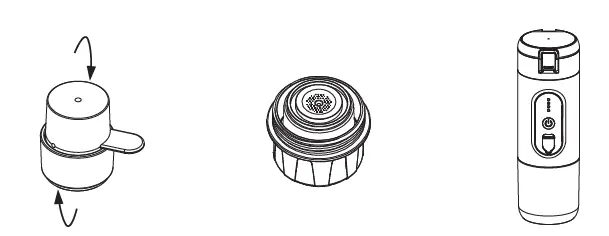

  3. fill up the coffee basket by using the coffee in the coffee spoonCaffe2go 050121 Portable Coffee Maker fig 4
  4. Press gently the coffee ground to make it evenly
  5. make the coffee powder basket into the coffee powder filter
  6. tighten the coffee filter and cup

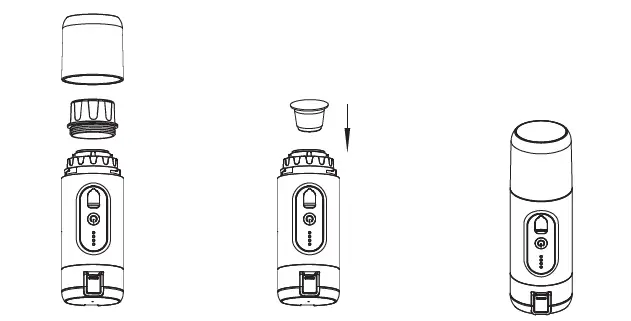

Capsule extractionCaffe2go 050121 Portable Coffee Maker fig 5

  1. Open the coffee cup and capsule filter
  2. Put in Capsul

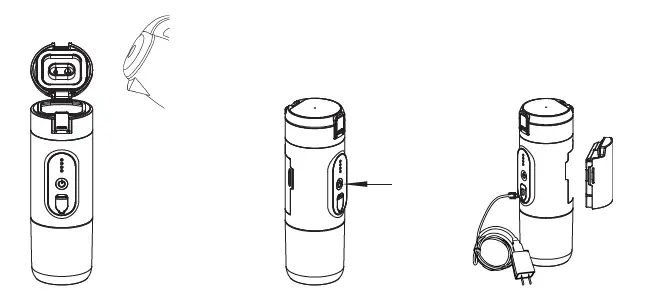

  3. tighten the capsule filter and the doffee cupCaffe2go 050121 Portable Coffee Maker fig 6
  4. Add water to the reservoir.
  5. Press the button twice to heat and extract.
  6. Charge the Presso X after 4-5 hot cups.
