Blaupunkt Tyre Inflator Tif 30 Da - 12v User Guide (+ PDF)

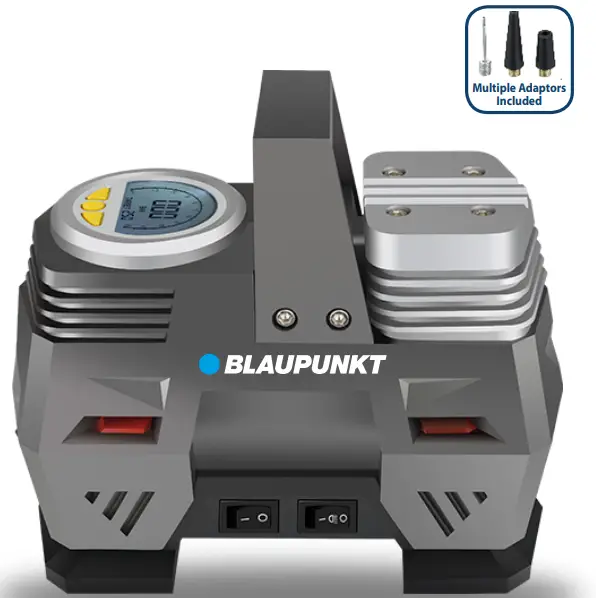

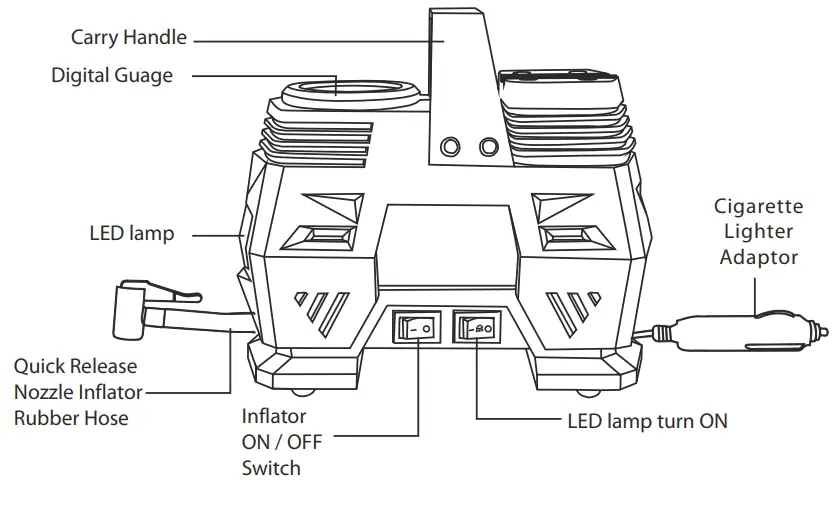

TIF 30 DA – 12V
TTYIFRE3I0NFDLAAT-O1R2V
Suitable for Car, Motorcycle, Bicycle, and other Sports equipment
Multiple Adaptors Included

Contents hide

Start the vehicle and insert the cigarette lighter adaptor into the 12V cigarette lighter outlet provided in the vehicle.
The device comes with a 3M long Power Cord which makes it convenient to connect the front & back tires.

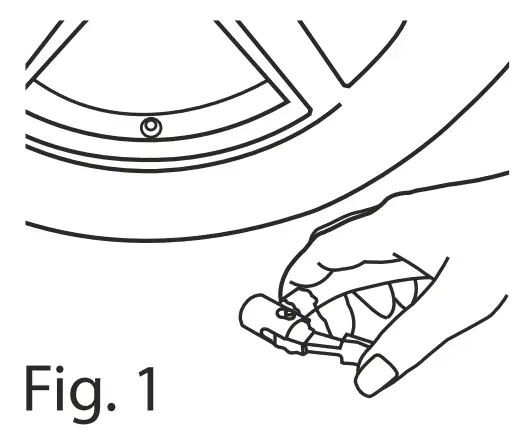

Attach the Quick Release Nozzle to the valve stem of the tire.

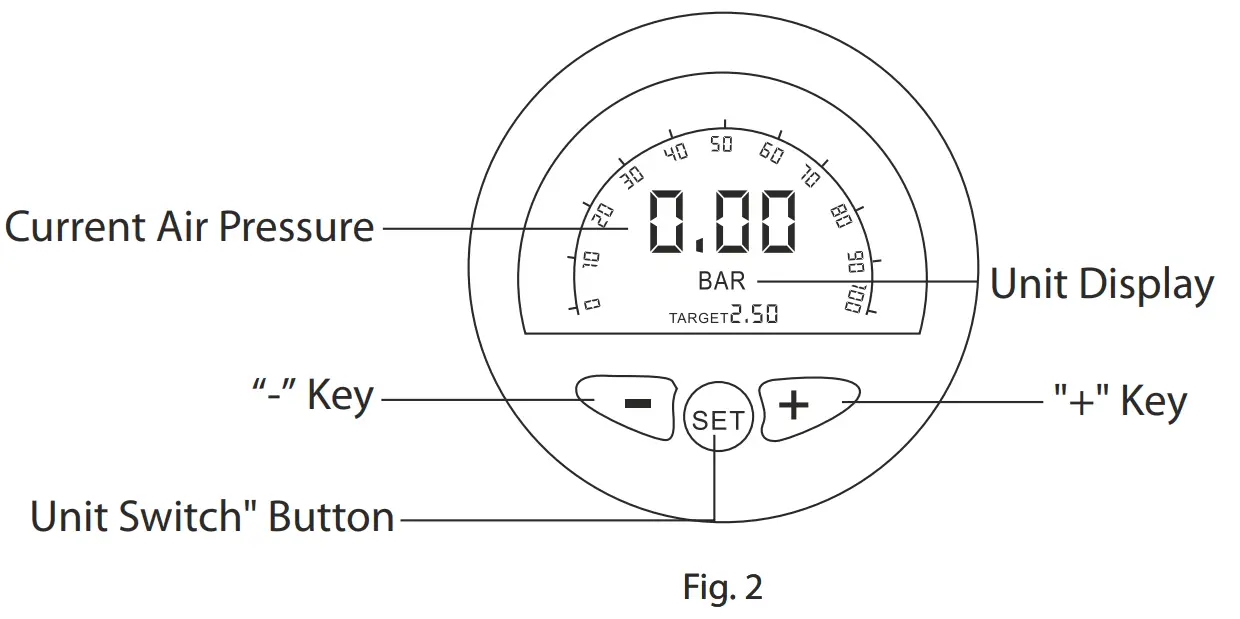

Place the device on a preferably flat surface and set the preferred tire pressure on the digital dial (Fig 2).
Turn on the inflator device. Make sure there are no leaks at the point where the quick release nozzle meets the valve stem of the tire.
Once the desired tire pressure is reached, the unit turns off automatically.

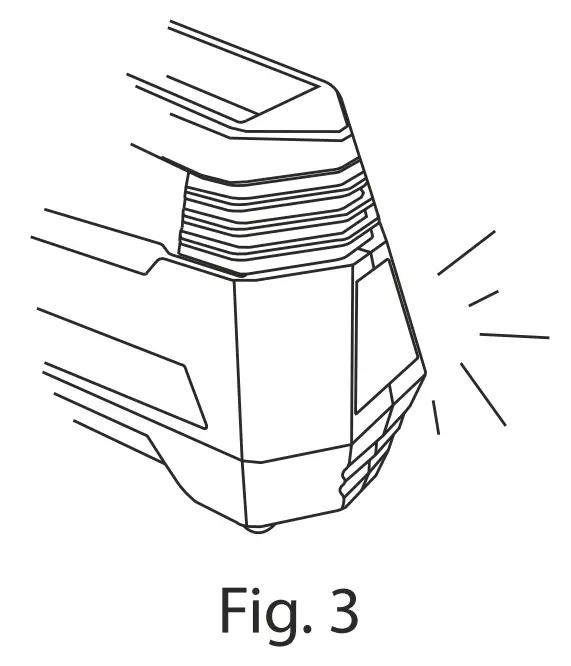

This tire pressure inflator comes equipped with a LED light that makes it convenient to use at night.
This device is designed to work non-stop for around 10-12 minutes (the typical time required to inflate 16″-19″ tires). It is suggested to not use the device beyond these 10-12 minutes at a stretch. A 2-3 minute interval may be required to improve the efficiency of this device in the long run.

Helpful Tips:

Do NOT keep the device near a heat source
Do NOT use this device near flammable liquids or gas source
Should the device need attention, please visit an Authorized Service Centre. Any attempt to service the device by an unauthorized person will VOID the warranty
This device is designed to be used with a 12V supply source only. Do NOT attempt to use it with a 24V supply source
This device is designed to be used to inflate tires for all types of Cars including SUVs.
It is normal for the device to get hot after continuous use.
It is recommended to use this device to inflate tires for no longer than its suggested cycle time at a go.

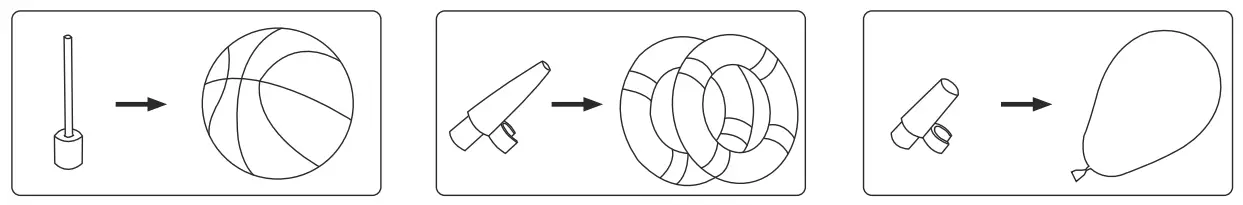

Accessories: Following accessories are included in the package: 1 qty spare fuse and 3 qty multi-function air inflator nozzles.

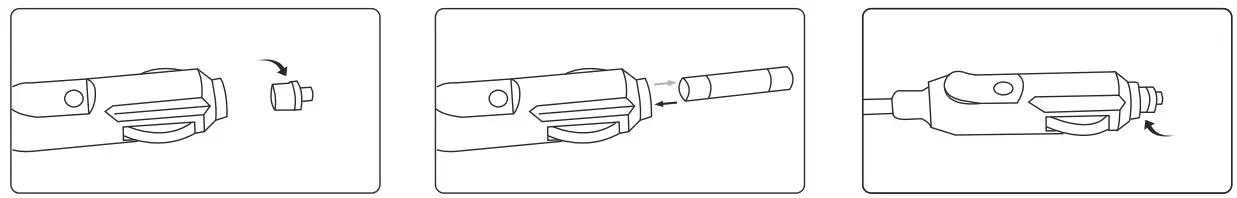

Steps for changing fuse:


Unscrew the top of the cigarette lighter adaptor	Remove blown fuse & insert spare fuse provided	Screw the top end of the cigarette lighter adaptor to make a tight seal

This section covers common problems the user may encounter while using this device.

Nature of problem	Cause and recommended solution
Device not working	Fuse is blown – replace the fuse and check the device
The device is operating erratically	The quick-release valve connector is not connected to the valve stem securely – causing a leak and hence showing erratic readings. Release the connector from the valve stem and reconnect securely
The device is operating erratically	The preferred tire pressure was not preset correctly and causes the display to blink continuously. Turn off the device, set the preferred tire pressure, and Turn ON the device.
