USER MANUAL
08970L
LED cosmetic mirror Immax FACE 3in1,
stand with Qi charging
Before using the product, read the instructions carefully and keep them properly.
PRODUCT DESCRIPTION
INSTRUCTION
Power connection
Insert the corresponding adapter head into the socket behind the fixture.
Comment:
Use the original power supply, do not use an extension cable or hub, otherwise the product may function abnormally.
- Do not use an adapter that does not match the 12 V output.
- If the lights are flickering or noisy, please check the power supply in time.
- Do not connect the metal point of the adapter with other metals, otherwise the product may be permanently damaged or other dangerous consequences may occur
- The original adapter is intended only for this product and is not intended for any other use.
MIRROR POSITIONING
The mirror can be positioned vertically within 40°.

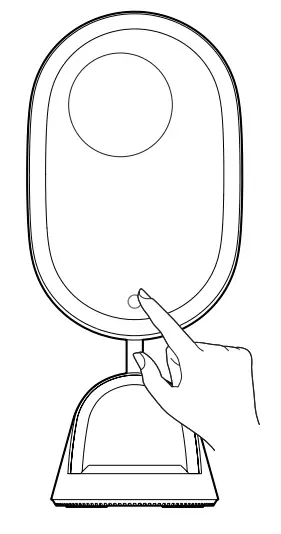

SETTING THE BRIGHTNESS OF THE LED LIGHTING
Touch three-level dimming By repeatedly touching, you select 3 levels of LED lighting intensity, in order – brightest, medium light, weak light, off.
QI WIRELESS CHARGING
Wireless charging function
If your devices support Qi wireless charging, simply place them in the middle of the stand and your device will start charging
Tips:
The device is charging – the charging indicator lights up red.
The device is fully charged – the charging indicator lights up green.
Abnormal charging – the charging indicator flashes red.

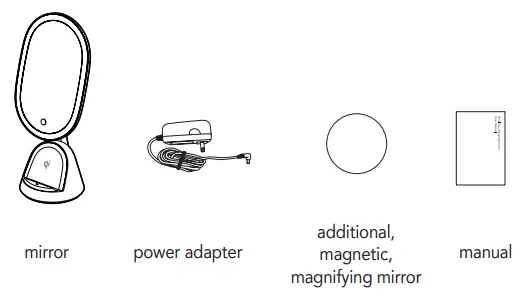

PRODUCT LIST
Note: Product images are for reference only.
The product image may be shown with slight differences from the actual product.
BASIC PARAMETERS
Catalog number: 08970L
Product name: LED cosmetic mirror Immax FACE 3in1 + stand with Qi charging
Working temperature: -20°C to +50°C
Input voltage: DC12V/1.5A
Power consumption:: 18W
Qi charging power: 10W
Light color: 5500lm
Dimensions: 168 x 130 x 393.5mm
Warning:
- Cleaning the surface – wipe the lamp with a dry, soft cotton cloth, do not use any other cleaning agents.
- The light source is irreplaceable.
- If the product malfunctions, do not repair or disassemble the product yourself, mechanical damage could occur and the product loses its right to claim proceedings. You can contact the manufacturer for maintenance.
- Content of harmful substances
- The form is based on the SJ/T 11364 standard:
- o : The dangerous substance is below the standard limit.
- GB/T 26572 in all homogeneous materials of table lamp components
- x : The hazardous substance exceeds the norm
- GB/T 26572 in at least one homogeneous material of table lamp components
- Product warranty
- The warranty service of this product is strictly in accordance with consumer regulations and the law on product quality in the Czech Republic.
Warranty conditions
- The product warranty expires in the event of:
- Unauthorized maintenance, incorrect use, mechanical damage to any part of the product, liquid absorption or deterioration, altered or torn product label, or no product label at all.
- Exceeding the warranty period; (2 years)
- Damage caused by force majeure;
- Man-made performance failure including use of dimmer/unspecified voltage/unspecified environment.
Manufacturer / Importer:
IMMAX, Pohoří 703, 742 85 Vřesina, EU
www.immax.cz
Designed in the Czech Republic, made in China
