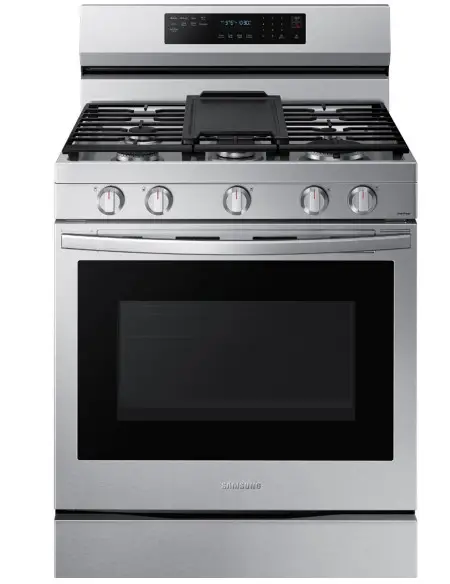

NX60A6711SG 6.0 cu. ft. Smart Freestanding Gas Range with No-Preheat Air Fry
User Guide

Contents hide

5 Installing Your Range

6 Warranty

7 Documents / Resources

7.1 References

8 Related Posts

Signature Features

Stainless Cooktop

Our Stainless Steel design completely covers all cooktop and backguard surfaces, elevating the look of any kitchen.

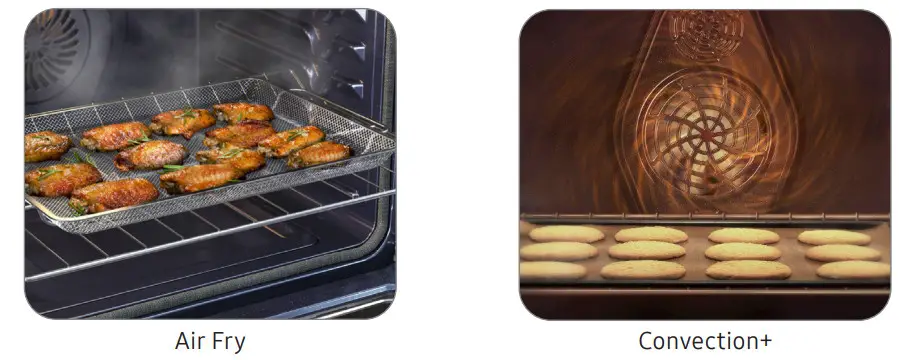

Air Fry

A healthier way to prepare your favorite fried foods right in your oven with little to no oil.
* No preheating required.
Air Fry tray included.
* As compared to deep frying.

Convection+

Powerful Convection+ saves you time by cooking food fast and more evenly.
Fan with a heated element circulates hot air in the oven for perfect baking and roasting.

Available Colors

	Fingerprint Resistant Stainless Steel (shown)
	Fingerprint Resistant Black Stainless Steel

Features

• Stainless Steel Cooktop
• Air Fry, Tray Included
• Convection+
• Large Oven Capacity – 6.0 cu. ft.
• Extra Oven Settings – Bread Proof,
Dehydrate, Favorite Cook, Keep Warm
• Removable Non-Stick Griddle
• Edge-to-Edge Grates

• Storage Drawer
• Flexible Cooktop:
Five Burner Cooktop
– Right Front: 18K BTU Dual Ring
– Left Front: 17K BTU
– Right Rear: 5K BTU
– Left Rear: 9.5K BTU
– Center (Oval): 10K BTU

Convenience

• Wi-Fi
• Voice Control
• SmartThings Cooking
• Convection+
• Self Clean

• Sabbath Mode
• Child Safety Lock
• Delay Start
• Auto Oven Light
• Kitchen Timer

Installing Your Range

Power Source
120V/60 Hz /20A
Total Power (BTU)
59,500 BTU

5-Burner Cooktop
• Right Front: 18K BTU, Dual Ring
• Left Front: 17K BTU
• Right Rear: 5K BTU
• Left Rear: 9.5K BTU
• Center (Oval): 10K BTU

Oven
• Capacity: 6.0 cu. ft.
• Convection Element/Heater
• Convection Bake
• Convection Roast
• Bake
• Variable Broil: Low/High
• Air Fry
• Bread Proof
• Dehydrate

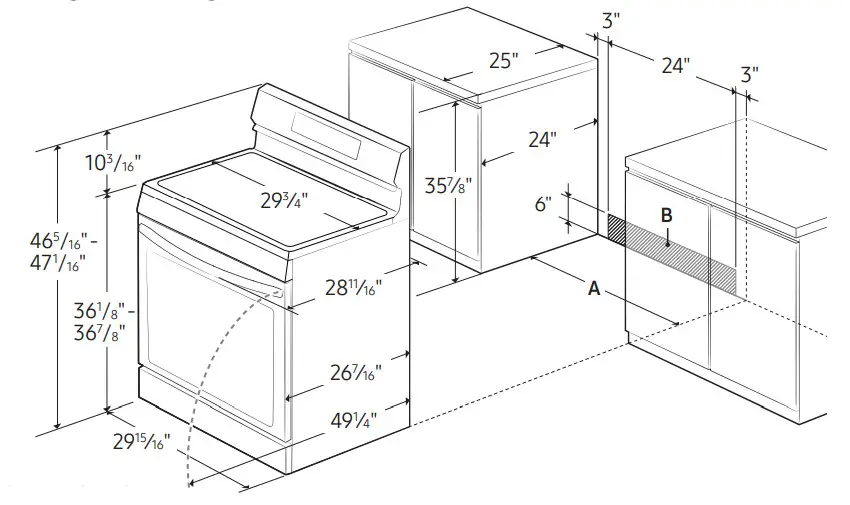

A: Cabinet opening min 30″
B: Acceptable electrical outlet area
IMPORTANT: If your cabinets are over 36 3⁄4 ” high, you must install this range on a hard, heat-resistant support that raises the surface of the range so that it is about even with the countertop.
IMPORTANT: Consult with Installation Manual for detailed instructions before installing.
All ranges must be installed with the Anti-Tip device that is included.

Warranty

One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD) Oven Interior Dimensions: 24¹³/₁,” X 21⁵/8″ X 19⁶/₈”
Outside Net Dimensions: 29⁷⁵/16″ x 46S/16-47¹/16″ (Adjustable) x 28″/16″
Weight: 187 lbs
Shipping Dimensions & Weight (WxHxD) Dimensions: 33¹/16″ x 50⁹/16″ x 30⁵/16″
Weight: 211 lbs

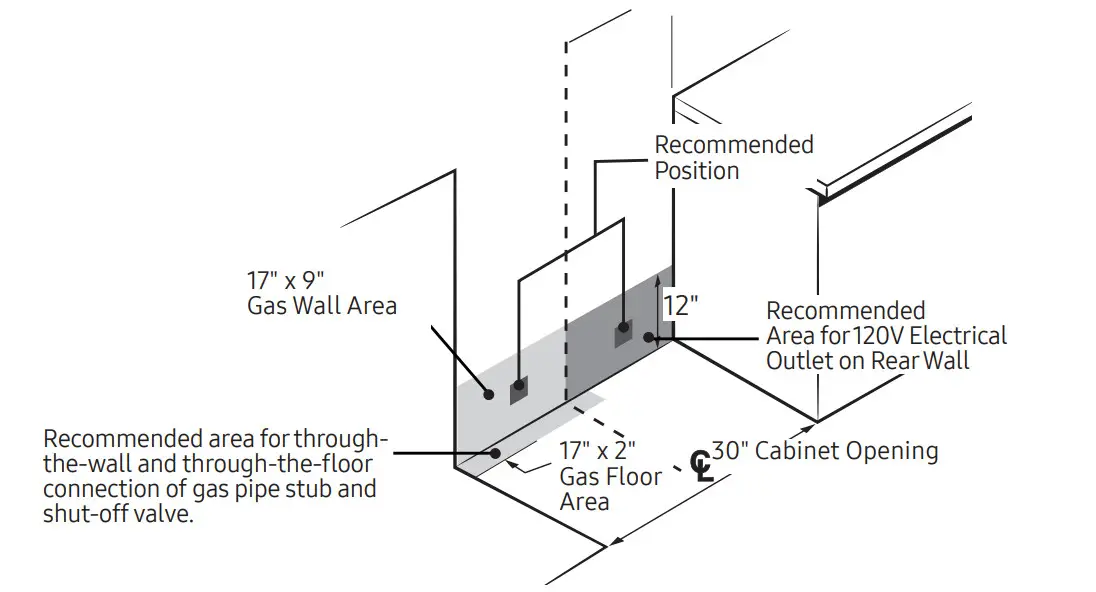

Recommended Locations for Gas Piping and Electrical Outlets

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
