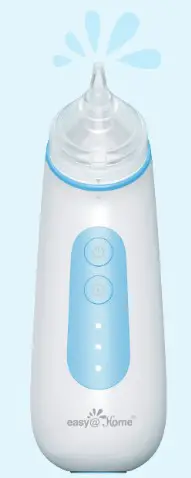

Baby Nasal AspiratorUser Manual
Model No.: DZ2101A
Overview
The Easy@Home baby nasal aspirator helps parents to safely and naturally clean baby’s nasal cavity for unobstructed breathing. The nasal aspirator has 3-level suction intensity to clean dried mucus of different volume and excess phlegm. Its soft suction prevents from disturbing infants sleep. The [email protected] baby nasal aspirator is an effective childcare kit.

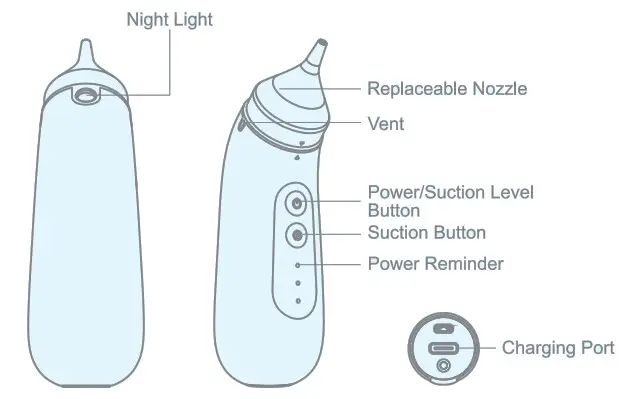

Product Components
Contents:
1* Baby Nasal Aspirator
2 * Silicone Suction Nozzles
1 * Tweezer
1 * Brush
1 * Charging Cable
2 * Replaceable Sponges
1 * Manual
Direction of Use

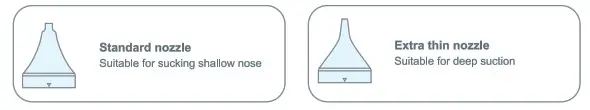

Step 1: Choose a suitable nozzle.
Please choose a suitable size nozzle for your child. If child’s nasal cavity is thin or for deeper suction, then choose the thin nozzle. Choose the standard nozzle for regular suction or a shorter nose cavity.

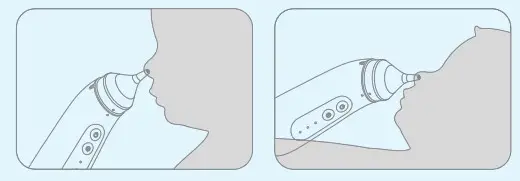

Step 2: Clean the nasal secretions.
- There are three-level intensities of suction, weak, medium and strong.
Press and hold for a while until the power reminder shines. Click the power button to choose a suitable suction intensity. - Aim into the nasal cavity to suck the secretions and press steadily the suction button when sucking the nasal secretions.
- If you want to pause suction just stop pressing the suction button. The suction nozzle should be as close as possible to the secretions, and it will suck out dried mucus more easily.
Note:
DO NOT use it to clean baby’s other physical body parts, such as ear cavity, eyes or oral cavity.
Please clean the nozzle and storage bin to avoid bacterial infection after using every time.
Night Light Mode
The nasal aspirator has a night light mode which shines with a colorful light to attract the baby’s attention and comfort the baby. Turn on the device and quickly press the power button 4 times to get this mode.
Charging Reminder
Low battery: Three indicator lights shining at the same time means the device in low battery and it will turn off automatically after 90 seconds.
Charging: Three indicator lights shining circularly means the device currently charging.
Full charged: Three indicator lights steadily shining brightly at the same time means the device has a full battery.
Automatic Shut-down
The aspirator will shut-off automatically if no operation for 10 minutes after turning on.
Cleaning and Maintenance

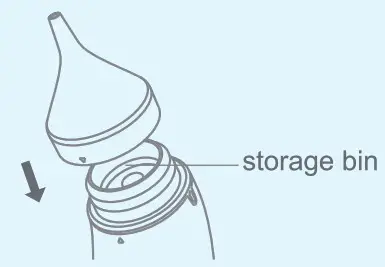

- Remove the nozzle and storage bin. Gently remove the nozzle and then unscrew the storage bin by turning counterclockwise.

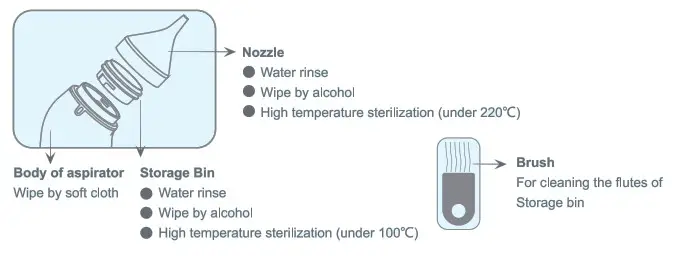

- Cleaning methods shown as the following picture.
- Just rinse the replaceable sponge with water, please do not disinfect at high temperature. If you need to replace the sponge, you can refer to step 1 to unscrew the storage bin and fit the complimentary replacement sponge.
Note: Please clean the sponges after everytime use. If the sponges too diry to clean please replace on time.
Storage Condition
Operation Temperature: 10°C~40°C (50°F ~104°F)
Operation Humidity: Under 85% R.H.
Storage Temperature: -10°C~50°C (14°F ~122°F)
Storage Humidity: Under 85% (Non-condensing)
Warranty
This device carries a limited warranty of one year from the date of delivery.
The warranty applies to the device only, and the accessories are not covered by this warranty.
During the warranty period, defective items will be repaired or replaced at no charge. Any evidence of misuse, abuse, alternations, or externally caused damage may have this warranty invalid.
For more information, please contact the manufacturer.
Service Life
The service life of the device is 3 years.
Warning
- Children should use this product under the assistance of adults.
- Child with nose/eyes/ears allergies, rhinitis, heart disorders, sensitive skin and acute diseases should consult a doctor before using.
- This product is only used for cleaning nasal secretions, please do not use it for other purposes.
- If feeling unwell while using this product, please stop using immediately, and check whether there is improper operation, or the product isn’t suitable for your baby.
- Remove the battery if discarding the product. Remove the battery:
1. Cut off the power supply.
2. Open the outer casing.
3. Remove the battery. Waste batteries should be disposed of to professional institutions. - Avoid children playing with device as its accessories may cause choking hazard.
- Do not microwave the product or any part of it.
- Do not probe the aspirator too far into the nostril.
- Do not use while charging.
- Make sure to turn off the power before taking apart the suction nozzle and storage bin.
Product Parameters
| Product Name | Baby Nasal Aspirator | Vacuum Intensity | ≥ 55 kPa |
| Model Number | DZ2101A | Flow | ≥ 2.2 LPM |
| Input Voltage | 5V  1000mA | Battery Capacity | 800 mAh |
| Rated Power | 3.5 W | Working Time | About 60 mins |
| Working Current | 650 mA | Weight | 150g |
| Executive Standard | GB 4706.1-2005; GB4706.15-2008 | Product Size | 147 x 48 x 69.4 mm |
Troubleshooting
| Problem description | Problem analysis | Solution |
| Fail to turn on | The battery is too low, or the circuit is faulty. | Try to turn on the device again after charging it. |
| Suction intensity is too weak | Improper suction nozzle installation. | Check suction nozzle and storage bin installation. |
Q&A
– A1: Don’t compress baby’s nose because the dry secretions may hurt his or her nasal cavity. It is recommended to immerse Q-tips for children in clean water until it gets wet and wipe softly in nasal cavity to soften the secretions. Otherwise, parents can use the nasal aspirator after the baby bath as the water vapor from the bath will soften secretions.
– A2: 1) Avoid probing the suction nozzle too deep into the nostril when using to avoid accidentally hurting the nasal cavity.
– 2) The suction nozzle should be as close as possible to the secretions, and it will suck out dried mucus more easily.
– 3) If feeling unwell during the use of this product, please stop using immediately, and check whether there is improper operation, or the product isn’t suitable for your baby.
– A3: If parents confirm the nostrils are free of secretions but baby still has nasal congestion, parents can apply a warm towel on the baby’s nose. This will relieve the symptoms of nasal congestion temporarily. Also try to adjust baby’s position: lie on left side when the right nose is congested, lie on right side when the left nose is congested. This will have as temporary alleviation.
– If any concerns, consult a doctor immediately.
EMC Information
The product conforms to test standard(s) : BS EN IEC 55014-1:2021.Emission Test item Test method Continuous disturbance BS EN IEC 55014-1 Discontinuous disturbance Magnetic field strength Disturbance power Radiated emission Immunity (BS EN IEC 55014-2) Test item Test method Electrostatic discharges IEC 61000-4-2 Fast transients IEC 61000-4-4 Infected currents IEC 61000-4-6 Radio frequency electromagnetic field IEC 61000-4-3 Surges IEC 61000-4-5 Voltage dips IEC 61000-4-11
Explanation of symbols
 | Date of manufacture |  | Keep away from sunlight |  | Manufacturer |
 | Batch code |  | Keep dry |  | Authorized representative in the European Community |
 | Refer to instruction manual |  | CE marking of conformity |  | Temperature limit of -10°C-50°C (14°F-122°F) |
 | Recyclable |  | UKCA marking of conformity |  | Authorized representative in the United Kingdom |
 | Consult instructions for use |  | WEEE (Waste Electrical and Electronic Equipment) |
Healthcare-Manager.com
Questions or Comments?
E-mail: [email protected]
Distributed by: Easy Healthcare Corporation
360 Shore Dr. Burr Ridge, IL US 60527
Made in ChinaScan the code to get the manual in more languages.
https://manual-dz2101a-eu.healthcare-manager.com/Aspirator
