Mpdell: WESTMINSTER 62

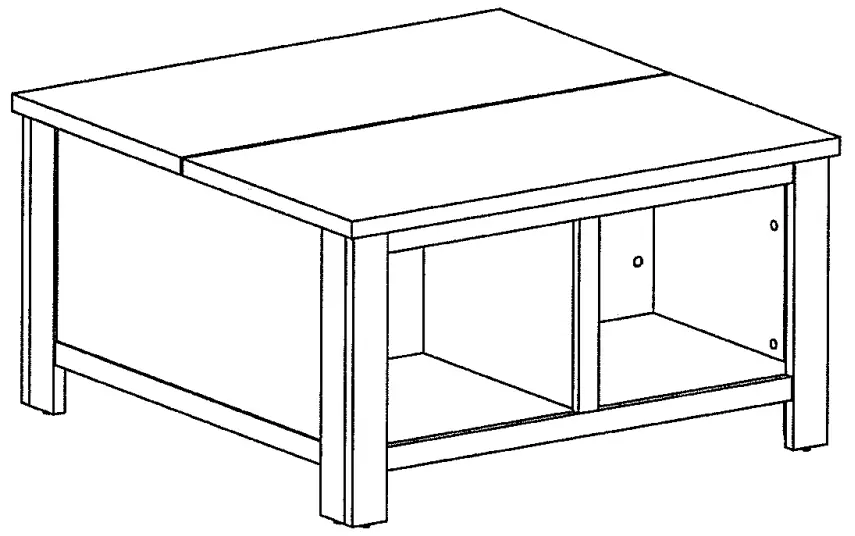

WESTMINSTER 62 Home Affaire Coffee Table
Assembly Instructions
Service
Name
Our direct order service for fitting
If a fitting should be missing to you, you know this service map directly following number faxes, We can in this way send away however only fitting. If you should have another obSecbon to your piece of furniture, then they turn to pleased to your furniture house,

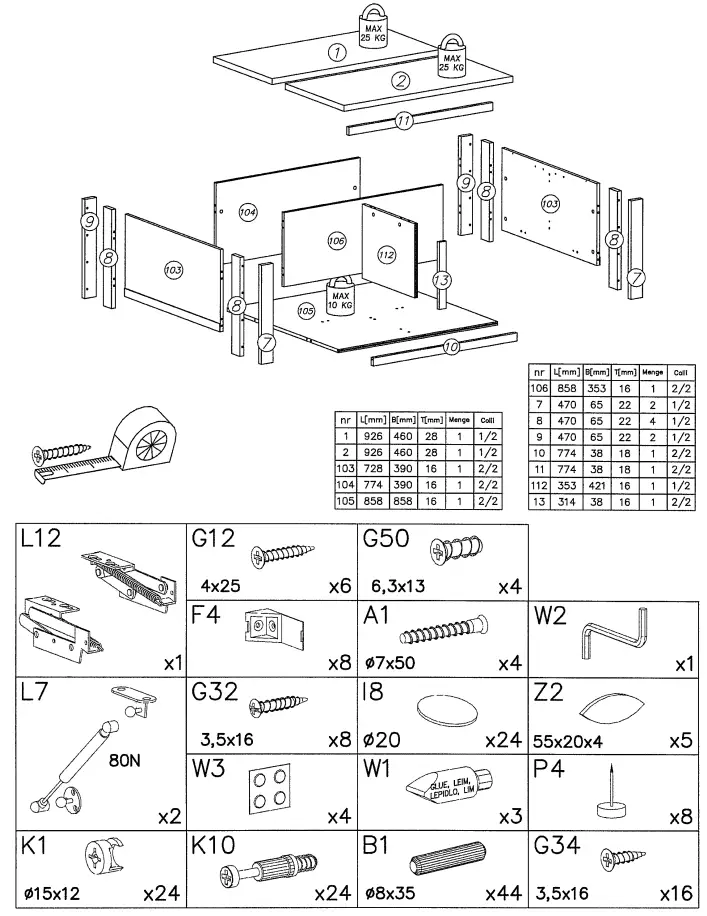

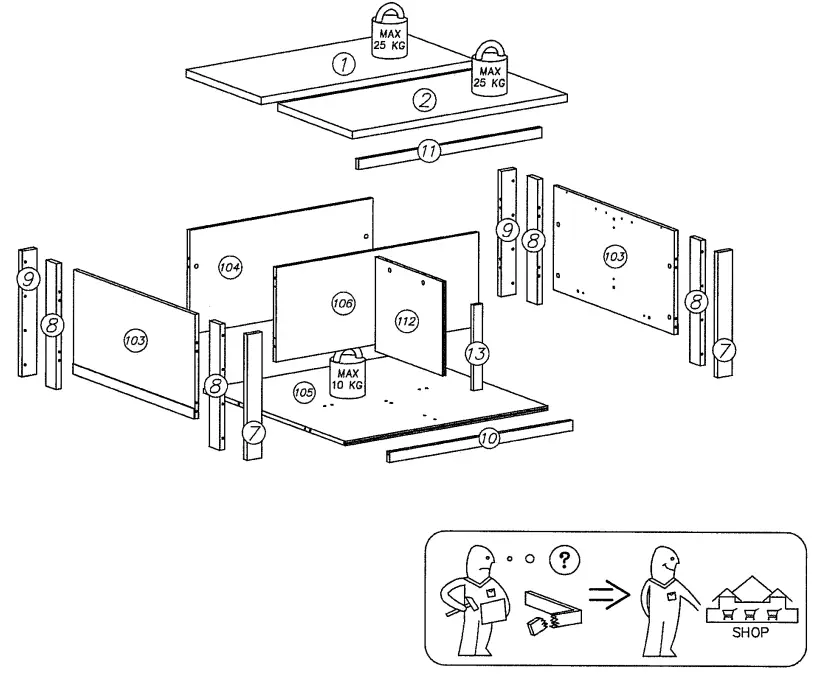

| nr | L[mm] | B[mm] | T[mm] | Mengs | Call | |
| 1 | 9261.460 | 28 | 1 | 1/2 | ||
| 2 | 926 | 460 | 28 | 1 | 1/2 | |
| 3 | 728 | 390 | 16 | 1 | 2/2 | |
| 4 | 774 | 390 | 16 | 1 | 2/2 | |
| 5 | 858 | 858 | 16 | 1 | 2/2 | |
| 6 | 858 | 353 | 16 | 1 | 2/2 | |
| 7 | 470 | 65 | 22 | 2 | 1/2 | |
| 8 | 470 | 65 | 2. | 4 | 1/2 | |
| 9 | 470 | 65 | 22 | 2 | 1/2 | |
| 10 | 774 | 38 | 18 | 1 | 2/2 | |
| 11 | 774 | 38 | 18 | 1 | 2/2 | |
| 12 | 353 | 421 | 16 | 1 | 1/2 | |
| 13 | 314 | 38 | 16 | 1 | 2/2 | |
