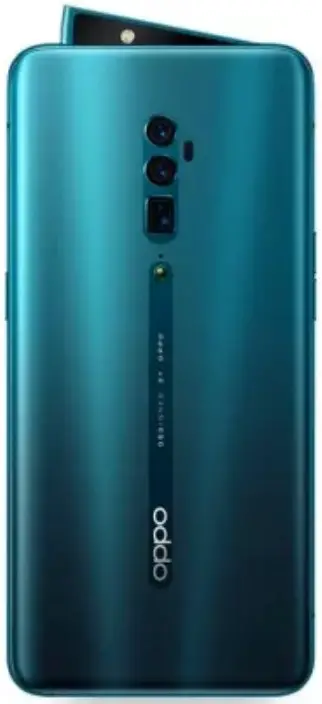

OPPO CPH1919 Reno 10x Zoom Ocean Green 4G Dual Sim Smartphone User Guide
Product Overview
This guide will show you how to use the phone and its important functions. You may also visit OPPO ocial website to get more information about the phone.
Warning
- Do not place the phone or battery near or inside heating equipment, cooking equipment, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion.
- The original charger, data cable and battery shall be used.
- Unapproved chargers, data cables, or batteries that are not certied by the manufacturer may result in electric shock, re, explosion, or other hazards.
- Back cover can’t be removed.
- When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5°C~35°C.
Standard accessories
You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 Earphone, 1 USB data cable, 1 Safety Guide,
1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case.
Specification
| Product | CPH1919 | |
| Main screen parameter | 16.9cm(6.65″) | |
| Dimension | 162.0×77.2×9.3(mm) | |
| Battery | 3975mAh/15.38Wh(Min) 4065mAh/15.73Wh(Typ) | |
| Camera | 48 Megapixels+8 Megapixels+1 3 Megapixels Rear 16 Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CE SAR | 0.731W/kg(Head) 1.292W/kg(Body) |
| RCM SAR | 1.487W/kg(Head) 1.479W/kg(Body) | |
| Radio Waves Specifications | ||
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz/900MHz | 33±1dBm |
| 1800MHz/1900MHz | 30±1dBm | |
| WCDMA | Bands 1/2/4/5/8/6/19 | 24±1dBm |
| LTE FDD | Bands 1/2/3/4/5/7/8/12/13/17 18/19/20/25/26/28/66 | 24±1dBm |
| Bands 29/32 | ||
| LTE TDD | Bands 34/38/39/40/41 | 24±1dBm |
| Bluetooth | 2.4-2.4835GHz | 10±2dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 18.5±1.5dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.35GHz; 5.47-5.725GHz | 18±1.5dBm(EIRP) |
| 5.725-5.85GHz | 12±1.5dBm(EIRP) | |
| NFC | 13.56MHz | 42dBuA/rn @10m |
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If you have an old Android phone, rst scan the QR code below, then download and install Clone Phone, next open Clone Phone on both the new and old phones, and follow the on-screen instructions to complete the operation.
http://i.clonephone,openClonePhone.colors.com/download - If you have an old iPhone, open Clone Phone on the new phone directly, and follow on-screen instructions to sign in to iCloud account and sync the les.
CLASS 1 LASER PRODUCT
Class 1 Laser Information
This device is classied as a Class 1 Laser product per IEC60825-1:2014. This device contains a Laser that could be damaged during repair or disassembly, which could result in hazardous exposure to infraredlaser emissions that are not visible.This equipment should be serviced by OPPO or an authorized service provider.
