SAINT TORCH 11

SPECIFICATIONS

ANSI / PLATO-FL1	Memontary on	Turbo	High	Medium	Low	Strobe	S.O.S.
Light Output	3500 lm	3500 lm	1850 lm	500 lm	65 lm	3500 lm	1850 lm
Run Time	–	3 h	3 h 30 min	16 h	110 h	–	–
Beam Distance	–	600 m	470 m	250 m	105m	–	–
Impact Resistance	IPX7, 1 m
Weight And Dimensions	Weight: 790 g (with battery)
	Size: 212 mm (length) × 83 mm (head diameter) × 50 mm (body diameter)
Materials	Light Source: CREE®  XHP70B LED
	Aerospace-grade aluminum 6061-T6 with mil-spec type III anodizing
Accessories	Multi-function carry bag, Seal cover, charger, Type-C cable, Shoulder strap

Above tested specifications are strictly based on the standard of ANSI / PLATO-FL1. We tested Saint Torch 11 with NEXTORCH  4 × 2600 mAh (14.4 v) rechargeable Li-ion
the battery pack in 22 °C ± 3 °C. The specifications might be different when using different batteries or testing in different environments.

FEATURES

• Utilizes CREE ® XHP70B LED, max output up to 3500 lumens and max beam distance up to 600 meters
• Waterproof modular battery pack design, a portable power bank available for partial saint torch series products with charging and discharging design
• Intellligent DUO SWITCH
  Provides ergonomic activation controls including partially pressing for momentary-on, clicking for constant-on, repeatly pressing to switch infinite loop between modes
• Type-C fast charging technology, charging time about 3 hours
• Multi-function carry bag, made of hard-use nylon

INSTRUCTIONS

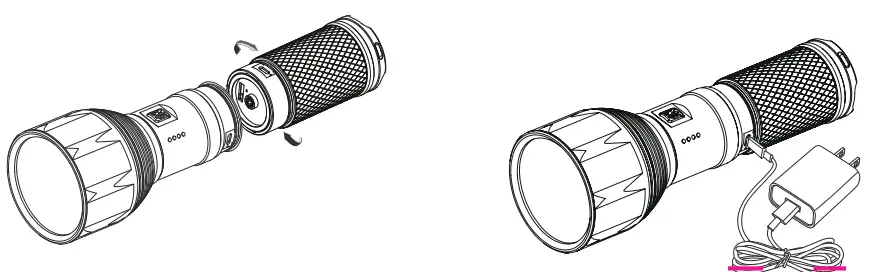

• Battery Pack Replacement
  4 × 2600 mAh (14.4 v) rechargeable Li-ion battery pack

• Type-C Charging
  Charge indicator: shines red when charging, green when charged

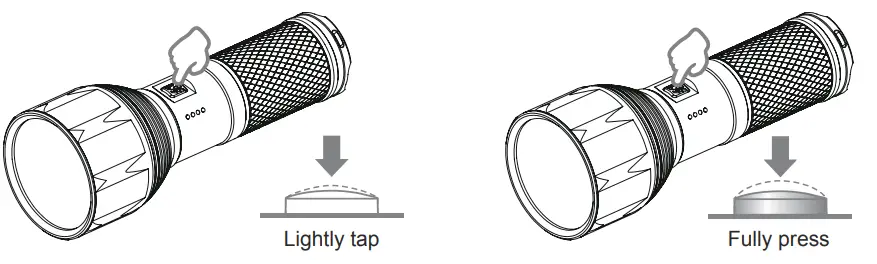

• Momentary ON / OFF

• Constant ON / OFF

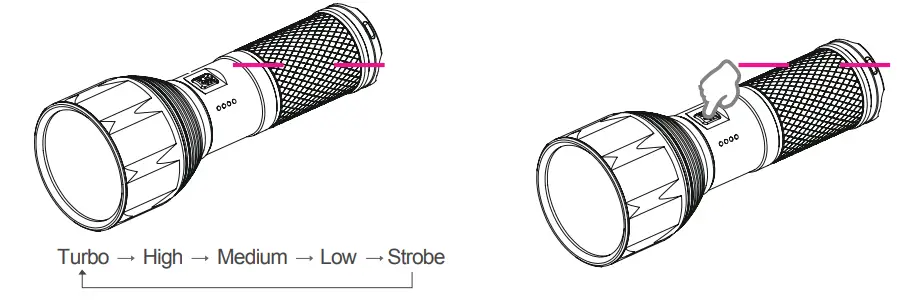

• Mode Switch
  Press lightly when the light is on

• S.O.S.
  Press and hold 3s for S.O.S. mode when the light is on

MODULAR BATTERY PACK INSTRUCTIONS

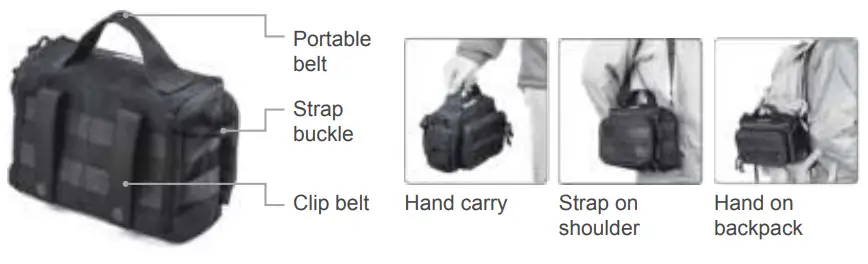

MULTI-FUNCTION CARRY BAG INSTRUCTIONS

• Multi-function carry bag is specially designed for Saint Torch series, made of hard-use nylon


MAINTENANCE

1. Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
2. Please use high-quality batteries; Remove batteries when not working for a long time, and then store them in a cool dry place.
3. Replace waterproof O-ring immediately when considering the damage with use.

WARRANTY

1. NEXTORCH warrants our products to be free from any defects in workmanship and/or materials for a period of 15-day from the date of purchase. We will replace it. NEXTORCH reserves the right to replace an obsolete product with the current production, model.
2. NEXTORCH warrants our products to be free of defects for 5 years of use. We will repair it.
3. The warranty excludes other accessories, but rechargeable batteries are warranted for 1year from the date of purchase.
4. In the event that any issue with a NEXTORCH product is not covered under this warranty, NEXTORCH can arrange to have the product repaired for a reasonable fee.
5. You could access to NEXTORCH website (www.nextorch.com) to gain warranty service information by scanning the following QR code. You could also:
   Email us at [email protected]
   Call us: 0086-400-8300-799
   OR contact your local dealer/distributor.

http://aftersale.nextorch.com/
