DISPLAY TECHNOLOGY ES188I Wireless Tire Pressure Monitoring System

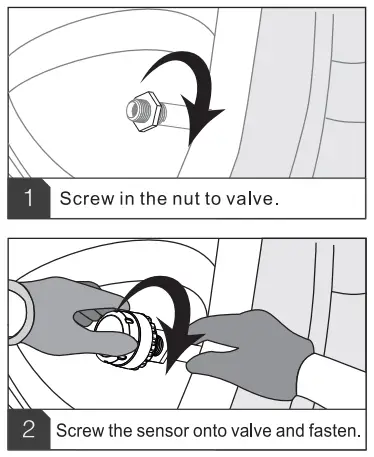

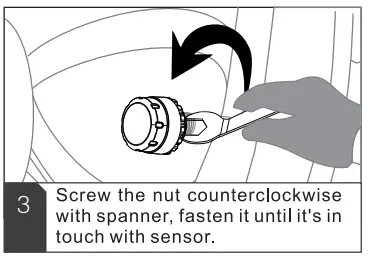

INSTALLATION

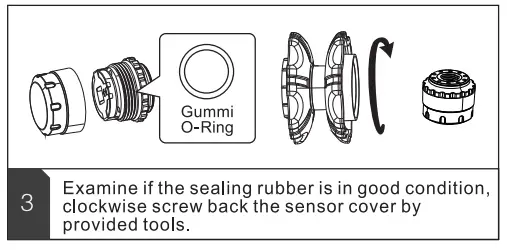

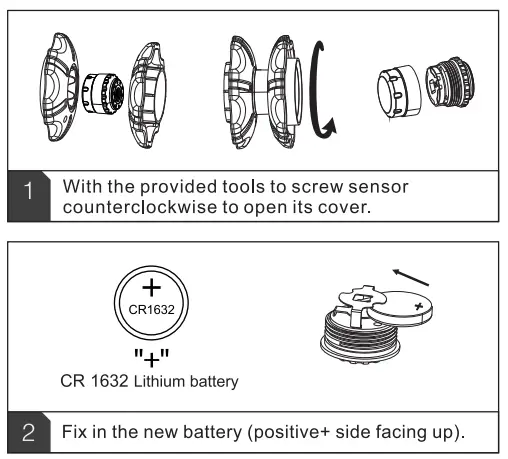

REPLACE SENSOR BATTERY
SPECIFICATION
| Detecting pressure range | 0~6BAR (0 ~ 87PSI) |
| Operation temperature | – 20°C~85°C |
| Storage temperature | -20 °C~85°C |
| Frequency | 433 .92MHz |
| Transmission power | <10dBm |
| Pressure accuracy | ±0 .1 bar(±1.5 psi) |
| Temperature accuracy | ±30 ( |
| Dimension | 21(dia .)x 17.5(H)mm |
| Weight | 9g |

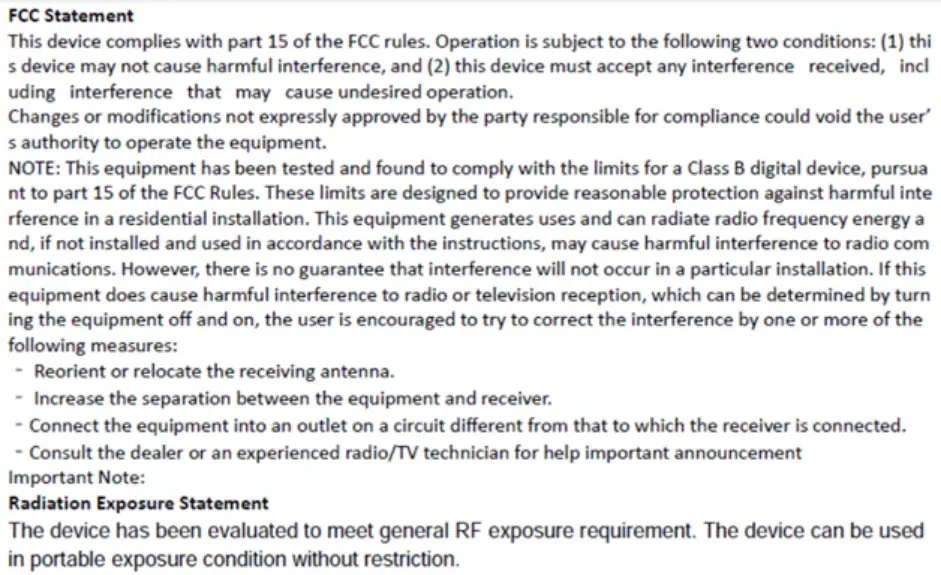

FCC
