User guide
Key Fob
Version 0.1 03/211
Welcome!
This guide will get you up and running with your igloohome Key Fob. In the meantime, you should follow igloohome on Facebook and Youtube!
Like us on Facebook
Visit our Youtube
https://www.youtube.com/channel/UCHR5V4tDKZgEykPaz5SQvtQ
https://www.facebook.com/igloohomeco/
As our igloohome app is frequently updated, there may be changes to this manual. Please refer to our website igloohome.co/support for the latest version of the manual.

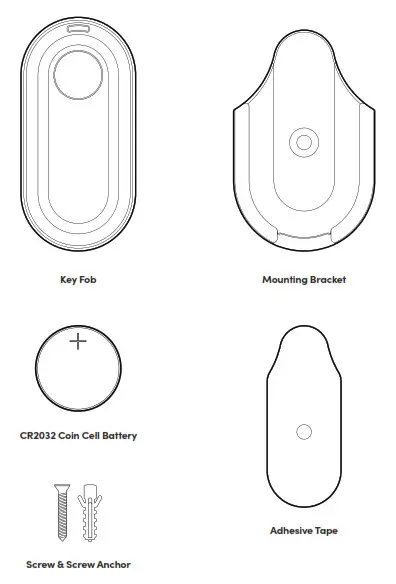

What’s Included

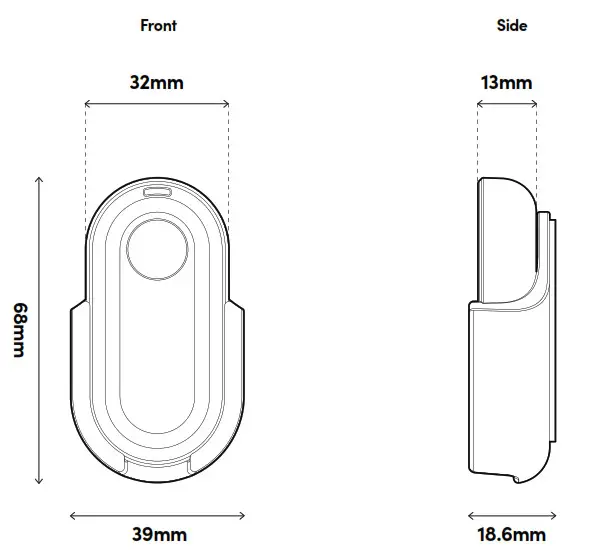

Specifications
| Model Battery Type Battery Life Operation Temp IP Rating Body Material Weight | igloohome Key Fob CR2032 Coin Cell Battery Up to 2 Years -25°C to 45°C * IP54 ABS, PC Net: TBC, Gross: TBC |
*NOTE: Battery reading at sub-zero temperatures might be inaccurate. For best performance, please use products above 0 degrees Celsius.
NOTE: This product functions best with Panasonic CR2 Lithium batteries. Do not use rechargeable, heavy-duty, or other battery types.
For damage resulting from the incorrect use of a fob, use of fob in potentially explosive environments, or use of fob outside of stipulated specifications, the customer bears sole responsibility. igloohome accepts no liability whatsoever.

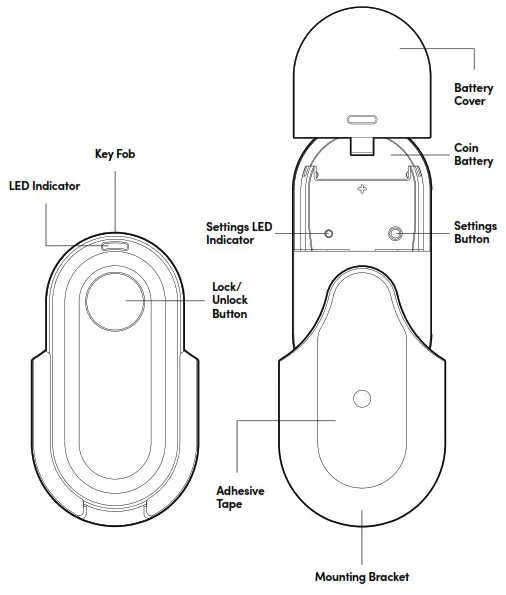

Fob Anatomy
Features
Lock / Unlock
Unlock Function
Click the button to unlock.
Lock Function
Hold the button down for two seconds to lock.
Battery
Battery Life
The Fob can last up to 2 years with a CR2 lithium battery.
Low Battery Indicator
An intuitive LED visual alert will prompt you to change the batteries when running low.
Others
Compatible across multiple locks
The Key Fob is compatible with selected igloohome locks. *Selected lock models are listed in specifications.
Access on your terms
Pair multiple Key Fobs to your lock. Each Key Fob can be paired with up to 199 locks and unlocks a maximum of 5 paired locks within range simultaneously.
Replacing Batteries

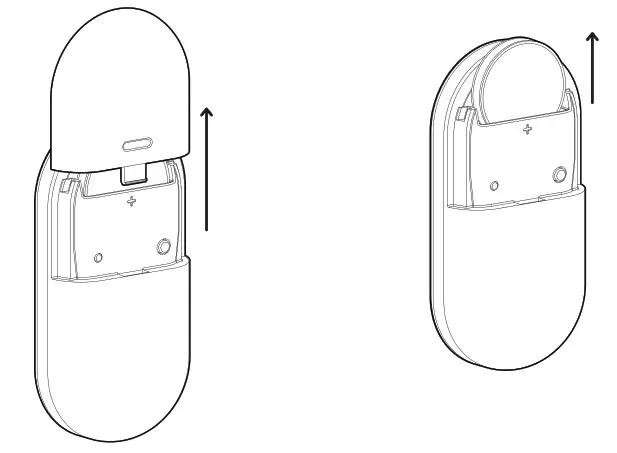

- Remove the battery cover from the fob by sliding it upwards.
- Push the CR2032 Coin Battery upwards to remove it from the battery slot.
- Replace the CR2032 Coin Battery.

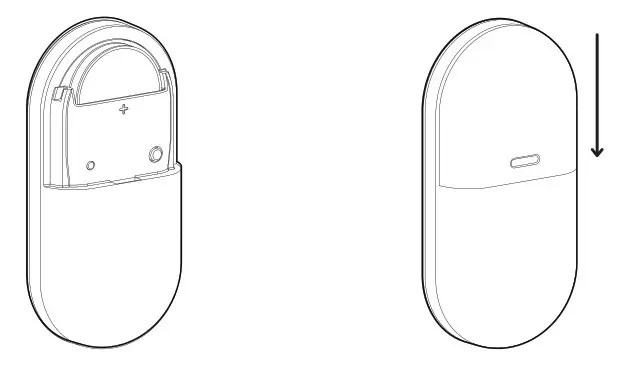

- Close the battery cover by sliding it downwards.
Please ensure that the battery cover is closed tightly.
App Onboarding
- Register as a Lock User
a) Download igloohome from the App Store / Play Store

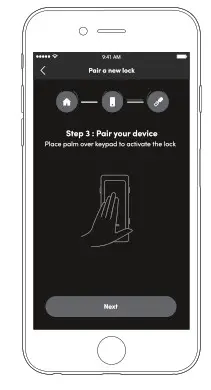

b) Create an account and log in - Pairing
a) Select [Add new igloohome lock]
Note: For existing users with other paired locks, go to [Configuration], select [Add Locks] and follow the instructions.

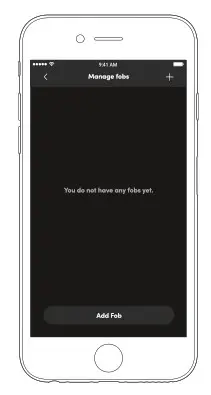

- Adding the Key Fob
Go to [Configuration], select [Manage fobs], click on the [+] sign at the top right corner, and follow the instructions.
Installation Instructions

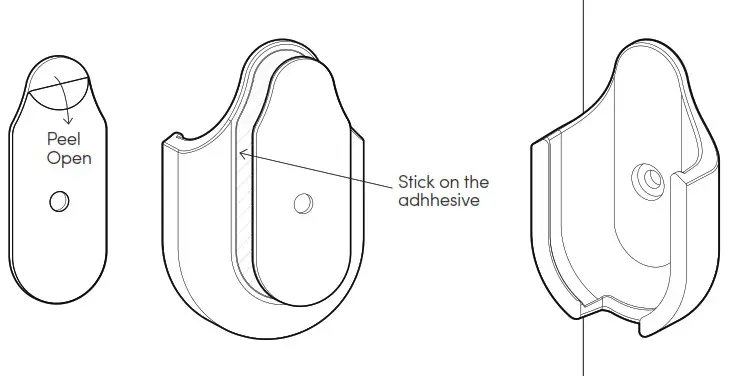

a Using Adhesive
- Peel off the protective layers on both sides of the provided adhesive.
- Stick one side onto the back of the mounting bracket, and the other side onto the wall near your igloohome locks*

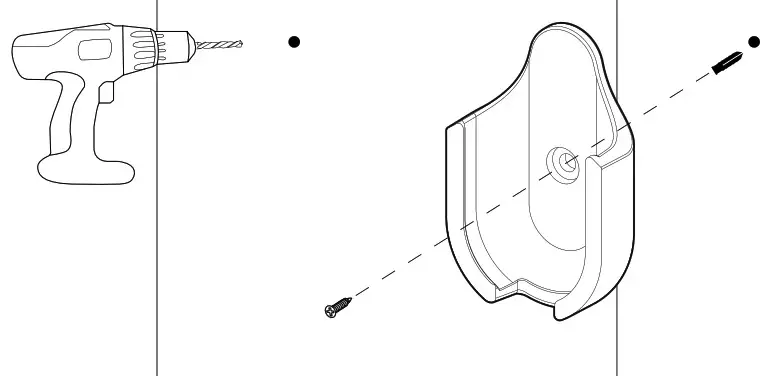

b Using Screw
- With the provided screw and screw anchor, drill the mounting bracket into the wall near your igloohome locks*
* NOTE: Please ensure that the key fob can unlock your igloohome locks at the position where you are placing the mounting bracket on.

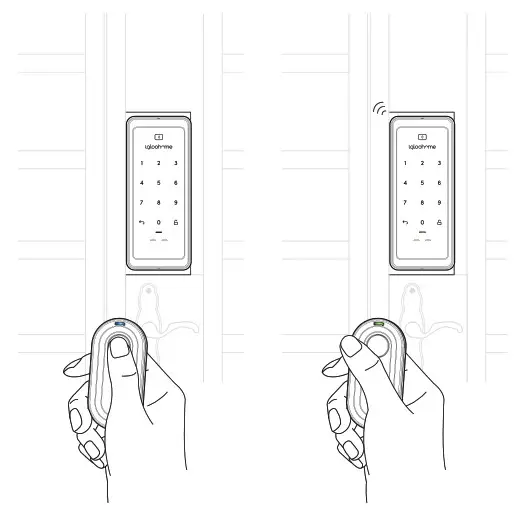

Unlocking
a Unlock
- Press the button on the key fob. LED indicator on the key fob will start flashing blue
- Paired locks within range (up to 5) will unlock, and the LED indicator will turn green

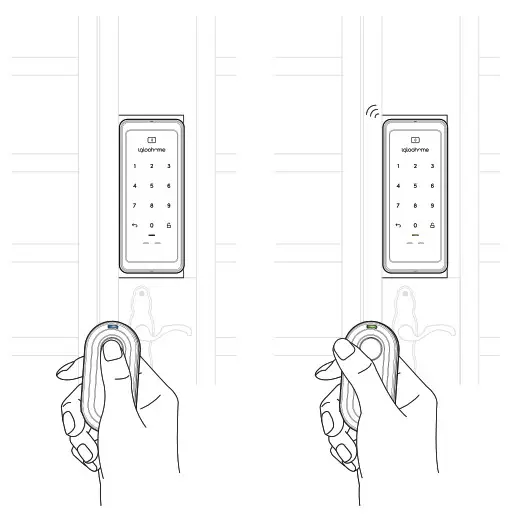

Locking
a Lock
- Press and hold the button on the key fob for more than 2 seconds. The LED indicator on the key fob will start flashing blue
- Paired locks within range (up to 5) will lock, and the LED indicator will turn green
Compatible igloohome Locks
| Lock | Maximum Key Fob to lock distance* |
| Metal Gate Rim Lock | Less than 8m |
| Mortise 2/2+ | Less than 10m |
| Deadbolt 2S Metal Grey | Less than 8m |
| Keybox 3 | Less than 4m |
| Padlock | Less than 1.5m |
| Other older lock models | If your lock model is not shown here, please contact our support team for more information on Key Fob compatibility. |
*NOTE: The distances provided are for reference only and will vary based on actual operating conditions such as physical obstacles and interference from other electronic devices.
LED indications
| Actions | LED Indications | Settings LED Indications |
| Pairing / Settings mode (Timeout = 50 sec) | None | Slow flash Blue LED |
| Pairing in progress | None | Very fast blink Blue LED |
| Paired successful | None | Blue LED for 4 seconds |
| Low Battery (only when unlocking/locking) | Slow breathing Red LED | None |
| Error/No lock found | Red LED for 4 seconds | None |
| Searching for lock to connect and unlock | Fast blink Blue LED | None |
| Successful unlock/ lock all locks | Green LED for 4 seconds | None |
| Successfully unlock/lock some locks only (not all) | Alternate Red and Green LED for 4 seconds | None |
| Hard Reset / Unpair | None | Blue LED for 4 seconds then a slow blink |
| Power Start-Up | None | Blue LED for 1 second |
Troubleshoot
I lost my Key Fob
- In the igloohome app, Go to “Manage fobs” > Choose your fob > Choose “Delete Fob” > “I lost my fob”
- Follow on-screen instructions to revoke access* to the locks linked to the Fob and delete the Fob from your account
- The fob is now disabled and will not unlock your igloohome locks
- Should you find your fob after these steps are done, please contact the support team in resetting your fob
Unlock is not working
- Check that the locks you are unlocking are already linked to your fob in the app
- Check that the settings LED (under the battery cover) is not flashing blue
- Ensure that the fob is within Bluetooth range of the locks (for optimal performance, please ensure you are within 5m of the locks and there are no obstructions between the fob and the locks)
- Check that the locks you are unlocking are not low in battery
Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 5mm between the radiator and your body.
For inquiries go to: igloohome.co/support
