Radley 5044-028 Portable Max 1600 PSI Electric Pressure Washer Owner’s Manual
READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN.

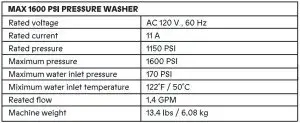

PRODUCT SPECIFICATIONS
Need Assistance?
Call us on our toll free customer support line: 1-866-206-0888 (Monday through Friday, 9am – 5pm, Eastern Standard Time)
- Technical questions
- Replacement parts
- Parts missing from package
IMPORTANT!
SAFETY INSTRUCTIONS
ALL OPERATORS MUST READ THESE INSTRUCTIONS BEFORE USE SAFETY WARNINGS
DANGER
To reduce the risk of fire, electric shock, explosion or injury to people, read the following:
- This product is intended for domestic outdoor use only.
- The water spray must never be directed towards any electric wiring, devices, or directly towards the pressure washer itself, or fatal electric shock may occur.
- The pressure washer should not be used in areas where gas vapours may be present. An electric spark could cause an explosion or fire.
- Risk of explosion. When a combustible liquid is sprayed, there can be danger of fire or explosion, especially in a closed area. Therefore, do not spray flammable liquids.
- Do not use acids or solvents with this product. These products can cause physical injuries to the operator and irreversible damage to the device.
- Risk of electric shock. Inspect the cord before using the device. Do not use it if the cord is damaged.
- Risk of injury. Do not direct the water flow at people. The high-pressure jet can be dangerous if misused, and therefore must not be directed at people, animals, electrical devices or the unit itself.
- This device is capable of producing high pressure as rated in the Technical Specifications. To avoid rupture and injury, do not operate this machine with components rated less than the unit itself (including but not limited to spray guns, hose, and hose connections).
WARNING – INJECTION HAZARD
- Equipment can cause serious injury if the spray penetrates the skin. Do not point the gun at anyone or any part of the body. In case of penetration, seek medical aid immediately. !
CAUTION – DETERGENTS
- This device has been designed for use with detergents that are specifically approved for pressure washer use. The use of other cleaning detergents may affect the operation of the device and void the warranty.
CAUTION – SPRAY GUN
- The spray gun kicks back, so hold it with both hands. The trigger gun safety lock prevents the trigger from being engaged accidentally. However, the safety feature DOES NOT lock the trigger in the ON position.
CAUTION – WATER CONNECTIONS
- For use with fresh and clean water only. Do not use this product with other liquids.
- The water supply system must be protected against back flow.
- Never use this product with water contaminated with solvents (e.g. paint thinners, gasoline, oil, etc.).
- Always prevent debris from being drawn into the product by using a clean water source and an additional water filter, if required.
- If this device Is connected to a potable water system, the system must be protected against back flow.
- Suitable water temperature from 41 to 104.F / 5 to 40•c.
CAUTION – USE
- Learn how to stop the device and release the pressure quickly. Familiarize yourself with the controls.
- Keep all connections dry and off the ground.
- Avoid accidental starts. Shut power OFF before connecting or disconnecting the power cord.
- Never carry the pressure washer by the cord.
- Do not pull on the cord to disconnect from the outlet.
- To allow for free air clrcula11on, the pressure washer should not be covered during operation.
- Do not operate the product when tired or under the influence of alcohol or drugs.
- Do not stand on unstable surfaces. Stand with both feet balanced at ell times.
- Keep the operating area clear of people and pets.
IMPORTANT· MAINTENANCE
- Any assembly, use or maintenance of the product must be carried out by adults only.
- Follow the maintenance lnstruc11ons specified In the manual.
- If replacement of the power plug or cord is needed, use only identical replacement parts.
- Repairing and replacing parts should be done by a certified technician.
- Before servicing, cleaning or removal of any parts, shut the power OFF and release the pressure.
INTENDED APPLICATION
This product Is designed for specific residential applications. Do not modify or use this product for any application other than the one It was designed for. This equipment was not designed for industrial use. Please refer to the icons below for suggested applications. For questions regarding other uses, please call us at 1-866-206-0888.
IMPORTANT APPLICATION
SAFETY WARNING AND ELECT1UCAL INFORMATION
The pressure washer Is equipped with a stop device that senses when the trigger on the spray gun is released. It will open the power circuit to the motor and cause the pressure washer motor to stop. The motor will start again when the trigger is pulled.
WARNING
- The pressure washer is also equipped with a main power ON/OFF switch. It should always be moved to the OFF position when the pressure washer is not being used to prevent possible lnjury or damage.
EXTENSION CORDS
If possible, do not use extension cords with this product. However, if you must use one, observe all warnings and instructions listed below:
WARNING
• Extension cords are not recommended unless they are plugged Into a ground fault circuit-interrupter ( GFCI) found in circuit boxes or protected receptacles.
CAUTION. USE A SUFFICIENT GAUGE
- Maximum cable length: 50′ (15 m). Only use 14 AWG rated extension cords.
- Only use extension cords that are intended for outdoor use. These extension cords are identified by a marking that reads.
- Acceptable for use with outdoor appliances; store Indoors while not In use.”
- Only use extension cords that have an electrical rating not less than the rating of the product (11 A).
- Do not use damaged extension cords. Examine the extension cord before using and replace It H damaged. Do not abuse extension cords and do not pull on any cord to disconnect the device.
- Keep cord away from heat and sharp edges.
- Always disconnect the extension cord from the power outlet before disconnecting the extension cord from the product.
- To reduce the risk: of electric shock:, keep all connections dry and off the ground. Do not touch the plug with wet hands.
SERVICING OF A DOUBLE INSULATED APPLIANCE
In a double Insulated product, two systems of Insulation are provided Instead of grounding. Grounding means are not provided for a double Insulated product, nor should grounding means be added to the product. Servicing a double insulated product requires extreme care and knowledge of the system, and should only be done by qualified service personnel. Replacement parts for a double Insulated product must be identical to the original parts. A double Insulated product Is marked with the words “Double Insulation” or “Double Insulated”. Product may also be marked with symbol shown below.

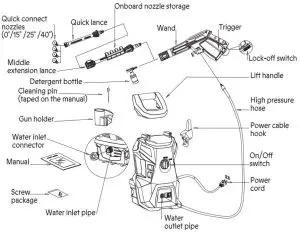

INCLUDED PIECES
When unpacking this product.check to make sure parts listed below are Included and carefully Inspect for any damage that may have occurred during transit.If any part Is missing and damaged.do not attempt to assemble or use the product.
PREPARATION FOR OPERATION
Always use the handle to transport.

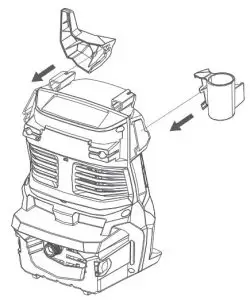

HOW TO SET UP YOUR UNIT
- Attach the middle extension lance to wand. NOTE: When attaching, align the two projections on the lance with the grooves on the wand.
- Attach the front lance to the middle extension lance. NOTE: When attaching, align the projection on the front lance with the groove on the middle extension lance with the button held.
- Install gun holder, power cord hook.

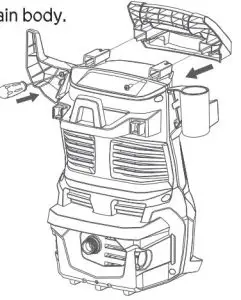

- Screw the lift handle tight to the main body.

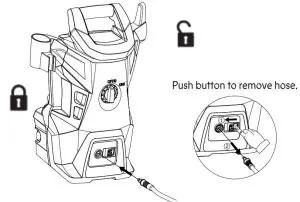

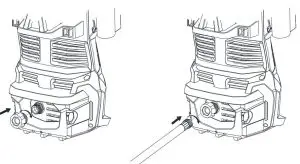

- Attach the high pressure hose to the pressure water outlet of the machine.

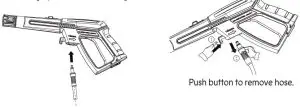

- Attach the high pressure hose to the gun.
- Attach the garden hose. Connect one end of the garden hose (not supplied) to the adapter and another end to water source.
WARNING: The appliance is intended to be used at a temperature above 32’F/ O’C.
- Connect to the power supply, plug the pressure washer Into the power outlet.
OPERATION

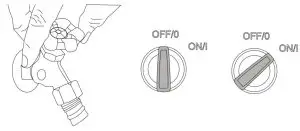

TO WASH WITH WATER
- Turn on the water supply tap. Connect the washer to the power supply and tum the switch to “ON/I” position. Then press trigger.
NOTE: Before pressing trigger, make sure lock-off switch is in “unlock” position. WARNING: Do not start the machine without connecting and turning on the water supply because it may cause damage to high pressure seals and reduce the service life of pump.
- Release the trigger and turn the switch to “OFF/0” position. Turn off the water supply tap. NOTE: When not In use, make sure Lock-off switch is in “Lock” position.

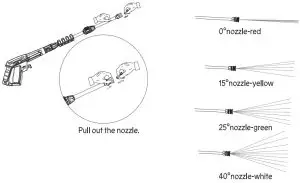

- Select the right nozzles. Attach nozzle into the end of the lance by pressing selected nozzle into place, it will make a click sound when firmly in place .To remove nozzle, pull back on the collar on the lance and pull out the nozzle. 0°Nozzle-red: This type of nozzle produces a vertical, stratified, high-pressure jet for surface cleaning with particularly severe dirt. 15°Nozzle-yellow, 25°nozzle-green, 40°nozzle -white: These types of nozzles can produce the corresponding angle fan-shaped high-pressure jet, cleaning power, for large-scale dirt surface cleaning. WARNING! Remember to change the nozzle when the gun is off, to ensure that they do not accidentally eject with force during removal.

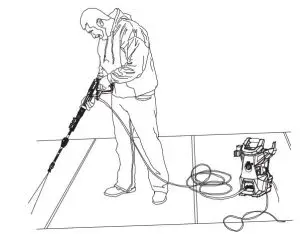

- Cleaning. Begin with the nozzle 1-2’/30-61 cm away from the surface and approach with caution until it reaches the desired position for overly close spray may do harm to surface. WARNING: Do not connect the machine to water supplies that are dirty, rusty, muddy, or corrosive.( Including window cleaning liquids.plant foods, or fertilizers etc.)

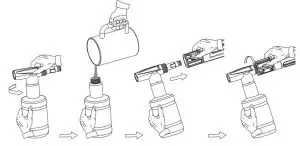

- Using detergent bottle.
- Fill the container with a detergent or detergent of appropriate formula in proportion to water. Connect the nozzle to the spray gun.
- Squeeze the trigger, detergent will come out through the detergent bottle nozzle.
- Apply detergent so it thoroughly covers cleaning surface.
- Allow detergent to remain on the surface for a few minutes. This Is a good time to use a brush to lightly scrub heavily soiled areas.
- Change to spray nozzle, rinse detergent from surface.
- Cleaning up: Always draw fresh water through the detergent bottle when done to flush any remaining detergents from the injection system. The bottle could be detached if necessary in this process.
MAINTENANCE

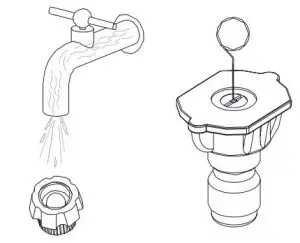

WATER FILTER AND NOZZLE CLEANING INSTRUCTION
A clogged or partially clogged water filter or nozzle can cause significant reduction of water pressure coming out of the nozzle and/ or cause the unit to pulsate while spraying.
- The water filter was Installed Inside the water Inlet quick connector,should be cleaned periodically.Rinse it with clean tap water,and then place it back into the water inlet quick connector.
- Using the nozzle tip cleaner provided ( or an unfold paper clip) , Insert the wire Into the nozzle hole and move back and forth until debris Is dislodged. Back flush water through the nozzles using garden hose and highest pressure available (either standard water nozzle or use your thumb over the nozzle to create water pressure for back flush ).
STORAGE
Do not store pressure washer outdoors.
Do not store pressure washer where It might freeze while there’s water Inside the machine.
Serious damage will occur to the water system.pump and / or motor.
TIPS FOR EXTENDING THE LIFE OF YOUR PRESSURE WASHER
- Never operate machine without water.
- Pressure washer Is not meant to pump hot water. Never connect to hot water supply this
will significantly reduce life of the pump. - Using detergent other than those formulated for pressure washers may cause damage to
pump components (o-rings,etc.). This also applies to chemicals such as bleach, dish
soap.etc. - Never operate unit for more than one minute without spraying water. Resulting heat
buildup will damage pump.

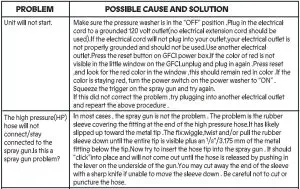

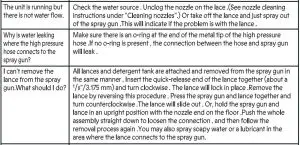

TROUBLESHOOTING
EXPLODED VIEW

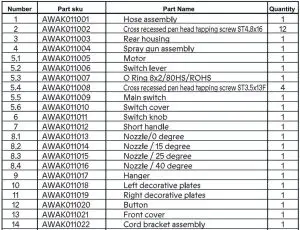

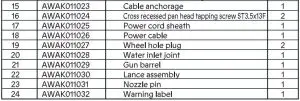

PARTS LIST
WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the Pressure Washer.
Any attempt to repair or replace electrical parts on this Pressure Washer may create a safety hazard unless repairs are performed by a qualified technician. For more information, call the Toll-free Helpline, at 1-866-206-0888– Monday-Friday, from 9am – 5pm, Eastern Standard Time.
EXCLUSIVE TO HOME HARDWARE
For information on the entire line up of Radley power tools visit home hardware.ca or your local Home Hardware retail store.
Made in china
Home hardware stories limited
St. Jacobs, Ontario nob 2no
Order online
homehardware.co
© 11/2020 Home hardware stories limited
WARRANTY
RADLEY MAX 1600 PSI PRESSURE WASHER WARRANTY
If this Radley tool fails due to a defect in material or workmanship within two years from the date of purchase, return rt to any Home Hardware store with the original bill of sale for exchange. This warranty does not Include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries. This warranty covers defects In material or workmanship only. It does not cover normal wear and tear, failure due to abuse/misuse, or defects caused by careless or accidental mishandling. If this Radley product ls used for commercial or rental purposes, this warranty does not apply. For use at the consumer lever. The warranty is not for Industrial or commercial applications.
