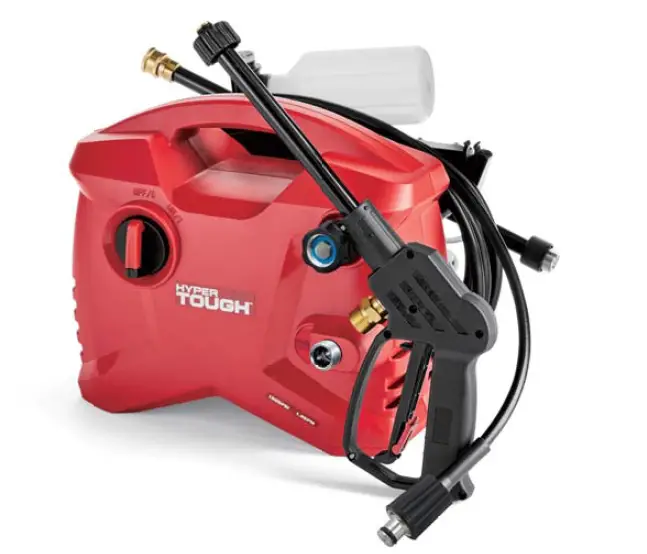

Hyper Tough 1600psi/1.2gpm Electric Pressure Washer User Manual

Hyper Tough 1600PSI/1.2GPM ELECTRIC PRESSURE WASHER User Manual

Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and or serious personal injury. Keep this manual and refer to it for Safety instructions and Operating procedures. After opening the carton, unpack your new pressure washer and related parts &accessories. Please inspect it carefully for any damage that may have occurred during transit. Please call customer service for assistance. Do not operate this pressure washer if damaged during shipment, handling or misuse. Damage may result in bursting, which can cause serious injury or property damage. All damaged parts must be repaired or replaced by a qualified repair personnel/service technician prior to operating this pressure washer.

When using this product, basic precautions should always be followed, including the following ones.

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT

• To reduce the risk of injury, close supervision is necessary when a product is used near children. Be thoroughly familiar with controls. Know how to stop the product and release pressure quickly. Stay alert and watch what you are doing.
• Do not operate the product when fatigued or under the influence of alcohol, drugs or any medication. Keep the operation area clear of all persons and pets.
• Do not overreach or stand on unstable supports. Keep good footing and balance at all times. Follow the maintenance instructions specified in the manual.
• People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker
• Drilling, sawing, sanding, blasting, grinding, or machining wood products or masonry products and other construction activities can expose you to wood dust or masonry particles including formaldehyde and lead, substances known to the State of California to cause cancer, and birth defects or other reproductive harm. Avoid inhaling wood dust or masonry dust or use a dust mask or other safeguards for personal protection. This product can expose you to chemicals including lead and phthalates which are known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov-/wood.
• This Product is provided with a ground fault circuit interrupter(GFCI) built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts that include GFCI protection.
• If the product is provided with a GFCI, be sure to inspect the cord and GFCI prior to use. Any repair or replacement of the power cord must be performed by a qualified (licensed or certified) electric technician.
• In a double-insulated product, two Systems of insulation are provided instead of grounding. No grounding means are provided for a double-insulated product, nor should grounding means be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to the original parts. A double-insulated product is marked with the words “Double Insulation “or “Double Insulated.” The symbol may also be marked on the product.
• Risk of injection or injury-Do not direct discharge stream at people or animals.
• Keep clear of the nozzle. NEVER direct the high-pressure spray at any person, animal or self.
• Always wear approved safety glasses or goggles and protective clothing when operating or performing maintenance.
• Never put your hand or fingers over the spray tip while operating the unit.
• Never try to stop or deflect leaks with any body part.
• Always engage the trigger safety latch in the safe position when spraying is stopped even if only for a few moments.
• Always follow the detergent manufacturer’s label recommendations for the proper use of detergents. Always protect eyes, skin, and respiratory system from detergent use.
• Do not use pressure that exceeds the operating pressure of any of the parts (hoses, fittings, etc.) in the pressurized system. Ensure all equipment and accessories are rated to withstand the maximum working pressure of the unit.
• NEVER spray flammable liquids or use a pressure washer in areas containing combustible dust, liquids or vapors.
• Never operate the machine in a closed building or in or near an explosive environment.
• Never disconnect the high-pressure discharge hose from the machine while the system is pressurized. To depressurize the machine, turn the power and water supply off, then press the gun trigger 2~3 times.
• Never permanently engage the trigger mechanism on the gun, for example, by taping or other means.
• Never operate the machine without all components properly connected to the machine (handle, gun/wand assembly, nozzle, etc.).
• ALWAYS turn the water supply “ON” before turning the pressure washer “ON.” Running the pump dry causes serious damage.
• Do not operate the pressure washer with the inlet water filter removed. Keep the screen clear of debris and sediment.
• NEVER operate a pressure washer with broken or missing parts. Check equipment regularly and repair or replace worn or damaged parts immediately.
• Use only the nozzle supplied with this machine.
• Never leave the wand unattended while the machine is running.
• Never attempt to alter factory settings. Altering factory settings could damage the unit and will void the warranty.
• Always hold the gun and wand firmly when starting and operating the machine.
• NEVER allow the unit to run with the trigger released (off) for more than one (1) minute. The resulting heat buildup will damage the pump.
• Pressure washer is not meant to pump hot water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.
• NEVER store the pressure washer outdoors or where it could freeze. The pump will be seriously damaged.
• Release trigger when changing from high to low-pressure modes. Failure to do so could result in damage.
•  Keep hose away from sharp objects. Bursting hoses may cause injury. Examine the hose regularly and replace if damaged.
• Do not attempt to mend a damaged hose.
• DANGER！ The use of an extension cord is not recommended. If an extension cord is used, use only those intended for outdoor use， These are identified by the marking “Acceptable for use with outdoor appliances; store indoors while not in use.” Use only extension cords having an electrical rating equal to or more than the rating of the product. Do not use damaged extension cords, Examine extension cord before using and replace if damaged. Do not abuse the extension cord and do not yank on any cord to disconnect. Keep the cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
• NOTE: To maintain optimum performance, extension cords are not recommended for use with this product.
• DANGER! Failure to follow these instructions can result in serious injury, including death. WARNING! Connect only to a properly grounded outlet. Do not move the ground pin. Inspect the cord before using. Do not use if the cord is damaged.
• Keep all connections dry and off the ground. Connect to individual branch circuits only.
• WARNING! To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands.

Precautions

The work area should have adequate drainage to reduce the possibility of a fall or electric shock due to wet surfaces.

Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the spray gun is squeezed. After following the start-up procedures in this manual, turn the pressure washer ON and squeeze the trigger for activation. See the section of this manual entitled “Operation” for further details on this feature.
WARNING! The appliance is intended to be used at a temperature above 0 degrees.
WARNING! The motor of this pressure washer will NOT run until the trigger is squeezed. Read the entire important safety information before set up or use of this pressure washer.Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

• DANGER indicates an imminently hazardous situation that, if not avoided, could result in death or serious injury.
• WARNING indicates an imminently hazardous situation that, if not avoided, could result in death or serious injury.
• CAUTION indicates an imminently hazardous situation that, if not avoided, could result in death o serious injury.
• EAD OPERATOR’S MANUAL: To reduce the risk of injury, users must read and understand the operator’s manual before using this product.
• ELECTRIC SHOCK: Failure to use in dry conditions and to observe safe practices can result in electric shock.
• WEAR APPROVED EYE PROTECTION: Spray can splash back or propel objects. including incorrectly attached accessories. Always wear approved eye protection. Safety glasses must conform to the requirements of American National Standards Institute(ANSI) Z87.1 and provide protection against flying particles from both front and side.
• INJECTION HAZARD: Pressure washers can produce fluid streams severe enough to penetrate animal and human flesh.

Product Specifications

• UNIVERSAL MOTOR…………………………………………………………………………………….120V,60Hz,13Amps
• MAXIMUM PRESURE……………………………………………………………………………………………………1600 PSI
• MAXIMUM FLOW RATE…………………………………………………………………………………………………1.2 GPM
• MAXIMUM WATER TEMPERATURE……………………………………………………………………………120°F/49℃
• MAXIMUM PRESSURE INLET WATER……………………………………………………………………………….58 PSI

Functional Description

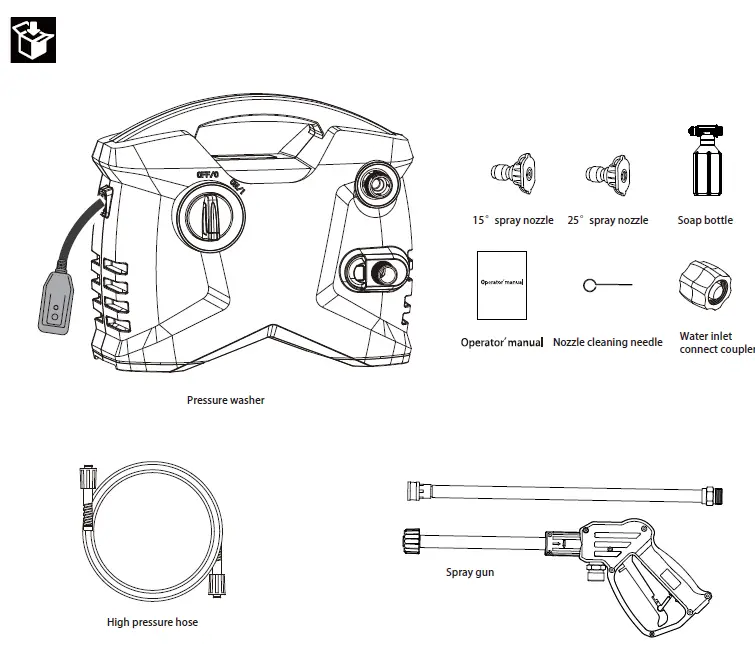

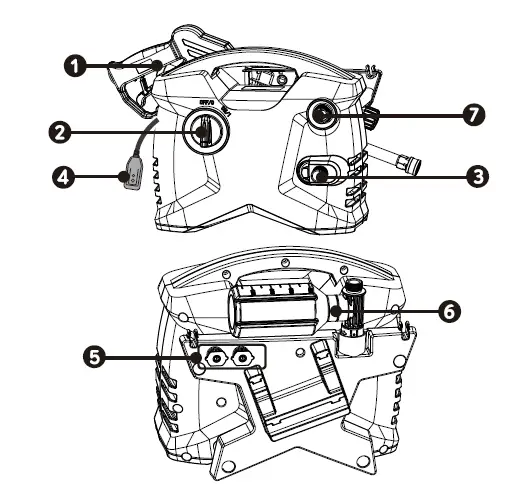

ITEM:

1. Spray gun
2.  Power switch
3.  Water outlet
4.  Power cable
5.  Spray nozzles
6.  Soap bottle
7.  Water inlet

ASSEMBLY

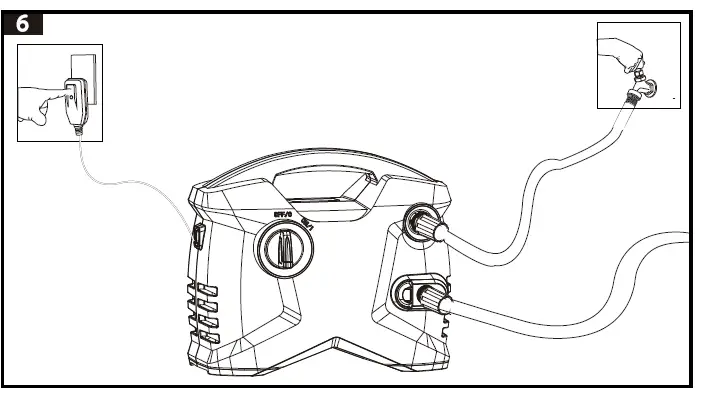

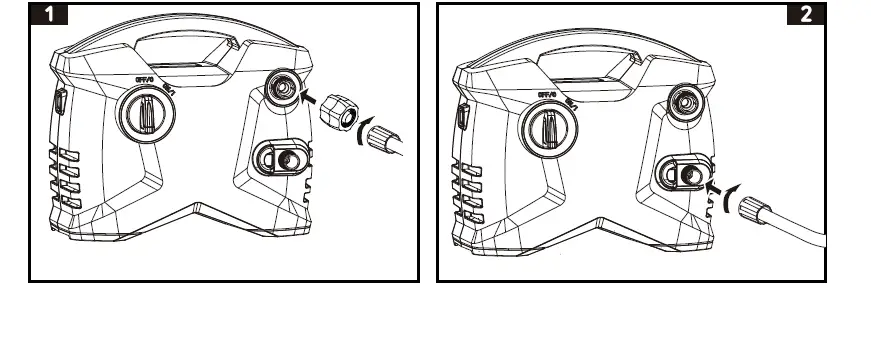

1. D Attach the water inlet coupler: firstly assemble the side with the O ring inside or the side with the filter ring inside to the water inlet of the pressure washer, secondly assemble the other side to the garden hose. Ensure that the threads are aligned properly and that the connection is secure.
2. Attach the high-pressure tube to the water outlet of the pressure washer. Rotate it until they are completely locked.

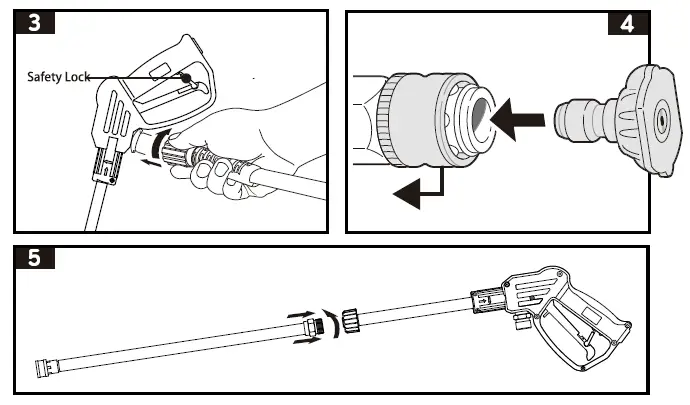

3.  Connect the other end of the high-pressure tube to the spray gun.
4. Insert the selected spray nozzle into the tip of the spray gun until it clicks into place. E Spray gun parts assembly.
5.  Connect the Pressure Washer GFCI power cord to a dedicated electrical outlet.

Operations

The following cleaning procedure will help you to organize your cleaning task, and ensure that you achieve the most beneficial results in the shortest amount of time. Remember to use the spraying/cleaning techniques previously listed. Before starting a pressure wash cleaning job, it is important to prepare the surface that is to be cleaned. This is done by clearing the area of furniture and making sure that all windows and doors are closed tight. In addition, you should make sure that all plants and trees adjacent to the cleaning area are protected by a drop cloth. This will ensure that your plants won’t be sprayed by detergents.The next step is to spray the cleaning surface with water to clear off any dirt or grime that may have been collected on the surface. This will allow your detergent to attack the deep-down dirt that has worked its way into the cleaning surface. Before triggering the gun, adjust the nozzle to a wide fan pattern and slowly adjust to the desired spray pattern. This will help you avoid applying the too much-concentrated spray to the surface which could cause damage. USE THE INSTRUCTIONS APPROPRIATE FOR THE MODEL PURCHASED
NOTE: Use only detergents formulated for pressure washers.
NOTE: Test detergent in an inconspicuous area before use.
Units with Detergent Applicator Included Follow the manufacturer’s label directions for mixed correct concentrations of detergent to water ratio through the pressure washer is approximately 5.4% (1 to 19).

1.  Unscrew the top of the detergent applicator and fill the applicator with detergent.
2.  Replace the top on the applicator.
3.  Remove the lance from the gun.

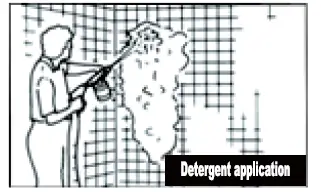

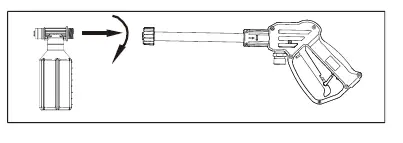

4.  Attach the detergent applicator to the gun ( See Figure ).
5.  Apply detergent so it thoroughly covers the cleaning surface. Apply from bottom to top to prevent detergent from sliding down and streaking.
6.  Allow detergent to remain on the surface for a few minutes. This is a good time to use a brush to lightly scrub heavily soiled areas. Never allow detergent to dry on the cleaning surface.
7.  Remove the detergent applicator from gun and replace it with the lance, or remove the applicator from the end of the lance.
8.  Rinse detergent from the surface.

Final Rinse

Start the final rinse at the bottom and work upward. Make sure you thoroughly rinse the surface and that all detergent has been removed.

1.  Be sure all detergent is flushed from the system.
2.  Turn off the motor.
3.  Turn off the water supply.
4.  After the motor and water supply are turned off, trigger the gun to depressurize the system.
   CAUTION: NEVER turn the water supply off before turning the motor off. Serious damage could occur to the pump and/or motor.
   WARNING! NEVER disconnect the high-pressure discharge hose from the machine while the system is pressurized. To depressurize, turn the motor off, turn the water supply off and squeeze gun trigger 2-3 times.
5.  After each use, wipe all surfaces of the pressure washer with a clean, damp cloth.

MAINTENANCE

Regular maintenance will improve performance and extend the life of the Pressure Washer. Pressure Washer’s warranty does not cover items that have been subjected to operator abuse or negligence. Only by maintaining the Pressure Washer in accordance with instructions in this manual will the full value of the warranty be honored. Some adjustments will need to be made periodically to properly maintain the Pressure Washer. All service and adjustments should be made at least one time each season. It is important that the maintenance chart below be followed.

MOVING AND STORAGE
After each application or winter storage follows these instructions:

1.  When finished using the Pressure Washer, you must first drain and rinse the detergent tank.
2.  Run the Pressure Washer in low pressure until all of the soap is drained from the detergent tank.
3.  Pour clear water into the tank and run it through on low pressure as though it were detergent.
4.  Turn the machine OFF and squeeze the trigger to release the trapped pressure inside of the machine.
5.  Remove both the garden hose and pressure hose from the unit.
6.  Turn ON the machine and allow it to run for 5 seconds. (This will clear out most of the water trapped in the pump).
7.  Unplug the machine and store in a dry, climate-controlled environment.
   NOTE: Do not store the machine or accessories in a place where the temperature could drop below 40°F. Do not store the pressure washer outdoors. Do not store the pressure washer where it might freeze.

AFTER EXTENDED STORAGE
Scale deposits may form in the pump when it is not used for some time. This causes the motor to hesitate or not start up at all.

1.  Do not plug the unit into an electrical outlet or connect the pressure hose to the unit.
2.  Connect a garden hose to the unit and allow the water to exit from a high-pressure outlet for a few seconds to rinse the system.
3.  Shut off the water.
4.  Connect the pressure hose to the gun and then lock the hose safety device.

TIPS FOR EXTENDING THE LIFE OF YOUR PRESSURE WASHER

1.  Never operate the unit without water.
2.  A pressure washer is not meant to pump hot water. Never connect to the hot water supply – this will significantly reduce the life of the pump.
3.  Using detergents other than those formulated for pressure washers may cause damage to pump components (o-rings, etc.).This also applies to chemicals such as bleach, dish soap, etc.
4.  Never operate the unit for more than one (1) minute without spraying water. The resulting heat buildup will damage the pump.
5.  Before adjusting the nozzle for pressure (high-to-low or low-to-high) release the trigger. Failure to do so will reduce the life of o-rings in lance.

LUBRICATION
This pressure washer does not require any maintenance on the pump or motor. Both assemblies are pre-lubricated and sealed, requiring no additional lubrication.

NOTE
A small amount of oil leakage is normal. If oil leakage persists or becomes worse, the unit may need to be serviced by qualified repair personnel.

WATER INLET SCREEN(FILTER )
The pressure washer is equipped with a water inlet screen to protect the pump from foreign debris. Carefully remove debris from the dull (finger or Q-Tip). Make sure the screen is not torn or broken. WARNING Do not operate the pressure washer without a screen filter in place. Impurities entering the pressure pump can cause internal damage.

COOLING SYSTEM
The air louvers, located in and around the pressure washer housing must be kept clean and free of any obstructions to ensure proper air cooling of the motor and pump during operation.

WATER INLET SCREEN
The water inlet filter must be checked regularly to prevent blockage.( See Figure 1 )

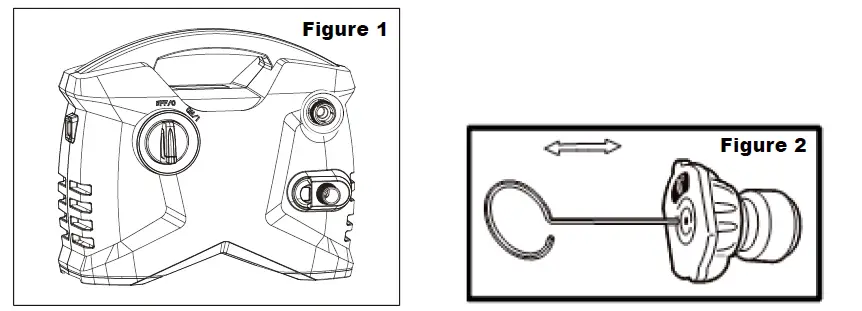

CLEANING PIN MAINTENANCE ( See Figure 1 )
Using included tip cleaner, or an unfolded paper clip, insert the wire into the nozzle hole and move back and forth until the debris is dislodged.
Remove additional debris by back-flushing water through the nozzle. To do this, place the end of a garden hose ( with water running ) to the end of the nozzle for 30-60 seconds.

Spray Nozzle

• make sure the appropriate spray nozzle size is selected for your application, and always start from the lowest pressure spray nozzle to the higher pressure spray nozzle until your desired work result is achieved.
• the pressure washer comes with 3 spray nozzles. Each spray nozzle is designed to deliver a specific water pressure for a particular cleaning job.
• A 15-degree nozzle is typically used for surface preparation such as removing dirt, mildew or paint, and can be used on most surfaces. This nozzle should only be used on areas that can withstand pressure from this nozzle.
• This nozzle delivers a 25-degree spray pattern for intense cleaning of larger areas. Best used to sweep away dirt and mud. Use it to sweep away leaves from decks, driveways, and sidewalks. This nozzle should only be used on areas that can withstand pressure from this nozzle.

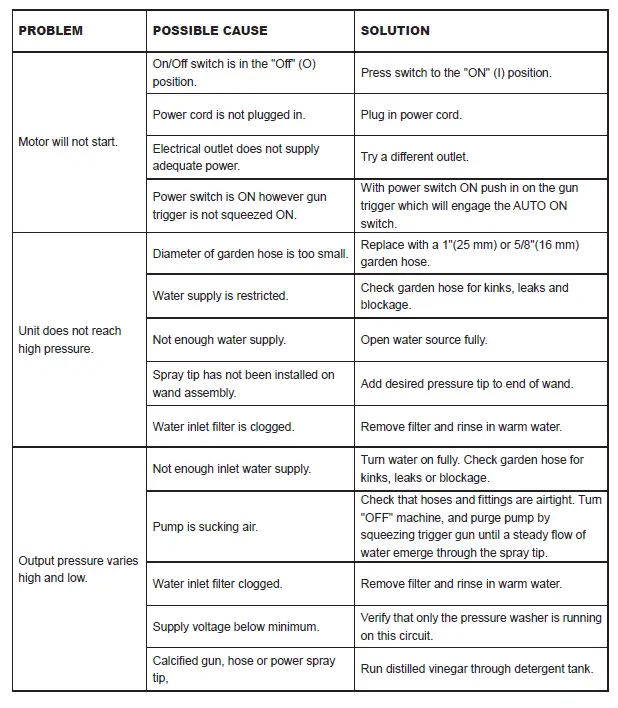

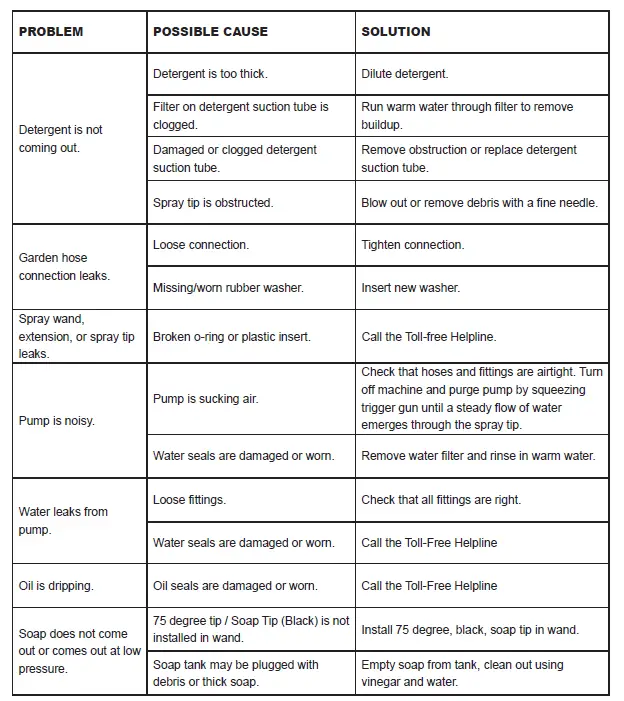

Troubleshooting Guide

NOTE: AUTO ON/OFF SWITCH: This Pressure washer is equipped with an Auto Start/Stop feature. To operate: press the power switch to the On(I) position. The pump will pressurize and shut down immediately. Once the trigger of the gun is depressed the unit will turn on. The unit will shut off and be in standby mode when the trigger is released.

Warranty

HYPERTOUGH™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of one (1) years against defects in materials, parts or workmanship. through normal use, free of charge to the customer. This warranty is valid only for units that have been used for personal use that have not been hired or rented for industrial/ commercial use, and that have been maintained in accordance with the instructions in the owner’s manual supplied with the product from new.

ITEMS NOT COVERED BY WARRANTY:

1.  Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident, improper maintenance, or alteration;
2.  The unit, if it has not been operated and/or maintained in accordance with the owner’s manual
3.  Normal wear, except as noted below;
4.  Routine maintenance items such as draining the water to avoid freezing/ice damage to the pump and components.
5.  Normal deterioration of the exterior finish due to use or exposure.

HYPERTOUGH HELPLINE (X-XXX-XXX-XXXX);
Warranty service is available by calling our toll-free helpline at X-XXX-XXX-XXXX. Order Replacement parts online at @http://www.walmart.com/

TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges for any part submitted for replacement under this warranty unless a return is requested in writing by HYPETOUGH.
