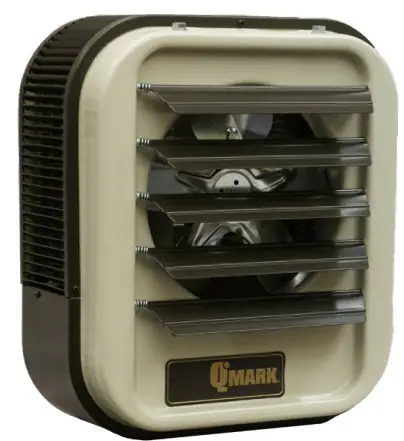

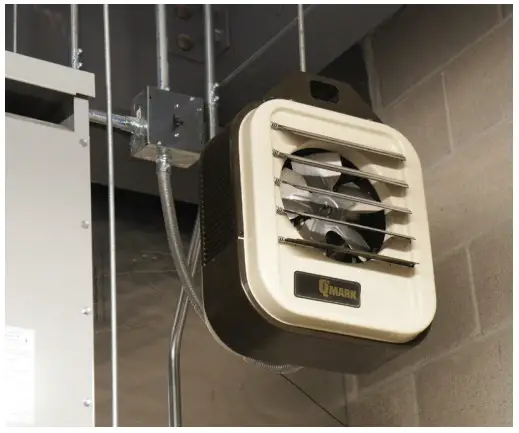

MUH PRO Series Electric Unit Heaters
User Guide
IDEAL SPACES
- Factories
- Warehouses
- Garages
- Stairwells
- Shipping Docks
- Power Stations
- Mechanical Rooms
COLORS
- Neutral Gray/Statuary Bronze
DIMENSIONS
- Varies (see diagram)
TEMP RANGE
- 40°– 90°F
CFM
- 350 – 650
Now compatible with SmartSeries Plus when used with a 24VAC control transformer!
Introducing the MUH PRO series Unit Heaters. Same great MUH you rely on every day but now with added safety and control. The new MUH Pro series comes standard with:
- A disconnect switch to make maintenance a safe and easy process.
- A 24VAC transformer for safer control as well as future-proofing in case of a low-voltage digital thermostat is desired in the future.
- A built-in single-stage thermostat gives basic control right out of the box.

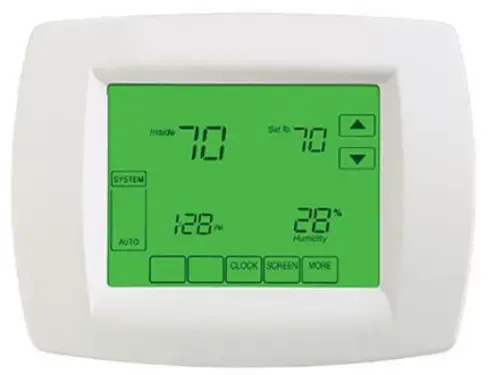

- PRO-SSP Models come with the SmartSeries Plus ready to be remotely mounted, to give you BMS communication via BACnet MS/TP, digital touchscreen, 7-day schedule, temporary override or setback, and cooling mode to run only the fan.
Benefits of the MUH PRO:
- Safety: The integrated disconnect switch and low voltage transformer add additional safety to the base MUH lineup. The disconnect switch gives peace of mind to the maintenance worker because the disconnect switch will cut off incoming power to the unit so it can be easily repaired. The low voltage transformer no longer requires you to work with line voltage control for easy and safer control.
- Better Lead Times: The MUH PRO series heater will be a stock product so they will have the same lead times as the base MUH models we have today meaning no long wait for configured units!
- Better Pricing: Enjoy the benefits of the three added accessories without the full cost of a similarly configured style unit.
- Easy Setup: All of the accessories are installed in the factory so once the product reaches your door it just needs to be wired and then set via the built-in thermostat and you are good to go.
- Easily Stocked: With all the features and products built as stock it is easy to keep on the shelves of distributors so you can get the product right when you need it.
MUH PRO-SERIES
UNIT HEATER
| item information | Electrical Data | Fan Data | Mechanical Data | |||||
| Catalog No. | UPC | VOLTS | PHASE | KW | AMPS | Control Volt | CFM | Ship WT. |
| MUH0381-PRO MUH0381-PRO-SSP MUH0581-PRO MUH0581-PRO-SSP MUH078-PRO MUH078-PRO-SSP MUH108-PRO | 00685360173818 00685360174631 00685360173825 100685360174600 00685360173832 00685360174693 00685360173849 | 208 208 208 208 208 208 208 | 1 1 1-3 1-3 1-3 1-3 1-3 | 3 3 5 5 7.5 7.5 10 | 14.5 14.5 24 24 36 36 48 | 24 24 24 24 24 24 24 | 350 350 350 350 650 650 650 | 27 lbs 27 lbs 27 lbs 27 lbs 38 lbs 38 lbs 38 lbs |
| MUH108-PRO-SSP | 685360174716 | 208 | 1-3 | 10 | 48 | 24 | 650 | 38 lbs |
| MUH0321-PRO | 685360173856 | 208/240 | 1 | 3 | 11.0/12.5 | 24 | 350 | 27 lbs |
| MUH0321-PRO-SSP | 685360174617 | 208/240 | 1 | 3 | 11.0/12.5 | 24 | 350 | 27 lbs |
| MUH0521-PRO | 685360173863 | 208/240 | 1-3 | 5 | 18.0/21.0 | 24 | 350 | 27 lbs |
| MUH0521-PRO-SSP | 685360174648 | 208/240 | 1-3 | 5 | 18.0/21.0 | 24 | 350 | 27 lbs |
| MUH072-PRO | 685360173870 | 208/240 | 1-3 | 8. | 27.0/31.3 | 24 | 650 | 38 lbs |
| MUH072-PRO-SSP | 685360174679 | 208/240 | 1-3 | 8. | 27.0/31.3 | 24 | 650 | 38 lbs |
| MUH102-PRO | 685360173887 | 208/240 | 1-3 | 10 | 36.0/42.0 | 24 | 650 | 38 lbs |
| MUH102-PRO-SSP | 685360174662 | 208/240 | 1-3 | 10 | 36.0/42.0 | 24 | 650 | 38 lbs |
| MUH0341-PRO | 685360173894 | 480 | 3 | 3 | 4. | 24 | 350 | 27 lbs |
| MUH0341-PRO-SSP | 685360174624 | 480 | 3 | 3 | 4. | 24 | 350 | 27 lbs |
| MUH0541-PRO | 685360173900 | 480 | 3 | 5 | 6 | 24 | 350 | 27 lbs |
| MUH0541-PRO-SSP | 685360174655 | 480 | 3 | 5 | 6 | 24 | 350 | 27 lbs |
| MUH074-PRO | 685360173917 | 480 | 3 | 8. | 9 | 24 | 650 | 38 lbs |
| MUH074-PRO-SSP | 685360174686 | 480 | 3 | 8. | 9 | 24 | 650 | 38 lbs |
| MUH104-PRO | 685360173924 | 480 | 3 | 10 | 12 | 24 | 650 | 38 lbs |
| MUH1O4-PRO-SSP | 685360174709 | 480 | 3 | 10 | 12 | 24 | 650 | 38 lbs |
| A | 3–20 kW | 25–50 kW |
| B | 7 1/4″ | 9 7/16″ |
| C | 9 1/2″ | 14 3/8″ |
| D | 7 1/4″ | 12 1/8″ |
| E | 11 5/16″ | 2 1/16″ |
| L | 2 1/4″ | 3″ |
| M | 20 1/2″ | 28 15/16″ |
| N | 9 15/16″ | 14 15/16″ |
| 3 1/4″ | 4 1/2″ |

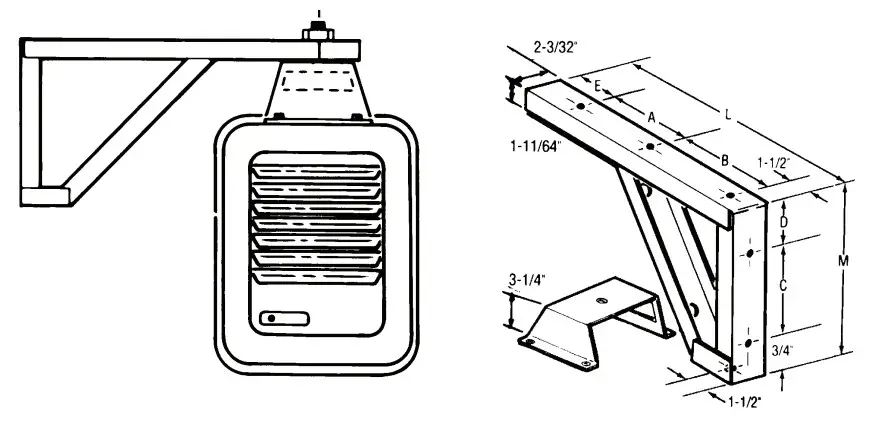

Optional Mounting Brackets:
| CATALOG NO. | UPC | COMPATIBILITY | SHIP WT.* | |
| Standard | B10 | 6.8536E+11 | MUH03–10 | 8 lbs |
| Ceiling | CMB10 | 6.8536E+11 | MUH03–10 | 3 lbs |
| Vertical Ceiling | VDMB5 | 6.8536E+11 | MUH03–05 | 5 lbs |
NOTE: On dual-voltage units, CFM, FPM, & RPM ratings are listed at higher voltage operation. On dual-phase units, the maximum amp draw is listed for the respective voltage.
www.qmarkmep.com
For Technical Services, Call 800-642-4328
ITEM# QFLY_MUH_0321-1
