PHILIPS logoTAB7807 7000 Series Wireless Subwoofer
User Guide

PHILIPS TAB7807 7000 Series Wireless Subwoofer

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 1PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 2www.philips.com/welcome

warning 4

Before using your product, read all accompanying safety information

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 3

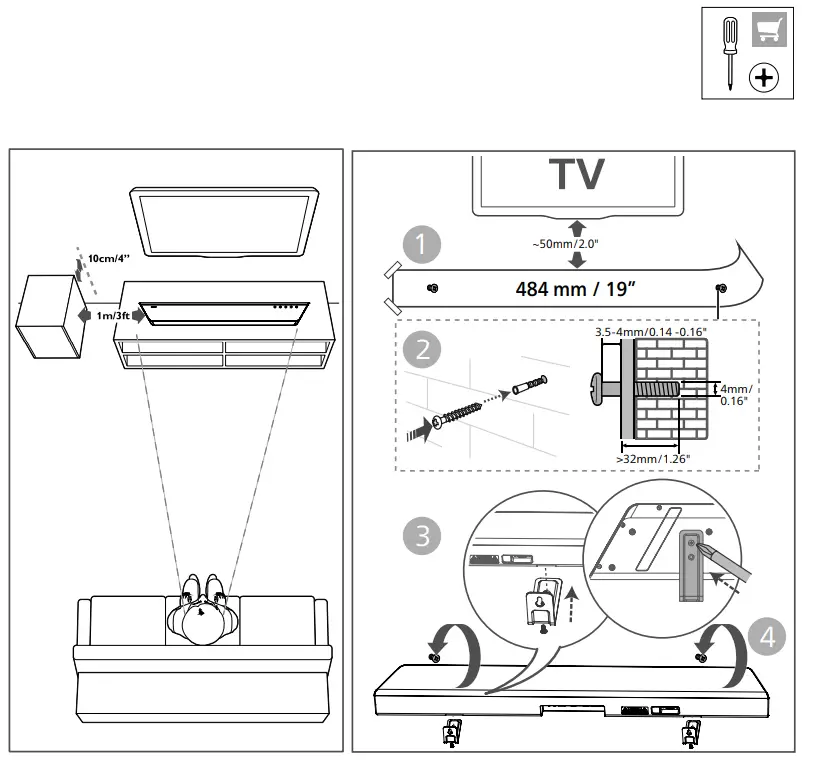

Position the SoundBar / Wall mount the SoundBar (optional)

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 4

Suggested wall mounting height
You are suggested to install the TV first before wall mounting the soundbar.
With a TV preinstalled, wall mount the soundbar 50mm/2. 0’’ in distance from the bottom of the TV.
If you wall mount the soundbar first, drill 2 parallel holes (diameter 3-8 mm each according to wall type) in the wall. The distance between the holes should be 484mm / 19”.

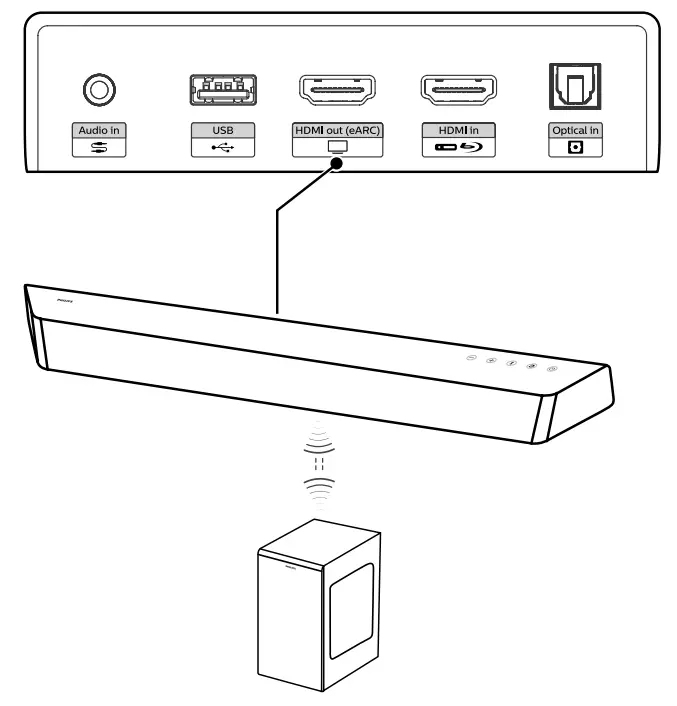

Connect the SoundBar

Hear audio from TV in one of the following ways
PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 5

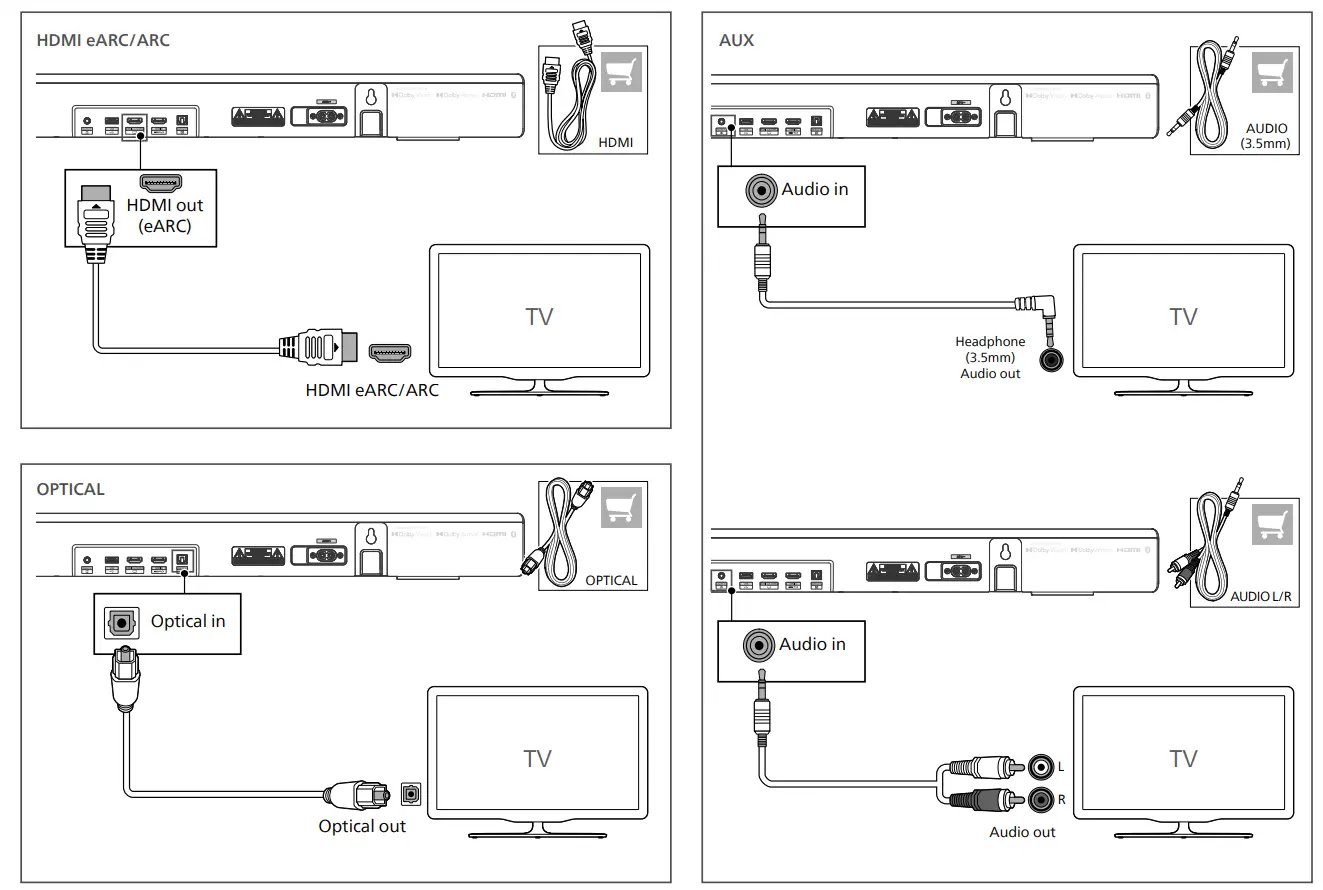

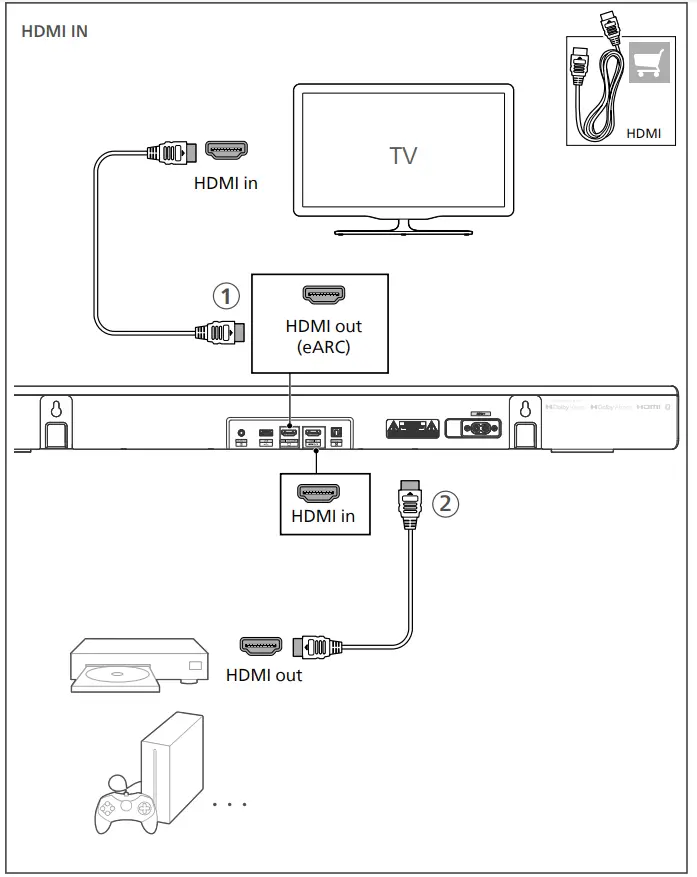

Hear audio from TV in one of the following ways

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 6PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 7

Switch on the SoundBar

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 8

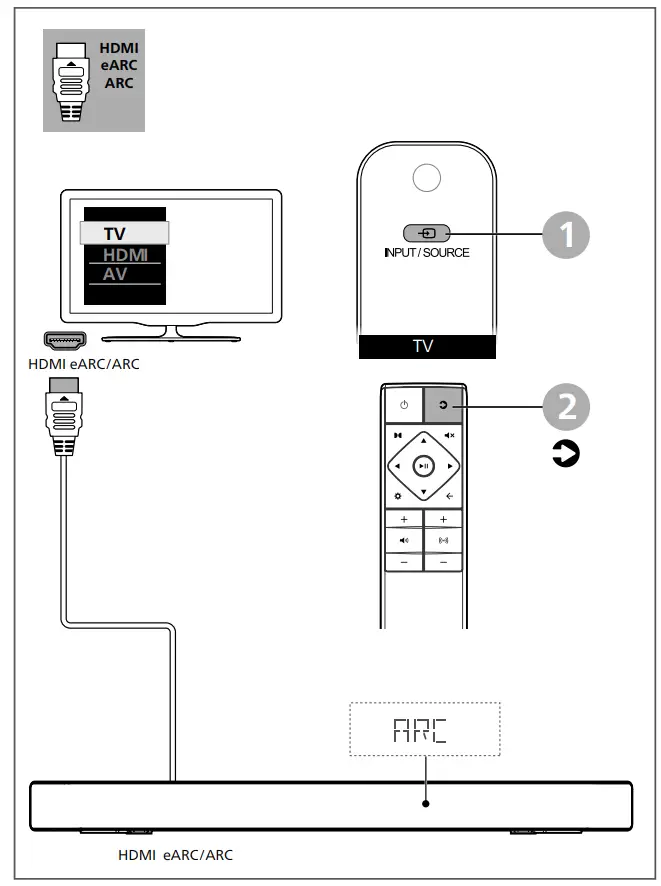

Select the correct audio source

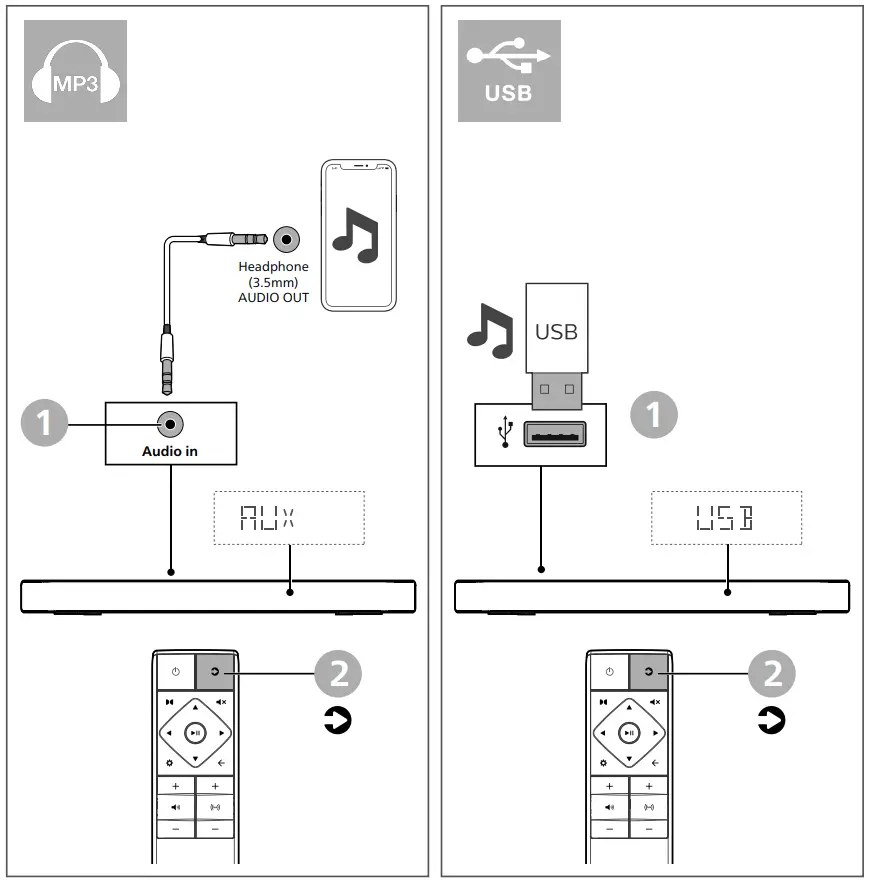

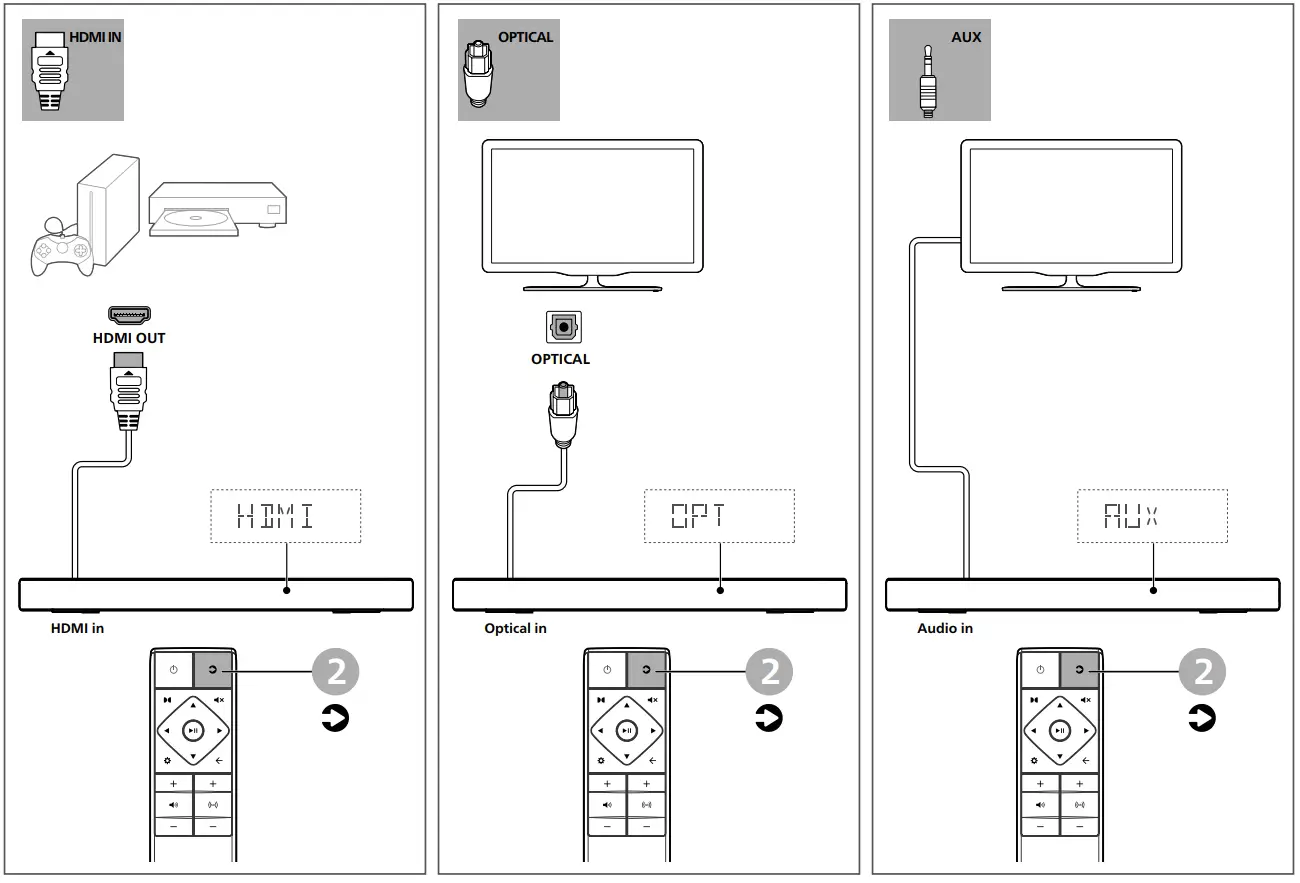

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 9PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 10Play other devices

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 11

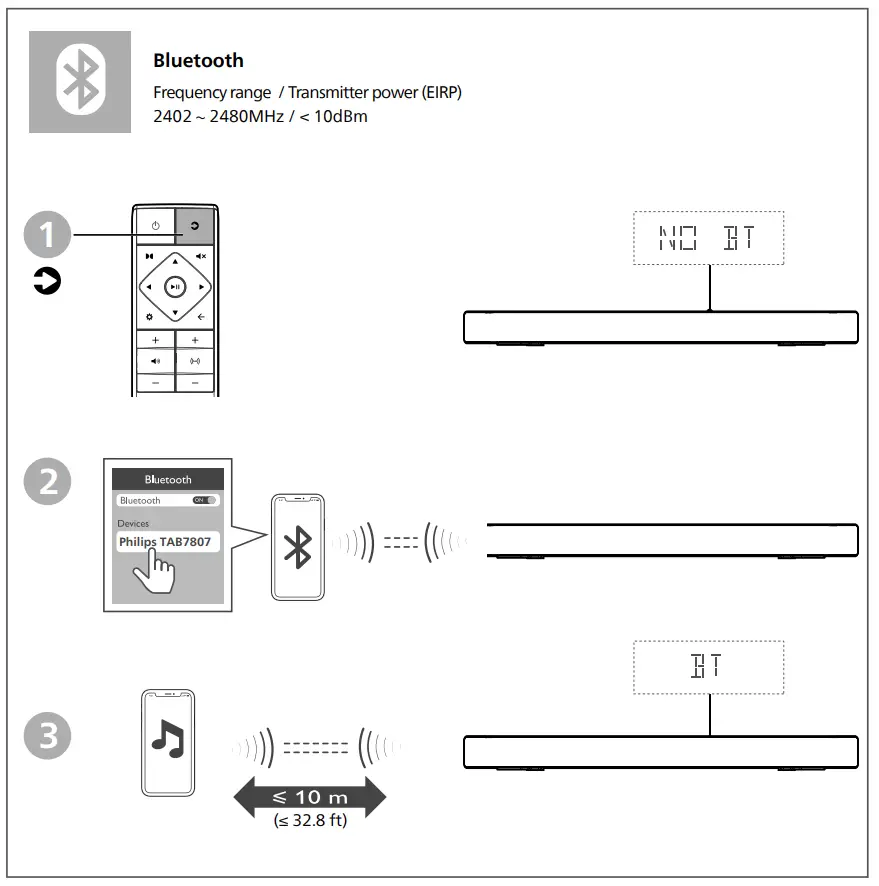

Play audio through Bluetooth

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 12

For more information about using this

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 13

Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories.
Confidential unpublished works. Copyright © 2012–2021 Dolby Laboratories. All rights reserved.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing  Administrator, Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by MMD Hong Kong Holding  Limited is under license. Other trademarks and trade names are those of their respective owners.
Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks and/or registered trademarks of Roku, Inc. This product is  Roku TV Ready-supported in the United States. Countries are subject to change. For the most current list of countries in which this product is Roku TV  Ready-supported, please email [email protected].

PHILIPS TAB7807 7000 Series Wireless Subwoofer - QR codewww.philips.com/support

PHILIPS TAB7807 7000 Series Wireless Subwoofer - icon

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 14

PHILIPS logo

Specifications are subject to change without notice. Please visit www.Philips.com/support for the latest updates and documents.
Philips and the Philips Shield Emblem have registered trademarks of Koninklijke Philips N.V. and are used under license.
This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited. or one of its affiliates, and MMD Hong  Kong Holding Limited. is the warrantor in relation to this product.

PHILIPS TAB7807 7000 Series Wireless Subwoofer - fig 15

TAB7807RE_QSG_V1.0_220427

References

Documents / Resouces

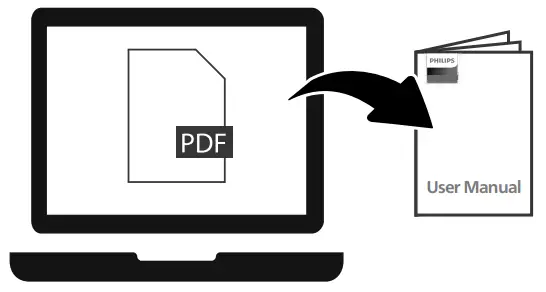

Download manual
