Philips Tab7305-37 7000 Series Soundbar 2.1 With Wireless Subwoofer User Guide

PHILIPS TAB7305-37 7000 Series Soundbar 2.1 with Wireless Subwoofer

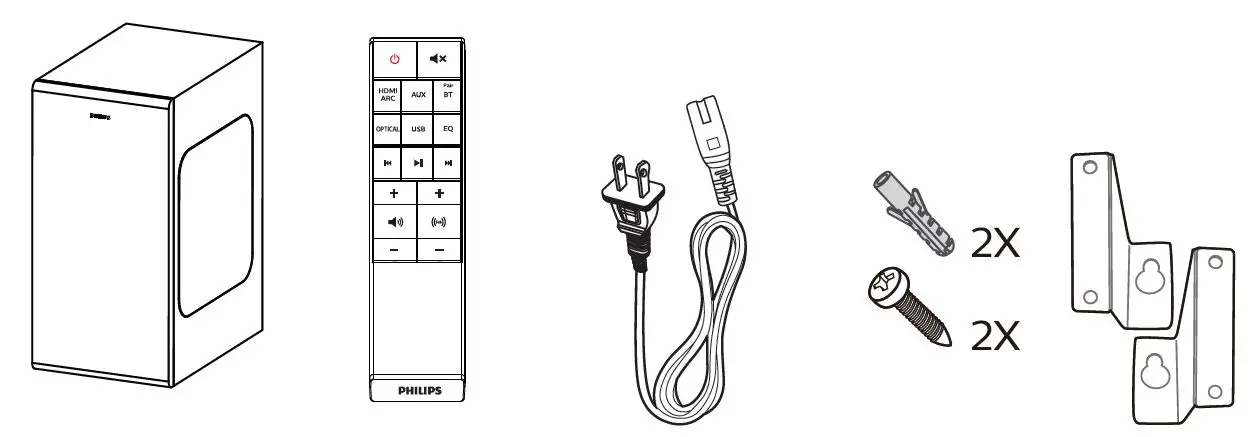

IN THE BOX

1. Wireless Subwoofer
2. Remote Control
3. Power Cord 2X
4. Screws/ Gum Cover
5. Wall Bracket

1. World Wide Warranty
2. Quick start guide
3. Safety Sheet

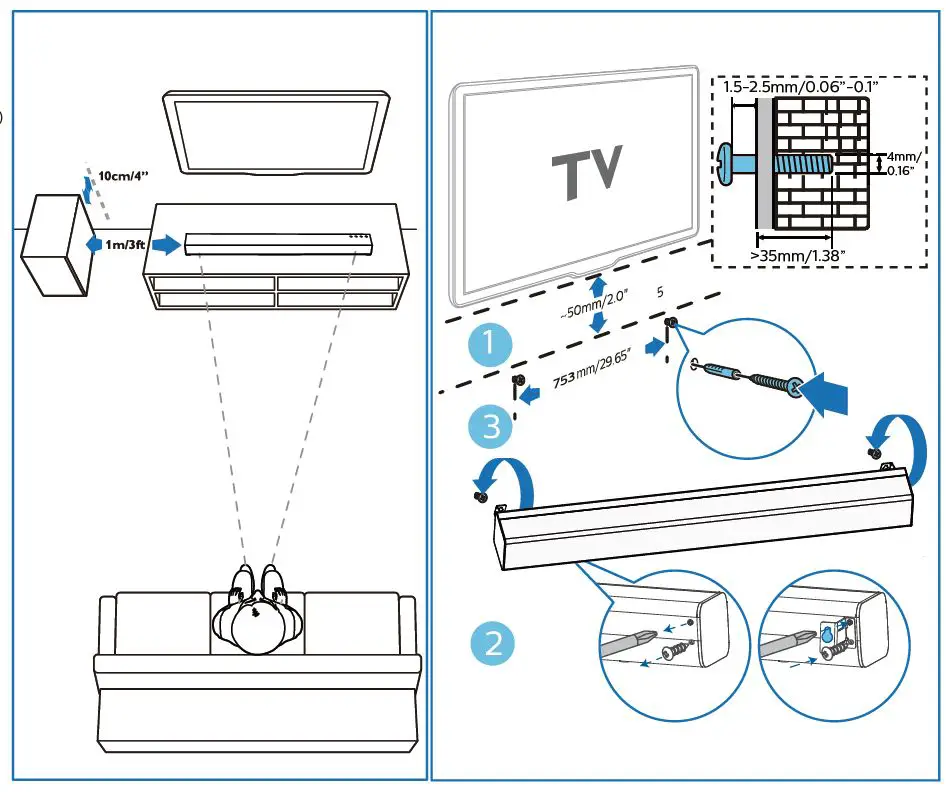

Position the SoundBar / Wall mount the SoundBar (optional)

Suggested wall mounting height
You are suggested to install the TV first before wall-mounting the soundbar. With a TV preinstalled, wall mount the soundbar 50mm/2.0″ in distance from the bottom of the TV. If you wall-mount the soundbar first, drill 2 parallel holes ( ¢ 3-8mm each according to wall type) in the wall. The distance between the holes should be 753mm/29.65″.

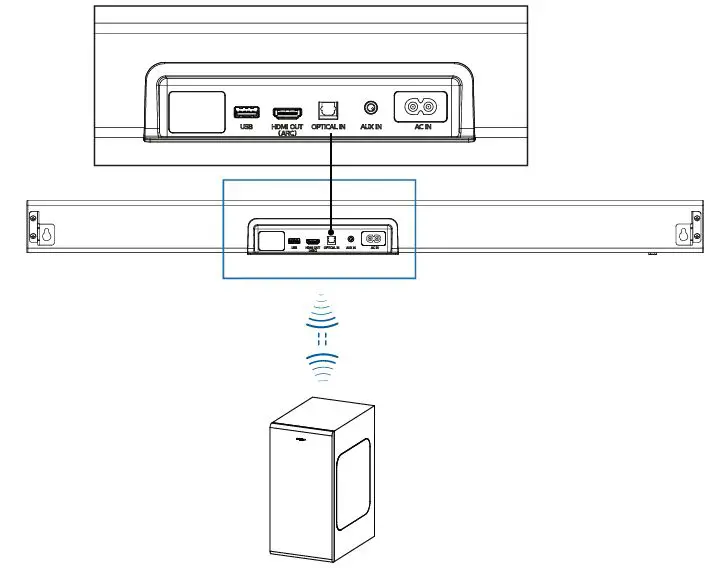

Connect the SoundBar

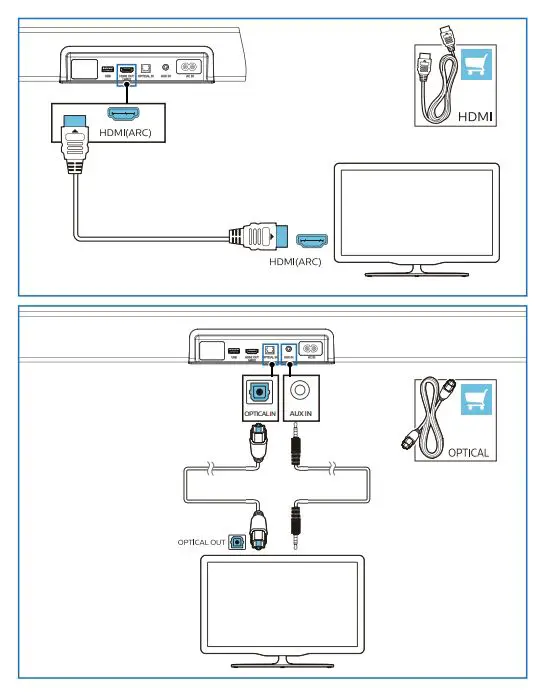

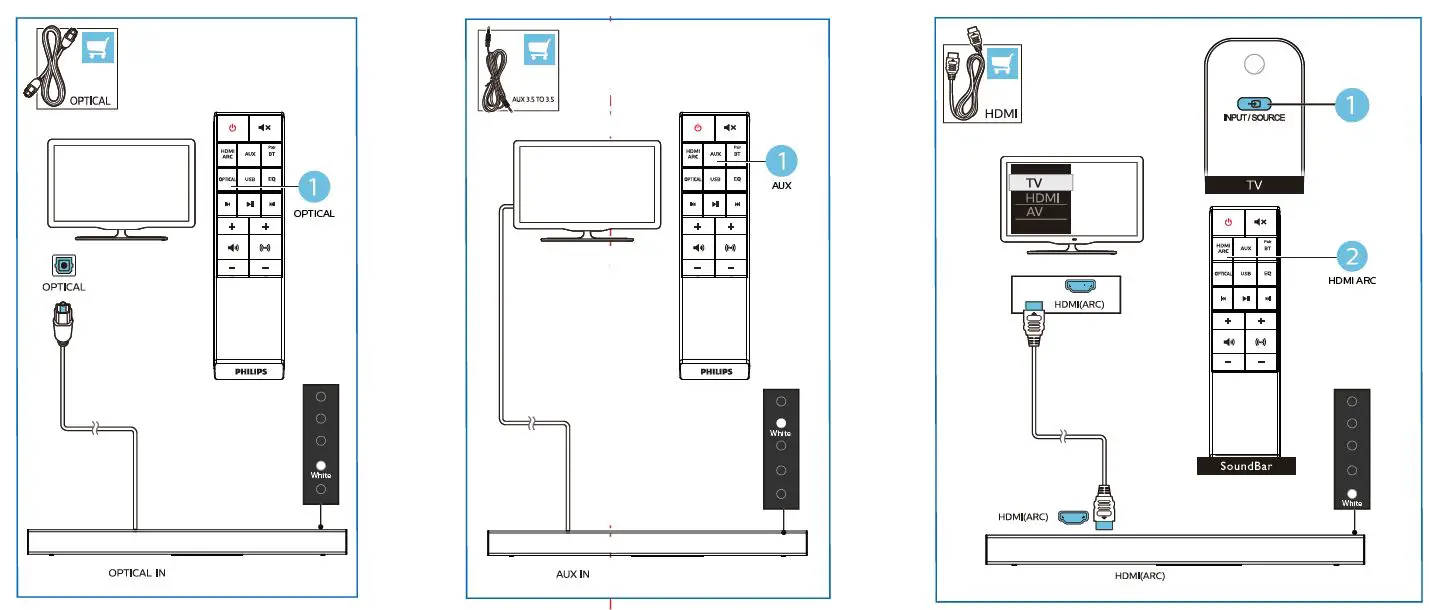

Hear audio from TV in one of the following ways

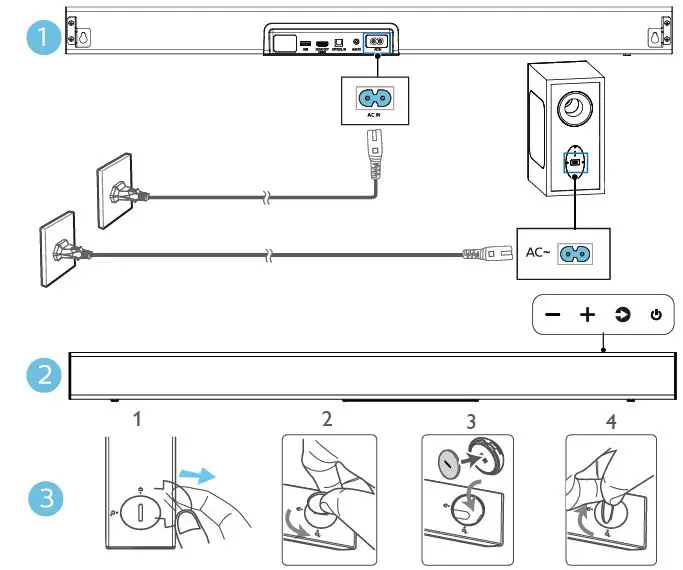

Switch on the SoundBar

Select the correct audio source

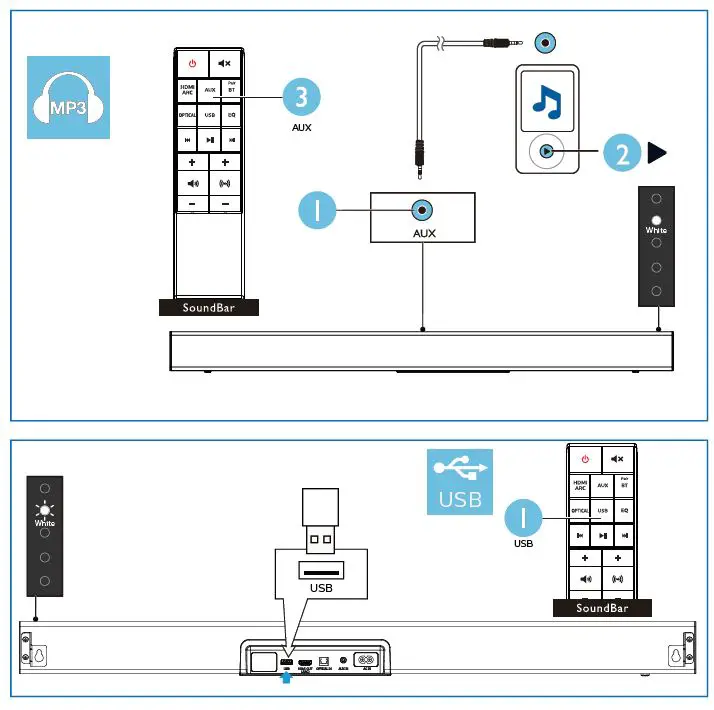

Play other devices

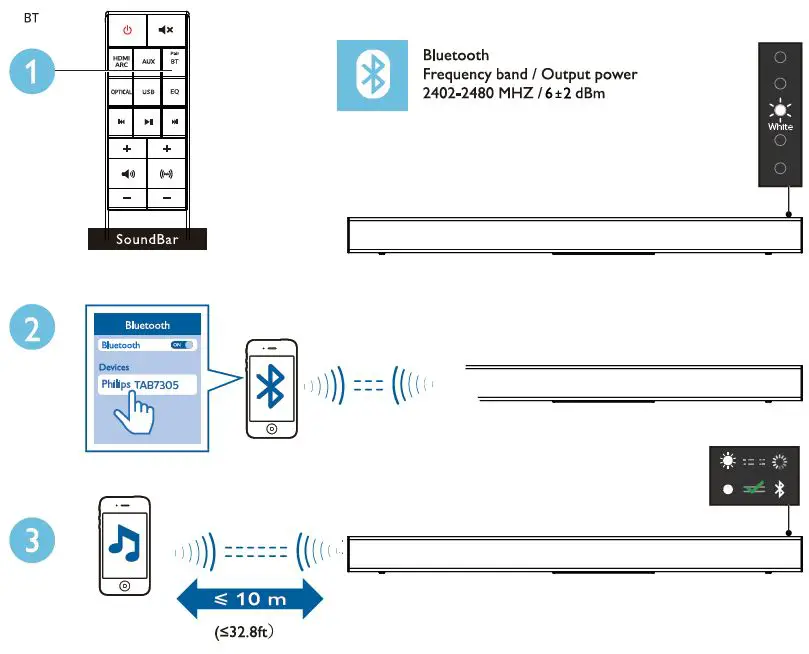

Play audio through Bluetooth

For more information about using this product, visit www.philips.com/support

Dolby, Dolby Audio, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2020 Dolby Laboratories. All rights reserved.

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by MMD Hong Kong Holding Limited
is under license other trademarks and trade names are those of their respective owners
