Naturaq Sterilisieren Thermosflasche UV-C
Instruction ManualSTERILIZING THERMO BOTTLE BOTELLA

Contents hide

1 GENERAL INFORMATION

2 PARAMETERS

3 DESCRIPTION OF THE CAP

4 OPERATION

5 CLEANING AND MAINTENANCE

6 Documents / Resources

6.1 References

7 Related Posts

GENERAL INFORMATION

Dear User,
Thank you for purchasing the Noaton Naturaq UV-C Sterilising Thermal Bottle, which kills harmful microorganisms in water with up to 99.99% efficiency while preserving minerals and trace elements important to the human body. It is therefore a multifunctional bottle for home and travel.
Please read the following usage instructions carefully before first use.

PARAMETERS

Product designation	Noaton Naturaq
Charging time	2,5 hours
Battery capacity	500 mAh
Dimensions (diameter x heigh) Volume	73 x 247 mm \| 50 x 240 mm
Volume	600 ml \| 420 ml
UVC energy	5 – 8 mW
Sterilisation time	3 minutes
IP protection class	IP67
Water temperature range	0°C~100°C

Parameters subject to change. Please refer to the manufacturer’s website for the latest version of the instructions. Version: Naturaq_102022-EN

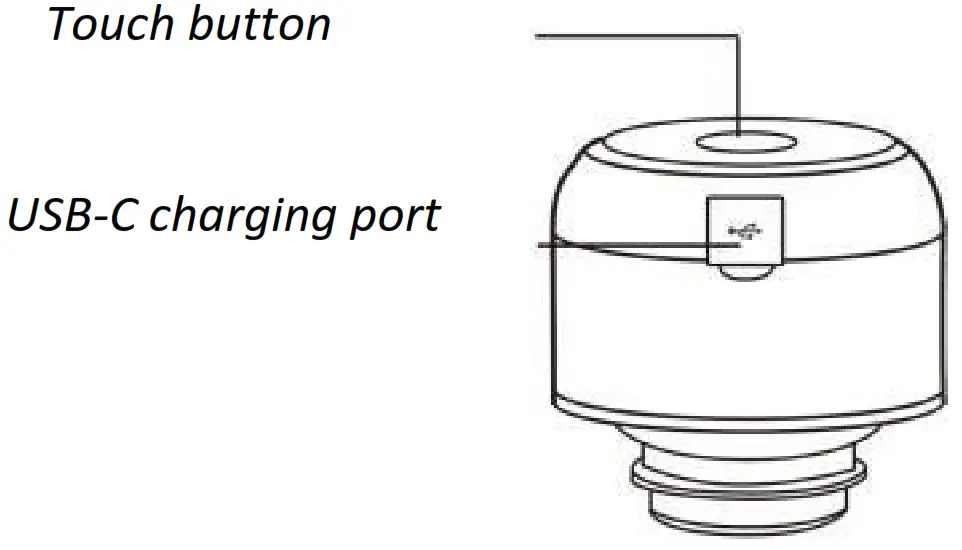

DESCRIPTION OF THE CAP

NOTICE
The bottle is not intended for fermented beverages.
Do not open the bottle during UV sterilization.
Make sure that the bottle is not handled by children.
Do not put the bottle in the freezer or microwave.
Do not wash the cap in the dishwasher.
To avoid drinking heavily contaminated water, use only clean water sources and make sure there is no risk of heavy metal contamination.
Make sure the lid is properly tightened before starting sterilisation.
Before use, make sure that the glass protecting the UVC LED on the inside of the cap is not clogged with debris that would prevent light penetration and thus reduce the effectiveness of sterilization.
For proper sterilization function and because of the risk of overflowing the contents of the bottle, fill it no more than below the neck.

OPERATION

Action	Button behavior	Function description
One short touch	Glows green	Sterilization mode (3 minutes)
Two short touches	Glows purple	Bacteriostatic mode
Notice	Flashes alternately green and purple	Cap not properly tightened
Charging	Glows red	Turns off after charging
Battery almost discharged	Flashes red	Connect the bottle to the charger

Bacteriostat
Touch the top touch button 2 times in succession and it will flash purple and the bottle will enter bacteriostat mode. During this mode, sterilization will automatically start every 6 hours for 3 minutes. To exit this mode, touch the touch button again 2 times in succession.

Charging
Open the waterproof plug of the USB charging port and connect the charger. The on/off button lights up red. After charging, disconnect the cable, the button goes out and cover the USB socket again with the waterproof rubber plug.

CLEANING AND MAINTENANCE

Before first use, wash the inside of the bottle, including the cap, using water and a mild detergent. Use a soft damp cotton cloth to clean the glass protecting the UVC LED. The bottle body itself (not the cap) can be washed in the dishwasher.
This product must not be disposed of with other household waste at the end of its life, but must be taken to a collection point designated for the recycling of electrical equipment.
The product complies with applicable European and other directives.
