EXPLODED MANUAL
ON-ROAD USE ONLY
SPECIFICATION: 1:10 Drift Car
WHEELBASE: 257mm
WIDTH: 190mm
DRIVE MODE: RWD
CASTER: Adjustable 6/ 8/ 10/ 12 degrees
FULL BALL BEARING TRANSMISSION SYSTEM HYDRAULIC DAMPER SET
www.rc-mst.com
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
1/10 SCALE RC RWD HIGH-PERFORMANCE DARAIFT CAR
Appreciate for your choice of RMX 2.0 RTR! You will be impressed with its performance and beauty.
Please prepare additional parts as car battery, transmitter battery, and charger.
Please follow the process for assemble and setting of parts package.
If you have doubt or need assistance, please contact the purchased shop or hobby shop for help, many thanks!
PLEASE FOLLOW BELOW OPERATIONS BEFORE ASSEMBLING THE PARTS PACKAGE.
- Install transmitter batteries.
- Loosen receiver antenna.
- Connector ESC and battery.
- Switch on the transmitter.
- Switch on the ESC.
- Stand the car around 3 seconds till the front wheels turn once in the left/right direction.
- Individually turn the left/right direction of the remote control to the end to complete the boot process.
- Please play this product in opening safe area.
- The default setting had been completed.

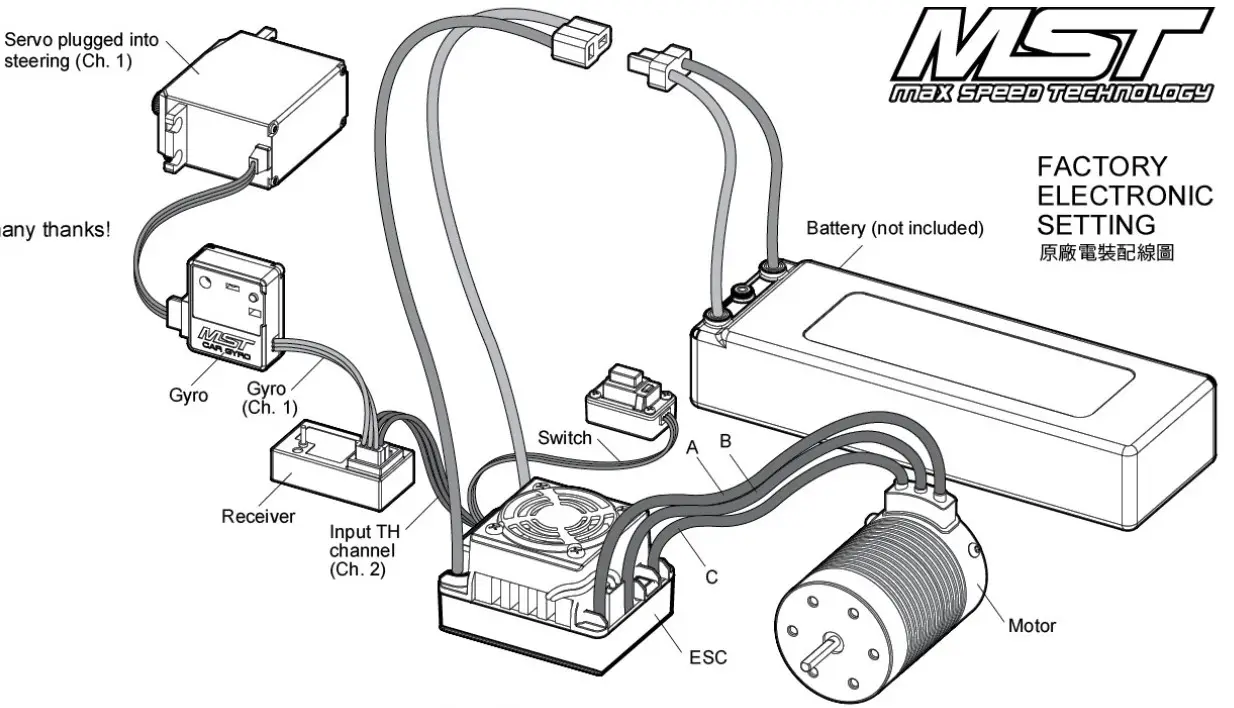

- RMX 2.0 RTR electronics (Transceiver set/ESC/Gyro) are set by factory and can be directly used after attaching battery. Please refer to instructions for adjusting.

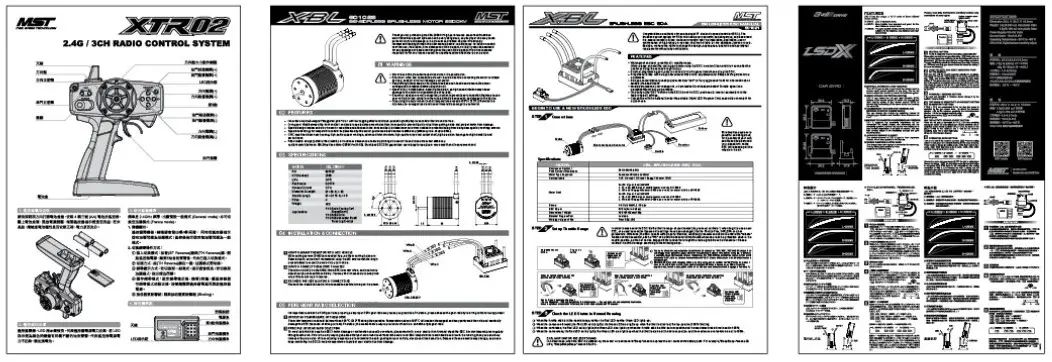

- Please refer to transmitter & receiver performance instructions.
- Please refer to ESC performance instructions.
- Please refer to LSD X CAR GYRO performance instructions.

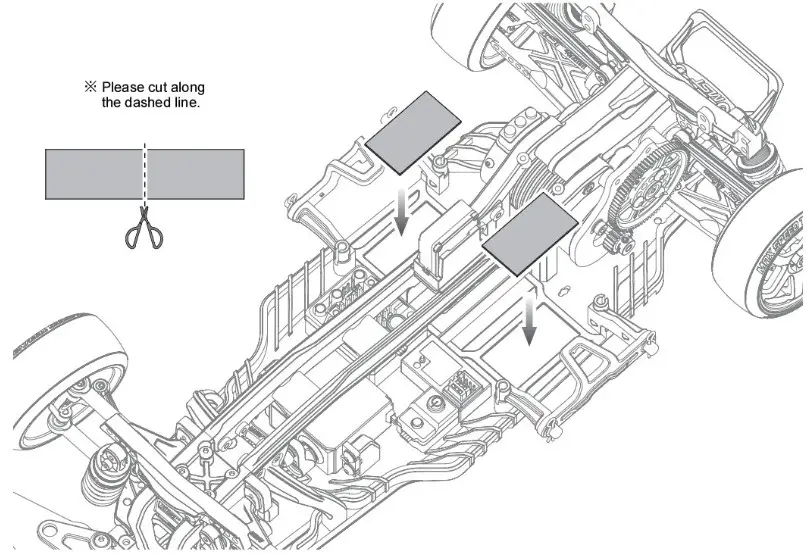

STEP 1 Pasting Sponge

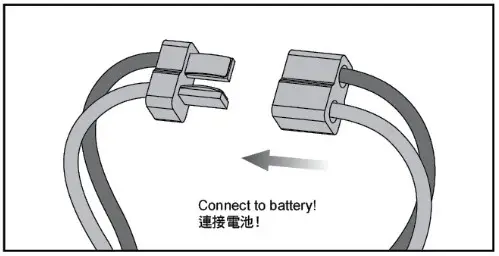

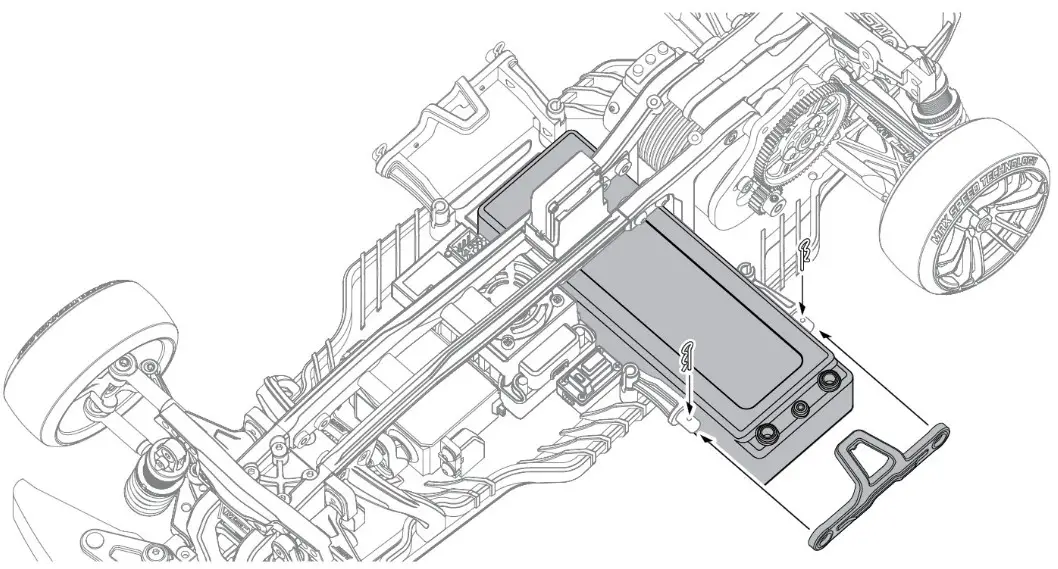

STEP 2 Attaching Battery
- The assembly and conservation method may be different by specification of
- Recommended battery measurement L140 <W48 XH25.4mm (not exceed)
- Please play in safe place after all setting finish.
Before playing, please switch on transmitter then on the car.
Please switch off reversely.

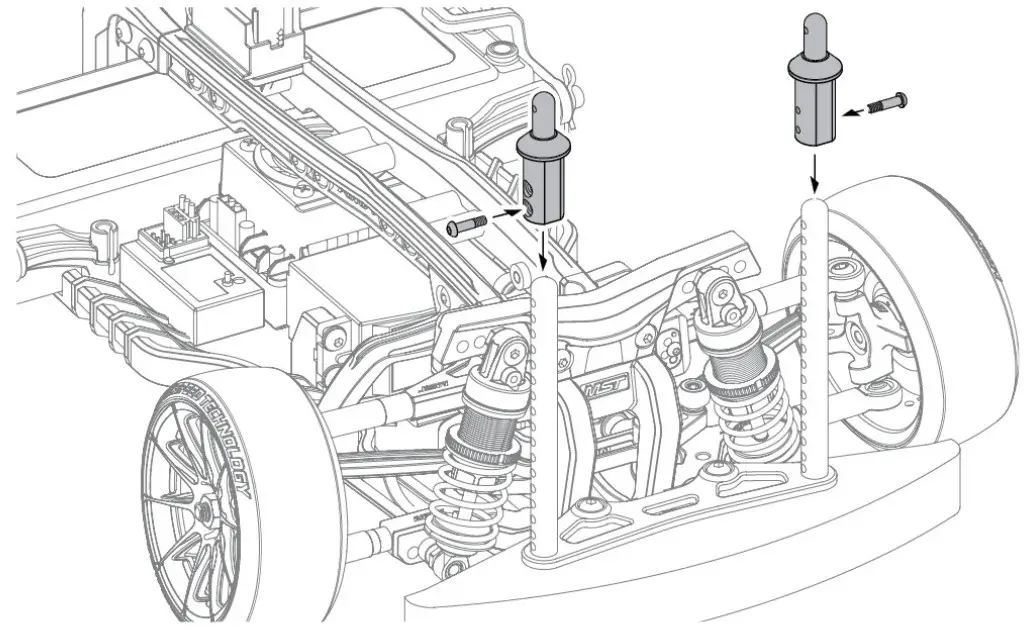

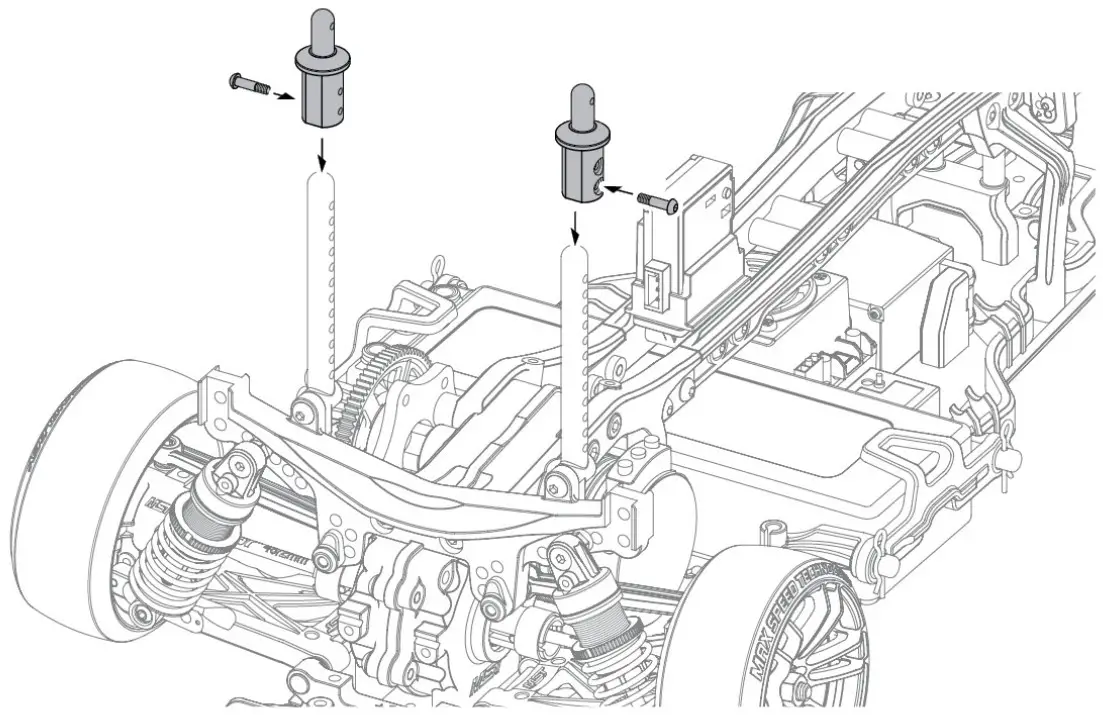

STEP 3 Attaching Body Mount
• Adjust the body mount highness according to the body shell.

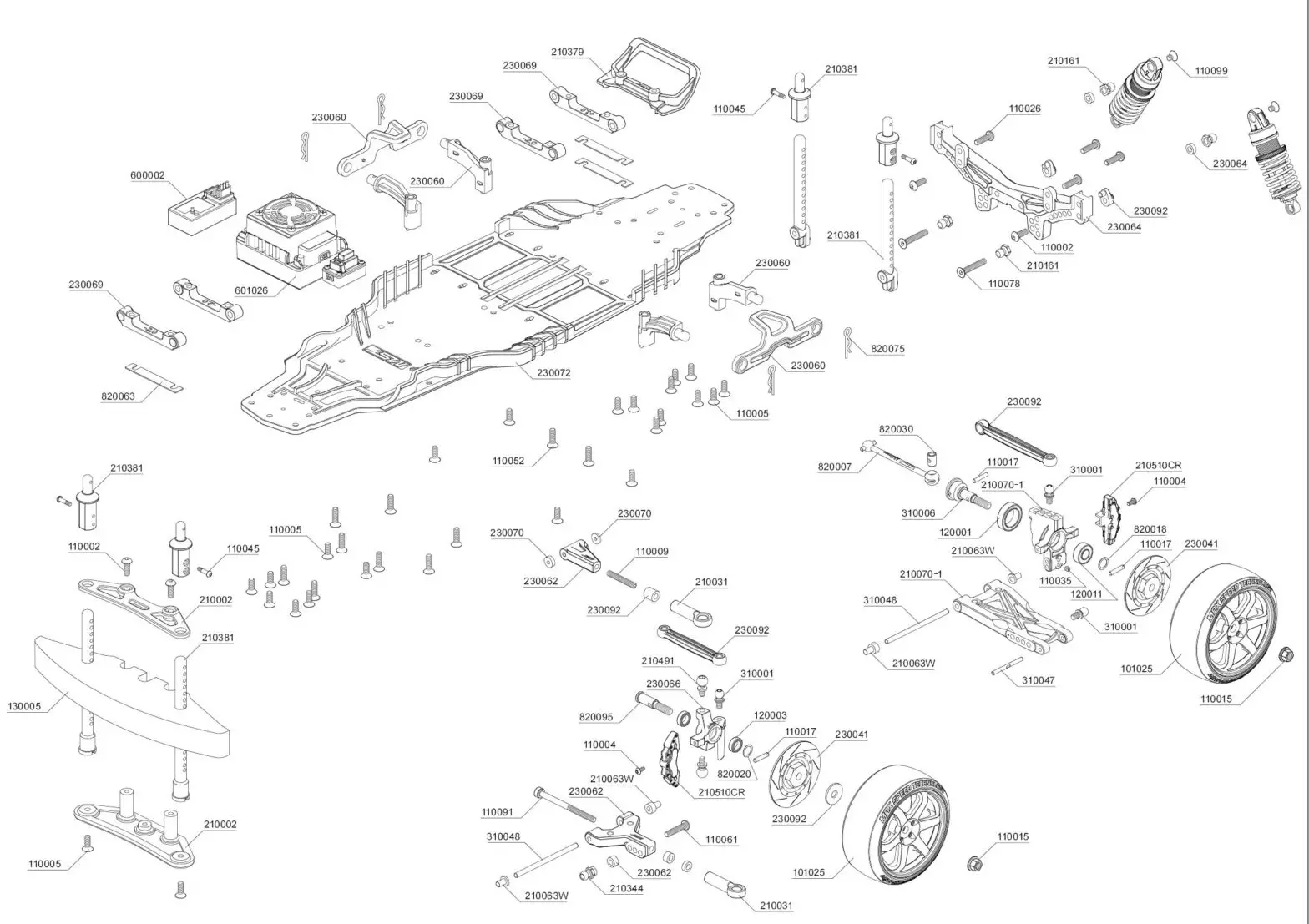

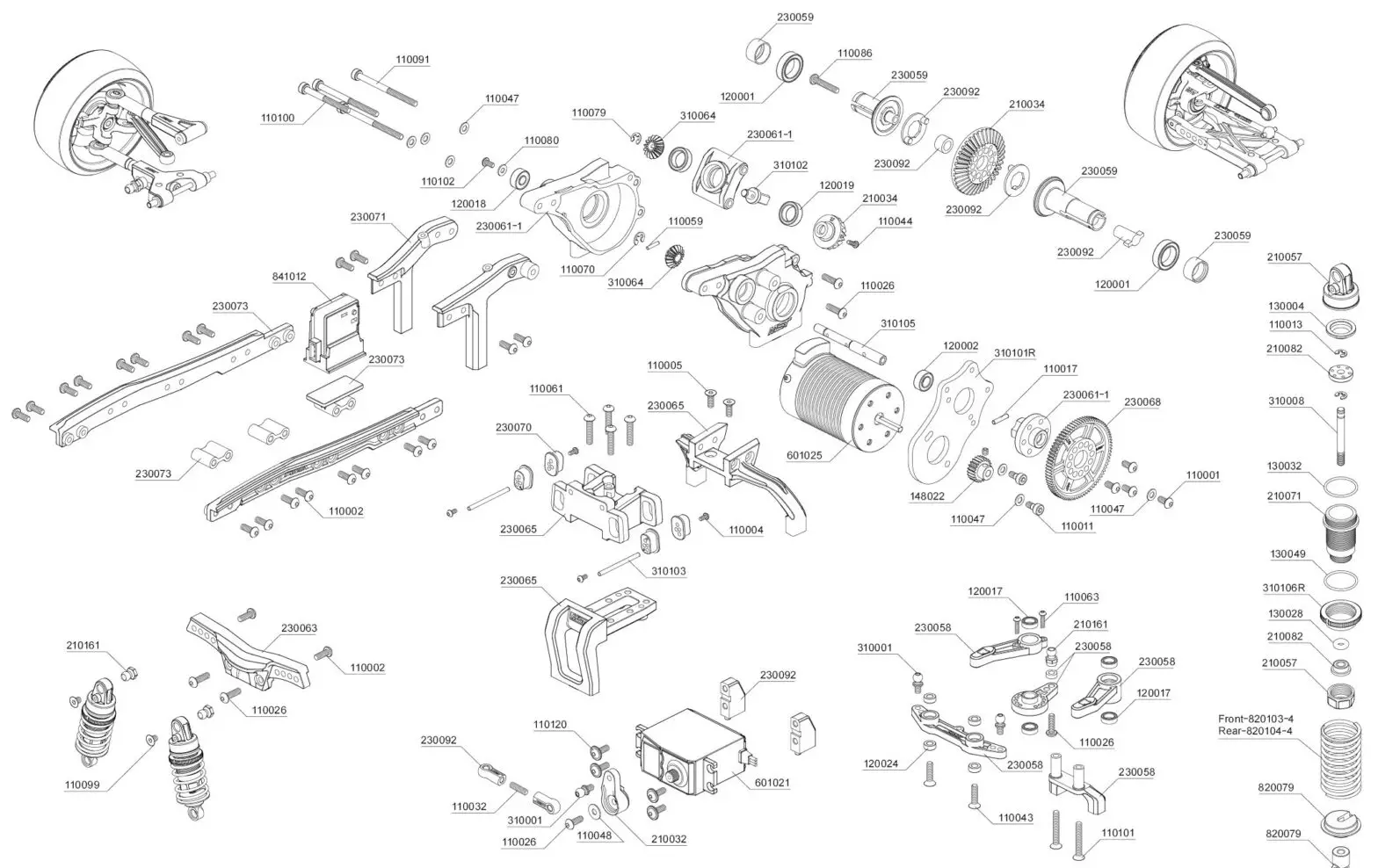

EXPLODED VIEW

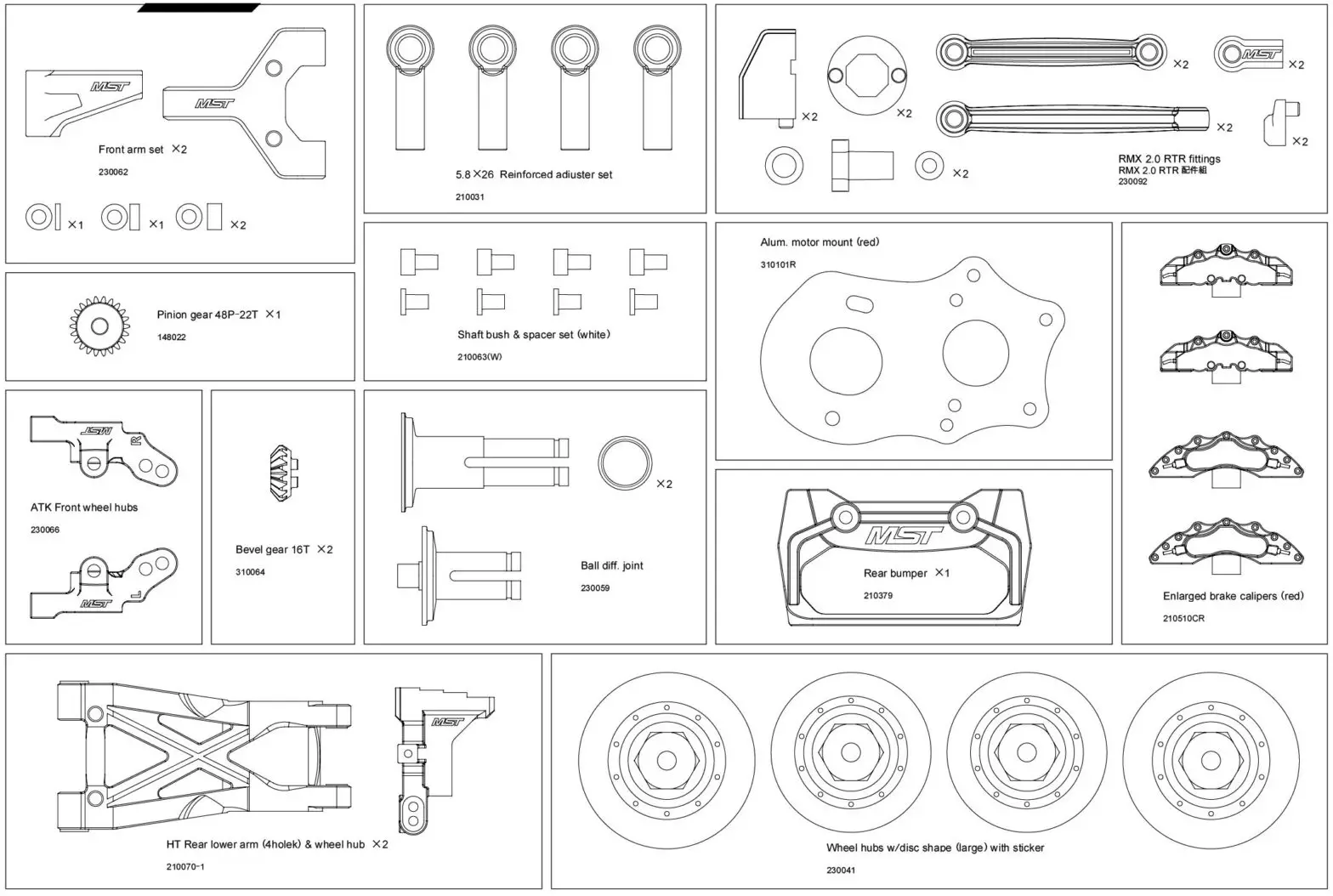

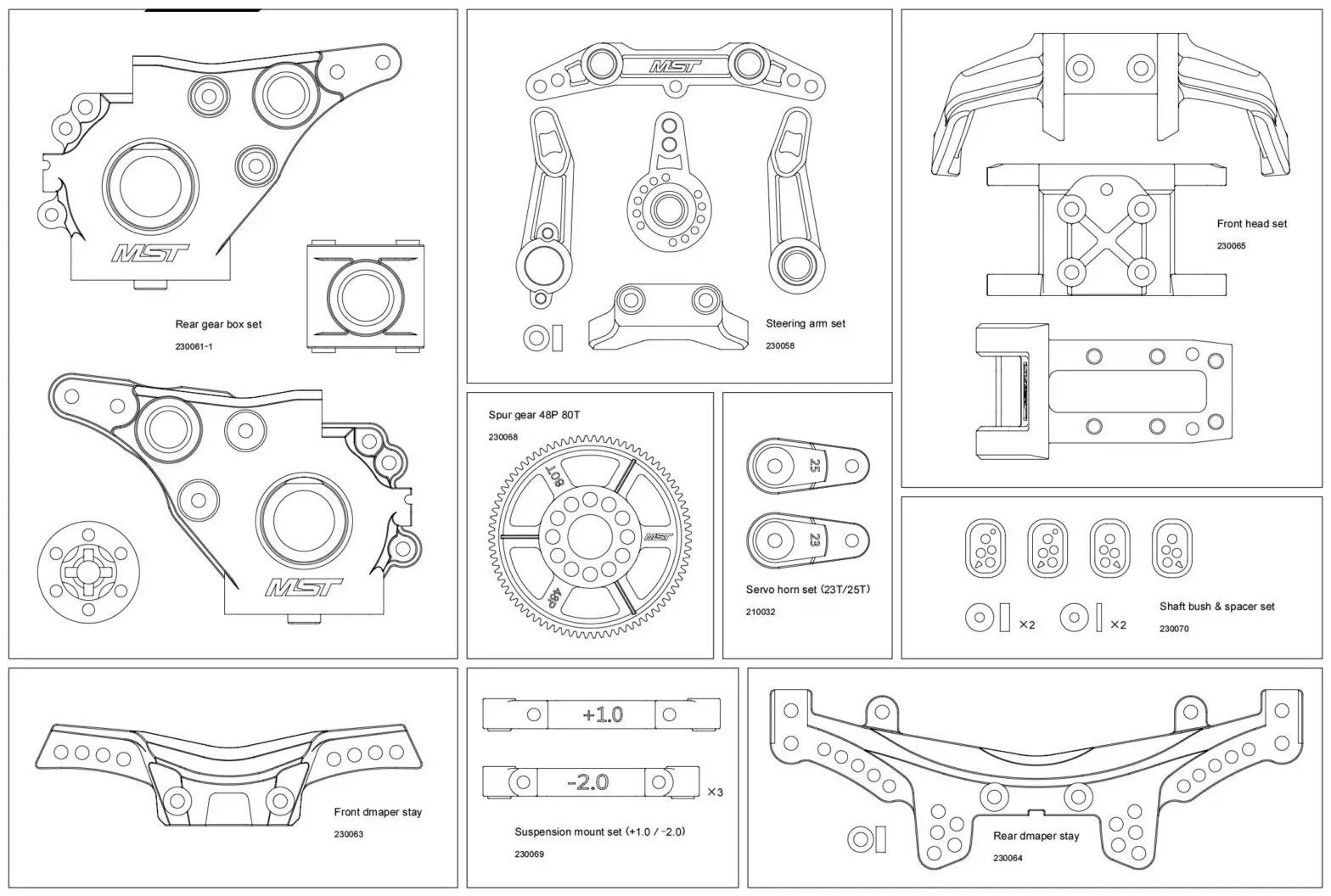

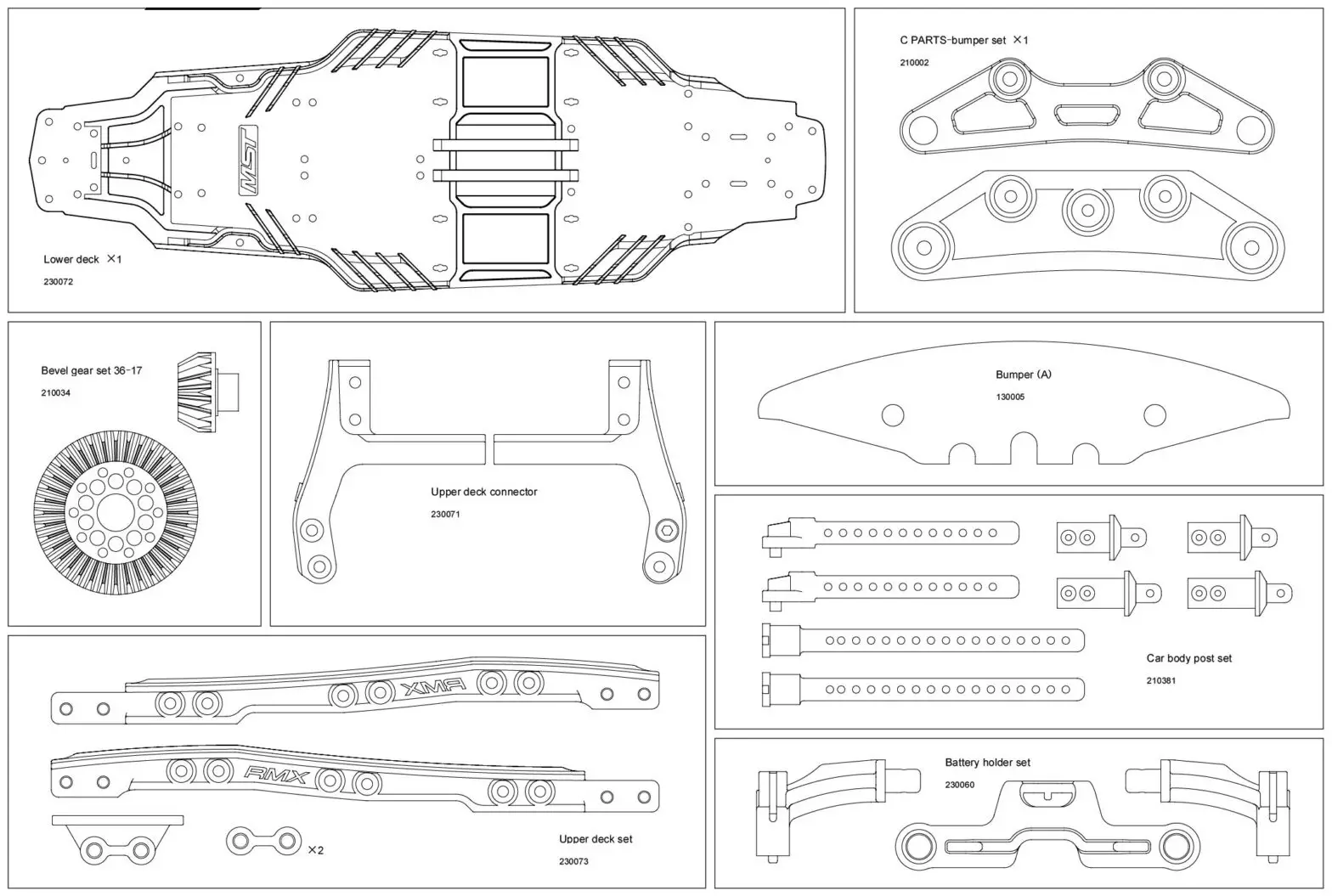

PARTS

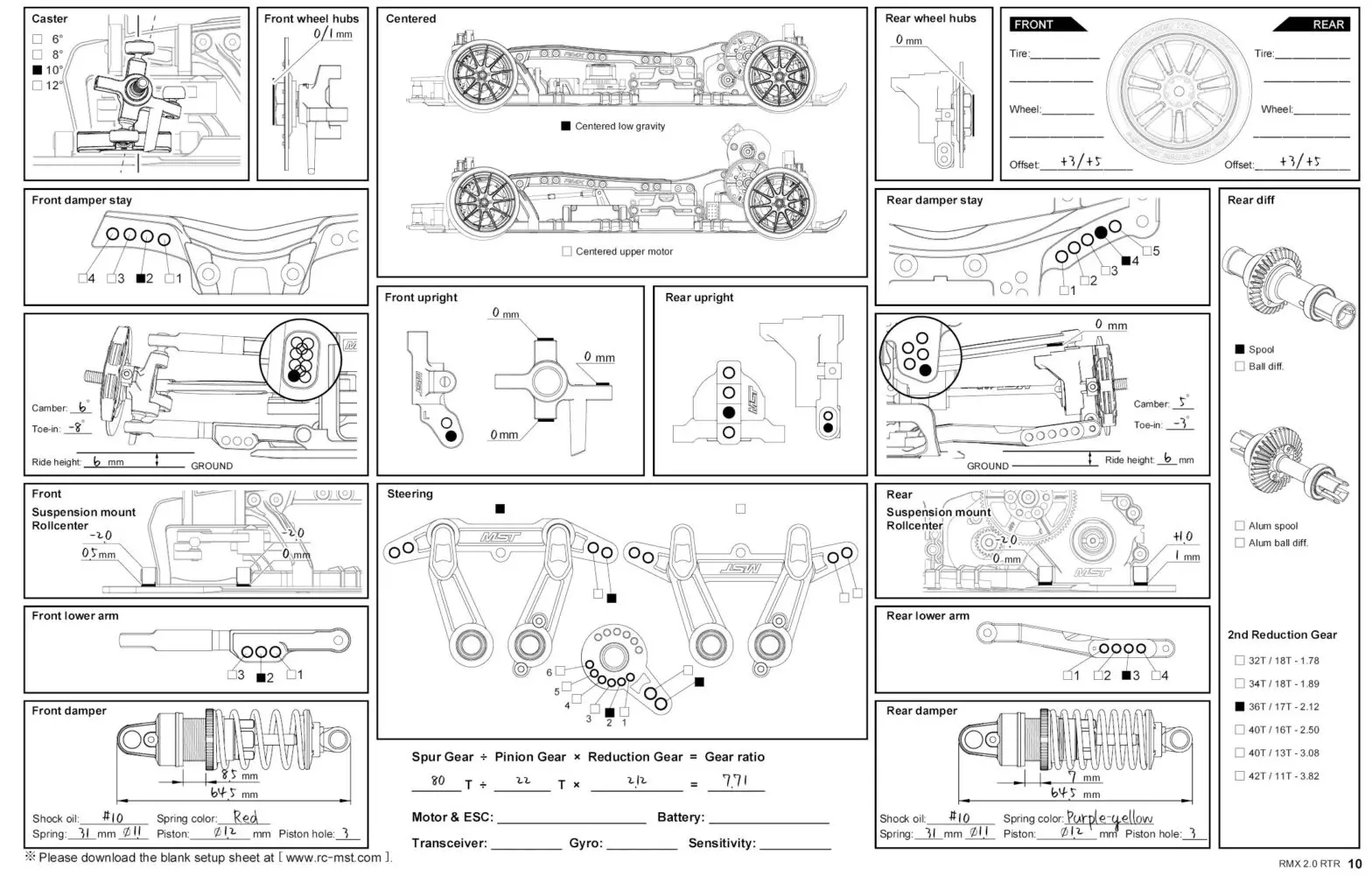

SETUP SHEET ORGINAL SETTING
DATE: ________________________ SURFACE: ________________________ NOTE: _____________________________
TRACK: ________________________________________ GRIP: _______________________________________________

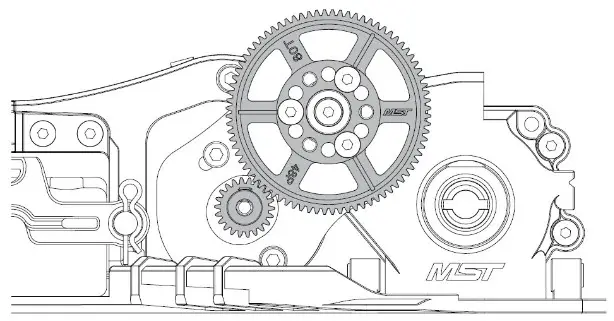

GEAR PARIS
| 34T/18T <1.89> 210069 | 36T/17T <2.5> 210034 | 40T/13T <2.5> 210034 | 40T/13T <3.03> 210035 | 42T/11T <3.82> 210036 | |
| 22T | 6.87 | 7.7 Original setting | 9.09 | 11.19 | 13.88 |
| 23T | 6.57 | 7.37 | 8.7 | 10.70 | 13. |
| 24T | 6.3 | 7.06 | 8.33 | 10. | 13. |
| 25T | 6.04 | 6.78 | 8 | 10. | 12. |
| 26T | 5.81 | 6.52 | 7.69 | 9. | 12. |
| 27T | 5.6 | 6.27 7.41 | 9. | 11. | |
| Apply to 310102 bevel near shaft. | Apply to 310104 | bevel gear shaft. | |||
CS-R
| TIRE COMPOUND CHART | ||
| YELLOW | 830001 | SOFT HARD |
| RED | 101024/ 830002 | |
| GREEN | 830003 | |
| GOLD | 101025/ 830009 | |
| SILVER | 101026 | |
| PURPLE | 101029 | HP |
| BLUE | 101028 | for asphalt |
| ORANGE | 101030 | for carpet |
| PC | 101027 | |
PARTS CODE
| 101025 | CS-R tire (medium) (4) | 110100 | Cap screw M3 X30 (6) | 210063W | Shaft bush & spacer set (white) | 310006 | Wheel axle (2) |
| 110001 | Round head screw M3X6 (10) | 110101 | Countersunk screw M3 X20 (6) | 210070-1 | HT Rear lower arm (4 holes) & wheel hub | 310008 | Piston rod (4) |
| 110002 | Round head screw M3 X 8 (10) | 110102 | Round head screw M2.5 X 5 (6) | 210071 | Damper cylinder (2) | 310047 | Arm shaft 2.0 X22 (2) |
| 110004 | Round head screw M2 X4 (6) | 110107 | Round head screw M2.5 X18 (6) | 210082 | Piston spacer set | 310048 | Arm shaft 2.5 X46 (4) |
| 110005 | Countersunk screw M3X8 (10) | 110120 | Round head screw w/washer M3 X8 (6) | 210161 | Ball connector nut 4.8 (4) | 310064 | |
| Bevel gear 16T (2) | |||||||
| 110009 | Set screw M3 X20 (6) | 120001 | Ball bearing 10X 15 (4) | 210344 | Ball connector nut L 4.8 (4) | 310101R | RMX Alum. motor mount (red) |
| 110011 | Cap screw M3 X 6 (6) | 120002 | Ball bearing 5 X10 (4) | 210379 | Rear bumper | 310102 | RMX bevel gear shaft |
| 110013 | E-dip 2.0 (10) | 120003 | Ball bearing 5X8 (4) | 210381 | Car body post set | 310103 | Arm shaft 2 X28 (2) |
| 110015 | Flange nut M4 (4) | 120011 | Ball bearing 5X11 (4) | 210491 | Ball connector L 5.8X4 (4) | 310105 | RMX Main shaft |
| 110017 | Shaft 2 X9.8 (10) | 120017 | Bearing 5X8 (4) | 210510CR | Enlarged brake calipers (red) (4) | 310106R | Spring retainer (red) (2) |
| 110032 | Set screw M3 X10 (6) | 120018 | Ball bearing 4 X10 X4 (2) | 230041 | Wheel hubs w/disc shape (large) | 600002 | XTR-02 2.4G Transceiver set |
| 110035 | Set screw M3 X3 (6) | 120019 | Ball bearing 8 X12 (2) | 230058 | Steering arm set | 601021 | MST SC-0352 Servo |
| 110043 | Countersunk screw M3 X12 (10) | 120024 | Bearing 3×6 X2.5 (4) | 230059 | Ball dill. joint | 601025 | XBL Brushless ESC 50A |
| 110044 | Round head screw M2 X6 (6) | 130004 | Oil seal (4) | 230060 | Battery mount | 601026 | XBL Brushless motor 2500KV |
| 110045 | Round head screw M2 X 8 (partial thread) (6) | 130005 | Bumper (A) | 230061-1 | Rear gear box set | 820007 | Steel CVD great angle universal shaft 48 (2) |
| 110047 | Spacer 3 X6 X 0.5 (8) | 130006 | Double sided tape(5) | 230062 | Front arm set | 820018 | Spacer 5 X 7 X0.1 (8) |
| 110048 | Spacer 3 X8 X 0.5 (8) | 130017 | Inner sponge (8) | 230063 | Front damper stay | 820020 | Spacer 5 X 7 X0.3 (8) |
| 110052 | Countersunk screw M3 X10 (10) | 130028 | Damper 0-ring P3 (blue) (10) | 230064 | Rear damper stay | 820030 | Cross joint (2) |
| 110059 | Shaft 1.5 X7.8 (8) | 130032 | Damper cap 0-ring (10) | 230065 | Front head set | 820075BK | R-dip 5.0 (black) (10) |
| 110061 | Round head screw M3 X 14 (6) | 130034 | Sponge 20 X80 X1 (4) | 230066 | ATK Front wheel hubs | 820079 | Damper plastic maintenance set (2) |
| 110063 | Round head screw M2 X 8 (6) | 130035 | L Wrench set (1.5 & 2.0 & 2.5) | 230068 | Spur gear 48P-80T | 820095 | NW 2WD axle (2) |
| 110070 | E-dip 3.0 (10) | 130049 | 0-ring 12X1 (4) | 230069 | Suspension mount set (+1.0/-2.0) | 820103-4 | 31mm Hard coil spring (super-soft) (2) |
| 110078 | Countersunk screw M3 X18 (6) | 148022 | MST 48P Pinion gear 221 | 230070 | Shaft bush & spacer set | 820104-4 | 31mm Soft coil spring (super-soft) (2) |
| 110079 | E-dip 2.5 (10) | 210002 | C PARTS-bumper set | 230071 | Upper deck connector | 841013 | LSD X Gyro |
| 110080 | Spacer 2.6 X 5.8X 0.6 (8) | 210031 | Reinforced adjuster set 5.8 X 26 | 230072 | RMX Lower deck | ||
| 110086 | Round head screw M3 X 16 (6) | 210032 | Servo horn set (231725T) | 230073 | RMX Upper deck set | ||
| 110091 | Cap screw M3 x 40 (6) | 210034 | Bevel gear set 36-17 | 230092 | RMX 2.0 RTR fittings | ||
| 110099 | Countersunk screw M3 X4 (10) | 210057 | Damper cap set | 310001 | Ball connector 4,8 X4.5 (5) |
