Hecate G30s Dual Mode Wireless Gaming Headset User Guide

G30S DUAL-MODE WIRELESS GAMING HEADSET
Quick Start Guide

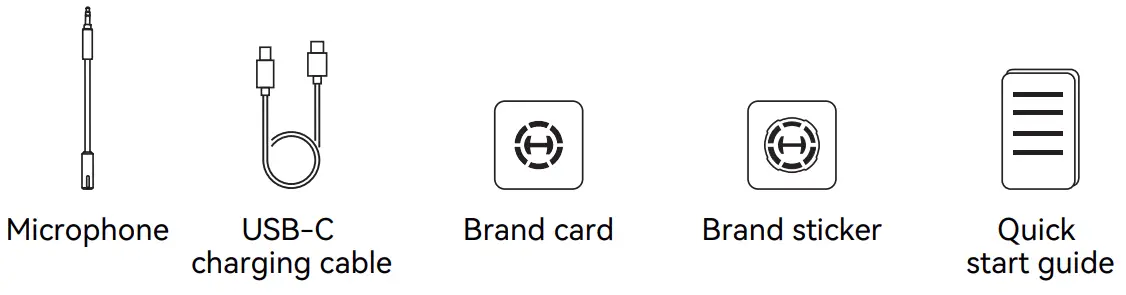

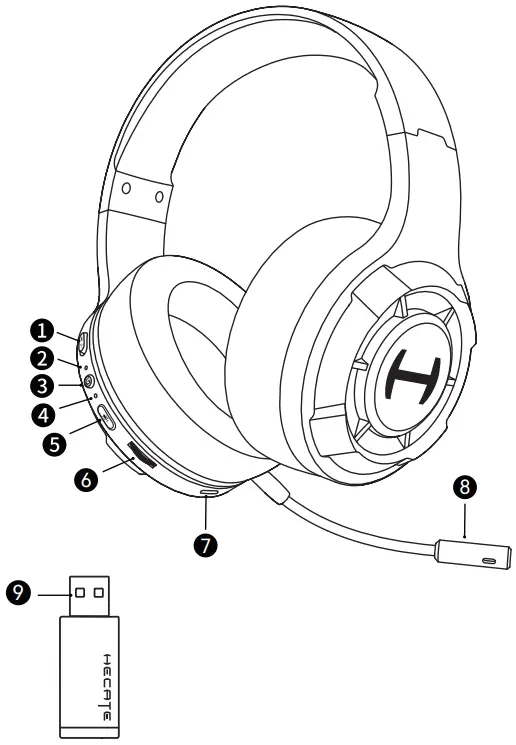

Product description and accessories

1. Mode switch button
   Bluetooth mode
   2.4GHz Bluetooth mode
2. Status indicator
3. Multi-function “” button
   Power on/off 3s/5s
   Play/pause x1
   Answer/end a call x1
   Reject a call 1.5s
   Music/game mode switch x2
   Light effects on/off x3
4. Microphone indicator
5. Microphone mute button
6. Volume control knob
7. Charging port
8. Microphone
9. 2.4GHz Bluetooth receiver

Note:

• Images are for illustrative purposes only and may differ from the actual product.
• For the need of technical improvement and system upgrade, information and specifications contained herein may be slightly different from actual product. If any difference is found, the actual product prevails.
• The headset and receiver are factory-bound as a pair, please keep them carefully. If the receiver is lost, you need to return the headset to us for upgrade binding.

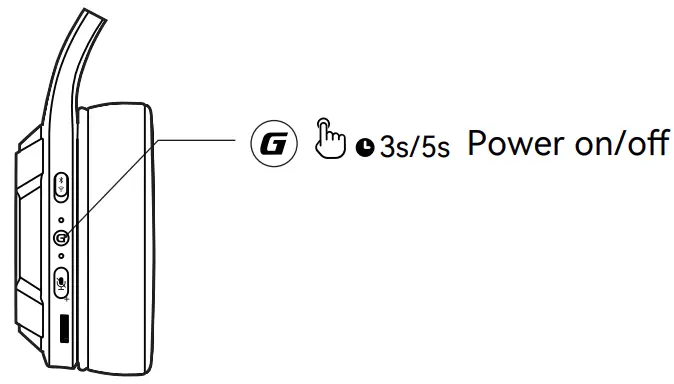

Power ON/OFF

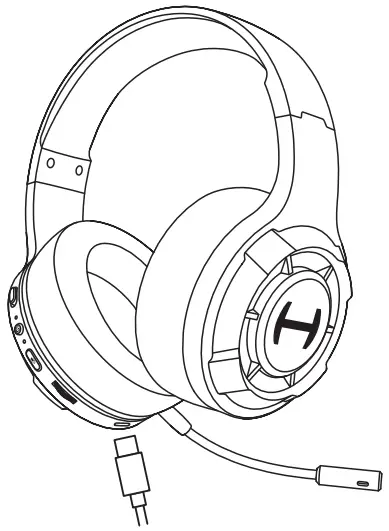

Charge
Connect the included charging cable to the headset, the indicator will light up red.

Red indicator blinks = low battery
Red indicator steady lit = charging
Red indicator off = fully charged
Input: 5V 600mA

Connection mode

Bluetooth mode

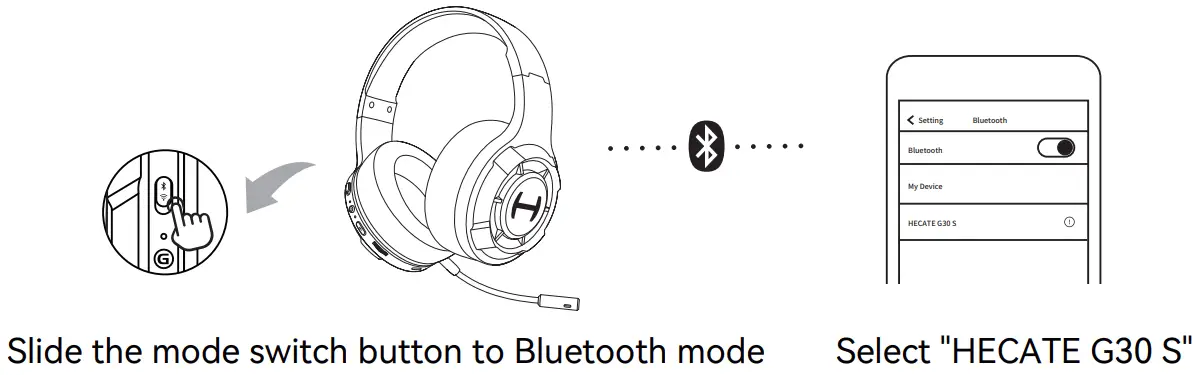

1. Fast pair
2. In OFF state, press and hold the multi-function “” button for 5s to power on and enter Bluetooth pairing state.

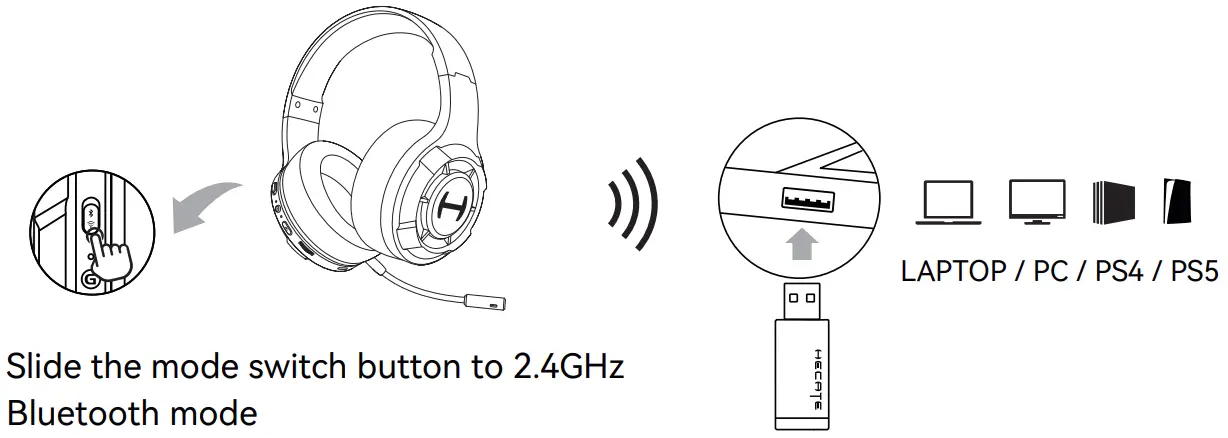

2.4GHz Bluetooth mode

Reset (use with caution)
In OFF state, press and hold the multi-function “” button for 10s until the blue LED blinks 4 times rapidly.

FCC statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IC statement:CAN ICES-003(B)/NMB-003(B).
Declaration for EU
Frequency Band: 2.402GHz – 2.480GHz
RF Power Output: ≤13 dBm (EIRP)
There is no restriction of use.

FCC Regulatory Compliance
Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Compliance
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
ISED Regulatory compliance
This device contains licence-exempt transmitters that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.

Model: EDF700047
FCC ID:Z9G-EDF202
IC:10004A-EDF202
Receiver model: EDF700045
FCC ID:Z9G-EDF203
IC:10004A-EDF203
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
© 2023 Edifier International Limited. All rights reserved.
Printed in China

www.hecategaming.com
Designed by DONGGUAN EDIFIER ESPORTS TECHNOLOGY CO.,LTD.
NOTICE:
For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.
Products of EDIFIER will be customized for different applications.
Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
Hereby, Edifier International Limited declares that the radio equipment type EDF700047 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.edifier.com/int/eu-doc.html

For more information, please visit our website:
www.edifier.com
IB-200-000000-14
