Prime3 Sfh81 Ptc Fan Heater Owner's Manual

PRIME3 SFH81 PTC Fan Heater

Safety rules

• Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.
• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids. The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.
• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc… Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorized repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

Notice: Do not cover the device or obstruct air inlets or outlets of the heater.

• Do not use in rooms below 6m .
• Do not use in areas with increased humidity, bathrooms, showers etc. Remember to maintain a 50 cm distance from furniture, curtains or other objects when using the heater.
• Heater can operate only in vertical position.
• Always turn the thermostat controller to minimum and switch the heater off before unplugging the device.
• This product is only suitable for well-insulated spaces or occasional use.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Place the heater on a horizontal and stable surface or, if available, fasten it to the wall.

WARNING: To reduce the risk of fire, keep textiles, curtains or other flammable materials at least 1 m away from the hot air outlet. The heater must not be placed directly under an electrical outlet. Do not use the heater in the immediate vicinity of a bath, shower or swimming pool.

Conformity
Hereby, 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.prime3.eu. Responsible party: 2N-Everpol Sp.z o.o., Puławska 403A, 02-801 Warsaw, Poland, Phone: +48 22 688 08 33, E-mail: [email protected]

When this crossed-out bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health. The device is equipped with batteries covered by the European Directive 2006/66/EC. Do not dispose of batteries with household waste. Please refer to your local regulations for separate collection of batteries, as proper disposal will prevent potential negative consequences for the environment and human health.

TECHNICAL SPECIFICATIONS OF THE APPLIANCE

• Input voltage: 220-240V~50Hz
• Output power: 1500W

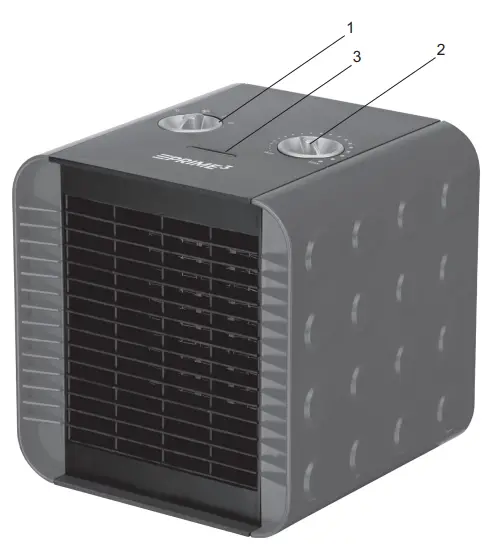

1. On/Off knob.
2. Thermostat regulation knob.
3. LED indicator.

SAFETY FEATURES

1. In case of overheating, thermostat will turn off the device. Unplug the heater and wait until it cools down. Find the cause of overheating. Heater can be plugged in and switched back on after cooling down.
2. If the device tips over, a safety switch will automatically switch it off. Put it back in vertical position in order to switch it on.

Use
Fan heater has 3 settings:

1. Cool blow (only fan is operating)
2. 750W (medium heat)
3. 1500W (maximum heat)

The thermostat allows adjusting the temperature of heating. Fan heater will maintain the chosen temperature.

CLEANING AND MAINTENANCE

Before cleaning the heater make sure that it has been switched off, and unplugged from the power socket. Make sure the device has cooled down sufficiently. Air inlets and outlets should be free of dust. Clean with damp cloth and wipe dry.

• SFH11
• SFH21
• SFH61
• SFH81SL
• 2N-Everpol Sp. z o.o. ul. Puławska 12, 05-532 Baniocha, tel. +48 22 688 08 33
• [email protected],
• www.prime3.pl

In case of questions or problems please contact our service.

• Tel. +48 22 688 08 33
• E-mail: [email protected]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
