C37-PLD-285-180-4K Tokar LED Ceiling Lamp
Instruction Manual

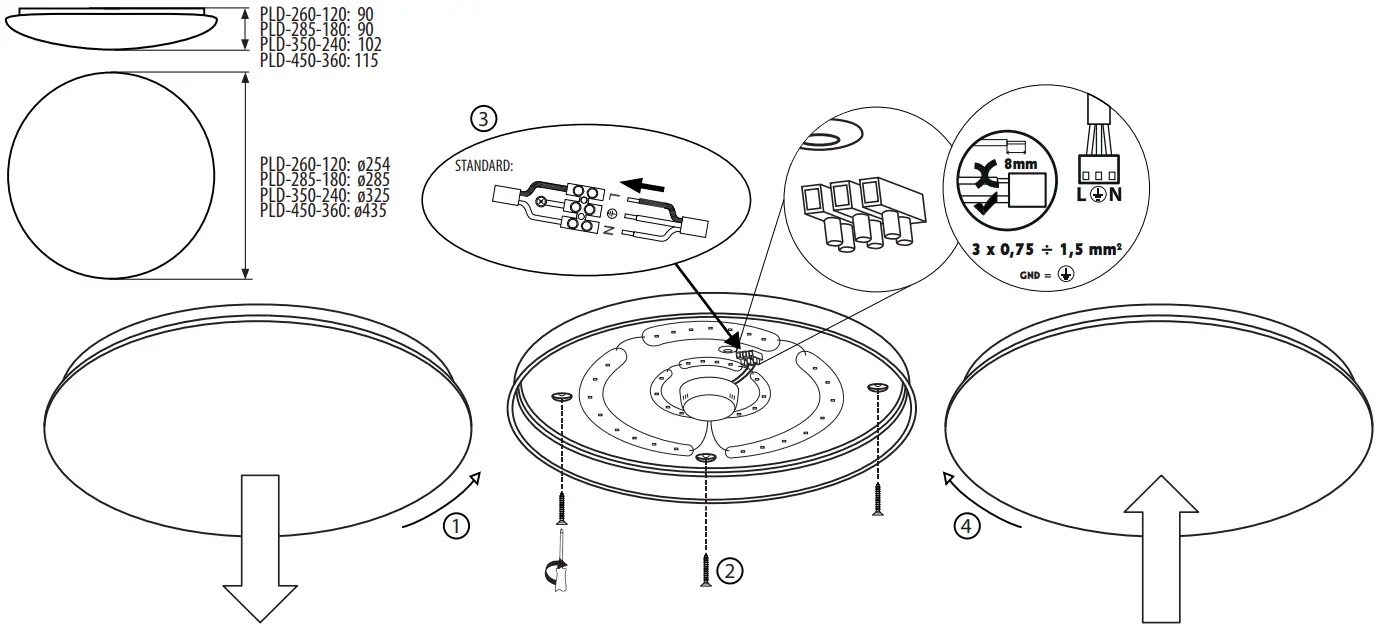

Installation instructions

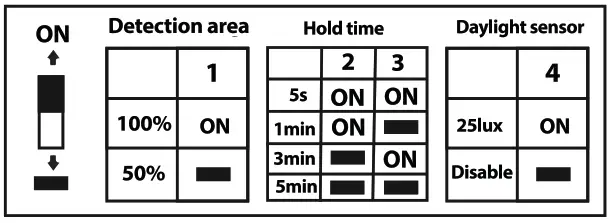

| Detection distance: | Max 5m |
| Ambient Light: | <25Iux |
| Time Delay: | 5s ÷ 5min |
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Your Local Authority or retailer for recycling advice.

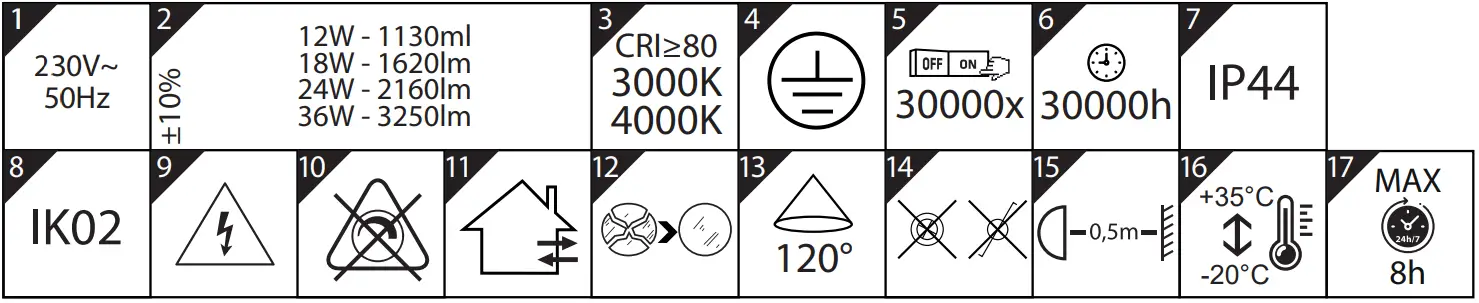

| 1. Rated voltage, and frequency. 2. Power, luminous flux. 3. Color temperature, color rendering index. 4. Appliance classes. 5. ON/OFF cycles. 6. Lifetime. 7. International Protection Rating. 8. Protection against mechanical impacts. 9. Caution, risk of electric shock. | 10. It does not work with a dimmer. 11. For internal/external use. 12. Replace the defective lamp cover immediately. 13. Angle of illumination. 14. It does not work with cross and stairs connectors. 15. The minimum distance from the illuminated object. 16. Working temperature. 17. Maximum working time. |
Security
Before mounting, read the instructions and disconnect the power supply. Installation of the luminaire should be performed by a qualified user authorized to mount electrical devices depending on the applicable regulations in a given country, in accordance with the mounting diagram. Modifications to the product may cause threats and loss of warranty.
Maintenance
All maintenance work should be carried out after disconnecting the power supply. The product temperature may rise to an elevated value. Before commencing maintenance, make sure that the product temperature is safe to make it. Guarantee unrestricted air supply, do not cover the product. Use dry and delicate materials for cleaning. The luminaires are not designed for cooperation with dimmers and automation elements that may have an impact on shortening the product’s service life. Do not use chemical agents. Product not adapted to work in an environment with unfavorable conditions, i.e. high dustiness/humidity, water, explosive zones, vibrations, chemical fumes.
Recommendations
Failure to follow the instructions in the manual may result in a fire, electric shock, burns, or other damage. Bemko sp. O.o. is not responsible for failure to comply with the above recommendations. We also reserve the right to make changes to the manual – the current version is available at www.bemko.eu.
EU DECLARATION OF CONFORMITY
No: C524/2019
Manufacturer: Bemko Sp z o.o.
Address: ul. Bocznicowa 13
05-850 Jawczyce
hereby declare, that product:
LED Ceiling Lamp with microwave motion sensor
PSF706-124-MS, PSF706-164-MD, PSF706-224-MD
Is in compliance with the following directives/regulations:
| 2014/35/EU | of 26 February 2014 on the harmonization of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits is |
| 2014/53/EU | of 16 April 2014 on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC |
| 2011/65/EU | of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment |
| 2009/125/EC | of 21 October 2009 establishing a framework for the setting of ecodesign requirements for energy-related products |
| 1194/2012 | of 12 December 2012 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for directional lamps, light-emitting diode lamps, and related equipment |
| 245/2009 | of 18 March 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for fluorescent lamps without integrated ballast, for high-intensity discharge lamps, and for ballasts and luminaires able to operate such lamps, and repealing Directive 2000/55/EC of the European Parliament and of the Council |
| 874/2012 | of 12 July 2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labeling of electrical lamps and luminaires |
For evaluation below standards/technical documentation were used:
| EN 60598-1:2015 Luminaires. General requirements and tests |
| EN 60598-2-1:1989 Luminaires. Particular requirements. Specification for fixed general purpose luminaires |
| EN 62471:2008 Photobiological safety of lamps and lamp systems |
| EN 62493:2015 Assessment of lighting equipment related to human exposure to electromagnetic fields |
| ETSI EN 300 440 V2.2.1:2018 Short Range Devices (SRD); Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Harmonised Standard for access to radio spectrum |
| ETSI EN 301 489-1 V2.1.1:2017 Technical requirements — Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential requirements of article 6 of Directive 2014/ 30/EU |
| EN IEC 63000:2018 Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances (IEC 63000:2016) |
Warsaw 13.05.2019
