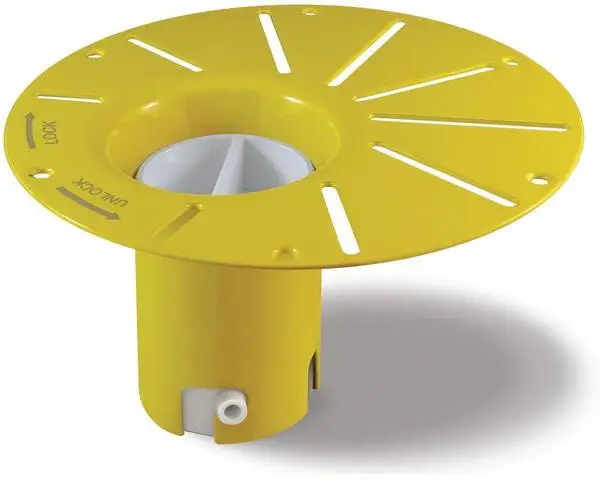

SINKOLOGY SDT901-PCV Quick-Fit Bathtub Rough-In Drop-In Kit Solid Brass and PVC Instruction Manual
Instructions
- Drill a 4´´ hole in your wooden subfloor.

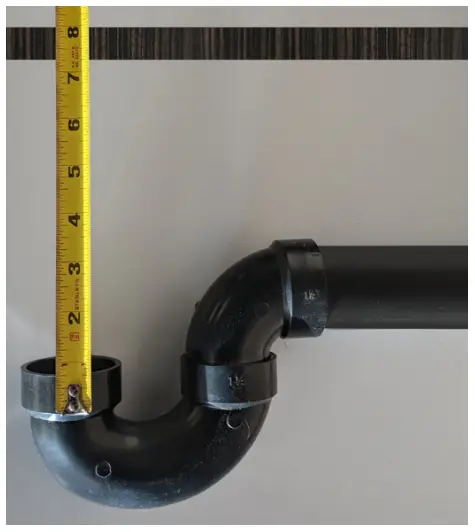

- Measure the distance from the inside of the P-trap to the top of the floor. (P-Trap not included)

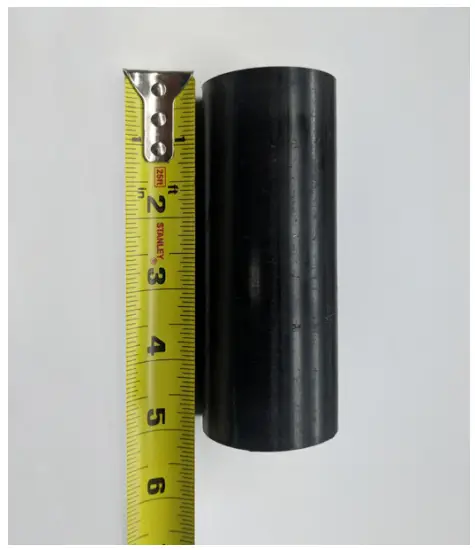

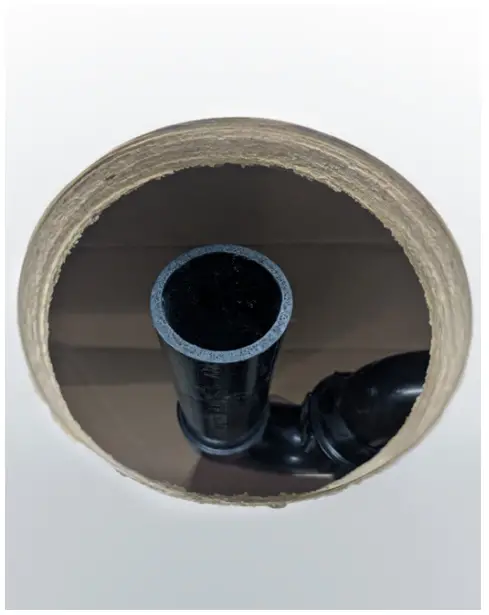

- Cut the ABS or PVC 1 ½´´ pipe 3´´ shorter than the distance between the floor and the P-trap

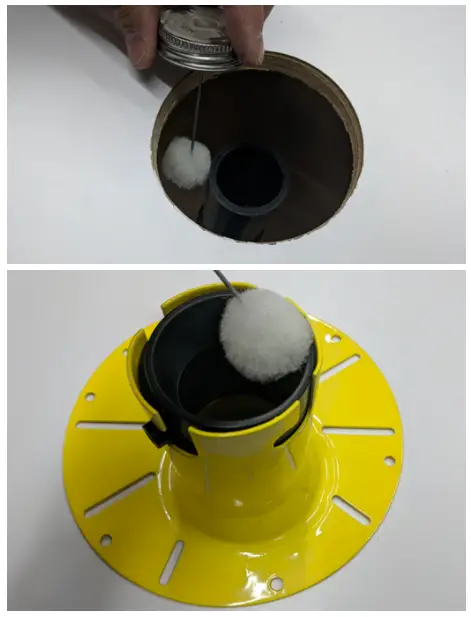

- Apply glue to the outside of the ABS or PVC 1 ½´´ pipe and to the inside of the P-trap.
Insert the pipe into the P-trap.
- Apply glue to the outside of the ABS or PVC 1 ½´´ pipe and to the inside of the Drop-In drain insert.

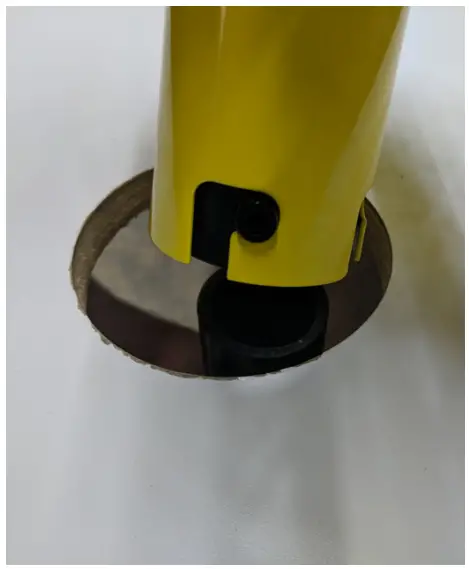

- Slide the Drop-In Drain on the ABS or PVC 1 ½´´ pipe making sure it sits flat on the floor.
*Please refer to local acceptable plumbing code in regards to use of protective membrane/ underlayment.

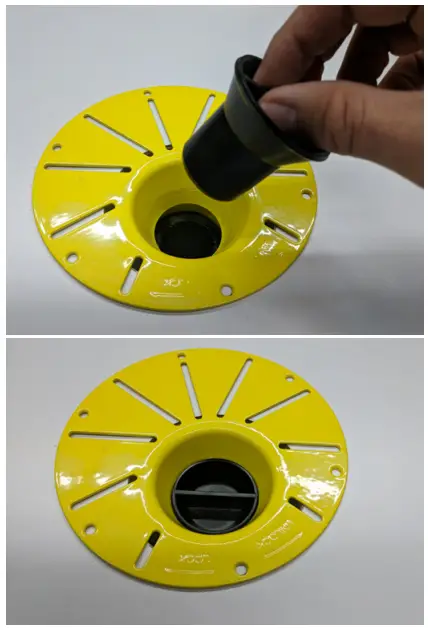

- Insert the Drop-In Drain cap firmly into the Drop-In Drain.

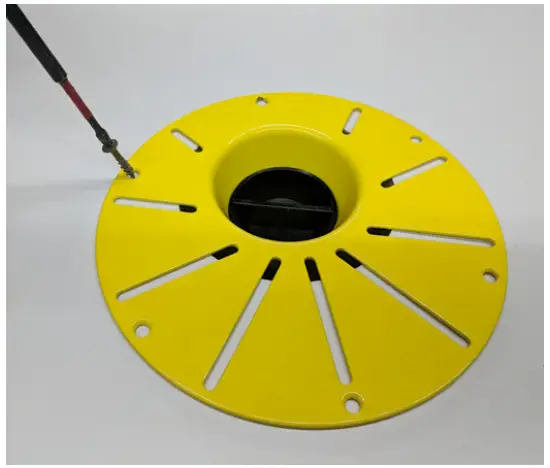

- Secure the Drop-In Drain to the subfloor with screws or cement.

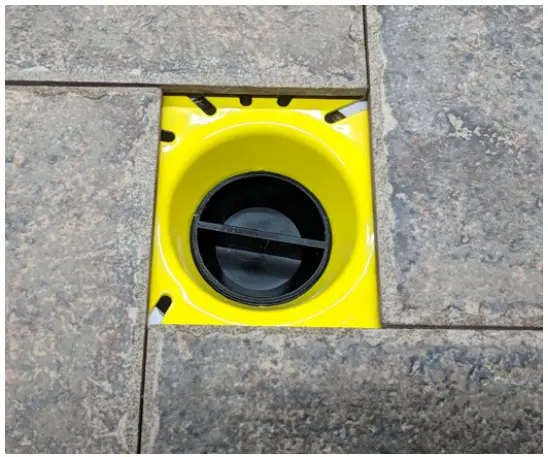

- Install your flooring surface around the opening of the Drop-In Drain.

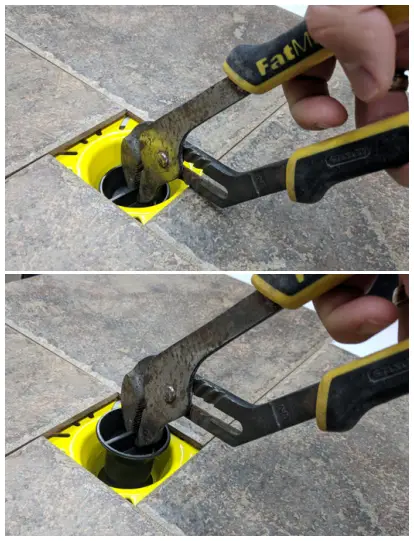

- Remove the Drop-In Drain cap with a channel lock plyer.

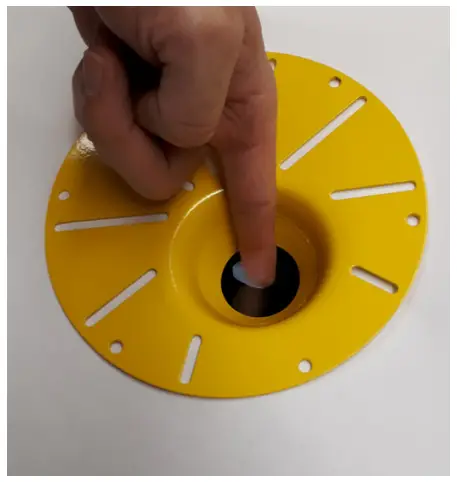

- Apply provided lubricant inside the Drop-In Drain
Please only proceed with this step once the pressure test has been performed, if needed.

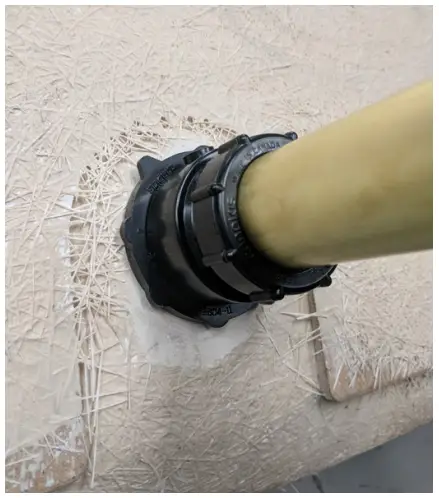

- Affix the appropriate tailpiece to the waste & overflow.
Ensure the measurement between the base of the Drop-In Drain and the P-trap will accomodate the tailpiece.
Warning : Do not cut the brass tailpiece as this may cause leakage.

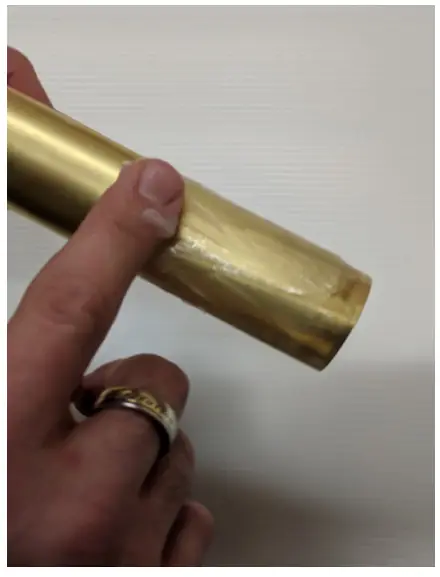

- Apply provided lubricant halfway up the tailpiece and position the bathtub and tailpiece in line with the Drop-In Drain.

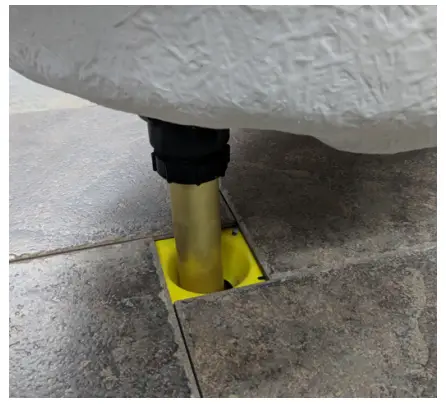

- With caution, slowly insert the bathtub tailpiece into the Drop-In Drain.
Please refer to local acceptable plumbing code for installation.
