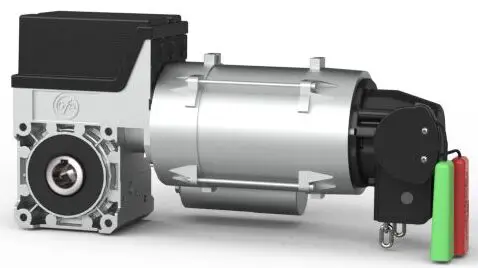

GFA KE 5.24 WS-2540 Elektromat Drive

GFA KE 5.24 WS-2540 Elektromat Drive-fig1

General safety information

  • Specified use
    The drive unit is intended for vertically moving doors. The force is transmitted using a chain. Doors that must be secured against dropping require a separate safety brake. The drive unit must be protected against moisture and aggressive environmental conditions (such as corrosive substances). The drive units are only suitable for indoor use. Appropriate protective measures must be taken for outdoor installation. The drive unit is not intended for hazardous areas. The values specified in the technical data of the drive unit must not be exceeded. The safe operation can only be ensured if used as specified.
  • Target audience of these installation instructions
    These installation instructions are geared towards qualified persons trained in the handling of door systems. Expert knowledge, relevant skills and practical experience are what set apart qualified persons. They are capable of safely carrying out the tasks involving installation, maintenance and modernisation according to the instructions.
  • Safe operation
    The safe operation of the product can only be ensured if it is used as specified. Follow the installation instructions. Observe all specifications, especially warnings, when installing the product in the overall system. GfA is not liable for damage resulting from non-observance of the installation instructions. The resulting overall system must be reassessed for its safety in accordance with applicable standards and directives (e.g. CE marking). These installation instructions refer only to a part of the overall system and are not sufficient as the sole instructions for the overall system. The installer of the system must prepare the instructions for the overall system. We recommend entering the danger area of the system only when the drive unit is at a standstill.
  • Warning – Failure to follow these installation instructions may result in severe injury or death.
    • Please read these instructions before using the product.
    • Keep these instructions handy.
    • Include these instructions when passing on the product to third parties.
  • Warning – Danger from improper use of the product!
    Do not let children operate the product unsupervised or use as a toy.
  • Warning – Danger to life from incorrect installation!
    Work carried out improperly may result in death or severe injury from electrical current or falling parts.
    • Allow only competent people to carry out the work.
    • Disconnect all cables from the power supply.
    • Observe valid regulations and standards.
    • Use suitable tools.
  • Warning! Danger to life from falling objects if the drive unit is subjected to impermissible forces.
    Inadmissible forces (examples: collision with a forklift, dropping the drive unit, tearing or pulling on the motor) lead to damage to the drive unit. There is a risk of severe injury or death from falling objects.
    •  Prevent impermissible forces from acting on the drive unit,
    • Check the drive unit for damage if impermissible forces have acted on it. Look even for minor damage. Lock the door during the inspection.
    • Contact the service department if you have difficulty assessing the damage.

Technical data

DesignationUnit
Output speed24rpm
Output torque50 (50) 1)Nm
Output / hollow shaft25,40mm
SeriesSG 50
Limit switch range

(maximum revolutions of the output / hollow shaft)

40
Supply voltage1N~ 230V
Operating current3,50A
Operating frequency50Hz
Power factor cos φ0,99
Safety circuit24V
Degree of protectionIP 65
Temperature range-10 / +40 (+60) 2)°C
Operating sound pressure level< 70dB(A)
Cycles per hour7 (1,4)1)h-1
Max. holding torque90Nm
Manual force emergency manual operation92N
Operating capacitor30µF
  1. Specification in ( ) according to EN 60335-2-103.
  2. When using a temperature range of +40°…+60°C use half of maximum cycles per hour.

Mechanical installation

Prerequisites

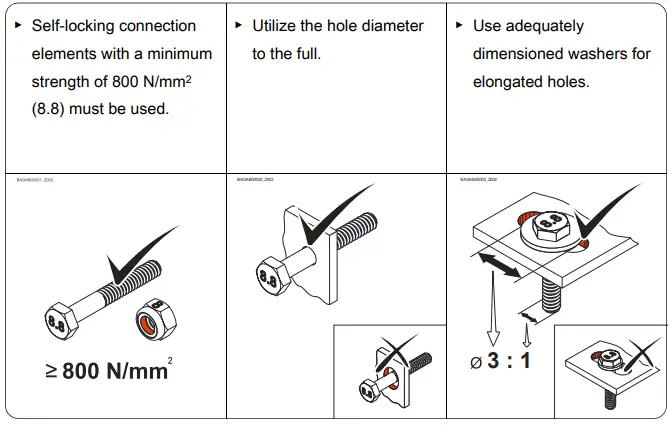

The permissible loads on walls, fastenings, mountings and transmission elements must not be exceeded, even for maximum holding torques or locking torques (▶ refer to technical data).

Connection elements

GFA KE 5.24 WS-2540 Elektromat Drive-fig2

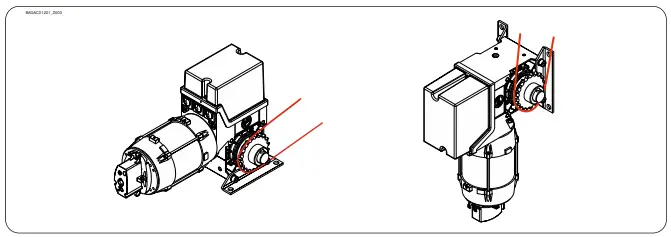

Permissible mounting positions

GFA KE 5.24 WS-2540 Elektromat Drive-fig3

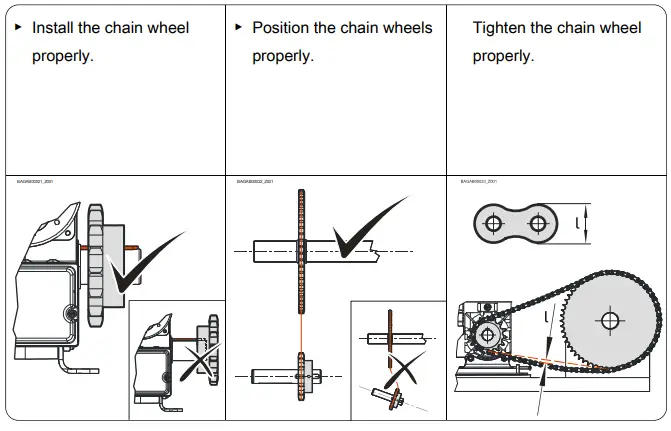

Transmission elements

GFA KE 5.24 WS-2540 Elektromat Drive-fig4

Mounting

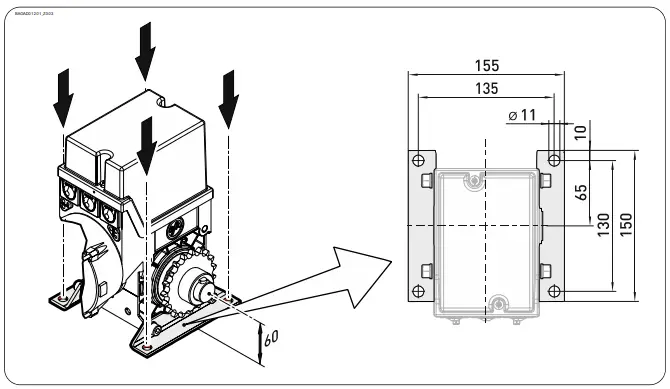

Four holes are provided for mounting.

GFA KE 5.24 WS-2540 Elektromat Drive-fig5

Installation

The descriptions below apply to general door specifications. The specifications of the door manufacturer must also be observed during installation.

Warning – Potential injury or danger to life!

  • During installation, be sure to use a lifting device that has a sufficient load-carrying capacity.

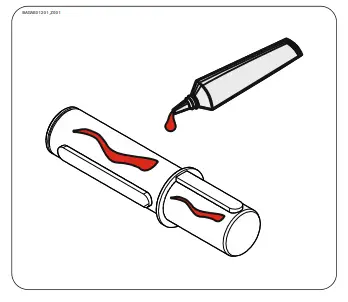

  • Thoroughly grease the output-shaft.GFA KE 5.24 WS-2540 Elektromat Drive-fig6

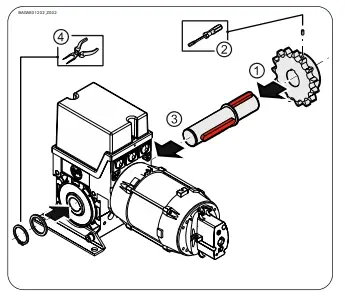

  • Install (①) and secure (②) the chain wheel. Do not tighten yet. Install (③) and secure (④) the output-shaft on the right or left.GFA KE 5.24 WS-2540 Elektromat Drive-fig7

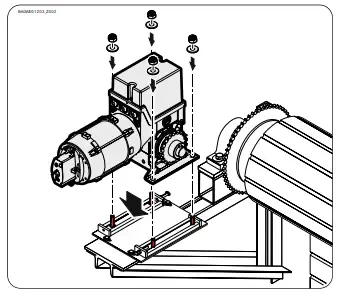

  • Mount the drive unit. Do not tighten yet.GFA KE 5.24 WS-2540 Elektromat Drive-fig8

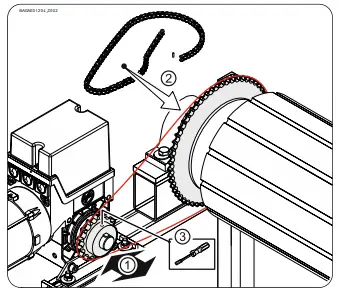

  • Position the chain wheel (①) properly. Install the chain wheel (②). Secure the chain wheel (③).GFA KE 5.24 WS-2540 Elektromat Drive-fig9

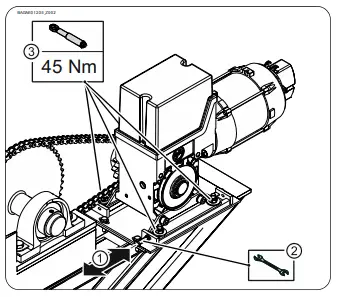

  • Tighten the chain wheel properly (①/②). Tighten all connection elements (M10) to 45 Nm (③). Install all other connection elements according to the specifications of the door manufacturer.GFA KE 5.24 WS-2540 Elektromat Drive-fig10

Electrical installation

Warning – Danger to life from electric current!

  • Switch the mains OFF and check that the cables are de-energised
  • Observe the applicable regulations and standards
  • Make a proper electrical connection
  • Use suitable tools

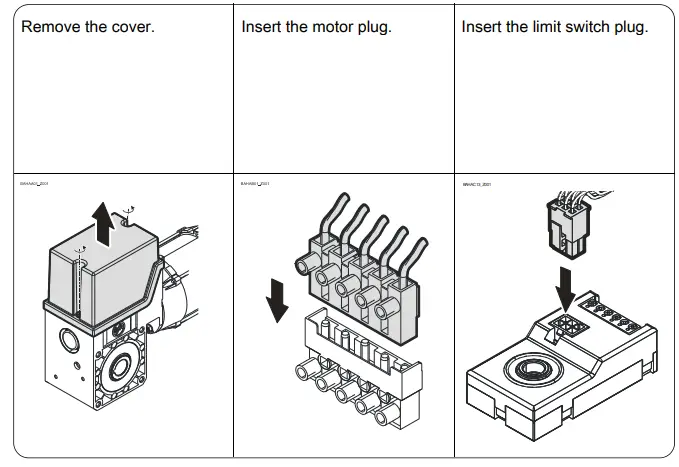

Performing electrical installation

GFA KE 5.24 WS-2540 Elektromat Drive-fig11

Completing the electrical installation
Mount the cable entries and/or cable glands.

Limit switch setting

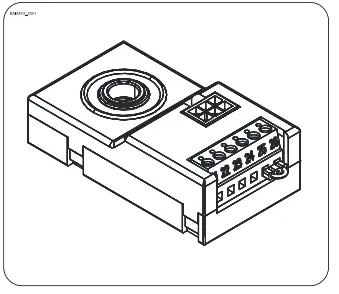

The setting of the final limit positions OPEN and CLOSE is described in the instructions for the door control.

GFA KE 5.24 WS-2540 Elektromat Drive-fig12

The door control must meet Performance Level c!
Use only door controls that evaluate the limit switch according to EN 12543 and meet Performance Level c.

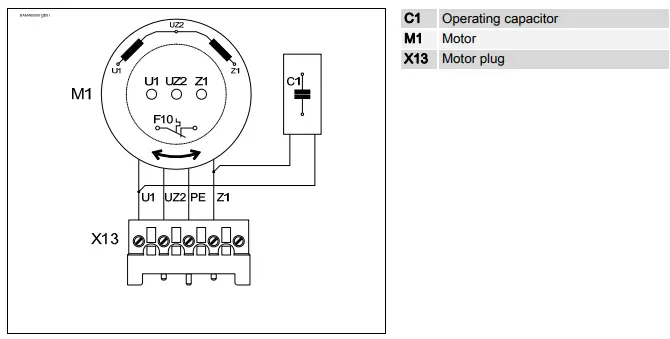

Motor connection

GFA KE 5.24 WS-2540 Elektromat Drive-fig13

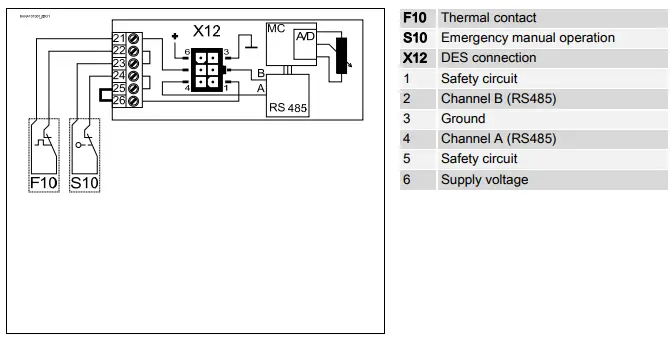

Limit switch connection

GFA KE 5.24 WS-2540 Elektromat Drive-fig14

Emergency manual operation (rapid hand chain operator)

Emergency manual operation is designed for opening or closing the door without power supply. Its activation interrupts the control voltage. Electrical operation is no longer possible.

  • Warning – Injuries due to incorrect operation!
    • Switch off voltage.
    • Adopt a secure position.
    • For drive units with brake, the emergency manual operation must be carried out against the closed brake.
  • Warning – Danger of the door dropping!
    If you need to apply more than the permissible force of 390N (according to DIN EN 12604/DIN EN 12453) to move the door by emergency manual operation, this indicates a stalling on the drive unit or door. Releasing the stalling may cause the door to drop.
    • Adopt a secure position.
    • For drive units with brake, the emergency manual operation must be carried out against the closed brake.
  • Caution – Damage to components!
    Do not move the door beyond the final limit positions.

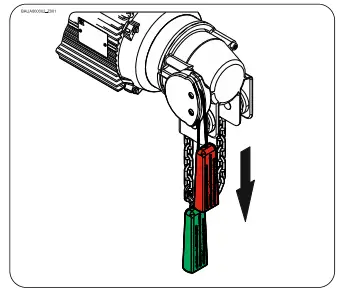

  • Switch on by pulling the red handle. Open or close by pulling the chain. Switch off by pulling the green handleGFA KE 5.24 WS-2540 Elektromat Drive-fig15.

Completing commissioning / inspection

Check the following components and then install all covers.

  • Gearbox
    Check the drive unit for loss of oil (a few drops can be neglected). Protect the output-shaft permanently against corrosion.
  • Mounting
    Check that all connection elements (consoles, torque mounts, screws, locking rings, etc.) are secure and in proper condition.
  • Electrical wiring
    Check the connection cables and cabling for damage or crushing. Check that the screw connections and plug connections are fitted properly with a good electric contact.
  • Emergency manual operation
    Check the function with the power disconnected. Perform the check only between the final limit positions.
  • Limit switch
    Check the final limit positions by opening and closing fully. The safety area must not be approached.
  • Drive unit
    Note!
    • Engage a qualified engineer to check the drive unit annually
    • Apply shorter inspection intervals for doors that are operated frequently
    • Observe the applicable regulations and standards

Disposal

  • Dispose of packaging
    Dispose of the packaging material properly according to the local legal regulations or recycle it.
  • Dispose of old devices
    Dispose of old devices properly according to local legal regulations. Return old devices to the return and collection systems available. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as “old devices”.
    Notice- Environmental damage! The gearbox contains oil.
    • Ensure proper disposal according to local legal regulations.

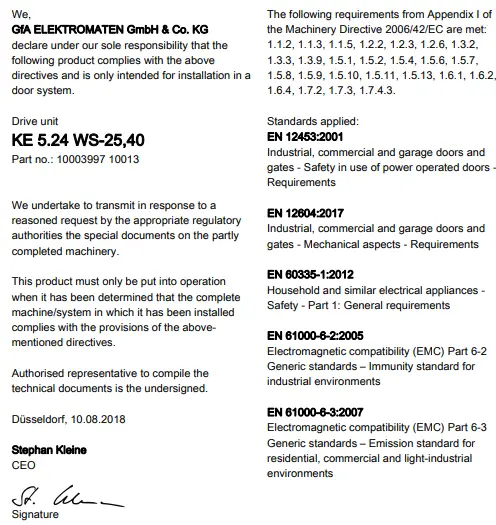

Declaration of incorporation
within the meaning of Machinery Directive 2006/42/EC for partly completed machinery, Appendix II Part B

Declaration of conformity
within the meaning of EMC Directive 2014/30/EU within the meaning of RoHS Directive 2011/65/EU

GFA KE 5.24 WS-2540 Elektromat Drive-fig16
