QUICK REFERENCE GUIDE > HD36
Downdraft Range Hood, 36″, Telescopic
Series 7 | Professional Stainless Steel

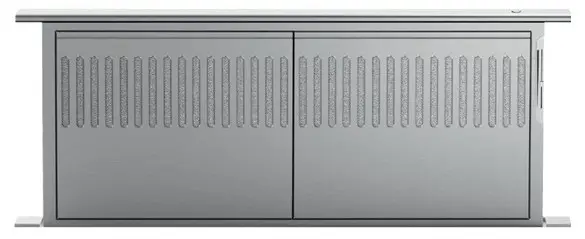

HD36 36 Inch Downdraft Range Hood Telescopic
Perfectly hidden away behind your cooktop, this 36″ downdraft range hood can be raised while cooking, for efficient extraction.
- Seamlessly integrates into your kitchen, sliding up from your cooktop when you cook
- Raises to 14″ height for better steam, grease and odor-capture efficiency
- Pair with our remote 1200CFM or our internal 600CFM blower for quiet and effective extraction

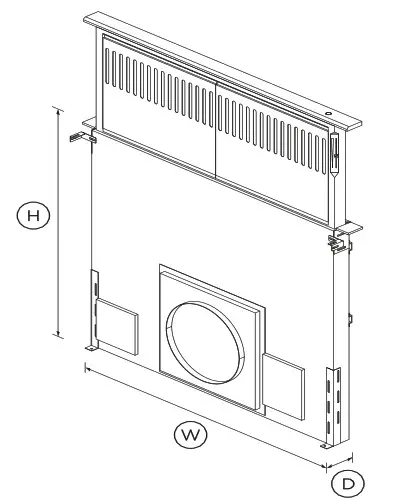

DIMENSIONS
| Height | 28 1/4 – 42 1/4″ |
| Width | 36″ |
| Depth | 2 1/8″ |
FEATURES & BENEFITS
Quiet and effective
The downdraft system quickly and quietly extracts unwanted grease, smoke and odors through stainless steel mesh filters.
Simple Controls
A single on/off button makes the downdraft system easy to use. A slider control lets you precisely adjust the fan speed up or down.
Easy cleaning
Filters effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
Complementary Design
When not in use, the downdraft system slides away into your countertop eliminating the need for a bulky overhead ventilation hood. The stainless steel finish is designed to match the rest of the Fisher & Paykel kitchen appliance family.
SPECIFICATIONS
Installation and cleaning
| Ducted | Front or side extraction |
Performance
| Extraction type | Surface |
Power requirements
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 2 1/8″ |
| Height | 28 1/4 – 42 1/4″ |
| Width | 36″ |
Product information
| Control type | Slider |
Warranty
| Parts and labor | Limited 2 years |
| SKU | 50045 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
