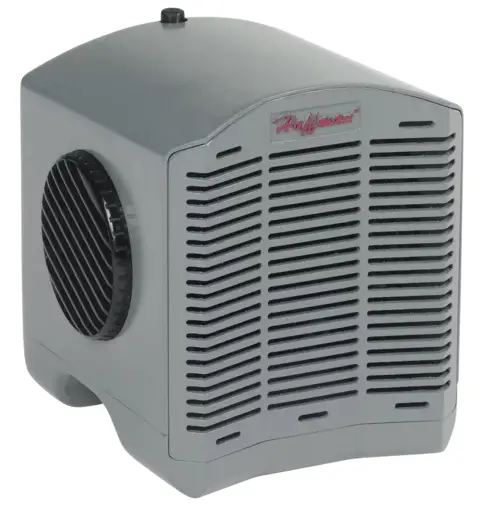

nVent HOFFMAN H2OMIT Thermoelectric Dehumidifier
Product Information
This product operates on a rated voltage of +24 VDC and has a full load amps rating of 4.5 Amps. It is identified by the part numbers Rev. E, P/N 87937020, and 87937556.
Product Usage Instructions
When using this product, please follow the instructions below:
- Ensure that the product is connected to a power source with a rated voltage of +24 VDC.
- Identify the blue wire and connect it to the positive terminal of the power source (+24 VDC).
- Identify the white wire and connect it to the negative terminal of the power source (0 VDC).
- Make sure that the electrical load does not exceed 4.5 Amps to prevent overloading.
By following these instructions, you can safely and effectively use this product.

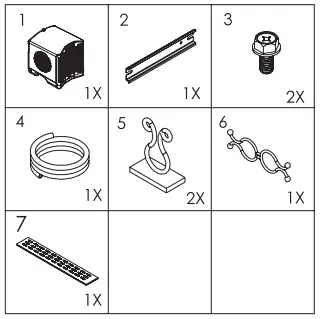

PARTS
| Electrical Data | |
| Rated Voltage | + 24 VDC |
| Full Load Amps | 4.5 Amps |
| Blue Wire | +24 VDC |
| White Wire | 0 VDC |
DIMENSION

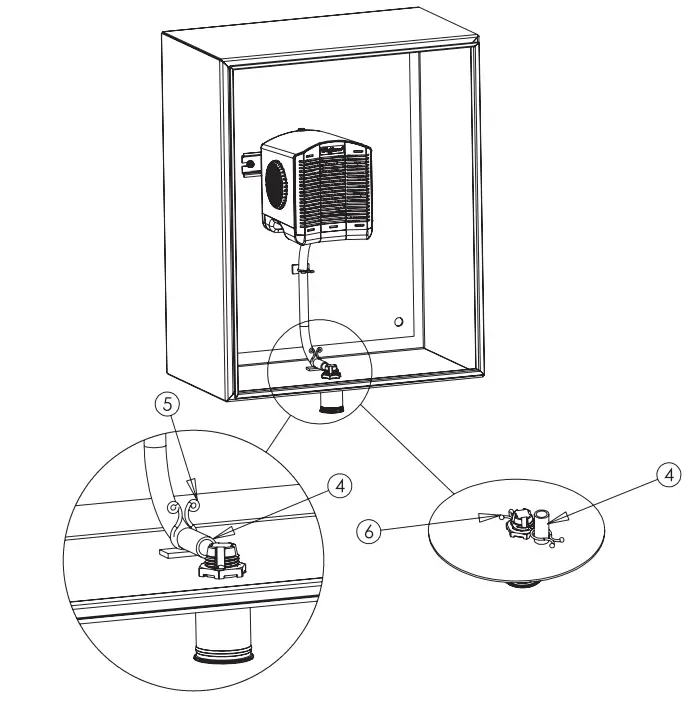

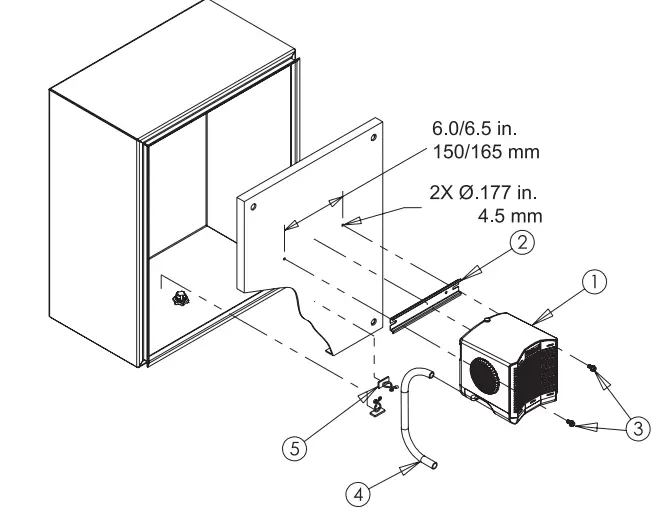

INSTALLATION

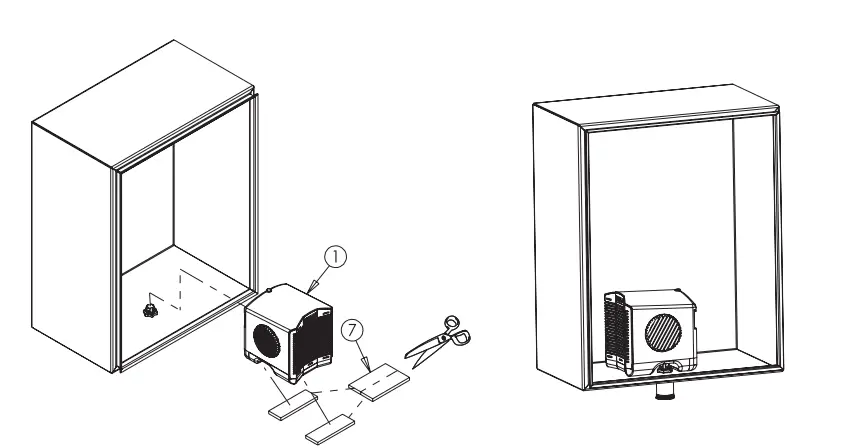

The Velcro® which is provided with this device is not a UL approved method for mounting. The Velcro has been provided as an alternate method for securing the dehumidifier to the bottom of the enclosure when adequate panel space is unavailable, but its use voids the UL Certification.
- © 2018 Hoffman Enclosures
- Inc. PH 763 422 2211
- nVent.RevEcom/HOFFMAN. P/N 87937020
