PROAIM JB-COMT Comet 12ft Euro Cinema Jib

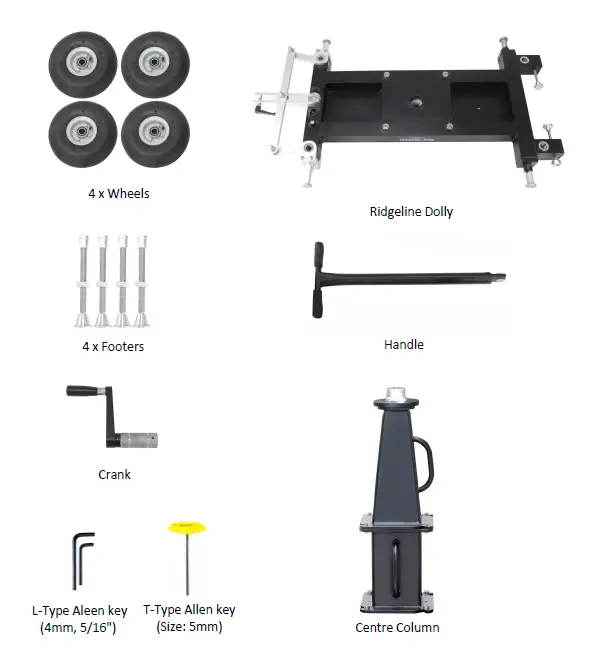

What’s In The Box

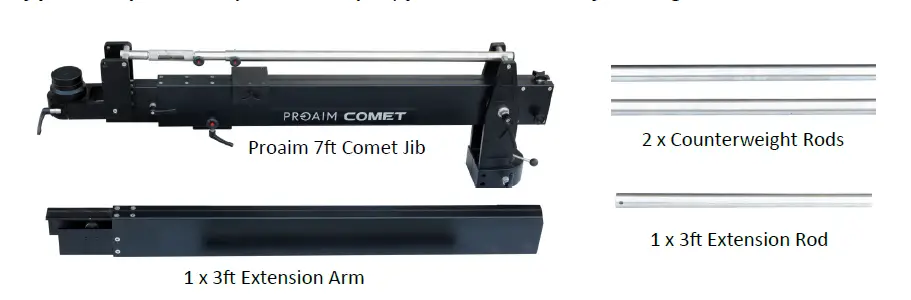

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
NOTE: If you have purchased (JB-COMT-02) kit, you will also receive the following:
Ridgeline Dolly Setup
NOTE: To avoid unwanted accident while assembling the crane, please assemble the dolly with supporting feet. It also increases the stability.

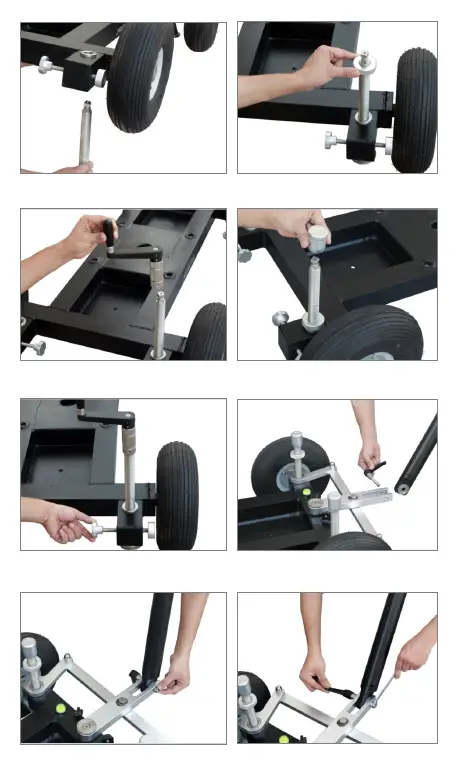

- Insert Levelling Support Feet on all 4 corners of Ridgeline Dolly. Secure them with a ring.
- Insert Lever onto Levelling Support to adjust the length of feet from ground. Then lock the Support with knob.
- Apply the Front Wheel Brakes while assembling to ensure double security. Insert Steering Push/Pull Bar into Dolly’s Rear-axle.
- Fix screw into the Steering and lock from both sides to secure Steering accurately.
Attaching the Centre Column

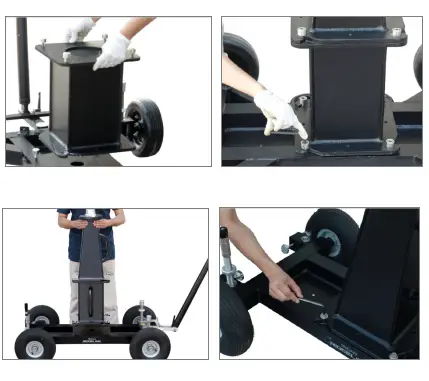

- Place lower section of Centre Column onto the Dolly. Twist the Column to align all its corners with screws. Tighten them back to secure it.
- Place Centre Column onto the centre of dolly. Insert & tighten screws on all corners to secure the Column.
Jib Crane Setup
- Place Comet Jib onto the Euro-adapter of Centre Column.

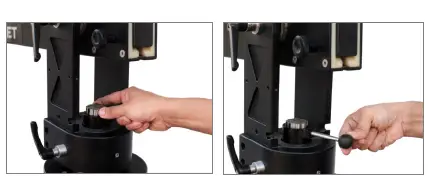

- Fix the Jib fork with Centre Column by locking the knob via locking lever.
- Lock both the pan knob to assemble the jib crane.

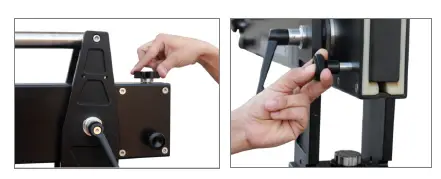

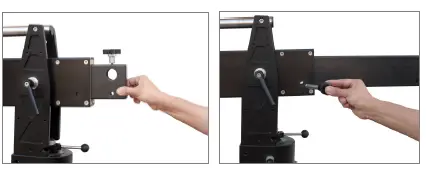

- Loosen knob on top located on the back (operator) side of jib. Then take out the side knob.
- Pull out the Telescopic Section from back (operator) side of jib. Insert the side knob again to lock it.

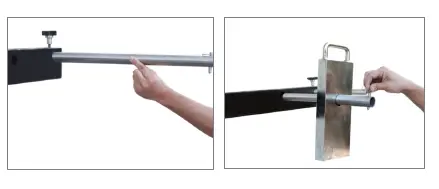

- Insert Counterweight Rod through the holes and lock the knob on top. Then add weights (Not Included) to both the Rods as per the requirement and secure them with Locking Pin.

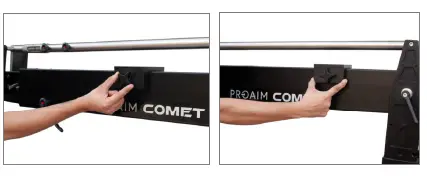

- Loosen the knob on Adjustment Counterweight and slide it to ensure right balance of jib, as shown in image.

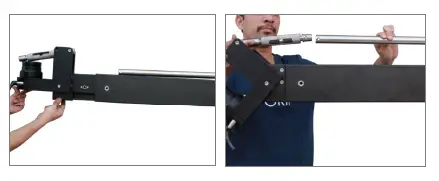

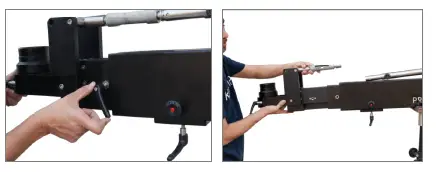

- Loosen side knob on the front (camera) side of jib and the red button knob on Rod, to remove the camera mounting section.

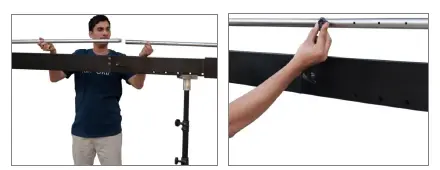

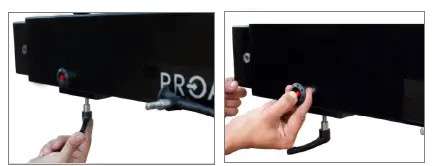

- Now loosen bottom knob on the front (camera) side of jib and press the small red button on side to release (pull-out) the Telescopic Section.

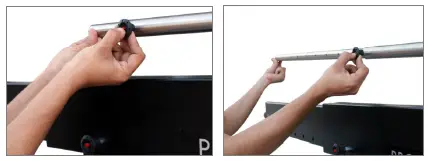

- Then press the latter small red button on steel Rod to release (pull-out) the Telescopic Section of Rod.

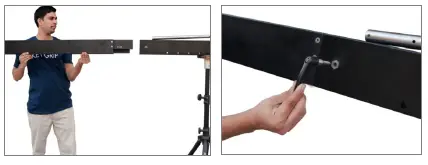

- Attach 3ft Extension Arm with Telescopic Section and lock the knob appropriately to secure it.
- Then attach Extension Rod of 3ft with Telescopic Section of Rod and lock with the red button knob appropriately to secure it.
- Now insert camera mounting section into the Extension Arm and Rod.

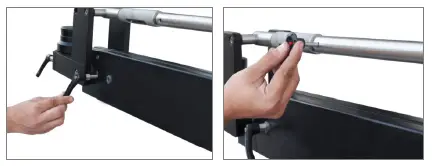

- Tighten side knob of jib and red button knob on Rod to lock the mounting section accurately.
NOTE: You can precisely balance the platform with its unique Levelling Mechanism on Rod.

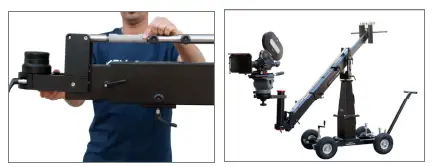

- Finally, mount your camera setup as desired, on the Double Euro Adapter provided with the mounting section of jib.
Balancing Tips

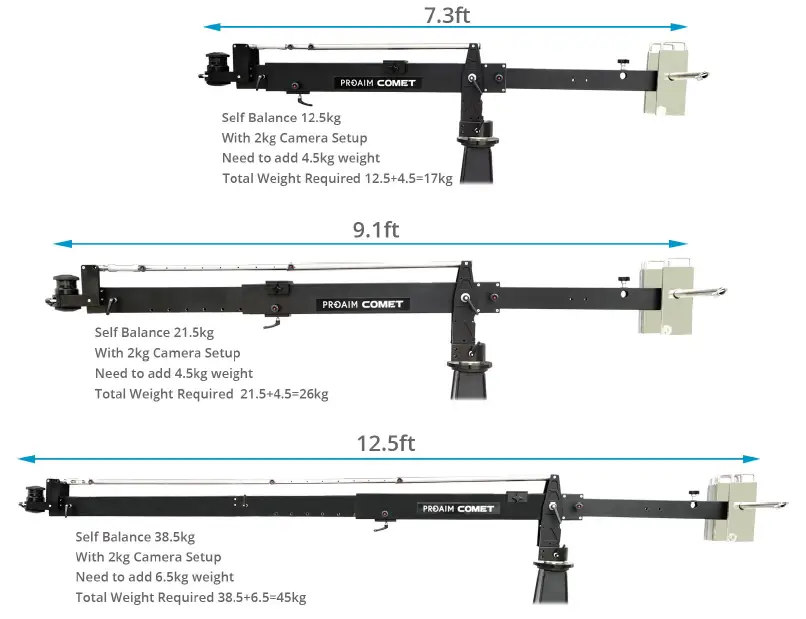

- 7.3ft Jib Length– When jib length is 7.3ft Jib will be balance with 12.5kg weight, with every 2kg of camera setup you need to add 4.5kg weight to balance it. Now total weight 12.5 + 4.5kg= 17kg.
- 9.1ft Jib Length– When jib length is 9.1ft Jib will be balanced with 21.5kg weight, with every 2kg of camera setup you need to add 4.5kg weight to balance it. Now total weight 21.5 + 4.5kg= 26kg.
- 12.5ft Jib Length– When jib length is 12.5ft Jib will be balance with 38.5kg weight, with every 2kg of camera setup you need to add 6.5kg weight to balance it. Now total weight
38.5 + 6.5kg= 45kg.
NOTE: Use Microbalance for Precision balancing.

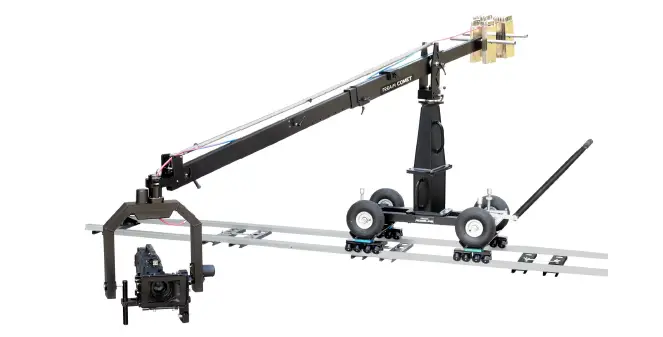

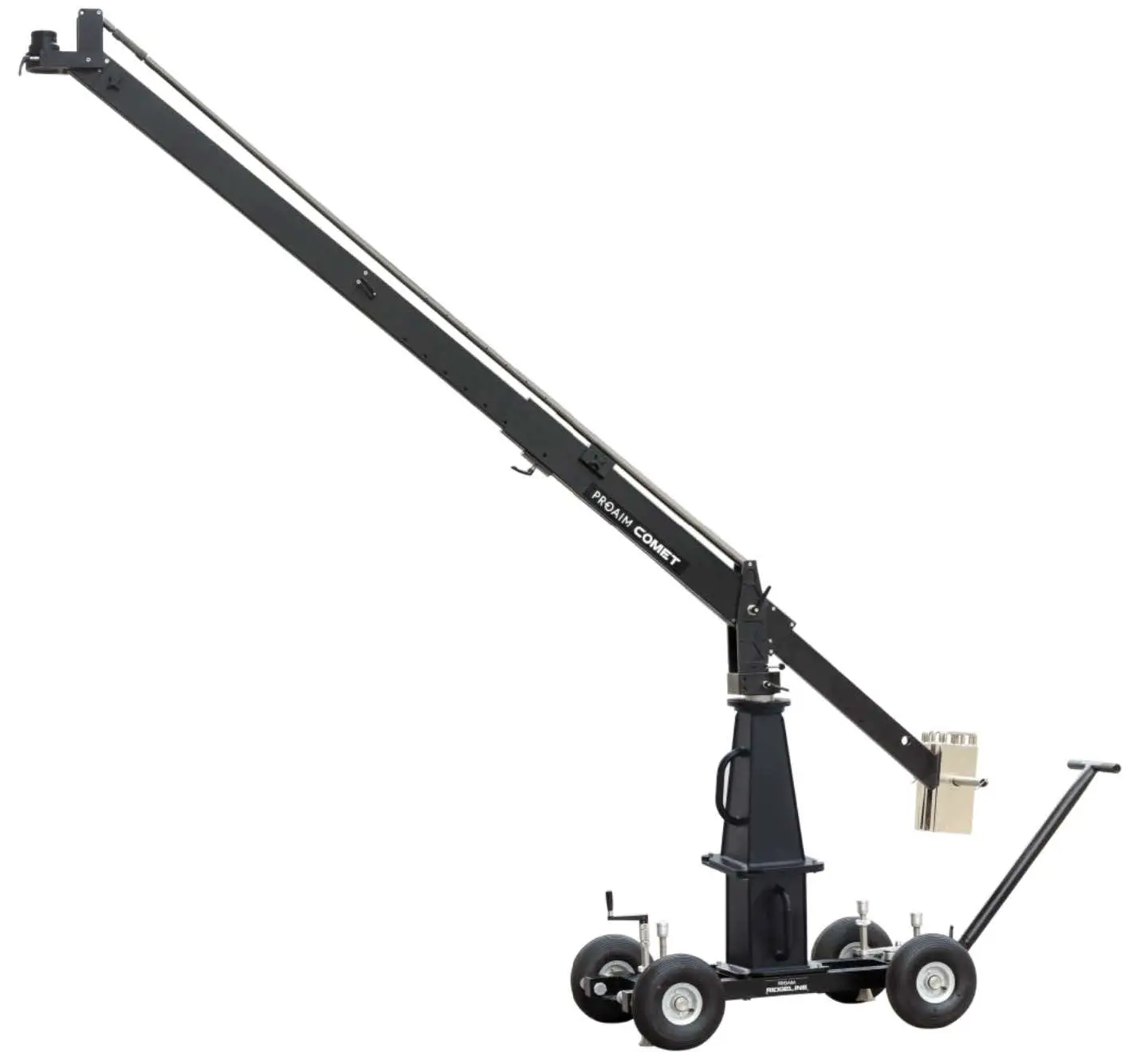

YOUR PROAIM COMET CAMERA JIB CRANE ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
