60-24-2 Tact² M Industrial Vacuum Cleaner
Instruction Manual
IVC 60/24-2 Tact² M

Register your product
www.kaercher.com/welcome

IVC 60-24-2 Tact² M Industrial Vacuum Cleaner

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

• Before first start-up it is definitely necessary to read the safety indications Nr. 5.956-249.0!
• The non-compliance of the operating and safety in- structions may lead to damages of the appliance and to dangers for the operator and other persons.
• In case of transport damage inform vendor immediately.

Environmental protection

The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.
Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.
Notes about the ingredients (REACH)
You will find current information about the ingredients at: www.kaercher.com/REACH

Danger or hazard levels

DANGER
Pointer to immediate danger, which leads to severe in- juries or death.
WARNING
Pointer to a possibly dangerous situation, which can lead to severe injuries or death.
  CAUTION
Pointer to a possibly dangerous situation, which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation, which can lead to property damage.

Proper use

• The machine is meant for dry and wet cleaning of floors and walls.
• The appliance is suited for the extraction of dry, non-combustible, harmful dusts; dust class M according to EN 60 335–2–69. Restriction: No carci- nogenic substances may be vacuumed up.
• This device is not suitable for connection to dustgenerating machines.
• This appliance is suited for industrial use, e.g. in storage and assembly areas.
• The appliance is not approved for crane loading.

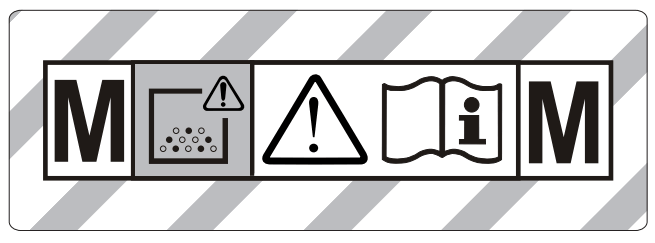

Symbols on the machine

WARNING: This unit contains hazardous dust. Emptying and maintenance, including the removal of the dust bag, may only be carried out by someone who is familiar with the unit and wearing suitable protective gear.
Do not switch on the unit until the complete filter system has been installed and the function of the volumeflow control has been tested.

	Flat fold filter
	Order No.	6.907-276.0
	Dust disposal bag
	Order No.	9.989-607.0

Safety instructions

DANGER

• When the outgoing air is carried back into the room, a sufficient ventilation rate L in the room must be ensured. To comply with the required limit values the carried back volume flow must be 50% of the fresh air volume flow (room volume VR x ventilation rate LW) at maximum. Without a specific ventilation system the following applies: LW=1h –1 .
• Only persons trained in the use of the machine and the handling of substances for which the machine is to be used including training in the safe disposal of the sucked-in material may use the machine.
• This appliance contains harmful dust. Evacuation and maintenance work, including the disposal of the dust collection containers, may only be performed by specialists who wear the appropriate protective equipment.
• Do not use the appliance without the complete filtering system.
• Please follow the safety regulations applicable to the materials that are to be treated.

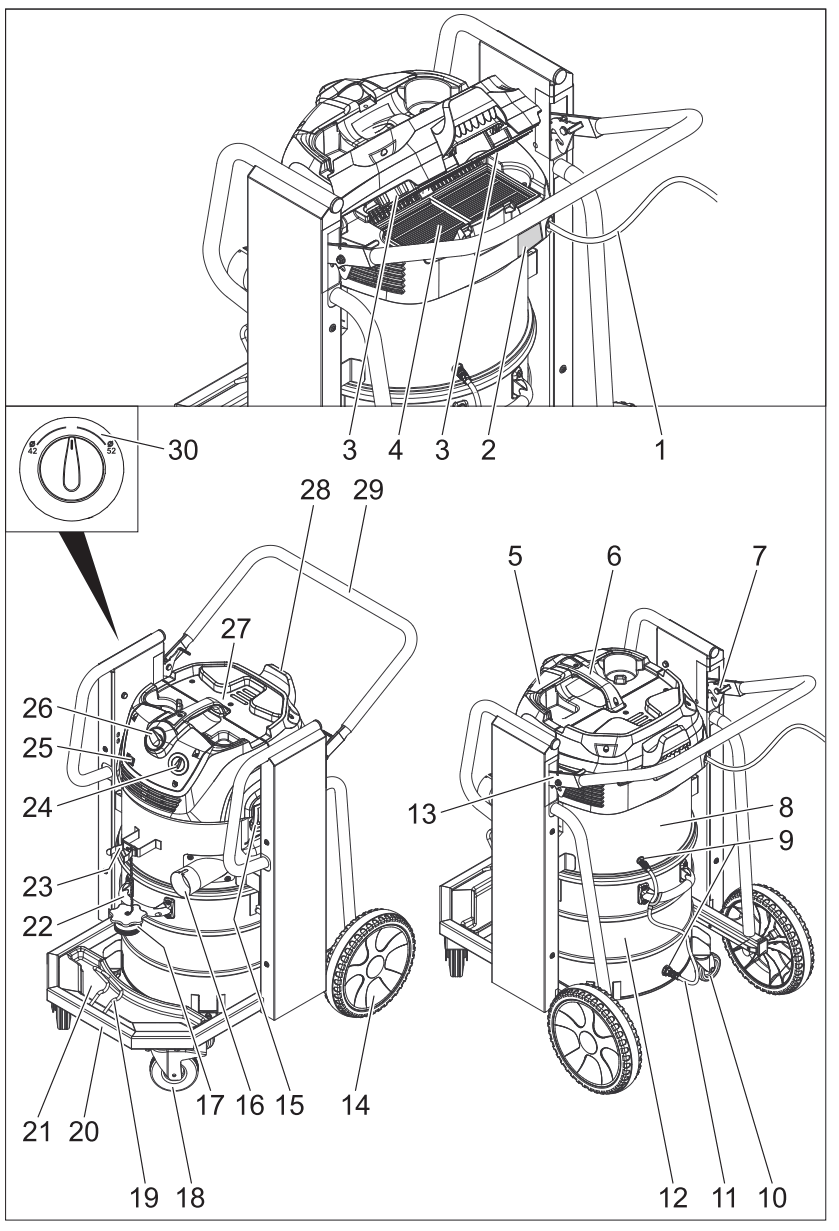

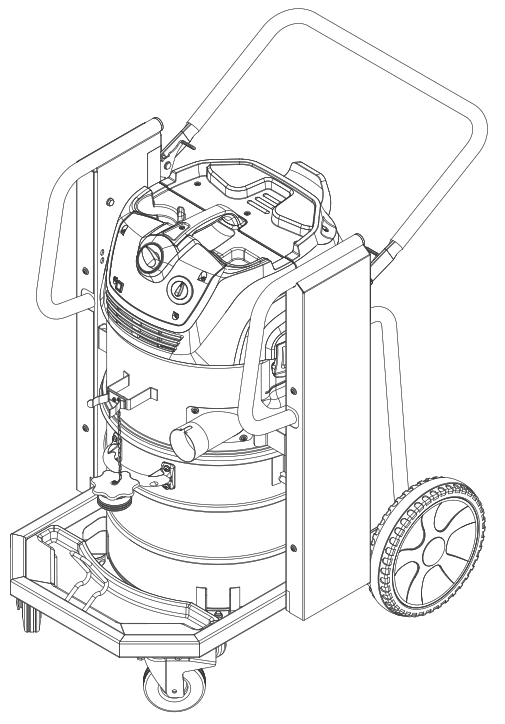

Device elements

Start up

WARNING
Do not vacuum without the filter elements; otherwise, the suction motor can get damaged and this can be hazardous to health on account of increased release of fine dust particles.
Bring the appliance to working position – secure it, if required, with parking brakes.
Insert the suction hose (not included) into the suction hose connection.
Check the fill level in the dirt container prior to starting work and empty the container if necessary.
Ensure that the dirt container has been inserted properly.
Attach the desired accessories (not included).
Automatic monitoring of suction capacity
The machine is equipped with a suction power monitor. The control lamp lights up if the air speed in the suction hose falls below 20 m/s./’
Note: The control lamp can light up occasionally during normal operation (e.g., while working with a floor nozzle), if the air volume comes down (cross-sectional re- Automatic monitoring of suction capacity duction) causing a low pressure.
Note: There is no defect in this case; only an indication that, as specified above, the air volume has reduced and the low pressure has increased.
Anti-static system
Static charge is deflected by providing earthing to the connection nozzles. This prevents the formation of sparks and current shocks due to attachments (option) with electrical conductivity.

Operation

CAUTION
The flat pleated filter must always be in place while vacuuming.
Close the suction connection
WARNING
Health risk on account of fine dust! If the suction hose is removed, the suction connection must be closed.
Illustration A
Properly insert the connection socket in the suction connection.
Push in the connection socket until it locks into place.
Turn the suction connection with the connection socket to the right to close it tightly.
Note: The accurate fit is ensured by means of a “bayonet connection”.
Dirt receptacle
Note: The dirt container needs to be emptied if it is full until about 3 cm below the upper rim.

• Check the fill level of the dirt container at regular intervals, as the appliance does not shut off automatically.

Dry vacuum cleaning

• The device is equipped with a dust bag, order no. 9.989-607.0 (5 pieces).

Note: You can use this appliance to take up all types of dust up to dust class M. It is statutorily necessary to use a dust collection bag (see Filter systems for order number). Note:The appliance is suited as industrial vacuum cleaner to take up dry, non-combustible dusts with MAK values greater than or equal to 0.1 mg/m 3 .
CAUTION
Please note the following when switching from wet to dry vacuum cleaning: If you vacuum dry dust while the filter element is still wet the filter will become obstructed and may be damaged beyond repair.
Dry the wet filter properly before use or replace it with a dry one.
Change the filter, if required, according to instructions under the section “Maintenance and Care”.
Installing the dust disposal bag
Lock parking brakes.
Illustration B
Remove the pressure balancing at the upper end.
Pull the locks of the placement mechanics up.
Pull the push handle upward. The container is unlocked and lowered.
Illustration C
Pull the container out by the handle.
Illustration D
Insert the disposal bag so that it is snug against the reservoir wall and the reservoir bottom.
Pull disposal bag over the container.
Reinsert the container and lock it with the push handle.
WARNING
Crush hazard. Never hold your hands between the dirt container and the intermediate ring or put them near the lifting mechanism while locking. Lock the container by pressing the sliding bow with both hands.
Plug in the pressure balancing.
Wet vacuum cleaning
Caution: Constantly monitor the fill level in the dirt receptacle when vacuuming high volumes of liquid, as the receptacle can be filled within a matter of seconds and could
overflow.
DANGER
No dusts hazardous to health should be sucked in during wet vacuuming.

• To suck wet dirt, always remove the disposal bag.

General
CAUTION
Please observe the local provisions regarding the wastewater treatment.

• If wet dirt is vacuumed with the crevice nozzle or ifhigh volumes of liquid are sucked up from a container, it is recommended to deactivate the “Filter Dedusting” function.
• After the wet vacuuming: Clean the flat-fold filter. Clean the container with a damp rag and dry it.

Removing the dust disposal bag
Lock parking brakes.
Illustration B
Remove the pressure balancing at the upper end.
Pull the locks of the placement mechanics up.
Pull the push handle upward. The container is unlocked and lowered.
Illustration C
Pull the container out by the handle.
Illustration E
Put the disposal bag over.
Tightly seal the disposal bag with closure strips underneath the opening.
Remove disposal bag.
Dispose of the disposal bag according to the local provisions.
Reinsert the container and lock it with the push handle.
WARNING
Crush hazard. Never hold your hands between the dirt container and the intermediate ring or put them near the lifting mechanism while locking. Lock the container by pressing the sliding bow with both hands.
Plug in the pressure balancing.
Rotating knob

	– Appliance ON – Filter dedusting OFF
	– Appliance OFF
	– Appliance ON – Filter dedusting ON

Turning on the Appliance
Plug in the mains plug.
Switch on the appliance at the rotating knob.
Adjust the suction hose cross section
Note: The different suction hose sections are required to allow an adjustment to the connection sections of the accessory parts.
Set the minimum volume flow for the suction hose cross section at the rotary switch.
The scale displays the suction hose cross section.
Automatic filter cleaning
The appliance has an innovative dual filter cleaning system that is particularly effective with fine dust. The flat pleated filter is automatically cleaned every 7.5 seconds through an air jet (pulsating sound).
Turn off the appliance
Switch off the appliance at the rotating knob.
Pull out the mains plug.
After each operation
Empty container (wet vacuum cleaning)
Lock parking brakes.
Illustration B
Remove the pressure balancing at the upper end.
Pull the locks of the placement mechanics up.
Pull the push handle upward. The container is unlocked and lowered.
Illustration C
Pull the container out by the handle.
Empty the container.
Reinsert the container and lock it with the push handle.
WARNING
Crush hazard. Never hold your hands between the dirt container and the intermediate ring or put them near the lifting mechanism while locking. Lock the container by pressing the sliding bow with both hands.
Plug in the pressure balancing.
Change dust bag (dry vacuum cleaning)
If necessary, replace the dust bag as described under point “Care and maintenance”.
Cleaning the device
Vacuum and wipe the appliance inside and outside with a damp cloth.
Storing the Appliance
Wrap the mains cord around the cable holder.
Wind the suction hose around the sliding bow.
Insert the floor nozzle and the suction pipe into their respective holder.
Place the appliance in a dry room and secure it from unauthorized use.

Transport

CAUTION
Risk of injury and damage! Observe the weight of the appliance when you transport it.
Close the suction connection, see operating instructions.
Release the park brakes and push the appliance by the push handle.
Grab the appliance by the chassis, not by the sliding bow to load it.
When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

CAUTION
Risk of injury and damage! Note the weight of the appliance in case of storage.
This appliance must only be stored in interior rooms.

Care and maintenance

DANGER
First pull out the plug from the mains before carrying out any tasks on the machine.
Dust extracting machines are safeguards for the prevention or elimination of hazards defined in the regulations of BGV A1.

• In order to carry out maintenance work, the user must disassemble, clean and service the unit, in so far as this is possible without endangering maintenance personnel and other persons. Suitable precautions include decontamination before the unit is disassembled. Precautions must be taken for local filtered forced air ventilation at the place where the unit is disassembled, the cleaning of the maintenance surface and suitable protection of the personnel.
• The outside of the unit should be cleaned thorough- ly and any harmful substances removed. Alternatively, a sealed coating may be applied before the unit is removed from the danger area. All unit parts are to be considered contaminated when they are removed from the danger area. To avoid distribution of the dust, you must take the appropriate measures.
• In the framework of maintenance and repair work all contaminated objects that cannot be cleaned satisfactorily must be disposed of. Such objects must be disposed of in impermeable bags in accordance with the valid provisions for the disposal of such waste.
• During the transport and maintenance of the appliance the extraction opening is to be closed with the connection socket.

WARNING
Safety equipment for preventing hazards must be serviced and maintained regularly. This means that the manufacturer’s staff or persons trained by the manufacturer must check the equipment for proper functioning at least once a year, i.e. check for leaks, filter damage, functioning of the controlling elements, etc.
CAUTION
Risk of damage! Do not use detergents containing silicone to clean.

• No outside help is required for carrying out basic maintenance and cleaning.
• The appliance surface and the inside of the container should be cleaned regularly using a  dampcloth.

DANGER
Risk due to dust hazardous to health. Always use disposal clothing and P2 or higher breath-safe masks while carrying out maintenance tasks (such as changing filters).
Exchanging the flat pleated filter
  Open filter door.
Take out the flat folded filter.
Dispose off the used flat-folded filter in a dust-tight bag according to the statutory provisions.
Remove the dirt that has accumulated on the pure air side.
Insert new flat-folded filter.
Close the filter door, it must lock into place.
Replace the disposal bag
  Lock parking brakes.
Illustration B
Remove the pressure balancing at the upper end.
Pull the locks of the placement mechanics up.
Pull the push handle upward. The container is unlocked and lowered.
Illustration C
Pull the container out by the handle.
Illustration E
Put the disposal bag over.
Tightly seal the disposal bag with closure strips underneath the opening.
Remove disposal bag.
Dispose of the disposal bag according to the local provisions.
Illustration D
Insert the new disposal bag so that it is snug against the reservoir wall and the reservoir bottom.
Pull disposal bag over the container.
Reinsert the container and lock it with the push handle.
WARNING
Crush hazard. Never hold your hands between the dirt container and the intermediate ring or put them near the lifting mechanism while locking. Lock the container by pressing the sliding bow with both hands.
Plug in the pressure balancing.

Troubleshooting

DANGER
First pull out the plug from the mains before carrying out any tasks on the machine. Note: In case of a failure (e.g. filter breakage) the appliance must be turned off immediately. The failure must be remedied before the appliance is put into operation again.
Suction turbine does not run
Check cables, plugs, fuse, and socket.
Turn on the appliance.
Suction capacity decreases
Remove blockages in the suction nozzle, suction tube, suction hose, or flat pleated filter.
Replace the filled disposal bag
Check the suction head and the receptacle for proper seating.
Ensure the filter cover properly locks into place.
Replace the flat pleated filter.
Connect the pressure balancing at both ends.
Dust comes out while vacuuming
Check for proper installation of the flat pleated filter.
Replace the flat pleated filter.
Indicator lamp glows red
Perform the filter cleaning.
Replace the flat pleated filter.
Set the rotary switch to the correct suction hose cross-section.
If the disposal bag is full and the minimum volume flow is fallen short of it has to be replaced.
Automatic filter cleaning is not working
Suction hose is not connected.
Suction hose used is too short (< 3m) or the diameter is too large.
Inform Customer Service.
Automatic filter cleaning cannot be switched off
Inform Customer Service.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service center. Please submit the proof of purchase.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com.

• Accessories are not included in the delivery. The accessories for the device must be ordered separately, depending on the application.
• The device’s correct function is only ensured when using suction hose nominal widths of DN40 and DN50.
• You can procure the spare parts and the attachments from your dealer or your KÄRCHER branch office.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: Wet and dry vacuum cleaner
Type: 1.576-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2011/65/EU
2014/30/EU
Applied harmonized standards
EN 55014–1: 2017 + A11: 2020
EN 55014–2: 2015
EN 60335–1
EN 60335–2–69
EN IEC 61000–3–2: 2019
EN 61000–3–3: 2013 + A1: 2019
EN 62233: 2008
EN IEC 63000: 2018
Applied national standards
– 5.966-010
The undersigned act on behalf and under the power of attorney of the company management.

Managing Partner
G. Schwarzenbach
Kärcher Industrial Vacuuming GmbH
Robert-Bosch-Straße 4-8
73550 Waldstetten (Germany)
Phone: +49 7171 94888-0
Fax: +49 7171 94888-528
Waldstetten, 2020/10/01
Declaration of Conformity (UK)
We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.
Product: Wet and dry vacuum cleaner
Type: 1.576-xxx
Relevant UK Regulations
S.I. 2008/1597 (as amended)
S.I. 2012/3032 (as amended)
S.I. 2016/1091 (as amended)
Applied designated standards
EN 55014–1: 2017 + A11: 2020
EN 55014–2: 2015
EN 60335–1
EN 60335–2–69
EN IEC 61000–3–2: 2019
EN 61000–3–3: 2013 + A1: 2019
EN 62233: 2008
EN IEC 63000: 2018
Applied national standards
– 5.966-010
The undersigned act on behalf and under the power of attorney of the company management.

Managing Partner
G. Schwarzenbach
Kärcher Industrial Vacuuming GmbH
Robert-Bosch-Straße 4-8
73550 Waldstetten (Germany)
Phone: +49 7171 94888-0
Fax: +49 7171 94888-528
Waldstetten, 2020/10/01

Technical specifications

THANK YOU!
MERCI! DANKE! GRACIAS!
Register your product and benefit from many advantages.
www.kaercher.com/welcome
Rate your product and tell us your opinion.
www.kaercher.com/dealersearch
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212

http://kaer.ch/er/?l=TwSoJtl9IUOwZyAe1rHDyw

References

• aspiration.La
• Cleaning equipment and pressure washers | Kärcher International
• Dealer Search | Kärcher International
• Home Garden Warranty Registration Karcher North America USA | Kärcher
• Reinigungsgeräte und Hochdruckreiniger | Kärcher
