HOME ER1028-01 Double Curtain Rod Kit in Matte Silver”
Installation Guide
Curtain Rod Installation

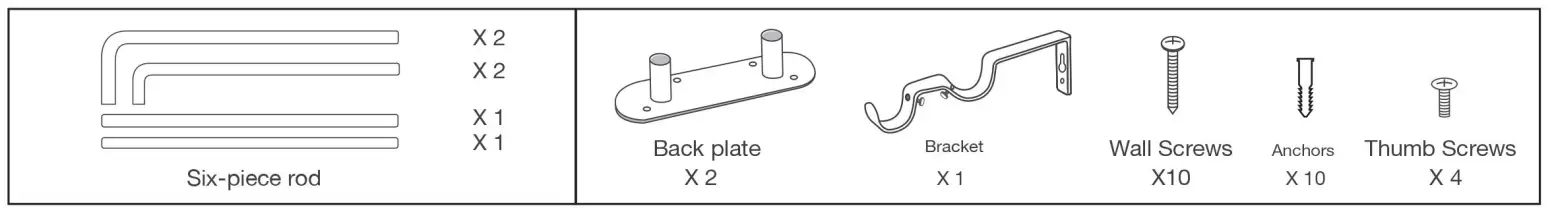

Hardware included
ER1028-01 Double Curtain Rod Kit in Matte Silver

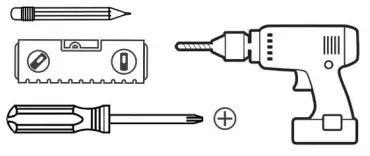

You will need

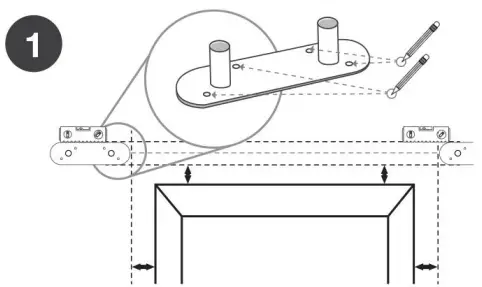

- Unscrew the back plate from a rod with a screwdriver. Using back plates as a guide, locate the desired positions. Create markings on the wall for the mounting screws.

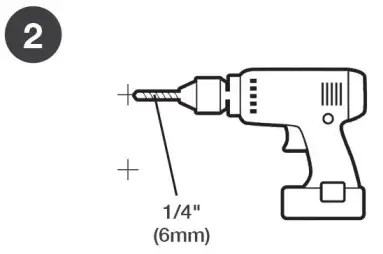

- Set aside back plates. Drill holes into the wall were marked with a 1/4 in. drill bit.
- Insert wall anchors. Wall anchors are not necessary if screwing into the wooden batten. Attach back plate to wall using screws provided.

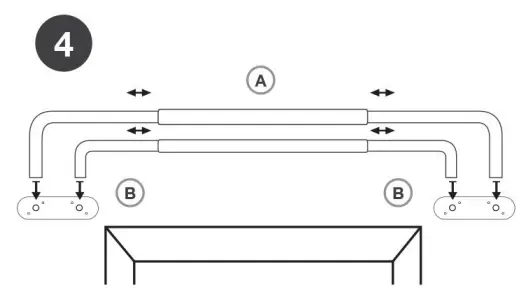

- A. Connect the six-piece rod together. The rod with the largest diameter is the middle piece. B. Slide assembled rod into the back plates.

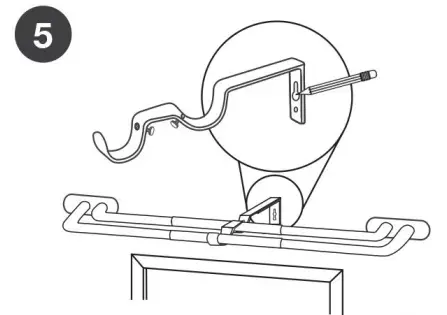

- Place a support bracket in the center. Create markings on the wall for the mounting screws. Take down the assembled rod from the back plates.

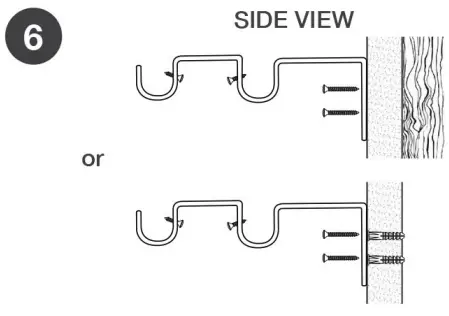

- Drill holes into the wall were marked with a 1/4 in the drill bit. Insert wall anchors. Wall anchors are not necessary if screwing into the wooden batten. Attach the bracket to the wall using the screws provided.

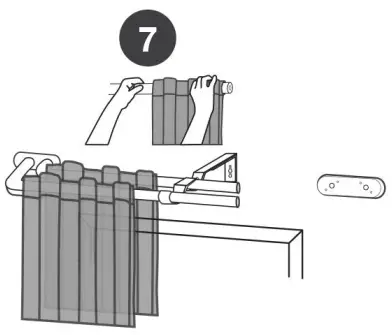

- Remove right rods from middle rods. Slip the curtain panels onto the left rods. Slip the curtain panels onto the right rod and slide the right rods back into the middle rods. Place rods with curtains into the back plates and center support.

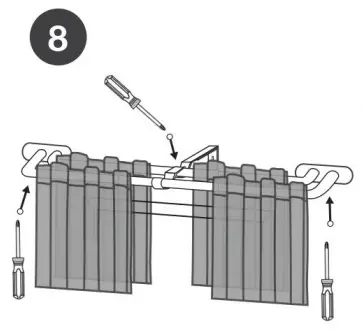

Tighten the screws on the back plates and center bracket to secure the rod

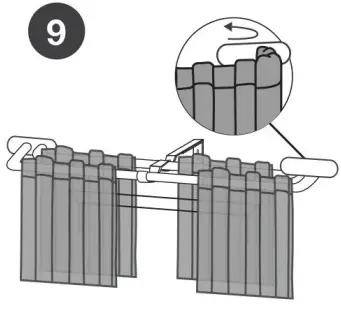

- Wrap and adjust panels around both ends of the rod so the panels hang flush with the wall.
Tighten the screws on the back plates and center bracket to secure the rod
