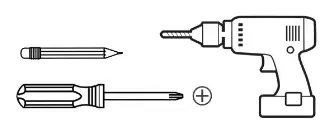

You will need
Curtain Rod Installation
Hardware included

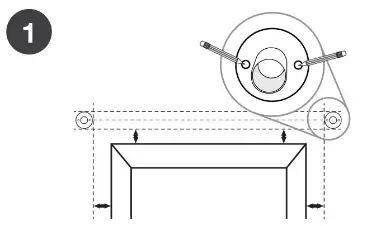

Unscrew back plate from rod with a screwdriver. Using back plates as a guide, locate the desired positions. Create markings on wall for the mounting screws.

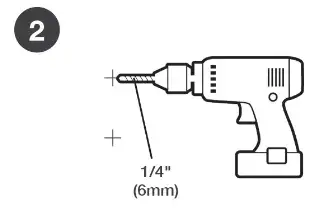

Set aside back plates. Drill holes into wall where marked with 1/4 in. drill bit.

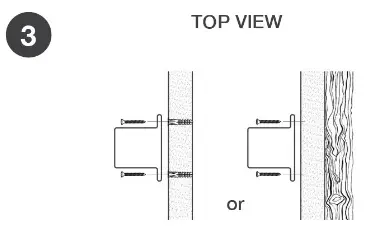

Insert wall anchors. Wall anchors are not necessary if screwing into the wooden batten. Attach back plate to wall using screws provided.

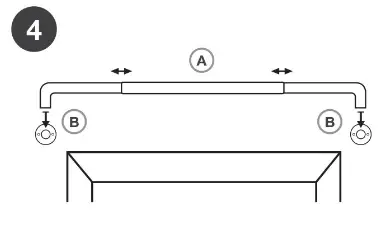

A. Connect the three-piece rod together. The rod with the largest diameter is the middle piece. B. Slide assembled rod into the back plates.

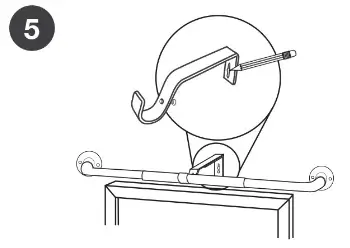

Place support bracket in the center. Create markings on wall for the mounting screws. Take down the assembled rod from the back plates.

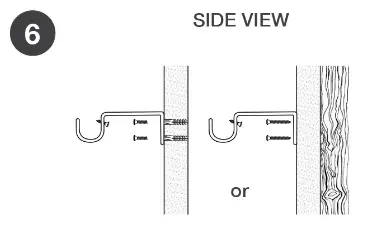

Drill holes into wall where marked with a 1/4 in drill bit. Insert wall anchors. Wall anchors are not necessary if screwing into the wooden batten. Attach bracket to the wall using the screws provided.
Remove right rod from middle rod. Slip the curtain panel on to the rod. Slide right rod back into the middle rod. Place rod with curtain into the back plates and center bracket.
Tighten the screws on the back plates and center bracket to secure rod.
Wrap and adjust panels around both ends of the rod so the panels hang flush with the wall.
