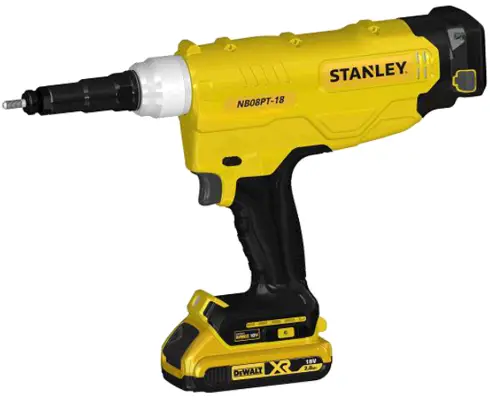

NB08PT-18 Blind nut tool
Battery Power Tool

NB08PT-18 Blind Nut Tool Battery Power Tool

Original Instruction
©2021 Stanley Black & Decker
All rights reserved.
The information provided may not be reproduced and/or made public in any way and through any means (electronically or mechanically) without prior explicit and written permission from STANLEY Engineered Fastening. The information provided is based on the data known at the moment of the introduction of this product. STANLEY Engineered Fastening pursues a policy of continuous product improvement and therefore the products may be subject to change. The information provided is applicable to the product as delivered by STANLEY Engineered Fastening. Therefore, STANLEY Engineered Fastening cannot be held liable for any damage resulting from deviations from the original specifications of the product.
The information available has been composed with the utmost care. However, STANLEY Engineered Fastening will not accept any liability with respect to any faults in the information nor for the consequences thereof. STANLEY Engineered Fastening will not  accept any liability for damage resulting from activities carried out by third parties. The working names, trade names, registered trademarks, etc. used by STANLEY Engineered Fastening should not be considered as being free, pursuant to the legislation with respect to the protection of trademarks.
STANLEY Engineered Fastening policy is one of continuous product development and improvement and we reserve the right to change the specification of any product without prior notice.
Nose Assemblies
Nose equipment varies according to the blind insert nut type being installed. Each nose assembly represents a unique set of components which can be ordered individually. Component numbers refer to the illustration below. We recommend maintaining some stock of spares as items will need regular replacement if worn. Read the Service Manual for nose assembly instructions.

MAIN COMPONENTS LIST

*for complete tool explosion and Bill of Material please see service manual

ACCESSORIES CHANGING INSTRUCTIONS

Always wear approved hearing and eye protections at all times when using installation equipment.
WARNING: Before adjusting tool, always remove the battery pack.

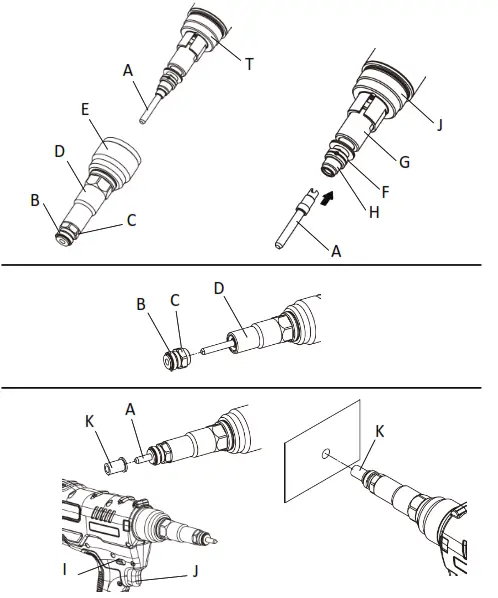

Mounting the mandrel and nosepiece

• Select the correct mandrel (A) and nosepiece (B) for the blind nut (K) to be installed.
• Loosen the nose housing nut (E), Remove the nose housing (D).
• Press the mandrel lock (F), Loosen and remove the mandrel (A).
• Screw the correct mandrel (A) into Spin Pull Head (H) while pressing the mandrel lock (F). Lock the mandrel (A)
• Loosen the lock nut (C) and unscrew and remove the nosepiece (B) and Lock nut (C)
• Screw the Lock nut (C) onto the correct nosepiece (B) and screw the nosepiece (B) into the nose housing (D) lightly.
• Adjust the position of the nosepiece (B) according to the blind nut (K) to be installed. The length of mandrel protruding from the top of blind nut (K) to be 00.5mm.
• Tighten the lock nut (C) by a spanner properly.

PLACING SPECIFICATIONS

Note:
Force control can be used for the following sizes only.
Aluminum M6 or more (Except for Slit Nut).
Steel M5 or more.
Stainless steel M5 or more.

MANDREL AND NOSEPIECE

WARNING: When selecting mandrel and nosepiece, always use the compatible parts. Using different parts may cause nut tightening failure or tool failure.
Note:

1. Refer Table B for Thin sheet Nester®.
2. Refer Table C for Thin head Exert®.

Table A Mandrel and Nosepiece compatible chart *：Option parts

Nut Size	MANDREL		NOSEPIECE
	Part No.	O.D	Part No	I.D
M3	PNT600-01-3*	φ3	PNT600-02-3*	φ4.0
M4	PNT600-01-4	φ4	PNT600-02-4	φ4.5
M5	PNT600-01-5P	φ5	PNT600-02-5	φ5.1
M6	PNT600-01-6P	φ6	PNT600-02-6	φ6.1
M8	PNT600-01-8 and PNT600-01-8M	φ8	PNT600-02-8	φ8.1
M10	PNT600-01-10A*	φ10	PNT600-02-10*	φ10.1
6-32 UNC	PNT600-01-632*	φ3.5	PNT600-02-632*	φ3.6
8-32 UNC	PNT600-01-832*	Φ4.1	PNT600-02-832*	Φ4.3
10-24 UNC	PNT600-01-1024*	Φ4.8	PNT600-02-5	φ5.1
10-32 UNF	PNT600-01-1032*	Φ4.8	PNT600-02-5	φ5.1

Table B Thin sheet Nester® compatible chart *：Option parts

Nut Size	MANDREL		NOSEPIECE
	Part No.	O.D	Part No	I.D
M3	PNT600-01-3*	φ3	TNM00146*	φ3.1
M4	PNT600-01-4P*	φ4	TNM00147*	φ4.1
M5	PNT600-01-5P	φ5	TNM00148*	φ5.1
M6	PNT600-01-6P	φ6	TNM00149*	φ6.1
M8	PNT600-01-8P*	φ8	TNM00150*	φ8.1

Table C Thin head Exert® compatible chart *：Option parts

Nut Size	MANDREL		NOSEPIECE
	Part No.	O.D	Part No	I.D
M4	PNT600-01-4P*	φ4	TNM00151*	φ4.1
M5	PNT600-01-5P	φ5	TNM00152*	φ5.1
M6	PNT600-01-6P	φ6	TNM00153*	φ6.1
M8	PNT600-01-8P*	φ8	TNM00150*	φ8.1

MANDREL AND NOSEPIECE (OPTIONS)

1. Pipe Nut (Made to order)

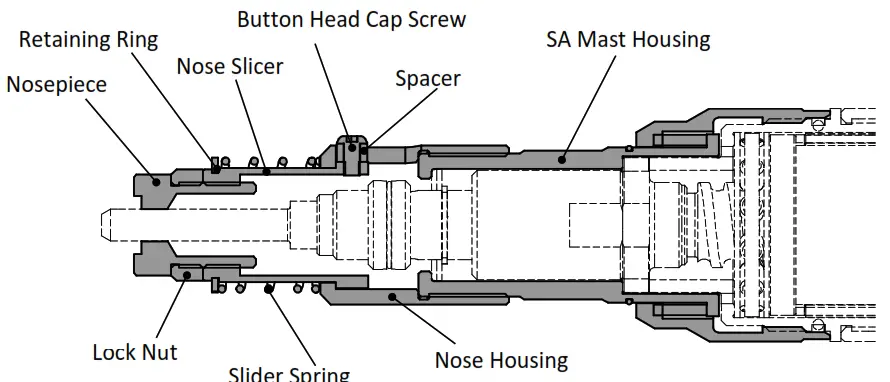

   When fastening the pipe nut SRH-630-191-K2, install the nose assembly for the pipe nut. The mandrel used is PNT600-01-6P. Please refer to the following list for the nose assembly components for pipe nuts.
   ● SRH-630-191-K2

   Nose Assembly			TNM00354
   	SA Mast Housing		TNM00355
   	SA Nose Housing		TNM00356
   		Nose Housing	TNM00257
   		Nose Slider	PNT600-137A
   		Slider Spring	AN600P-31
   		Retaining Ring	AN600P-32
   		Nosepiece	PNT600-02-6NP
   		Lock Nut	PNT600-03
   		Hexagon socket button bolt	PNT600-100
   		Spacer	PNT600-138



2. Pipe HB Bolt (Made to order)

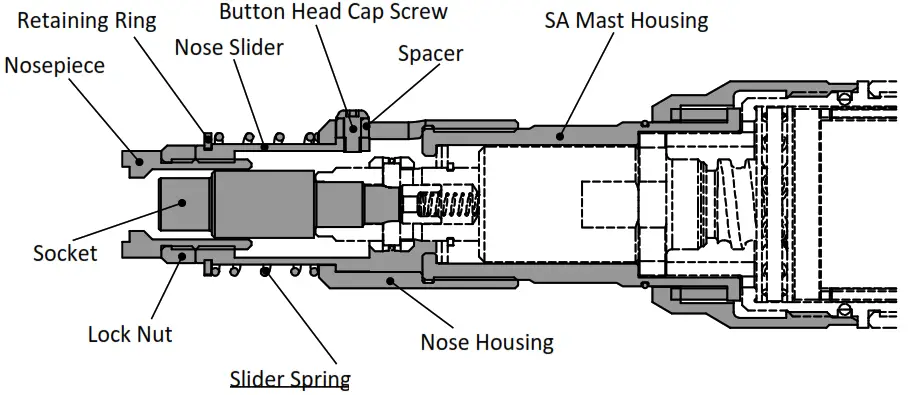

   When fastening pipe HB bolts, install the pipe HB nose assembly. Change the mandrel attached to the tool to the socket that comes with the nose assembly.
   Please refer to the following list for each nose assembly component.
   ● SRB-630-480LF-K2-180L

   Nose Assembly			TNM00358
   	SA Mast Housing		TNM00355
   	SA Nose Housing		TNM00359
   		Nose Housing	TNM00258
   		Nose Slider	TP134-080
   		Slider Spring	AN600P-31
   		Retaining Ring	AN600P-32
   		Nosepiece	TZ024-435
   		Lock nut	PNT600-03
   		Button Head Cap Screw	PNT600-100
   		Spacer	PNT600-138
   	Socket		TNM00365

   ● SRB-830-480-K2-70L

   Nose Assembly			TNM00360
   	SA Mast Housing		TNM00355
   	SA Nose Housing		TNM00361
   		Nose Housing	TNM00257
   		Nose Slider	PNT600-137A
   		Slider Spring	AN600P-31
   		Retaining Ring	AN600P-32
   		Nosepiece	TZ034-433
   		Lock nut	PNT600-03
   		Button Head Cap Screw	PNT600-100
   		Spacer	PNT600-138
   	Socket		TNM00366



3. HB Bolt (Made to order)

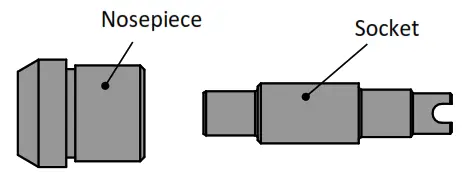

   When tightening HB bolts, replace the mandrel attached to the following nosepiece and tool with the following socket to make a tool for HB bolts.

   HB Bolt	Socket	Nosepiece
   SPB-650R-WB*****	PNT600-01-6HB-WB	PNT600-02-6HB-WB
   SPB-625-RLT	PNT600-01-6HB	PNT600-02-6HB



4. Slit Nut (Made to order) *Only can be used by Stroke control When fastening the slit nut, attach the sleeve to the outer diameter of the mandrel and replace it with the following nose piece. The mandrel used is PNT600-01-6P.


   Slit Nut	Nosepiece
   SPH-640-SLIT	PNT600-02-64SLT-S	ENS-M6SV-S
   SPH-670-SLIT	PNT600-02-67SLT-S

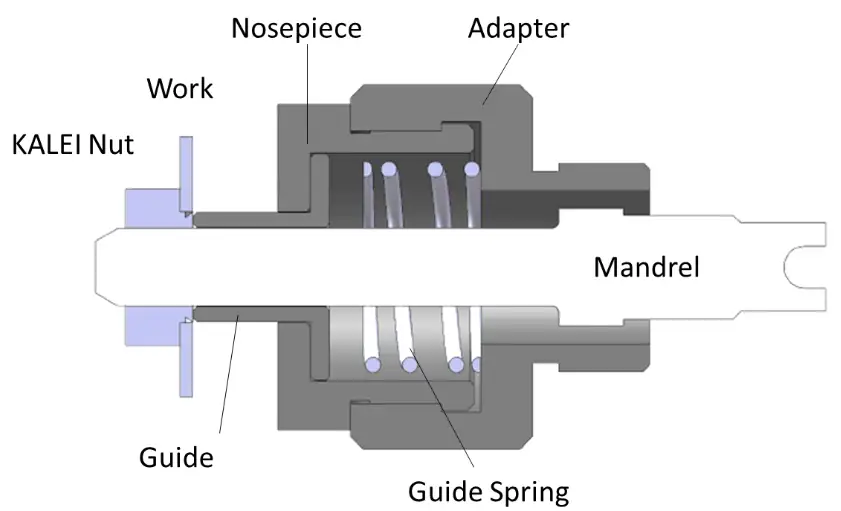

5. KALEI® ST Nut (Made to order) *Only can be used by Force control When fastening the KALEI nut, please use the following adapter. Remove the standard Nosepiece and Lock-nut from Nose Housing, and attached the adapter.

● ST6-10, ST6-15
