Cadac 5650 Grillo Chef 40 Pan Combo Instruction Manual

CADAC 5650 Grillo Chef 40 Pan Combo Instruction

Grillo Chef 40

The Grillo Chef 40 is a portable gas grill designed for outdoor cooking. It comes in three different models: 28/37/50 mbar, each with its specific Spare No. The product may vary from the illustrations provided in the assembly instructions.

Assembly Instructions

Before using the Grillo Chef 40, you need to assemble it following the instructions below:

1. Check that all the parts are included in the package.
2. Attach the legs (x3) to the base (1) using screws (x12) and nuts (x12).
3. Attach the side shelves (2) to the base (1) using screws (x6) and nuts (x6).
4. Attach the burner (3) to the base (1) using screws (x2).
5. Attach the control knob (4) to the front panel (5).
6. Attach the front panel (5) to the base (1) using screws (x4).
7. Attach the warming rack (6) to the burner (3).
8. Attach the cooking grates (7) to the warming rack (6).
9. Attach the lid (8) to the base (1) using screws (x2).

Product Usage

Once assembled, follow these steps to use the Grillo Chef 40:

1. Connect the gas cylinder to the regulator valve.
2. Open the gas cylinder valve.
3. Turn on the control knob and ignite the burner using a lighter or match.
4. Adjust the flame to the desired temperature using the control knob.
5. Place the food on the cooking grates and close the lid.
6. Check and turn the food occasionally to ensure even cooking.
7. When finished, turn off the control knob and close the gas cylinder valve.
8. Allow the Grillo Chef 40 to cool down before cleaning and storing it.

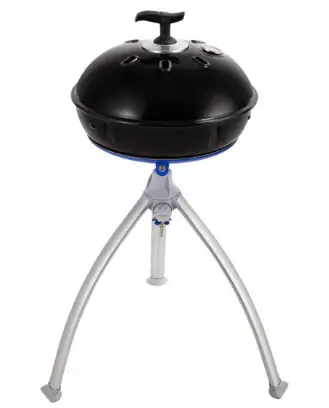

GRILLO CHEF 40
MODEL No: 5650
28/37/50 mbar
NOTE: PRODUCT MAY VARY FROM ILLUSTRATIONS

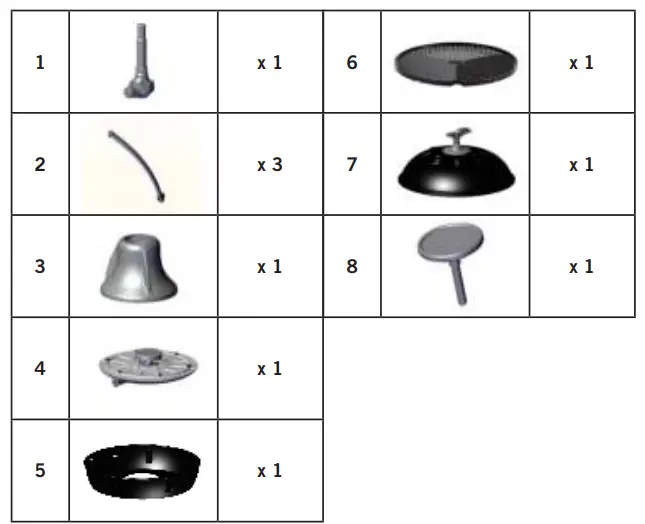

Contents

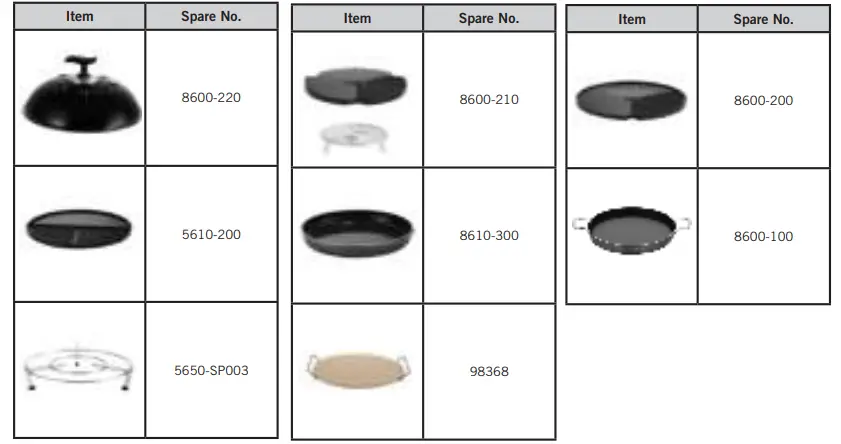

Accessories

ASSEMBLY INSTRUCTIONS

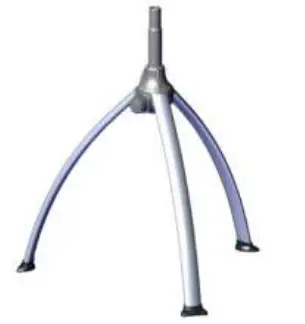

Step 1

Step 2

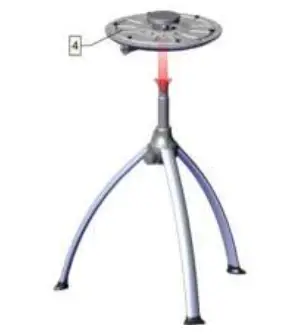

Step 3

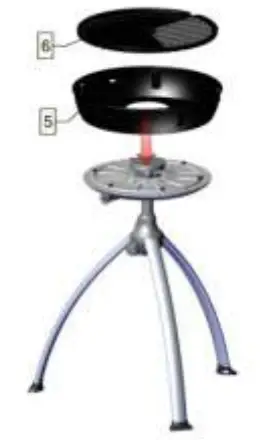

Step 4

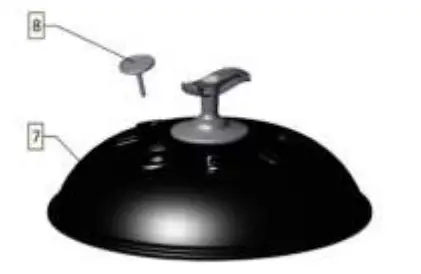

Step 5
