Socket Powerline 600 Mbps Set
Instruction Manual
Technical data
| Standards | HomePlug AV IEEE802.3 IEEE802.3u |
| Powerline Security | 128-bit AES |
| Frequency | 2MHz ~68MHz |
| LEDs | Power, Powerline, Ethernet Port |
| Range | 300 meters over electrical circuit |
| Power Supply | 100 ~240 VAC, 50/60Hz |
| Interface | 1*10/100Mbps Ethernet Port, Power Socket |
| Package Content | Powerline 600 adapters Network cable Instruction Manual |

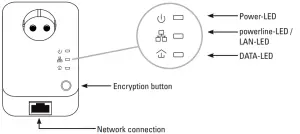

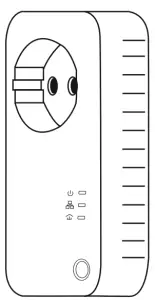

Controls and displays
| LED | Description | |
| Power (green) | Lights up | The Powerline adapter is ready to use. |
| Flashes | The Powerline adapter is starting up or encryption is being performed. | |
| Flashes (all other indicators are oft) | The Powerline adapter is in standby mode. | |
| Off | The Powerline adapter is unplugged. | |
| LAN (green) | Lights up | The adapter is connected to a computer or another device via a network cable. |
| Flashes | Data transfer | |
| Off | This adapter is not connected to another device via a network cable or the device is turned off. | |
| DATA (green) | Lights up | A Powerline connection to another adapter has been established. |
| Off | No compatible Powerline device was found, or the devices found to use a different network key. | |
Important note -Quick Guide:
- This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
- For the sake of protecting the environment and saving valuable resources, Hama dispenses with a printed instruction manual and provides this only in the form of a pdf file available for download.
- The complete instruction manual is availableat: www.hama.com -> 00053307 -> Downloads
- Save the instruction manual to your computer hard drive for future reference, or print it out if necessary.
Explanation of Warning Symbols and Notes
Risk of electric shock
This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.Warning
This symbol is used to indicate safety instructions or to draw your attention to specifichazards and risks.Note
This symbol is used to indicate additional information or important notes.
Content
- 2 Powerline600 Adapter
- 2 network cable
- 1 short instruction manual
Safety Notes
- The product is intended for private, non-commercial use only.
- Do not use the product in areas wherethe use of electronic devices is not permitted.
- Protect the product from dirt, moisture, and overheating and use it in dry rooms only.
- As with all electrical devices, this device should be kept out of the reach of children.
- Do not drop the product and do not expose it to any major shocks.
- Do not operate the product outside the power limits given in the specifications.
- Keep the packaging material out of the reach of children due to the risk of suffocation.
- Dispose of packaging material immediately according to locally applicable regulations.
- Do not modify the device in any way. Doing so voids the warranty.
- Use the product for its intended purpose only.
- Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
- Do not use the product in moist environments and avoid splashes.
- Use the item only in moderate climatic conditions.
- The product is intended for indoor use only.
- Lay all cables so that they do not pose a tripping hazard.
- Do not bend or crush the cable.
- Never connect multiple units of this product in a series.
- The product may only be operated with the type of power supply network described on the nameplate.
Risk of electric shock
- Do not open the device or continue to operate it if it becomes damaged.
- Do not use the product if the AC adapter, adapter cable, or power cable is damaged.
- Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.
Warning
- Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
- Disconnect the product from the power supply using the On/Off switch –ifthis is not available, unplug the power cord from the socket.
- If you will not be using the product for a prolonged period, disconnect it from mains power.
Warning
- Multi-socket power strips must not be used to operate
Powerline adapters.
Installing two Powerline adapters: A+B(with encryption)

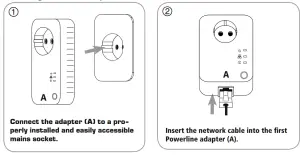

Installing the first adapter (A)

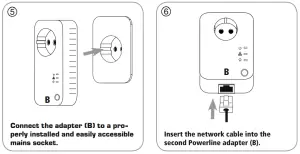

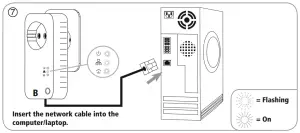

Installing the second Adapter (B)

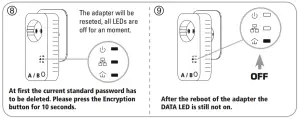

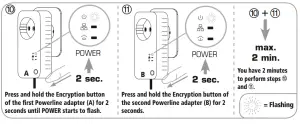

Setting up encryption (Recommended)

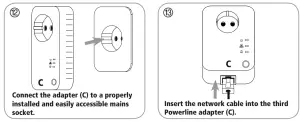

Expanding the Powerline Network: with encryption

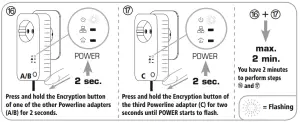

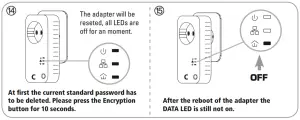

Setting up encryption (Recommended)
Tips for Troubleshooting
| The power LED is not illuminated. | Make sure the Powerline adapters are connected to functioning mains sockets. |
| The DATA LED is not illuminated. | – Make sure you are using at least two compatible Powerline adapters and that they are plugged in. – Move the Powerline devices closer to each other. – If you are using encryption, you should make sure that all Powerline devices are using the same encryption code. |
| The LAN LED is not illuminated. | – Make sure your network cable is firmly attached to the adapter. |
Care and Maintenance
Note
Disconnect the device from the power supply before cleaning it or if it is not going to be used for a long period of time.
- Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
- Make sure that water does not get into the product.
Warranty Disclaimer
Hama GmbH &Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product, or from failure to observe the operating instructions and/or safety notes.
Recycling Information
Note on environmental protection:
After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices, as well as batteries, must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country.This symbol on the product, the instruction manual, or the package indicates that aproduct is subject to these regulations. By recycling, reusing the materials, or other forms of utilizing old devices/Batteries, you are making an important contribution to protecting our environment.
