WURSTFABRIK
Hot Dog Maker
10034450 10034453 10034454
www.klarstein.com
Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
TECHNICAL DATA
| Item number | 10034450 | 10034453 | 10034454 |
| Power | 450 W | 500 W | 520 W |
| Power supply | 220-240 V — 50 Hz | ||
| Adjustable temperature | 30-100 °C | ||
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Chal-Tec UK limited
Unit 6 Riverside Business Centre
Brighton Road
Shoreham-by-Sea
BN43 6RE
United Kingdom
SAFETY INSTRUCTIONS
- This device may be used by children 8 years of age and older and by persons with limited physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed on the safe use of the device and understand the dangers involved. Children must not play with the device. Cleaning and maintenance by the user must not be carried out by children without supervision.
- If the mains cable is damaged, it must be replaced by the manufacturer, its service partner, and customer service or similarly qualified persons in order to avoid danger.
- The appliance must not be cleaned with a jet of water.
- The floor next to the unit may be slippery. Remove any condensation immediately so that nobody slips on the floor.
VORSICHT
Verbrennungsgefahr! Es kann heißer Dampf austreten. Um Verbrühungen zu vermeiden, verwenden Benutzen Sie entsprechende Werkzeuge und Ofenhandschuhe, wenn Sie das Gerät mit Lebensmitteln befüllen oder Lebensmittel entnehmen.
COMMISSIONING AND OPERATION
- Remove the packaging and wipe the product with a damp cloth.
- It is normal for a little smoke to develop during the first application.
- The heating pipes are controlled by the left switch, and the heating by the thermostat with auto function.
- The temperature of the water bowl is controlled by the thermostat located in the middle. The main switch of the water bowl is on the right side.
CLEANING AND STORAGE
- Disconnect the power supply before cleaning to avoid an accident.
- Wiping the product and electrical wiring with a non-corrosive detergent after rinsing with tap water is prohibited and would impair the function of the product.
- Keep the appliance clean and stow it in a well-ventilated, corrosion-free place when not in use for a short time.

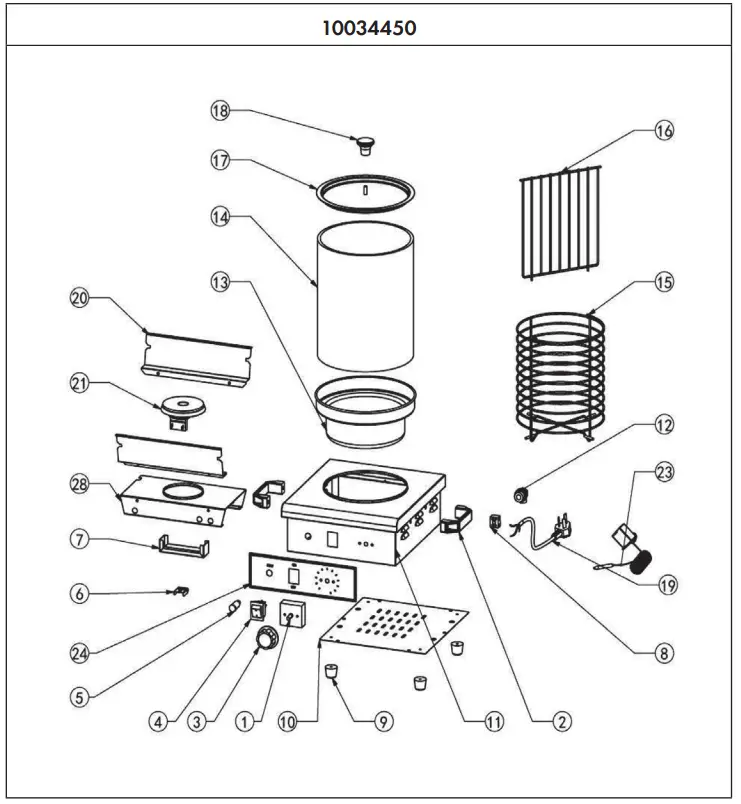

EXPLODED DRAWINGS
| 1 Thermostat 2 Handle 3 Knob 4 Switch 5 Heat indicator light 6 Probe tableting 7 Heating element 8 Terminal block 9 Rubber feet 10 Baseboard 11 Body 12 Cable | 13 Water trap 14 Glass cylinde 15 Hot dog basket 16 Basket division plate 17 Upper cover 18 Cover handle 19 Power 20 Heat reflector 21 Heating element 23 Temperature limiter 24 PVC 28 Inner cross girder |

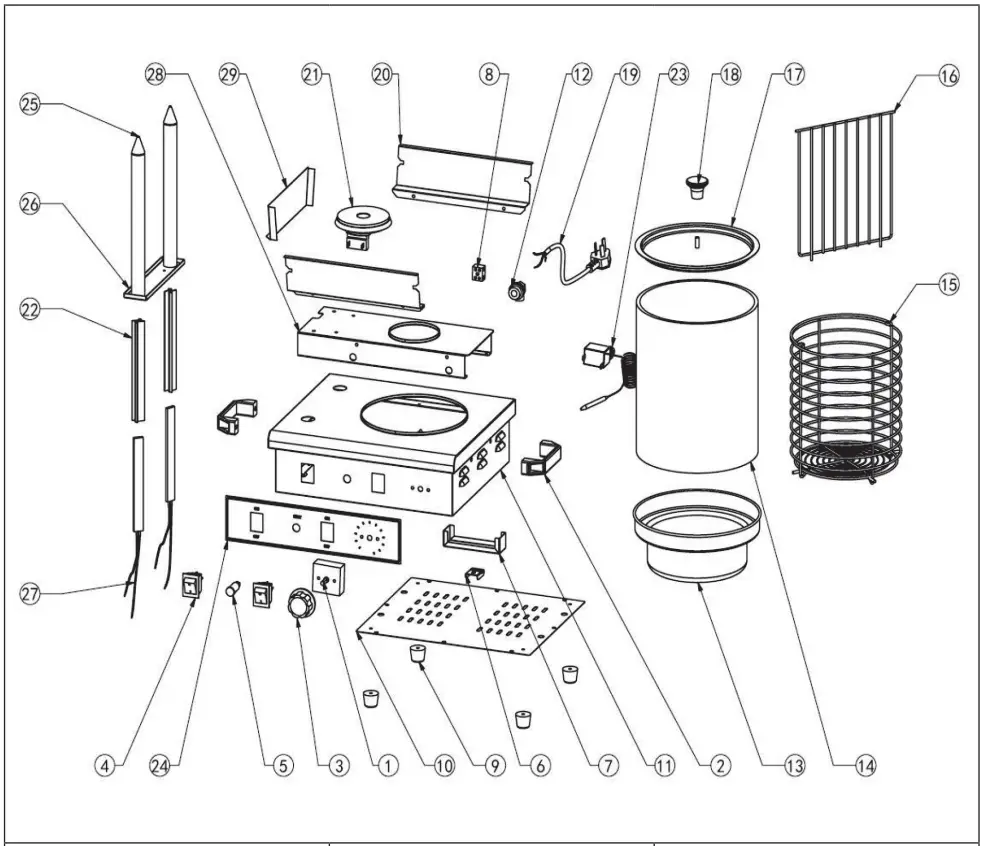

10034453
| 1 Thermostat 2 Handle 3 Knob 4 Switch 5 Heating indicator light 6 Probe tableting 7 Heating element 8 Terminal block 9 Rubber feet 10 Baseboard | 11 Body 12 Cable head 13 Water trap 14 Glass cylinder 15 Hot dog basket 16 Basket division plate 17 Upper cover 18 Cover handle 19 Cable 20 Heat reflector | 21 Heating element 22 Anchor tab 23 Temperature limiter 24 PVC plate 25 Pointed Sticker 26 Pointed Sticker Hanger 27 Electric heating 28 inner cross girder 29 middle cross girder |

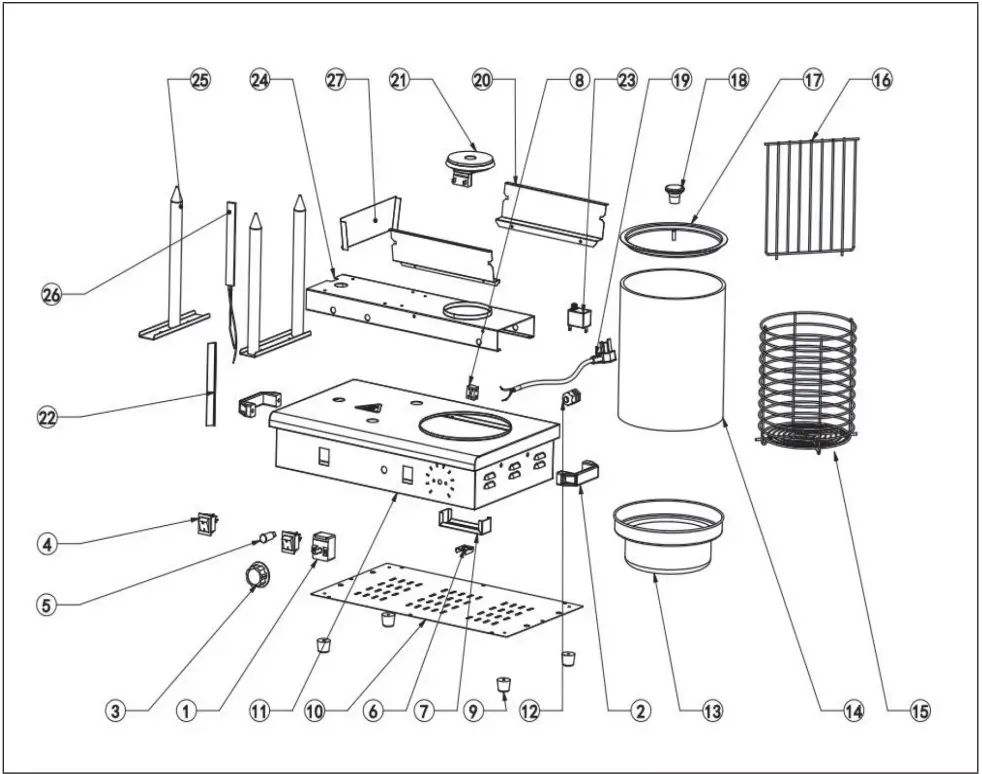

10034454
| 1 Thermostat 2 Handle 3 Knob 4 Switch 5 Heating indicator light 6 Probe tableting 7 Heating element 8 Terminal block 9 Rubber feet 10 Baseboard | 11 Body 12 Cable head 13 Water trap 14 Glass cylinder 15 Hot dog basket 16 Basket division plate 17 Upper cover 18 Cover handle 19 Cable 20 Heat reflector | 21 Heating element 22 Anchor tab 23 Temperature limiter 24 Inner cross girder 25 Pointed sticker 26 Electric heating 27 Middle cross girder |
HINTS ON DISPOSAL
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
