Ultinon Pro
H7-LED
Achtung!
Please check the car installation manual and follow the instructions for lamp replacement.

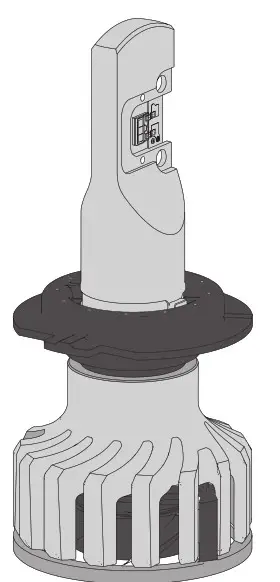

H7-LED

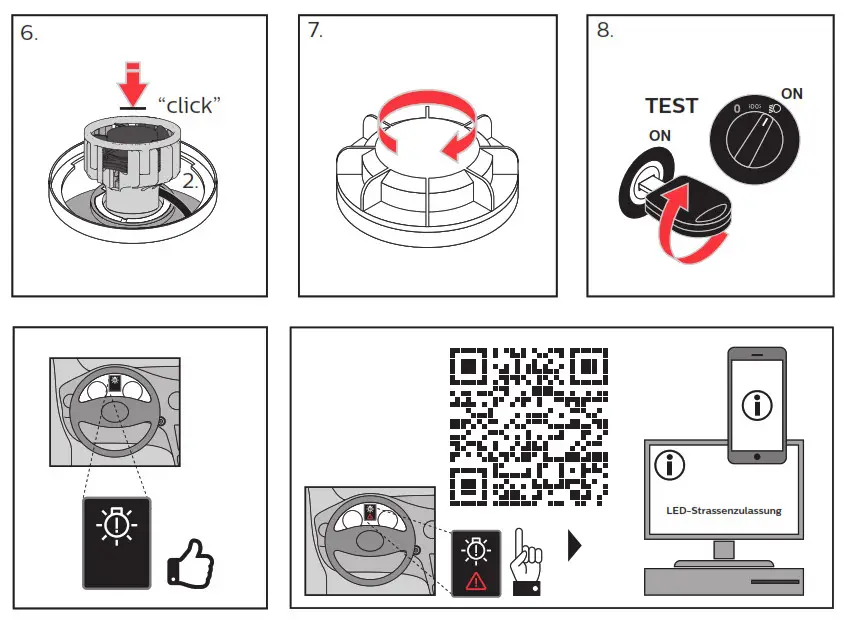

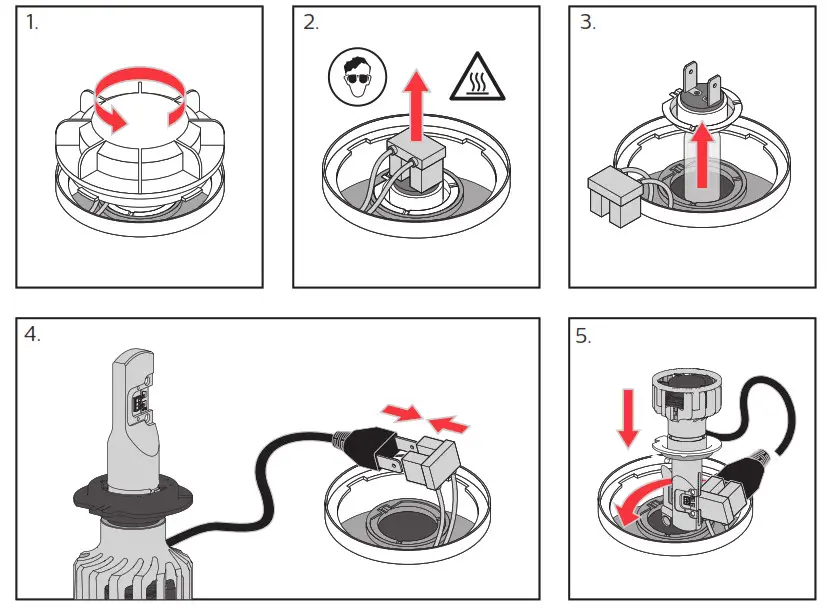

Option 1 (Feder)
http://www.philips.de/LED-Strassenzulassung

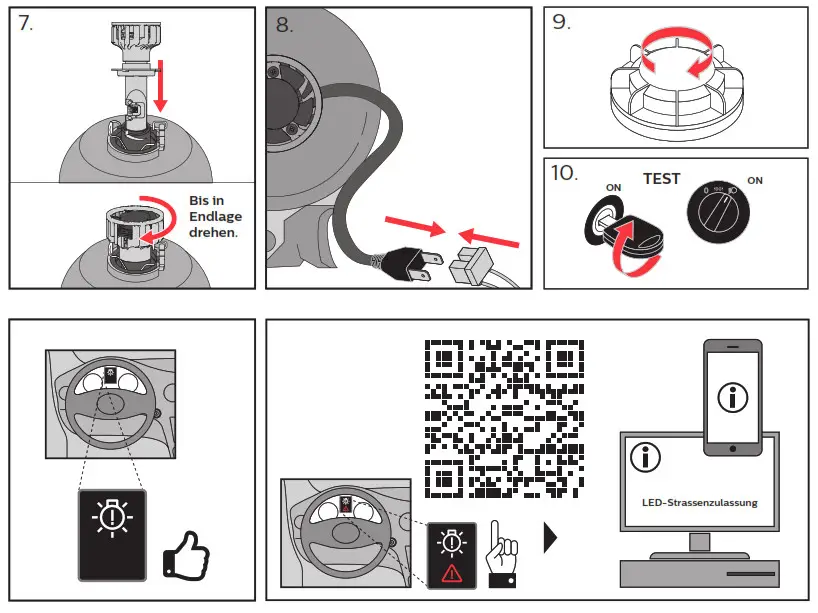

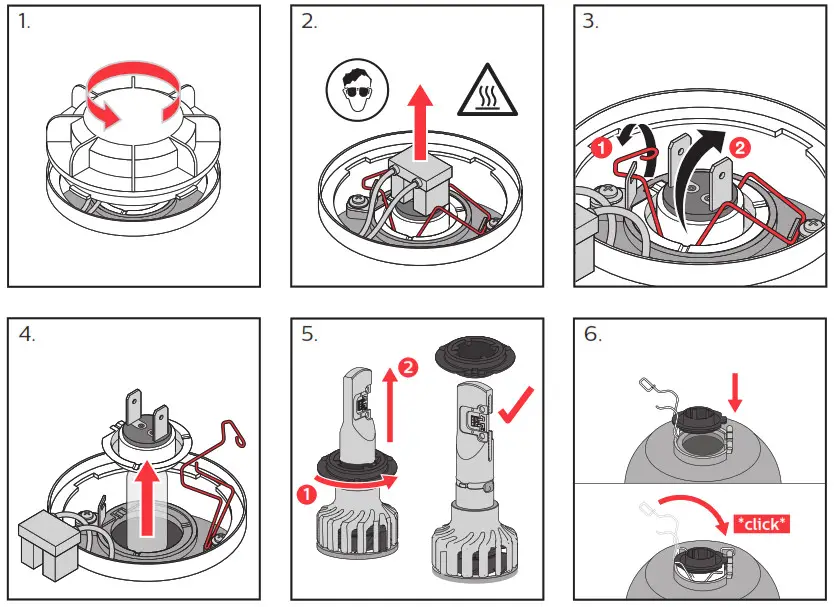

Option 2 (Feder-Klammer)
http://www.philips.de/LED-Strassenzulassung

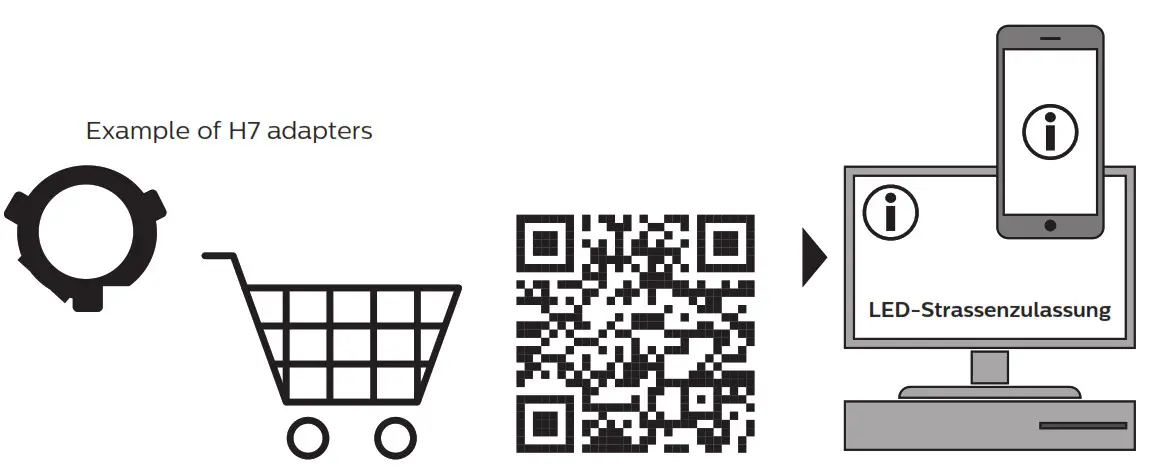

Option 3 (Adapter Ring)
http://www.philips.de/LED-Strassenzulassung
Please check the allowed scope of application with the compatibility of your vehicle.
| PKW Modell Car model | Adapter Ring Typ Adapter ring type |
| #1 | “abc” |
| #2 | … |
Detailed Information in the specific installation instructions of the adapter

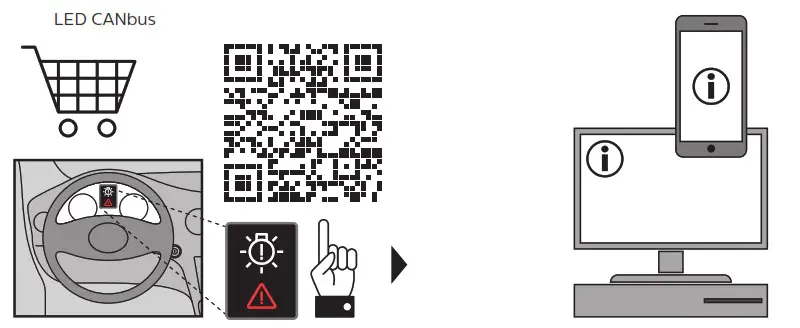

H7-LED CANbus
www.philips.de/LED-Strassenzulassung
Allgemeine Anleitung

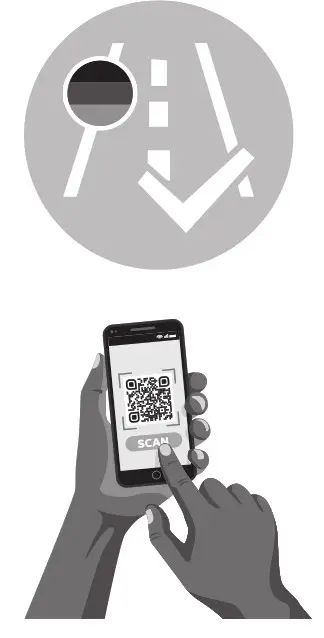

How to get general type approval (ABG) for use in your vehicle on public roads:

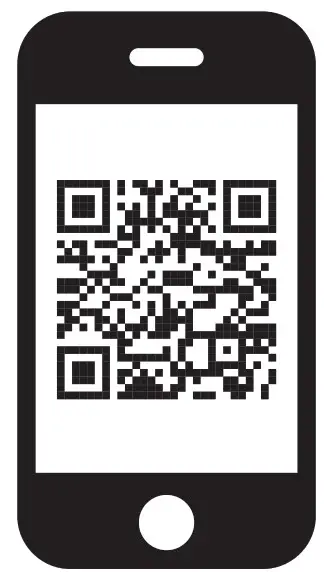

- Scan the QR code on the top of the packaging to authenticate the product and download the ABG certificate.

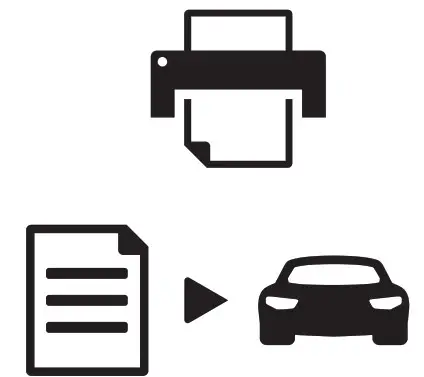

www.philips.de/LED-Strassenzulassung - Print out the approval document (ABG).
- Keep the approval certificate (ABG) at all times with you in the vehicle.
You are responsible to comply with all applicable legal requirements.
This LED replacement light source is only approved for right-hand traffic. Before entering a country with left-hand traffic, the LED lamp must be replaced by a halogen lamp.
Please check the car installation manual and follow the instructions for lamp replacement.
Please change lamps in pairs.
The LED light source, cables, and components must be mounted in a way that the headlamp won‘t be damaged and that its function is maintained. All parts must be fixed safely.
Check correct position and safe fixation of LED lamp within the lamp holder.
The replacement of the lamp in the headlamp requires inspection and eventually adjustment of headlamp setting by a qualified garage.
The replacement of the halogen lamp by an LED light source may affect the deicing and defogging behavior of the headlamp.
The LED light intensity is very high while turned on. Do not look directly into the beam to avoid damage to the eyes.
Please wear safety glasses while replacing halogen lamps

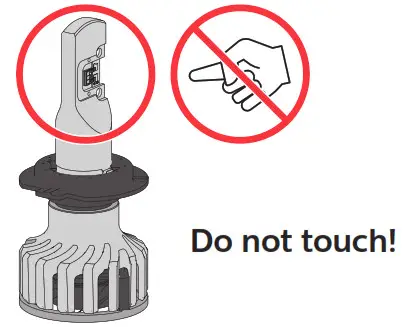

Lamps will heat up during operation. Do not touch. Please let it cool down in order to avoid potential injury due to contact with a hot surface.
Please wear safety gloves to avoid injuries during mounting.
Keep out of reach of children.
http://www.philips.de/LED-Strassenzulassung
Lumileds is the warrantor of this product.
Philips and the Philips Shield Emblem have registered trademarks of Koninklijke Philips N.V. and are used under license.
© 2021 Lumileds Holding B.V. All rights reserved.
